OCCUPANT RESTRAINT SYSTEMS
11 6
If your steering wheel is adjustable, tilt it downward.
This points the airbag toward your chest instead of
your head and neck.
The seat should be adjusted as recommended by
NHTSA above, while still maintaining control of the foot
pedals, steering wheel, and your view of the instrument
panel controls.
Front passenger seat
CAUTION
The SRS front passenger airbag also deploys with
considerable force, and can cause death or serious
injury especially if the front passenger is very close to
the airbag. The front passenger seat should be as far
from the airbag as possible with the seatback adjusted,
so the front passenger sits upright.
Front seats (with SRS side airbags)
CAUTION
The SRS side airbags are installed in the driver and front
passenger seats. Observe the following precautions.
 Do not lean against the front door when the vehicle
is in use, since the side airbag inflates with
considerable speed and force. Otherwise, you may
be killed or seriously injured.
 Do not use seat accessories which cover the area
where the side airbags inflate. Such accessories may
prevent the side airbags from activating correctly,
causing death or serious injury.
 Do not modify or replace the seats or upholstery of
the seats equipped with side airbags. Such changes
may prevent the side airbag system from activating
correctly, disable the system or cause the side
airbags to inflate accidentally, resulting in death or
serious injury.

OCCUPANT RESTRAINT SYSTEMS
121
NOTICE
Avoid putting heavy loads on the removed seat. Themetallic tips of the seat legs may be damaged and theseat cannot be reinstalled.
Tumbling, folding up or removing the seats will enlarge the
luggage compartment. See Stowage precautionsº on page
457 for precautions when loading luggage.
Adjusting rear seats

Second seat

Third seat
Lean forward and pull the lock release lever. Then lean
back to the desired angle and release the lever.

OCCUPANT RESTRAINT SYSTEMS
122
CAUTION
To reduce the risk of sliding under the lap belt during a
collision, avoid reclining the seatback any more than
needed. The seat belts provide maximum protection
when the passengers are sitting up straight and well
back in the seats. If you are reclined, the lap belt may
slide past your hips and apply restraint forces directly
to the abdomen. In the event of a frontal collision, the
more the seat is reclined, the greater the risk of personal
injury.
Tumbling second seat (for third seat entry)
Vehicles with third seat: For easy access to the third seat,
tumble the second seat in accordance with the following
procedure.
Before tumbling the second seat, stow the second seat
buckles as shown above.
This prevents the buckles from falling out when you fold up the
second seat.
Vehicles with rear seat audio system or rear seat
entertainment system: Before tumbling the second seat,
close the headphone input jack lid.

OCCUPANT RESTRAINT SYSTEMS
123
NOTICE
The seat belt buckles must be stowed before youtumble the second seat.
The headphone input jack lid of the rear seat audiosystem or the rear seat entertainment system mustbe closed before you tumble the second seat.
1. Lower the head restraints to the lowest position.2. Fold down the seatbacks while pulling the lock release
levers and swing the whole seats up and forward until they
are locked.

OCCUPANT RESTRAINT SYSTEMS
125
CAUTION
When returning the seats to their original position,
observe the following precautions in order to prevent
personal injury in a collision or sudden stop:
Be careful not get your hands or feet pinched in the
seat.
 Make sure the seats are securely locked by pushing
forward and rearward on the top of the seatbacks or
by trying to pull up the edge of the bottom cushions.
Failure to do so will prevent the seat belt from
operating properly.
 Make sure the seat belts are not twisted or caught
under the seat and are arranged in their proper
position and are ready to use.
Folding up third seats
Stow the rear seat belt buckles as shown above.

OCCUPANT RESTRAINT SYSTEMS
126

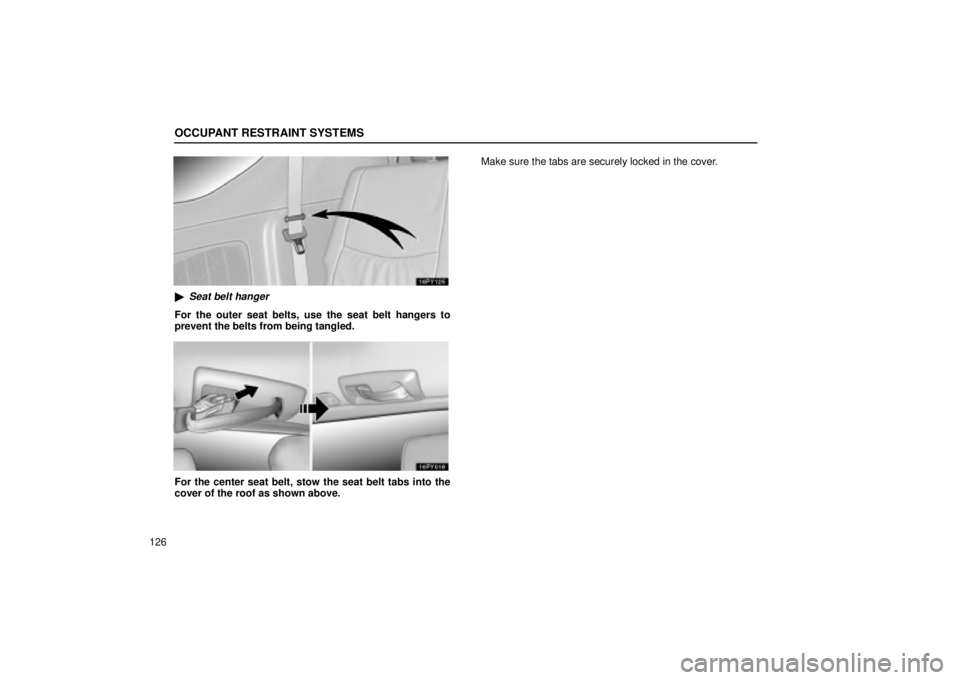

Seat belt hanger
For the outer seat belts, use the seat belt hangers to
prevent the belts from being tangled.
For the center seat belt, stow the seat belt tabs into the
cover of the roof as shown above.Make sure the tabs are securely locked in the cover.

OCCUPANT RESTRAINT SYSTEMS
127
To release the concave end tab, see page 145 for instructions.
NOTICE
The seat belts and the buckles must be stowed before
you fold up the seats.
1. Lower the outside head restraints to the lowest position
and remove the center head restraint.2. Unfasten the zippers behind the right side seatback and
stow the center head restraint into the seatback.

OCCUPANT RESTRAINT SYSTEMS
129
CAUTION
When folding up the third seats, fix the seats securely
by adjusting the length of the holding strap. Failure to
do so may cause an unexpected injury in the event of
emergency braking or collision.
When the third seat to its original position, stow the holding
straps into the holders facing the direction shown in the
illustration.
To return them to the original positions, reverse the steps
above.
CAUTION
When returning the seats to their original position,
observe the following precautions in order to prevent
personal injury in a collision or sudden stop:
Be careful not get your hands or feet pinched in the
seat.
 Make sure the seats are securely locked by pushing
forward and rearward on the top of the seatbacks or
by trying to pull up the edge of the bottom cushions.
Failure to do so will prevent the seat belt from
operating properly.
 Make sure the seat belts are not twisted or caught
under the seat and are arranged in their proper
position and are ready to use.

OCCUPANT RESTRAINT SYSTEMS
130
Removing third seats
Stow the rear seat belt buckles as shown above.

Seat belt hanger
For the outer seat belts, use the seat belt hangers to
prevent the belts from being tangled.
For the center seat belt, stow the seat belt tabs into the
cover of the roof as shown above.

OCCUPANT RESTRAINT SYSTEMS
132To release the concave end tab, see page 145 for instructions.
NOTICE
The seat belts and the buckles must be stowed before
you remove the seats.
1. Lower the outside head restraints to the lowest position
and remove the center head restraint.2. Unfasten the zippers behind the right side seatback and
stow the center head restraint into the seatback.
