IN CASE OF AN EMERGENCY
467
4Connect the clamp at the other end of the negative (black)
cable to a solid, stationary, unpainted metallic point (e.g.
engine hanger) away from the battery. Do not connect it
to or near any part that moves when the engine is
cranked.
CAUTION
When making the connections, to avoid serious injury,
do not lean over the battery or accidentally let the
jumper cables or clamps touch anything except the
correct battery terminals or the ground.
5. Charge the discharged battery with the jumper cables
connected for approximately 5 minutes. At this time, run the
engine in the vehicle with the booster battery at about 2000 rpm
with the accelerator pedal lightly depressed.
6. Start your engine in the normal way. After starting, run it at
about 2000 rpm for several minutes with the accelerator pedal
lightly depressed.
7. Carefully disconnect the cables in the exact reverse order:
the negative cable and then the positive cable.
8. Carefully di spose of the battery cover cloths which may now
contain sulfuric acid.
9. If removed, replace all the battery vent plugs.
If the cause of your battery discharging is not apparent (for
example, lights left on), you should have it checked at your
Lexus dealer. If the first start attempt is not successful...
Check
that the clamp on the jumper cables are tight. Recharge
the discharged battery with the jumper cables connected for
several minutes and restart your engine in the normal way.
If the another attempt is not successful, the battery may be
depleted. Have it checked at your Lexus dealer.

IN CASE OF AN EMERGENCY
468
IF YOU CANNOT INCREASE THEENGINE SPEED
If the engine speed does not increase with the accelerator
pedal depressed down, there may be a problem somewhere
in your electronic throttle control system.
At this time, vibration may occur. However, if you depress the
accelerator pedal more firmly and slowly, you can drive your
vehicle at low speeds. Have your vehicle checked by your
Lexus dealer as soon as possible.
Even if the abnormality of the electronic throttle control system
is corrected during low speed driving, the system may not be
recovered until the engine is stopped and the ignition key is
turned to ACCº or LOCKº position.
CAUTION
Be especially careful to prevent erroneous pedal
operation.
IF YOUR VEHICLE OVERHEATS
If your engine coolant temperature gauge indicates
overheating, if you experience a loss of power, or if you
hear a loud knocking or pinging noise, the engine has
probably overheated.
When the engine overheats
Pull safely off the road, stop the vehicle and turn on your
emergency flashers. Put the transmission in Pº and apply the
parking brake.
A: If steam is coming from your engine:
Turn off the engine. Leave the hood closed until there is no sign
of steam or coolant. Your engine could have been seriously
damaged already. Call your Lexus dealer for assistance.
CAUTION
To help avoid personal injury, keep the hood closed until
there is no steam. Escaping steam or coolant is sign of
very high pressure.

IN CASE OF AN EMERGENCY
469
B: If no steam is coming from your engine:
Leave the engine running and turn off the air conditioning.
Check the following.

Is the cooling fan operating?
 Is the coolant in the acceptable range?
 Is the engine drive belt O.K.?
CAUTION
When the engine is running, keep hands and clothing
away from the moving fan and engine drive belt.
 Do not attempt to remove the radiator cap when the
engine and radiator are hot. Serious injury could
result from scalding hot fluid and steam blown out
under pressure.
If the cooling fan is not operating or the coolant is not in the
acceptable range, turn off the engine and call your Lexus
dealer.
If both conditions are O.K., after the engine coolant
temperature has cooled to normal, continue driving your
vehicle.
If the engine coolant temperature does not cool down, or your
vehicle overheats again, have it checked as soon as possible
by your Lexus dealer.
IF YOU HAVE A FLAT TIRE
1. Reduce your speed gradually, keeping a straight
line. Move cautiously off the road to a safe place
Ð well away from the traffic. Avoid stopping on the
center divider of a highway. Park on a level spot with
firm ground.
2. Stop the engine and turn on your emergency
flashers.
3. F i r m l y s e t t h e p a r k i n g b r a k e a n d p u t t h e
transmission in Pº.
4. Have everyone get out of the vehicle on the side
away from traffic.
5. Read the following instructions thoroughly.
CAUTION
When jacking, be sure to observe the following
to reduce the possibility of personal injury:
Turn off the active height control suspension
by pushing the active height control switch.
 Follow jacking instructions.
 Do not put any part of your body under a
vehicle supported by a jack. Personal injury
may occur.

IN CASE OF AN EMERGENCY
493
CAUTION
Use extreme caution when towing the vehicle. Avoid
sudden starts or erratic driving maneuvers which would
place excessive stress on the emergency towing eyelet
and towing cable or chain. The eyelet and towing cable
or chain may break and cause serious injury or damage.
NOTICE
Use only a cable or chain specifically intended for use in towing vehicles. Securely fasten the cable or chainto the towing eyelet provided.
Before towing, check that the center differential is unlocked.
(The indicator light must be off with the ignition on.) Release
the parking brake and put the transmission in Nº. The ignition
key must be in ACCº (engine off) or ONº (engine running).CAUTION
If the engine is not running, the power assist for the
brakes and steering will not work so steering and
braking will be much harder than usual.
Emergency towing hook precautions:
 Before emergency towing, check that the eyelet is not
broken or damaged and that the installation bolts are not
loose.
 Fasten the towing cable or chain securely to the hook.
 Do not jerk the eyelet. Apply steady and even force.
 To avoid damaging the eyelet, do not pull from the side or at
a vertical angle. Always pull straight ahead.

IN CASE OF AN EMERGENCY
495
3Push down the shift lock override button. You can shift out
of Pº position only while pushing the button.
4Shift into Nº position.
Insert the cover. Start the engine. For your safety, keep
the brake pedal depressed.
Be sure to have the system checked by your Lexus dealer as
soon as possible.
LEXUS LINK SYSTEM (U.S.A. ONLY)
The Lexus Link System is an in-vehicle communications
service that provides you with enhanced safety, security
and convenience. With an active subscription you can
push the SERVICESº button for operator assistance or in
an emergency situation such as a vehicle accident (in
which the airbag was activated), you will automatically be
connected to the Lexus Link Call Center which will assist
you and/or send help 24 hours a day, 7 days a week.
The Lexus Link System can also record your voice or your
conversation with the Lexus Link Call Center Advisor.

MAINTENANCE
516Your copy of the repair order is proof that all required
maintenance has been performed for warranty coverage. If
any problems should arise with your vehicle while under
warranty,
your Lexus dealer will promptly take care of it. Again,
be sure to keep a copy of the repair order for any service
performed on your Lexus.
What about do-it-yourself maintenance?
Many of the maintenance items are easy to do yourself, if you
have a little mechanical ability and a few basic automotive
tools. Simple instructions for how to perform them are
presented in Section 6.
If you are a skilled do-it-yourself mechanic, the Lexus service
manuals are recommended. Please be aware that
do-it-yourself maintenance can affect your warranty
coverage. See your Owner's Guideº, Owner's Manual
Supplementº or Warranty Bookletº for the details.
GENERAL MAINTENANCE
Listed below are the general maintenance items that should be
performed at the intervals specified. It is recommended that
any problem you notice be brought to the attention of your
Lexus dealer or qualified service shop for their advice.
CAUTION
Make these checks only with adequate ventilation if you
run the engine.
Engine compartment
Items listed below should be checked from time to time,
e.g. each time when refueling.
Washer fluid
Make sure there is sufficient fluid in the tank. See page 602 for
additional information.
Engine coolant level
Make sure the coolant level is between the Fº and Lº lines on
the see-through reservoir when the engine is cold. See page
547 for additional information.
Radiator, condenser and hoses
Check that the front of the radiator and condenser are clean
and not blocked with leaves, dirt, or insects. See page 549 for
additional information.

MAINTENANCE
517
Battery
Check the battery condition by the indicator color. See page
592 for additional information.
Brake fluid level
Make sure the brake fluid level is correct. See page 556 for
additional information.
Engine oil level
Check the level on the dipstick with the engine turned off and
the vehicle parked on a level spot. See page 542 for
additional
information.
Power steering fluid level
Check the level through the reservoir. The level should be in
the HOTº or COLDº range depending on the fluid
temperature. See page 557 for additional information.
Exhaust system
If you notice any change in the sound of the exhaust or smell
exhaust fumes, have the cause located and corrected
immediately. (See Engine exhaust cautionº on page 372.)
Vehicle interior
Items listed below should be checked regularly, e.g. while
performing periodic services, cleaning the vehicle, etc.
Lights
Make sure the headlights, stop lights, tail lights, turn signal
lights, and other lights are working. Check headlight aim. Service reminder indicators and warning buzzers
Check
that all service reminder indicators and warning buzzers
function properly.
Steering wheel
Check that it has the specified free play. Be alert for changes
in steering condition, such as hard steering, excessive free
play or strange noise.
Seats
Check that all front seat controls such as seat adjusters,
seatback recliner, etc. operate smoothly. Check that the head
restraints move up and down smoothly and that the locks hold
securely in any latched position. For folding-up second and
third seats, and detachable third seat, check that the latches
lock securely.
Seat belts
Check that the seat belt system such as buckles, retractors
and anchors operate properly and smoothly. Make sure the
belt webbing is not cut, frayed, worn or damaged.
Accelerator pedal
Check the pedal for smooth operation and uneven pedal ef fort
or catching.
Brake pedal
Check the pedal for smooth operation and the proper
clearance and free play. Check the brake booster function.

MAINTENANCE
518Brakes
At a safe place, check that the brakes do not pull to one side
when applied.
Parking brake
Check that the lever has the proper travel and that, on a safe
incline,
your vehicle is held securely with only the parking brake
applied.
Automatic transmission Parkº mechanism
Check the lock release button of the selector lever for proper
and smooth operation. On a safe incline, check that your
vehicle is held securely with the selector lever in Pº position
and all brakes released.
Vehicle exterior
Items listed below should be performed from time to time,
unless otherwise specified.
Fluid leaks
Check underneath for leaking fuel, oil, water or other fluid after
the vehicle has been parked for a while. If you smell fuel fumes
or notice any leak, have the cause found and corrected
immediately.
Doors and engine hood
Check that all side doors and back door, operate smoothly and
all latches lock securely. Make sure the engine hood
secondary latch secures the hood when the primary latch is
released.
Tire inflation pressure
Check the pressure with a gauge every two weeks,
or at least once a month and adjust as shown on the
tire pressure label. See page 559 for additional
information.
Tire surface
Check the tires carefully for cuts, damage or
excessive wear. See page 574 for additional
information.
Wheel nuts
When checking the tires, make sure to check the nuts
for looseness. Tighten them if necessary.
Tire rotation
Rotate the tires according to the maintenance
schedule. (For scheduled maintenance information,
please refer to the Owner's Manual
Supplement/Scheduled Maintenanceº.) See page 573
for additional information.

MAINTENANCE
519
DOES YOUR VEHICLE NEEDREPAIRING?
Be on the alert for changes in performance and sounds, and
visual tip-offs that indicate service is needed. Some important
clues are:

Engine missing, stumbling, or pinging

Appreciable loss of power

Strange engine noises

A fluid leak under the vehicle (However, water dripping from
the air conditioning after use is normal.)

Change in exhaust sound (This may indicate a dangerous
carbon monoxide leak. Drive with the windows open and
have the exhaust system checked immediately.)

Flat-looking tires, excessive tire squeal when cornering,
uneven tire wear

Vehicle pulls to one side when driving straight on a level
road

Strange noises related to suspension movement

Loss of brake effectiveness, spongy feeling brake pedal,
pedal almost touches floors, vehicle pulls to one side when
braking

Engine coolant temperature continually higher than normal If you notice any of these clues, take your vehicle to your Lexus
dealer as soon as possible. It probably needs adjustment or
repair.
CAUTION
Do not continue driving with the vehicle unchecked. It
could result in serious vehicle damage and possibly
personal injury.

INTRODUCTION
526

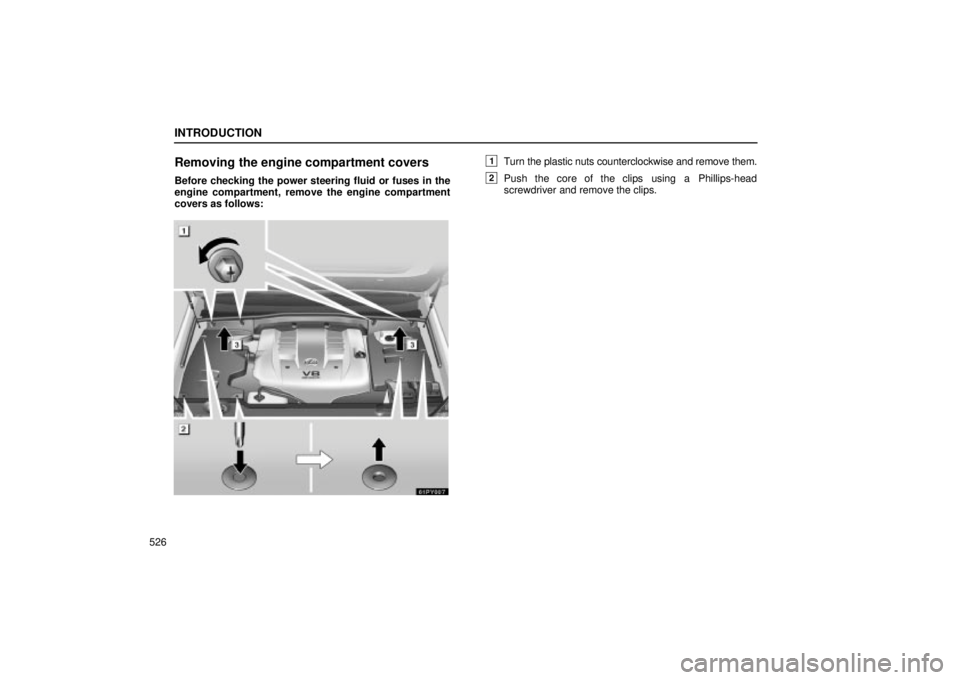

Removing the engine compartment covers
Before checking the power steering fluid or fuses in the
engine compartment, remove the engine compartment
covers as follows:
61PY007
1Turn the plastic nuts counterclockwise and remove them.
2Push the core of the clips using a Phillips-head
screwdriver and remove the clips.
