Lexus GX470 2004 Engine / LEXUS 2004 GX470 FROM NOV. 2003 THROUGH DEC. 2003 PROD. OWNER'S MANUAL (OM60A74U)

AUDIO
284(c) Selecting a desired track
TRACKº button: Use for direct access to a desired track.
Push the
º or º (TUNE/TRACK) button several times until
the desired track number appears on the display. As you
release the button, the player will start playing the selected
track from the beginning.
Fast forwardº button:
Push the
º (TUNE/TRACK) and hold it to fast forward the
disc. When you release the button, the compact disc player will
resume playing from that position.
Reverseº button:
Push the
º (TUNE/TRACK) and hold it to reverse the disc.
When you release the button, the compact disc player will
resume playing.(d) If the player malfunctions
If the player or another unit equipped with the player
malfunctions, your audio system will display one of the four
following error messages.
If WAITº appears on the display: It indicates that the inside
of the player unit may be too hot due to the very high ambient
temperature. Remove the disc from the player and allow the
player to cool down.
If ERROR 1º appears on the display: It indicates that the
disc is dirty, damaged, or it was inserted up-side down. Clean
the disc or insert it correctly.
If ERROR 3º or ERROR 4º appears on the display: It
indicates there is a trouble inside the system. Eject the disc.
If the malfunction is not rectified: Take your vehicle to your
Lexus dealer.

AUDIO
285
Replacing controller battery
For replacement, use a CR2025 lithium battery or equivalent.CAUTION
Special care should be taken that small children do not
swallow the removed battery or components.
NOTICE
When replacing the battery, be careful not to lose the
components.
Replace only with the same or equivalent type of
battery recommended by a Lexus dealer.
Dispose of used batteries according to the local
regulations.

AUDIO
286
1. Pull the case out while pushing the lock release button to the
side.2. Remove the discharged battery.
3. Put in a new battery with the positive (+) side up.
4. Put in the case securely.
NOTICE
Make sure that the positive side of the controller
battery is facing correctly.
Do not replace the battery with wet hands. Water may
cause rust.
Do not touch or move any components inside of the
controller, or it may interfere with proper operation.
Be careful not to bend the electrode of the controller
battery insertion and that dust or oil does not adhere
to the transmitter case.
Close the battery case securely.

AUDIO
287 After replacing the battery, check that the controller operates
properly. If the controller still does not operate properly, contact
your Lexus dealer.
Headphone input jacks
To use the jack, push the lid.
You can enjoy the rear seat audio system with commercial
headphone.
To use the headphones, connect them to the jack.
The key must be in the ACCº or ONº position.

AUDIO
288
To adjust the volume of the headphones, turn the knob.
Turn right to increase the volume. Turn left to decrease the
volume.
The maximum volume depends on the type of headphones.With some headphone generally available in the market, it may
be difficult to catch sound properly. Lexus recommends the
use of Lexus genuine headphone.
Please contact your Lexus dealer for further details.
Wireless headphone: You can also enjoy the rear seat audio
system with a wireless headphone. For details, ask your Lexus
dealer.
CAUTION
Adjust the volume when you connect the headphones
to the jack. Loud sounds may have a significant impact
on the human body.
NOTICE
The headphone input jack lid must be closed before you
tumble the second seat.

AUDIO
289
REAR SEAT ENTERTAINMENT
SYSTEM
22PY140

1Front audio system
2Rear seat entertainment system display
3Rear seat entertainment system controller
4DVD player
5Power outlet
6Input terminal adapter
7Headphone volume control dials
8Headphone input jacks
9Controller holder
10Power outlet main switch

AUDIO
290Display
To use the display, push the lock release button and lower
the display until you hear a click.
You can adjust the display to your desired angle.
To close, push up the display until you hear a click.
The illumination of the screen is automatically turned off when
the display is closed. However, the rear seat entertainment
system is not turned off.
CAUTION
To reduce the chance of injury in case of an accident or
sudden stop while driving, close the display when it is
not in use.

AUDIO
291
NOTICE
The screen should be cleaned with a dry soft cloth.
If the screen is pushed by hand or wiped with a hard
cloth, the surface of the screen may be scratched.
Benzene or alkaline solutions may damage the
coated surface of the screen.

To prevent the battery from being discharged, do not
turn on the rear seat entertainment system longer
than necessary when the engine is not running.

AUDIO
292
Rear seat entertainment system controller
The rear seat entertainment system can be operated with
the rear seat entertainment system controller. The system
cannot be operated by touching the switches on the
screen directly.CAUTION
Do not disassemble or modify the controller. It may
cause an accident, fire or electric shock.
NOTICE
Keep the controller away from direct sunlight, high heat
and high humidity. These conditions could cause the
case to deform or the battery to explode or leak.

AUDIO

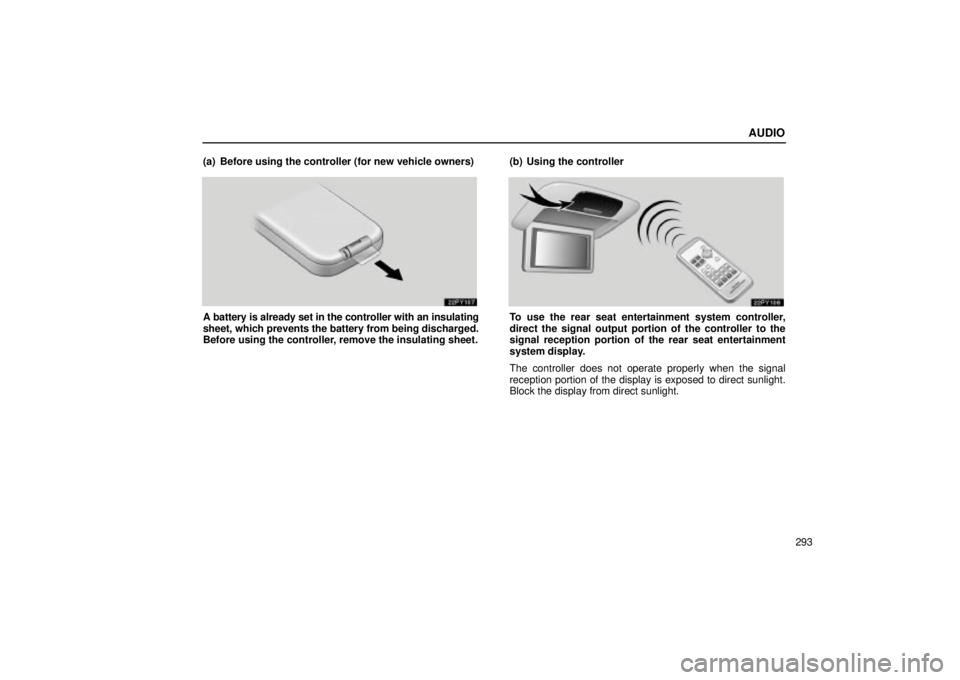

293 (a) Before using the controller (for new vehicle owners)
A battery is already set in the controller with an insulating
sheet, which prevents the battery from being discharged.
Before using the controller, remove the insulating sheet.(b) Using the controllerTo use the rear seat entertainment system controller,
direct the signal output portion of the controller to the
signal reception portion of the rear seat entertainment
system display.
The controller does not operate properly when the signal
reception portion of the display is exposed to direct sunlight.
Block the display from direct sunlight.
