phone Lexus GX470 2004 Engine / LEXUS 2004 GX470 FROM NOV. 2003 THROUGH DEC. 2003 PROD. OWNER'S MANUAL (OM60A74U)

OCCUPANT RESTRAINT SYSTEMS
123
CAUTION
To reduce the risk of sliding under the lap belt during a
collision, avoid reclining the seatback any more than
needed. The seat belts provide maximum protection
when the passengers are sitting up straight and well
back in the seats. If you are reclined, the lap belt may
slide past your hips and apply restraint forces directly
to the abdomen. In the event of a frontal collision, the
more the seat is reclined, the greater the risk of personal
injury.
Tumbling second seat (for third seat entry)
Vehicles with third seat: For easy access to the third seat,
tumble the second seat in accordance with the following
procedure.
Before tumbling the second seat, stow the second seat
buckles as shown above.
This prevents the buckles from falling out when you fold up the
second seat.
Vehicles with rear seat audio system or rear seat
entertainment system: Before tumbling the second seat,
close the headphone input jack lid.

OCCUPANT RESTRAINT SYSTEMS
124
NOTICE
The seat belt buckles must be stowed before you
tumble the second seat.
The headphone input jack lid of the rear seat audio
system or the rear seat entertainment system must
be closed before you tumble the second seat.
1. Lower the head restraints to the lowest position.2. Fold down the seatbacks while pulling the lock release
levers and swing the whole seats up and forward until they
are locked.

OCCUPANT RESTRAINT SYSTEMS
177
Do not attach a microphone or any other device or
object around the area where the curtain shield
airbag activates such as on the windshield glass,
side door glass, front and rear pillars, roof side rail
and assist grips. When the curtain shield airbag
inflates, the microphone or other device or object will
be thrown away with great force or the curtain shield
airbag may not activate correctly, resulting in death
or serious injury.
Do not hook a hanger, heavy or sharp pointed objects
on the coat hook. If the curtain shield airbag inflates,
those items will be thrown away with great force or
the curtain shield airbag may not activate correctly,
resulting in death or serious injury. When you hang
clothes, hang them on the coat hook directly.

AUDIO
249 (c) Your radio antennasThe wire antenna is mounted inside the quarter windows.
NOTICE
When cleaning the inside of the quarter windows, be
careful not to scratch or damage the wire antennas or
connectors.
Putting a window tint (especially, conductive or
metallic type) on the quarter windows may affect the
reception of radio or mobile telephone. For the
installation of the window tint, consult with your
Lexus dealer.
(d) Your cassette playerWhen you insert a cassette, the exposed tape should face to
the right.
NOTICE
Do not oil any part of the cassette player, and do not
insert anything except a cassette tape into the slot.

AUDIO
267
Car audio system operating hints
NOTICE
To ensure correct audio system operations:
Be careful not to spill beverages over the audio
system.
Do not put anything other than a cassette tape or
compact disc into the cassette tape slot or compact
disc slot.
The use of a cellular phone inside or near the vehicle
may cause a noise from the speakers of the audio
system which you are listening to. However, this
does not indicate a malfunction.
Radio reception
Usually, a problem with radio reception does not mean there is
a problem with your radio Ð it is just the normal result of
conditions outside the vehicle.
For example, nearby buildings and terrain can interfere with
FM reception. Power lines or telephone wires can interfere
with AM signals. And of course, radio signals have a limited
range. The farther you are from a station, the weaker its signal
will be. In addition, reception conditions change constantly as
your vehicle moves.
Here are some common reception problems that probably do
not indicate a problem with your radio:FM
Fading and drifting stations Ð Generally, the effective range
of FM is about 40 km (25 miles). Once outside this range, you
may notice fading and drifting, which increase with the distance
from the radio transmitter. They are often accompanied by
distortion.
Multi-path Ð FM signals are reflective, making it possible for
two signals to reach your antenna at the same time. If this
happens, the signals will cancel each other out, causing a
momentary flutter or loss of reception.
Static and fluttering Ð These occur when signals are
blocked by buildings, trees, or other large objects. Increasing
the bass level may reduce static and fluttering.

AUDIO
273
REAR SEAT AUDIO SYSTEM
The rear seat audio system is designed for the rear seat
passengers to enjoy the audio sound separately between
the front seats and the rear seats.
The rear seat audio system can be turned on with the rear
audio system controller even if the front audio system is off.
When the front audio is turned off, the rear audio system will be
turned off simultaneously.
The rear passengers can enjoy all the modes (AM and FM
radio, cassette tape player and compact disc player with
changer) with the rear seat audio system when a cassette tape
and a compact disc are loaded in the front audio system.
When the same mode is selected on the front and rear audio
systems at the same time, the system can be operated on the
front audio system.
If the radio mode is selected on the front and rear audio
systems at the same time, AM and FM modes cannot be
changed on the rear seat audio system.
22PY142

1Front audio system
2Rear seat audio system display
3Rear seat audio system controller
4Headphone input jacks
5Headphone volume control dials
6Controller holder

AUDIO
277

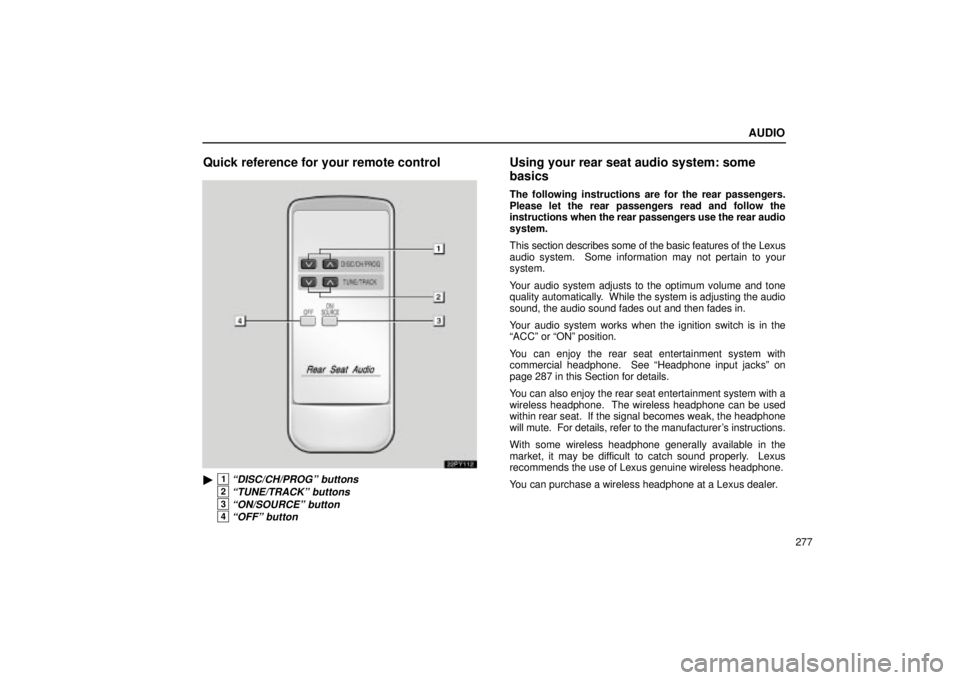

Quick reference for your remote control
22PY112

1DISC/CH/PROGº buttons
2TUNE/TRACKº buttons
3ON/SOURCEº button
4OFFº button
Using your rear seat audio system: some
basics
The following instructions are for the rear passengers.
Please let the rear passengers read and follow the
instructions when the rear passengers use the rear audio
system.
This section describes some of the basic features of the Lexus
audio system. Some information may not pertain to your
system.
Your audio system adjusts to the optimum volume and tone
quality automatically. While the system is adjusting the audio
sound, the audio sound fades out and then fades in.
Your audio system works when the ignition switch is in the
ACCº or ONº position.
You can enjoy the rear seat entertainment system with
commercial headphone. See Headphone input jacksº on
page 287 in this Section for details.
You can also enjoy the rear seat entertainment system with a
wireless headphone. The wireless headphone can be used
within rear seat. If the signal becomes weak, the headphone
will mute. For details, refer to the manufacturer's instructions.
With some wireless headphone generally available in the
market, it may be difficult to catch sound properly. Lexus
recommends the use of Lexus genuine wireless headphone.
You can purchase a wireless headphone at a Lexus dealer.

AUDIO
278
CAUTION
Do not drive with using the headphone. Otherwise,
you may be hard to hear the sound from the outside
while using the headphone and may cause an
accident.
With DVD player:
Conversational speech on some DVDs is recorded at
a low volume to emphasize the impact of sound
effects. If you adjust the volume assuming that the
conversations represent the maximum volume level
that the DVD will play, you may be startled by louder
sound effects or when you change to a different
audio source. Be sure to adjust the volume with this
in mind.
Make sure the volume is not increased, before you
turn on the headphone.
NOTICE
To prevent the battery from being discharged, do not
leave the car audio on longer than necessary when the
engine is not running.

AUDIO
287 After replacing the battery, check that the controller operates
properly. If the controller still does not operate properly, contact
your Lexus dealer.
Headphone input jacks
To use the jack, push the lid.
You can enjoy the rear seat audio system with commercial
headphone.
To use the headphones, connect them to the jack.
The key must be in the ACCº or ONº position.

AUDIO
288
To adjust the volume of the headphones, turn the knob.
Turn right to increase the volume. Turn left to decrease the
volume.
The maximum volume depends on the type of headphones.With some headphone generally available in the market, it may
be difficult to catch sound properly. Lexus recommends the
use of Lexus genuine headphone.
Please contact your Lexus dealer for further details.
Wireless headphone: You can also enjoy the rear seat audio
system with a wireless headphone. For details, ask your Lexus
dealer.
CAUTION
Adjust the volume when you connect the headphones
to the jack. Loud sounds may have a significant impact
on the human body.
NOTICE
The headphone input jack lid must be closed before you
tumble the second seat.
