Lexus GX470 2004 Engine / LEXUS 2004 GX470 FROM SEP. 2004 PROD. OWNER'S MANUAL (OM60B57U)

AIR CONDITIONING
252
INFORMATION
The air conditioning filter should be installed properlyin position. The use of air conditioning with the filterremoved may cause deteriorated dustproofperformance and then affect air conditioningperformance.

AIR CONDITIONING
253

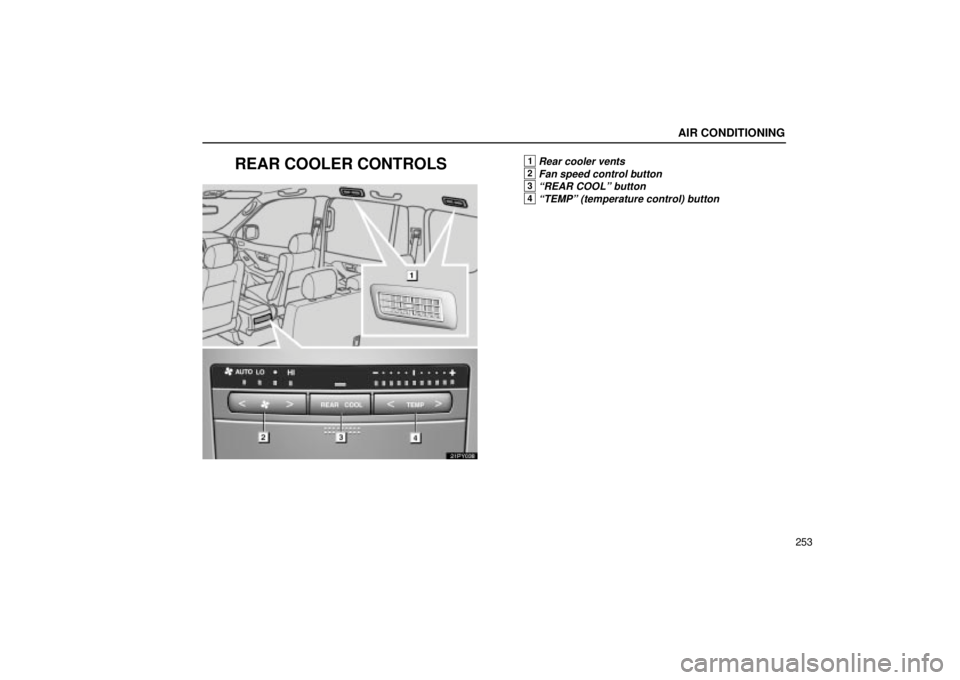

REAR COOLER CONTROLS
21PY038
1Rear cooler vents
2Fan speed control button
3REAR COOLº button
4TEMPº (temperature control) button

AIR CONDITIONING
254
(a) Rear cooler ON-OFF
To turn the rear cooler on, push the REAR COOLº button
with front air conditioning on. To turn the rear cooler off,
push the button once again.
When you turn the rear cooler on with the front air conditioning
off, the cooling device is not operated.
(b) Air flow control
The fan speed can be set to your desired speed by pushing
the appropriate side of the fan speed control button. AUTOº mode:
The fan speed is automatically adjusted only
when the air flow setting of the front air conditioning is in the
panel mode.
(c) Temperature control
The temperature of the cooled air can be adjusted between

10 F (
5C) of the temperature of the front air
conditioning system. Push the left side of the button to
lower the temperature.
NOTICE
To prevent the battery from being discharged, do not leave the rear cooler on longer than necessary when the
engine is not running.

AIR CONDITIONING
255

SECTION 2 ± 2
256
AIR CONDITIONING AND AUDIO
Audio
Audio system257
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Audio system operating hints 281
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . .
Rear seat audio system 288
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . . .
Rear seat entertainment system 304
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . .
Audio/video system operating hints 374
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . .
For Audio systemº instructions for vehicles
equipped with Navigation System, please refer tothe separate Navigation System Owner's Manualº.

AUDIO
257
AUDIO SYSTEM
Quick reference for your audio system
22PY029

You can adjust the brightness of the display. See Instrument panel light controlº on page 86 for details.If a Mark Levinson brand audio system is installed, the Mark Levinsonº\
logo is shown on the panel.

AUDIO
258
1Ejecting a compact disc
(See page 275 for details.)
2Compact disc slot
(See page 273 for details.)
3Display of functions in TAPE or CD mode
RPT: Automatic repeat
(See page 271 or 277 for details.)
:DOLBY NR
(See page 270 for details.)
Side change (See page 271 for details.)
 : Rewinding or reversing
(See page 271 or 277 for details.)


: Fast forwarding
(See page 271 or 277 for details.)
RAND: Random access
(See page 278 for details.)
:Disc selection
(See page 276 for details.)
4Station selector and function buttons
(See page 266 for details.)
5Radio mode: Scan tuning
(See page 267 for details.)
CD mode: Scan selection
(See page 276 for details.)
6Radio mode:Radio text message
(See page 269 for details.)
CD mode: Compact disc text
(See page 278 for details.)
7Compact disc load button
(See page 273 for details.)
8AUDIO´TUNE knob
(See page 261 for details.)
9Traffic announcement
(See page 268 for details.)
10Radio data system/program type
(See page 267 for details.)
11Mode selectors
(See page 260 for details.)
12Radio mode:Seek tuning
(See page 266 for details.)
TAPE mode: Direct access to a desired program
(See page 272 for details.)
CD mode: Direct access to a desired program
(See page 277 for details.)
13Cassette tape slot
(See page 270 for details.)
14Stopping and ejecting a cassette tape
(See page 270 for details.)
15Turning the system on and adjusting the volume
(See page 260 for details.)


:

AUDIO
259
Using your audio system: some basics
This section describes some of the basic features of the Lexus
audio system. Some information may not pertain to your
system. Your audio system adjusts to the optimum volume and tone
quality automatically. While the system is adjusting the audio
sound, the audio sound fades out and then fades in.
Your audio system works when the ignition switch is in the
ACCº or ONº position.
NOTICE
To prevent the battery from being discharged, do not
leave the audio system on longer than necessary whenthe engine is not running.

AUDIO
260(a) Turning the system on and off
Push this knob to turn the audio system on and off. Turn
this knob to adjust the volume.
The system turns on in the last mode used.
Push
the AMº, FMº, TAPEº or DISCº button to turn on
that mode. The selected mode turns on directly.
Push these buttons if you want to switch from one mode to
another.
If the tape or disc is not set, the cassette player or compact disc
player does not turn on.
You can turn off each player by ejecting the cassette tape or
compact disc. If the audio system was previously off, then the
entire audio system will be turned off when you eject the
cassette tape or compact disc. If the other function was
previously playing, it will come on again.
Vehicles with rear seat entertainment system Ð
The DISCº button may also be used to operate a DVD player.
Pressing the DISCº button changes between the CD player
and DVD player. When the DVD player is in operation, AUXº
appears on the display.

AUDIO
261
In the TAPEº or CDº mode, the applicable functions are
shown in the lowest part of the display. Push the switch
just below to turn on each function.
(b) Tone and balance
How good an audio program sounds to you is largely
determined by the mix of the treble, mid-range, and bass
levels. In fact, different kinds of music and vocal programs
usually sound better with different mixes of treble, mid-range
and bass.
A good balance of the left and right stereo channels and of the
front and rear sound levels is also important.
Keep in mind that if you are listening to a stereo recording or
broadcast, changing the right/left balance will increase the
volume of one group of sounds while decreasing the volume
of another.Each time you push the AUDIO´TUNEº knob, the display
changes as in the following. To adjust the tone and
balance or turn on or off the automatic sound levelizer,
turn the knob.
BAS: Adjusts low-pitched tones.
MID: Adjusts mid-pitched tones.
TRE: Adjusts high-pitched tones.
FAD: Adjusts the sound balance between the front and rear
speakers.
BAL: Adjusts the sound balance between the right and left
speakers.
ASL: Turns on or off the automatic sound levelizer.
