Lexus GX470 2004 Engine / LEXUS 2004 GX470 FROM SEP. 2004 PROD. OWNER'S MANUAL (OM60B57U)

SECTION 6 ± 4
602
SERVICE PROCEDURES AND
SPECIFICATIONS
Electrical components
Specifications603
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Checking battery condition 611
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . .
Battery recharging precautions 616
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . .
Checking and replacing the blade type fuses 617
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . .
Checking the cartridge type fuses 619
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . .
Adding washer fluid 621
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . . . . . .
Replacing light bulbs 622
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . . . . .

ELECTRICAL COMPONENTS
603
SPECIFICATIONS

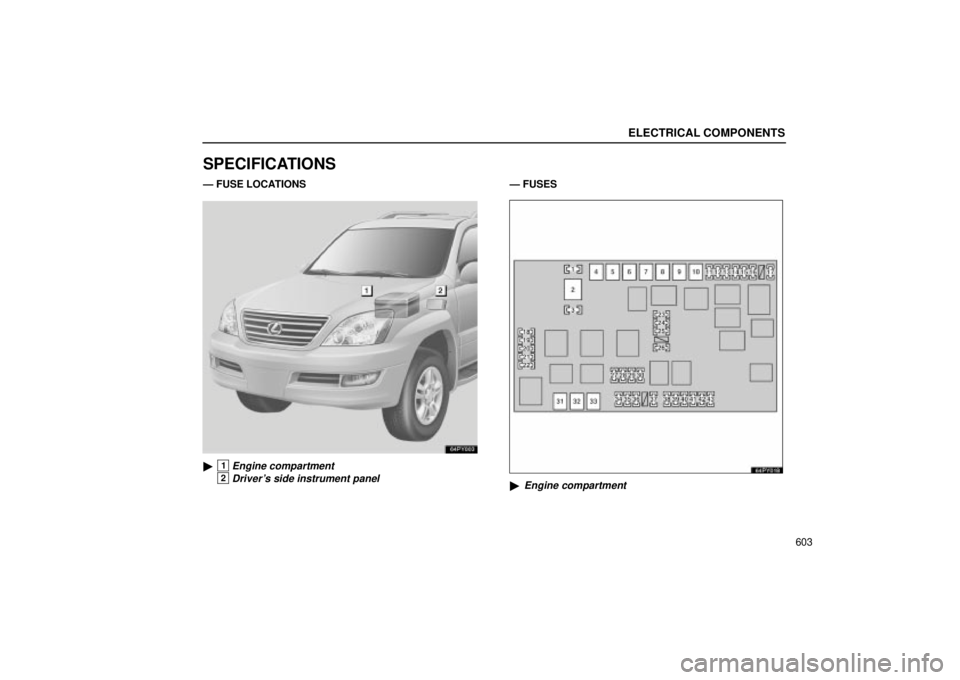

Ð FUSE LOCATIONS
64PY003

1Engine compartment
2Driver's side instrument panel
Ð FUSES

Engine compartment

ELECTRICAL COMPONENTS
604

Driver's side instrument panel

ELECTRICAL COMPONENTS
605
No.FUSEAMPERECIRCUIT
1SPARE10Spare fuse
2ALT140
Charging system and all
components in AM1º,
HEATERº, CDS FANº, FR
FOGº, DEFOGº, AIR SUSº,
AC115V INVº, SEAT HEATERº,
BATT CHGº, TOWING BRKº
and TOWINGº fuses
3SPARE15Spare fuse
4HEATER50Air conditioning system
5AIR
SUS50Rear height control air
suspension
6AM150
All components in ACCº, CIGº,
IG1º, FR WIP-WSHº, RR
WIPº, RR WSHº, DIFFº,
TEMSº and STAº fuses
7TOWING BRK30Trailer brake controller
8J/B50
All components in P FR P/Wº,
P RR P/Wº, D RR P/Wº, D
P/SEATº, P P/SEATº, TAILº,
PANELº and POWER OR
TI&TEº fuses
9BATTCHG30Trailer sub battery
10TOWING40Trailer lights
No.FUSEAMPERECIRCUIT
11CDS FAN20Electric cooling fan
12RR A/C30Rear air conditioning system

ELECTRICAL COMPONENTS
606
13MIR
HEATER10Outside rear view mirror
defogger
14STOP10
Stop lights, high m ounted
stoplight, shift lock control
system, vehicle stability control
system, electronic m odulated
suspension, rear height control
air suspension, multiport fuel
injection system/sequential
multiport fuel injection system
15AC115V
INV15Power outlet (115 VAC)
16FR FOG15Front fog lights
17OBD7.5On- board diagnosis system
18HEAD
(LO RH)10Right-hand headlight (low beam)
19HEAD
(LO LH)10Left-hand headlight (low beam)
No.FUSEAMPERECIRCUIT
20HEAD
(HI RH)10Right-hand headlight (high
beam)
21HEAD
(HI LH)10Left-hand headlight (high beam)
22EFI NO.210Multiport fuel injection
system/sequential multiport fuel
injection system
23HEATER NO.27.5Air conditioning system
24DEFOG30Rear window defogger

ELECTRICAL COMPONENTS
607
25AIRSUSNO.210Rear height control air
suspension
26SEAT
HEATER20Seat heaters
27DOME10
Ignition switch light, interior
lights, personal lights, foot
lights, running board lights,
door courtesy lights, inside
door handle lights,
multi- information display
28RADIO NO.120Audio system, navigation
system
No.FUSEAMPERECIRCUIT
29ECU-B10
Multiplex communication
system, vehicle stability control
system, wireless remote
control system, inside rear
view mirror, air conditioning
system, electronic modulated
suspension, driving position
memory system, power
windows, moon roof, rear view
monitor system
30ECU-B NO.210Theft deterrent system
31ABS
MTR40
Anti- lock brake system,
vehicle stability control system,
active traction control system,
brake assist system
32AM230Starting system, all components
in IGNº, SRSº, GAUGEº and
ST2º fuses

ELECTRICAL COMPONENTS
608
33ABSSOL50
Anti- lock brake system,
vehicle stability control system,
active traction control system,
brake assist system
No.FUSEAMPERECIRCUIT
34ALT-S7.5Charging system
35MAYDAY7.5Lexus Link System
36HORN10Horns
37TRN-HAZ15Turn signal lights
38ETCS10Electronic throttle control system
39EFI20Multiport fuel injection
system/sequential multiport fuel
injection system
40D FR P/W20Power window
41DR/LCK25Power door lock
42TOWING30Towing converter
43RADIO NO.230Audio system, navigation
system
44IGN10
Multiport fuel injection
system/sequential multiport fuel
injection system, vehicle
stability control system
45SRS10SRS airbag system
46GAUGE7.5Gauges and meters
47ST27.5Multiport fuel injection
system/sequential multiport fuel
injection system
No.FUSEAMPERECIRCUIT

ELECTRICAL COMPONENTS
609
48FR
WIP-WSH30Windshield wipers, windshield
washer
49TEMS20Electronic modulated
suspension
50DIFF20Four-wheel drive system
51RR WIP15Rear window wiper
52D P/SEAT30Driver's power seat
53P P/SEAT30Front passenger's power seat
54PWR
OUTLET15Power outlet (12 VDC)
55IG1 NO.210Rear air conditioning system,
inside rear view mirror, kinetic
dynamic suspension system
56RR WSH15Rear window washer
No.FUSEAMPERECIRCUIT
57ECU-IG10
Shift lock control system, power
windows, outside rear view
mirror defogger, anti-lock brake
system, active traction control
system, vehicle stability control
system, air conditioning system,
navigation system, power
windows, moon roof, Lexus Link
System, tilt and telescopic
steering, multi- information
display, driving position
memory system, rear view
monitor system, tire pressure
warning system

ELECTRICAL COMPONENTS
610
58IG110
Air conditioning system, back-up
lights, rear window defogger,
seat heaters, vehicle stability
control system
59STA7.5Multiport fuel injection
system/sequential multiport fuel
injection system
60P FR P/W20Front passenger's power window
61P RR P/W20Rear right side power window
No.FUSEAMPERECIRCUIT
62D RR P/W20Rear left side power window
63PANEL10Instrument panel lights
64TAIL10Parking lights, tail lights, license
plate lights, front fog lights
65ACC7.5
Shift lock control system, power
outlets, outside rear view
mirrors, audio system, navigation
system, power rear view mirrors,
multi- information display, rear
view monitor system
66CIG10Cigarette lighter
67POWER
OR TI&TE30Power windows, moon roof, tilt
and telescopic steering

ELECTRICAL COMPONENTS
611
CHECKING BATTERY CONDITION
Precautions
CAUTION
BATTERY PRECAUTIONS
The battery produces flammable and explosive
hydrogen gas.
Do not cause a spark by contacting the battery
terminals with tools.
 Do not smoke or light a match near the battery.
The electrolyte contains poisonous and corrosive
sulfuric acid.
 Avoid contact with eyes, skin or clothes.
 Never inhale or swallow electrolyte.
 Wear protective safety glasses when working near
the battery.
 Keep children away from the battery.
EMERGENCY MEASURES
 If electrolyte gets in your eyes, flush your eyes with
clean water for at l east 15 minutes and get immediate
medical attention. If possible, continue to apply
water with a sponge or cloth while traveling to the
medical office.
