Lexus GX470 2004 Pictorial Index / LEXUS 2004 GX470 FROM AUG. 2004 THROUGH SEP. 2004 PROD. OWNER'S MANUAL (OM60B55U)

AUDIO

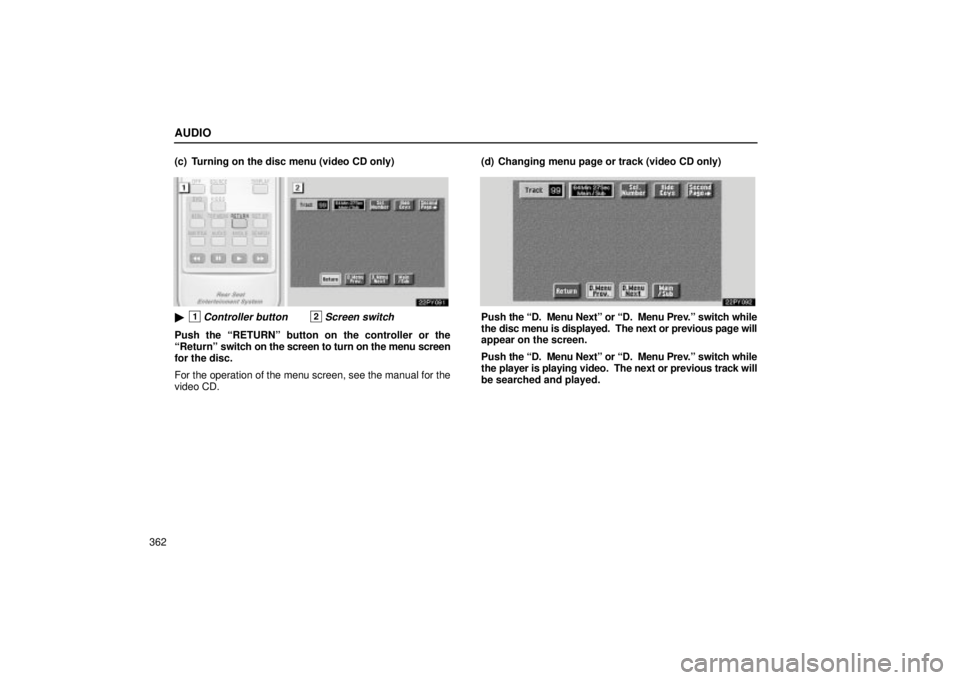

362(c) Turning on the disc menu (video CD only)

1Controller button2Screen switch
Push the RETURNº button on the controller or the
Returnº sw
itch on the screen to turn on the menu screen
for the disc.
For the operation of the menu screen, see the manual for the
video CD. (d) Changing menu page or track (video CD only)
Push the D.
Menu Nextº or D. Menu Prev.º switch while
the disc menu is displayed. The next or previous page will
appear on the screen.
Push the D. Menu Nextº or D. Menu Prev.º switch while
the player is playing video. The next or previous track will
be searched and played.

AUDIO
363
(e) Changing a multiplex transmission (video CD only)
Push the Main/Subº switch to change a multiplex
transmission. The mode changes from Main/Sub to Main
to Sub and back to Main/Sub by pushing the Main/Subº
switch.
(f) Changing the initial setting (video CD only)
1Controller button2Screen switch
Push the SET UPº button on the controller or the Set
Upº switch on the screen, and the initial setting screen will
appear. You can change the initial setting. (See (k)
Changing the initial settingº on page 345 for details.)
After the setting is done, the player plays from the beginning
of the chapter or the track.

AUDIO
364(g) Using the control screen
22PY095

1For video CD2For audio CD
3For CD text
When playing a disc, push the DVDº button on the
controller. The control screen will appear on the screen.
CD text only Ð The disc title and track title will appear on the
screen when pushing the DVDº button.
Details of the specific switches, controls and features are
described below.
PICTUREº switch (video CD only):
Push the PICTUREº
switch to turn off the control screen and return to the picture
previously displayed.
RPTº switch (audio CD and CD text): Push the RPTº
switch while the track is playing. When the track ends, it will
automatically replay. To turn off the repeat feature, push this
switch again.
RANDº switch (audio CD and CD text): Push the RANDº
switch. The player will play the tracks on the disc in random
order. To turn off the random feature, push this switch again.
SCANº switch (audio CD and CD text): Push the SCANº
switch. The player will scan all the tracks on the disc. To stop
scanning, push this switch again. When the player has
scanned all the tracks on the disc, it will stop scanning.

º and º switches: Push the º or º switch
to fast forward or reverse the disc. When you push the switch
again, the DVD player will resume playing.

AUDIO
365
(h) Error messages
If the player malfunctions, your audio system will display one
of the three following error messages.
If DISC CHECKº appears on the screen:
It indicates that the
disc is dirty, damaged or it was inserted upside down. Clean
the disc or insert it correctly.
If REGION CODE ERRORº appears on the screen: It
indicates that the DVD region code is not set properly.
If DVD ERRORº appears on the screen: There is a problem
inside the player. Eject the disc. Set the disc again.
If the malfunction still exists, take your vehicle to your Lexus
dealer.
Screen adjustment
You can adjust the color, contrast, tone and brightness of
the screen.
Push the DISPLAYº button on the controller (1) and
then the Displayº screen (2) will appear.
The screen may turn purple to deflect the sunlight. This is not
a malfunction.

AUDIO
366
Each time you push the +º or -º switch, you can adjust the
color, contrast, tone and brightness of the screen.
+ or RED- or GREEN
COLORStrengthens the
red colorStrengthens the
green color
CONTRASTStrengthens the
contrastWeakens the
contrast
TONEStrengthens the
toneWeakens the tone
BRIGHTNESSBrightensDarkens
After adjusting the screen, push the OKº switch to return to the
previous screen.Selecting the video mode
The audio machine connected to the input terminal
adapter can be played in the video mode.

AUDIO
367
To select the video mode, push the VIDEOº button on the
controller (1). You can also select the video mode on the
mode selection screen (2) mentioned above.
DVD video disc information
(a) DVD player and DVD video discs
This DVD player conforms to NTSC color TV formats. DVD
video discs conforming to other formats such as PAL or
SECAM cannot be used.
Region codes: Some DVD video discs have a region code
indicating where you can use. If the DVD video disc is not
labeled ALLº or 1º, you cannot use it in this DVD player. If you
attempt to play an inappropriate DVD video disc in this player,
REGION CODE ERRORº appears on the screen. Even if the
DVD video disc does not have a region code, in some cases
you cannot use it.

AUDIO
368Marks shown on DVD video discs:
Indicates NTSC format of color TV.
Indicates the number of audio
tracks.
Indicates the number of language
subtitles.
Indicates the number of angles.
Indicates the screen to be selected.
Wide screen: 16:9
Standard: 4:3
Indicates regions in which this video
disc can be played.
ALL: all countries
Number: region code
(b) DVD video disc glossary
DVD video discs: Digital V
ersatile Disc that holds video. DVD
video discs have adopted MPEG2º, one of the world
standards of digital compression technologies. The picture
data is compressed by 1/40 on average and stored. Variable
rate encoded technology in which the volume of data assigned
to the picture is changed depending on the picture format has
also been adopted. Audio data is stored using PCM and Dolby
digital, which enables higher quality of sound. Furthermore,
multi-angle and multi-language features will also help you
enjoy the more advanced technology of DVD video.
Viewer restrictions: This feature limits what can be viewed in
conformity with the level of restrictions of the country. The level
of restrictions varies depending on the DVD video disc. Some
DVD video discs cannot be played at all, or violent scenes are
skipped or replaced with other scenes.
Level 1: DVD video discs for children can be played.
Level 2 Ð 7: DVD video discs for children and G-rated movies
can be played.
Level 8: All types of DVD video discs can be played.
Multi-angle feature: You can enjoy the same scene at
different angles.
Multi-language feature: You can select the language of the
subtitles and audio.

AUDIO
369
Region codes:
Region codes are provided on DVD players
and DVD discs. If the DVD video disc does not have the same
region code as the DVD player, you cannot play the disc on the
DVD player. For region codes, see page 367.
Audio: This DVD player can play liner PCM, Dolby digital, dts
and MPEG audio format DVD. Other decoded type cannot be
played.
Title and chapter: Video and audio programs stored on DVD
video discs are divided in parts by title and chapter.
Title: The largest unit of the video and audio programs stored
on DVD video discs. Usually, one piece of a movie, one album,
or one audio program is assigned as a title.
Chapter: A unit smaller than a title. A title comprises plural
chapters. Manufactured under license from Dolby Laboratories.
Dolbyº, Pro Logicº, and
º are trademarks of Dolby
Laboratories. Confidential unpublished works.
1992 Ð 1997 Dolby Laboratories. All rights reserved.
This product incorporates copyright protection
technology that is protected by method claims of certain
U.S. patents and other intellectual property rights owned
by Macrovision Corporation and other rights owners. Use
of this copyright protection technology must be
authorized by Macrovision Corporation, and is intended
for home and other limited viewing uses only unless
otherwise authorized by Macrovision Corporation.
Reverse engineering or disassembly is prohibited.
dtsº is a trademark of Digital Theater Systems, Inc.

AUDIO
370
Input terminal adapter
The rear entertainment system plays videos and sound when
your audio system is connected to the input terminal adapter
on the rear console box. For details, refer to the
manufacturer's instructions.
To use the input terminal adapter, push the lid.
To use the input terminal adapter, open the cover.
The input terminal adapter is composed of 3 input terminal
adapters.
VIDEOº: Image input adapter
MONO Lº: Audio input adapter
Rº: Audio input adapter
NOTICE
Close the input terminal adapter lid when the input
terminal adapter is not in use. Inserting a foreignobject other than the appropriate plug that fits theadapter may cause electrical failure or short circuit.
The input terminal lid must be closed before you foldup the second seat.

AUDIO
371

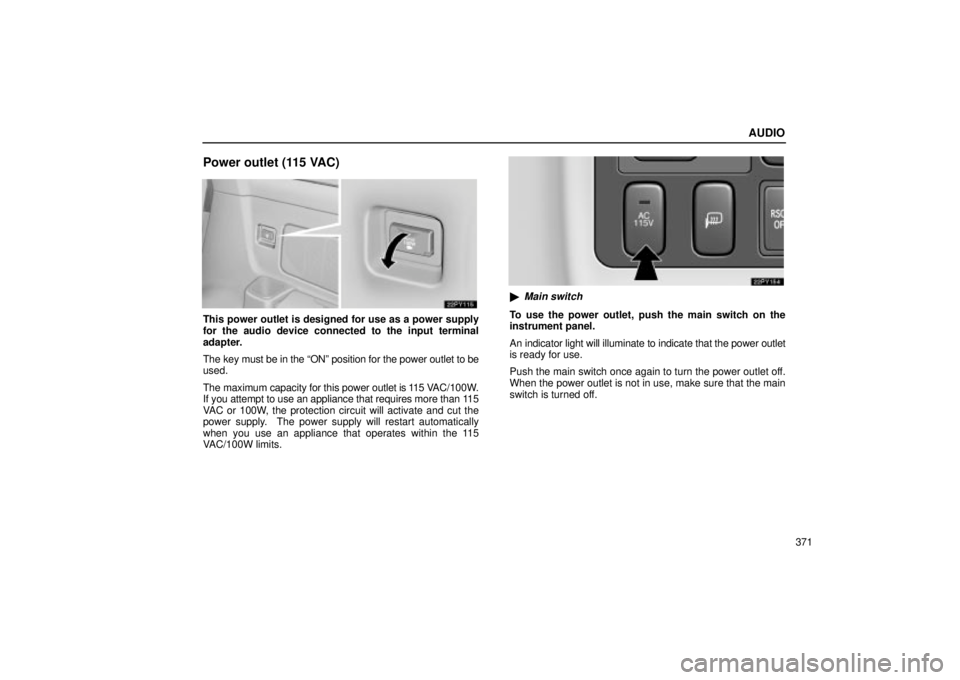

Power outlet (115 VAC)
This power outlet is designed for use as a power supply
for the audio device connected to the input terminal
adapter.
The key must be in the ONº position for the power outlet to be
used.
The maximum capacity for this power outlet is 115 VAC/100W.
If you attempt to use an appliance that requires more than 115
VAC or 100W, the protection circuit will activate and cut the
power supply. The power supply will restart automatically
when you use an appliance that operates within the 115
VAC/100W limits.

Main switch
To use the power outlet, push the main switch on the
instrument panel.
An indicator light will illuminate to indicate that the power outlet
is ready for use.
Push the main switch once again to turn the power outlet off.
When the power outlet is not in use, make sure that the main
switch is turned off.
