CHASSIS
572
SPECIFICATIONS
Ð DIFFERENTIALOil capacity Front
Rear
1.4 L (1.5 qt., 1.2 lmp. qt.)
3.1 L (3.3 qt., 2.7 lmp. qt.)
Oil typeHypoid gear oil API GL-5
Oil viscosityAbove -18C (0F): SAE 90 or SAE 85W-90
Below -18C (0F): SAE 80W or SAE 80W-90
Ð TRANSFER
Oil capacity
1.4 L (1.5 qt., 1.2 lmp. qt.)
Oil typeHypoid gear oil API GL-5
Recommended oil viscositySAE 75W-90

CHASSIS
573
Ð AUTOMATIC TRANSMISSION
Fluid capacity Drain and refill
Up to 3.0 L (3.2 qt., 2.6 lmp. qt.)
Fluid typeToyota Genuine ATF WS*
*: Change automatic transmission fluid only as necessary.
Generally, it is necessary to change automatic transmission
fluid only if your vehicle is driven under one of the Special
Operating Conditions listed in your Owner's Manual
Supplement/Scheduled Maintenanceº. When changing the
automatic transmission fluid, use only Toyota Genuine ATF
WSº (ATF JWS3324 or NWS9638) to aid in assuring optimum
transmission performance.

CHASSIS
574
NOTICE
Using automatic transmission fluid other than ToyotaGenuine ATF WSº may cause deterioration in shiftquality, locking up of your transmission accompaniedby vibration, and ultimately damage the automatictransmission of your vehicle.
Please contact your Lexus dealer for further details.
Ð BRAKES
Pedal clearance
55 mm (2.2 in.) Min. *1
Pedal free play1 Ð 6 mm (0.04 Ð 0.24 in.)
Brake pad wear limit1.0 mm (0.04 in.)
Parking brake lining wear limit1.0 mm (0.04 in.)
Parking brake adjustment5 Ð 7 clicks *2
Fluid typeSAE J1703 or FMVSS No. 116 DOT 3
*1: Minimum pedal clearance when depressed with the force of 490 N (50 kgf,\
110 lbf) with the engine running
*
2: Parking brake adjustment when pulled with the force of 196 N (20 kgf, 4\
4 lbf)

CHASSIS
575
Ð CHASSIS LUBRICATION
Propeller shafts Spiders
Slide yoke
Lithium base chassis grease, NLGI No.2
Molybdenum-disulfide lithium base chassis grease, NLGI No.2 or
lithium base chassis grease, NLGI No.2
Ð STEERING
Free play
Less than 30 mm (1.2 in.)
Power steering fluidAutomatic transmission fluid DEXRONII or III
Ð TIRES AND WHEELSTire size
P265/65R17 110S
Tire inflation pressure Recommended cold tire inflation
pressure
220 kPa (2.2 kgf/cm2 or bar, 32 psi)
Wheel size17 x 7 1/2 JJ
Wheel nut torque112 N´m (11.5 kgf´m, 83 ft´lbf)
NOTE:
For complete information on tires (e.g. replacing tires or replacing wh\
eels), see Checking tire inflation pressureº
through Aluminum wheel precautionsº on pages 579 through 602.

CHASSIS
576

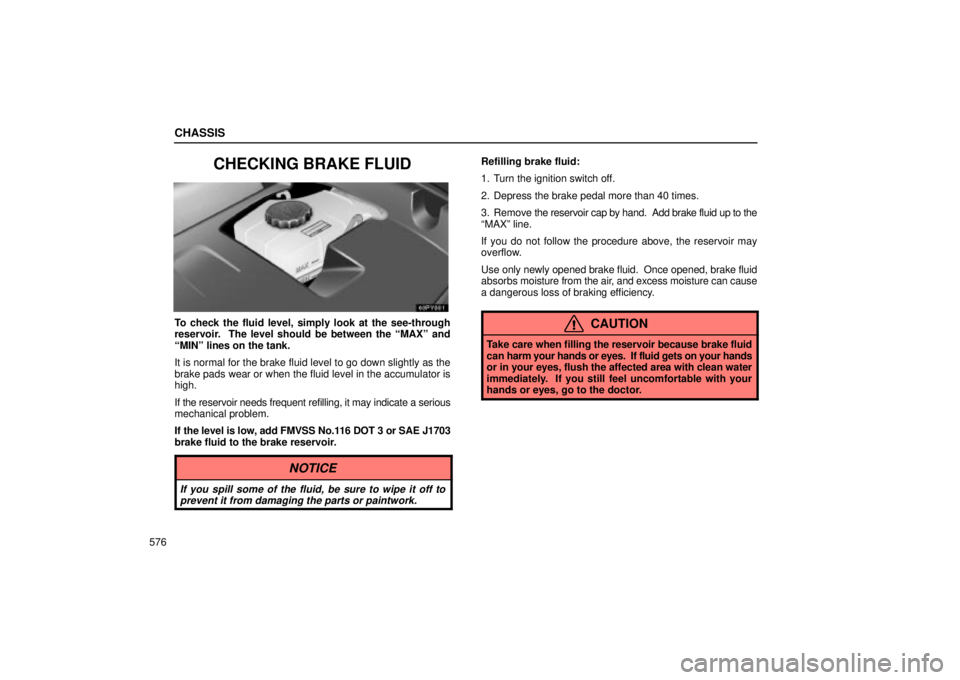

CHECKING BRAKE FLUID
To check the fluid level, simply look at the see-through
reservoir. The level should be between the MAXº and
MINº lines on the tank.
It is normal for the brake fluid level to go down slightly as the
brake pads wear or when the fluid level in the accumulator is
high.
If the reservoir needs frequent refilling, it may indicate a serious
mechanical problem.
If the level is low, add FMVSS No.116 DOT 3 or SAE J1703
brake fluid to the brake reservoir. Refilling brake fluid:
1. Turn the ignition switch off.
2. Depress the brake pedal more than 40 times.
3. Remove
the reservoir cap by hand. Add brake fluid up to the
MAXº line.
If you do not follow the procedure above, the reservoir may
overflow.
Use only newly opened brake fluid. Once opened, brake fluid
absorbs moisture from the air, and excess moisture can cause
a dangerous loss of braking efficiency.CAUTION
Take care when filling the reservoir because brake fluid
can harm your hands or eyes. If fluid gets on your hands
or in your eyes, flush the affected area with clean water
immediately. If you still feel uncomfortable with your
hands or eyes, go to the doctor.
NOTICE
If you spill some of the fluid, be sure to wipe it off to
prevent it from damaging the parts or paintwork.

CHASSIS
577
CHECKING POWER STEERINGFLUID
The power steering fluid reservoir is located under the
right side engine compartment cover. Before checking
the power steering fluid, remove the cover. (For details,
see Removing the engine compart coversº on page 545.)
Check the fluid level, simply look at the see-through
reservoir. If necessary, add automatic transmission fluid
DEXRON
II or III .
If the vehicle has been driven around 80 km/h (50 mph) for 20
minutes (a little more in frigid temperatures), the fluid is hot
(60 C - 80 C or 140F - 175F). You may also check the level
when the fluid is cold (about room temperature, 10 C - 30C
or 50F - 85F) if the engine has not been run for about five
hours.

1If cold O.K.2If cold add3If hot O.K.
4If hot add
Clean all dirt off the reservoir and look at the fluid level. If the
fluid is cold, the level should be in the COLDº range. Similarly,
if it is hot, the fluid level should be in the HOTº range. If the
level is at the low side of the appropriate range, add automatic
transmission fluid DEXRON
II or III to bring the level within
the range.
To remove the reservoir cap, turn it counterclockwise and lift
up. To reinstall it, turn it clockwise. After replacing the reservoir
cap, visually check the steering box case, vane pump and hose
connections for leaks or damage.

CHASSIS
578
CAUTION
The reservoir may be hot so be careful not to burn
yourself.
NOTICE
Avoid overfilling, or the power steering could bedamaged.
When adding the power steering fluid, avoid spillingit. The generator under the power steering reservoircould be damaged if fluid is spilled on it.

CHASSIS
579
CHECKING TIRE INFLATIONPRESSURE
63PY020
The recommended cold tire inflation pressures,
tire sizes and the combined weight of occupants
and cargo (vehicle capacity weight) are described
on page 575 and 631. They are also described
on the tire and loading information label as
shown.
You should check the tire inflation pressure every two
weeks, or at least once a month. And do not forget
the spare!
The following instructions for checking tire
inflation pressure should be observed:
The pressure should be checked only when the
tires are cold. If your vehicle has been parked
for at least 3 hours and has not been driven for
more than 1.5 km or 1 mile since, you will get an
accurate cold tire inflation pressure reading.
 If you cannot adjust the tire pressure when the
tires are cold, add 20 kPa (0.2 kgf/cm
2 or bar, 2.9
psi) to 30 kPa (0.3 kgf/cm2 or bar, 4.3 psi) more
to the front tires and rear tires than the cold tire
pressure, but never exceed the maximum cold tire
pressure molded on the tire sidewall.

CHASSIS
580
Always use a tire pressure gauge. The
appearance of a tire can be misleading. Besides,
tire inflation pressures that are even just a few
pounds off can degrade handling and ride.
 Do not bleed or reduce tire inflation pressure
after driving. It is normal for the tire inflation
pressure to be higher after driving.
 Never exceed the vehicle capacity weight.
Passengers and luggage weight should be located
so that the vehicle is balanced. Inspection and adjustment procedure

1Tire valve
2Tire pressure gauge
1. Remove the tire valve cap.
2. Press the tip of the tire pressure gauge to the tire
valve.
3. Read the pressure using the graduations of the
gauge.
4. In case the tire inflation pressure is not within the
prescribed range, insert the compressed air from the
valve. In case of applying too much air, press the
center of the valve and release the air to adjust.

CHASSIS
581
5. After completing the tire inflation pressure
measurement and adjustment, apply soapy water to
the valve and check for leakage.
6. Install the tire valve cap.
If a gauge and air pump are not available, have your
vehicle checked by your Lexus dealer.
CAUTION
Be sure to reinstall the tire valve caps. Without
the valve caps, dirt or moisture could get into
the valve core and cause air leakage. If the caps
have been lost, have new ones put on as soon
as possible.
NOTICE
Use only the original valve cap. If any othervalve cap is used, it may corrode or melt and
become difficult or impossible to remove.
