PICTORIAL INDEX
xi
INSTRUMENT PANEL (vehicles with navigation system)
Page 12 of 641
For detailed information, refer to the description given in each Section.
PICTORIAL INDEX
xii
Page
1Driving position memory switches 208. . . . . . . . . . .
2Power window switches 45. . . . . . . . . . . . . . . . . . . . . . .
3Power door lock switch 22. . . . . . . . . . . . . . . . . . . . . . .
4Window lock switch 46. . . . . . . . . . . . . . . . . . . . . . . . . . .
5Power rear view mirror control switches 213. . . . . .
6Side vents 237. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7Headlight, turn signal and
fog light switches 31, 33, 34. . . . . . . . . . . . . . . . . . . . . .
8Wiper and washer switch 34. . . . . . . . . . . . . . . . . . . . . .
9Center vents 237. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
10Emergency flasher switch 48. . . . . . . . . . . . . . . . . . . . .
11Rear view monitor/navigation system display
(See the separate Navigation System
Owner's Manualº.) 388. . . . . . . . . . . . . . . . . . . . . . . . . .
12Multi-information display 70. . . . . . . . . . . . . . . . . . . . . .
13Automatic air conditioning controls 224. . . . . . . . . .
14Rear window defogger switch 42. . . . . . . . . . . . . . . . . .
15Front passenger's seat belt reminder light 61. . . . . .
16Glove box 88. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
17Car audio 244. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
18Ashtray 83. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
19Cigarette lighter 83. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
20Seat heater switches 49. . . . . . . . . . . . . . . . . . . . . . . . . . Page
21Four-wheel drive control lever 384. . . . . . . . . . . . . . .
22Automatic transmission selector lever 376. . . . . . . .
23Parking brake lever 374. . . . . . . . . . . . . . . . . . . . . . . . .
24Center differential lock switch 384. . . . . . . . . . . . . . .
25Power outlet (12 VDC) 85. . . . . . . . . . . . . . . . . . . . . . . . .
26Downhill assist control switch 408. . . . . . . . . . . . . . .
27Electronic modulated suspension
control switch 402. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
28Rear height control air suspension
switches 395. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
29Ignition switch 372. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
302nd STRTº switch 384. . . . . . . . . . . . . . . . . . . . . . . . . .
31Tire pressure warning system
selector switch 425. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
32Cruise control switch 392. . . . . . . . . . . . . . . . . . . . . . .
33Steering pad switches 265. . . . . . . . . . . . . . . . . . . . . . .
34Instrument panel light control dial 76. . . . . . . . . . . . . .
35Hood lock release lever 103. . . . . . . . . . . . . . . . . . . . .
36Fuel filler door opener 104. . . . . . . . . . . . . . . . . . . . . . .
37Roll sensing of curtain shield airbags
off switch 183. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
38Outside rear view mirror defogger switch 44. . . . . . .
39Power outlet (115 VAC) main switch 85. . . . . . . . . . . .
Page 13 of 641
PICTORIAL INDEX
xiii

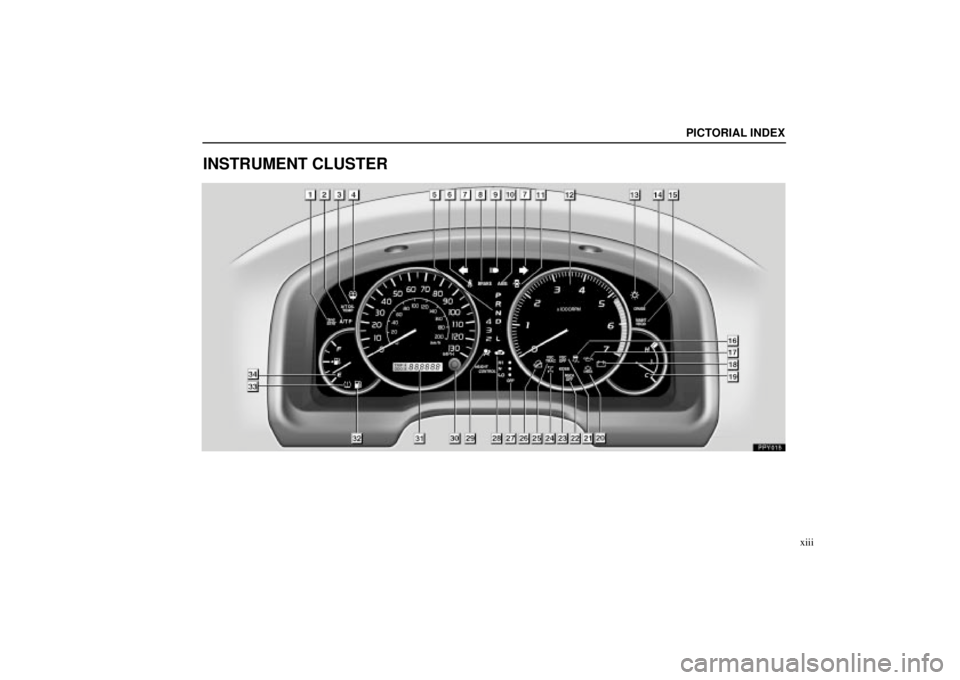

INSTRUMENT CLUSTER
Page 14 of 641
For detailed information, refer to the description given in each Section.
PICTORIAL INDEX
xiv
Page
1Automatic transmission second start
indicator light 384. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2Unengaged Parkº warning light 64. . . . . . . . . . . . . . .
3Automatic transmission fluid temperature
warning light 64. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4Low washer fluid warning light 67. . . . . . . . . . . . . . . . .
5Automatic transmission indicator lights 376. . . . . .
6Driver's seat belt reminder light 60. . . . . . . . . . . . . . . .
7Turn signal indicator light 33. . . . . . . . . . . . . . . . . . . . .
8Brake system warning light 59. . . . . . . . . . . . . . . . . . . .
9Headlight high beam indicator light 33. . . . . . . . . . . .
10ABSº warning light 63. . . . . . . . . . . . . . . . . . . . . . . . . .
11Open door warning light 64. . . . . . . . . . . . . . . . . . . . . . .
12Tachometer 56. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
13Headlight indicator light 31. . . . . . . . . . . . . . . . . . . . . . .
14Cruise control indicator light 392. . . . . . . . . . . . . . . .
15Engine oil replacement reminder light 67. . . . . . . . . .
16Slip indicator light 404, 406, 409, 411. . . . . . . . . . . . .
17Low engine oil pressure warning light 66. . . . . . . . . . Page
18Discharge warning light 65. . . . . . . . . . . . . . . . . . . . . . .
19Engine coolant temperature gauge 54. . . . . . . . . . . . .
20Malfunction indicator lamp 62. . . . . . . . . . . . . . . . . . . .
21Vehicle stability control system off
indicator light 406. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
22RSCA OFFº indicator light 183. . . . . . . . . . . . . . . . . .
23KDSSº warning light 65. . . . . . . . . . . . . . . . . . . . . . . . .
24Center differential lock indicator light 384. . . . . . . .
25VSC TRACº warning light 65. . . . . . . . . . . . . . . . . . . . .
26Downhill assist control system
indicator light 408. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
27Rear height control indicator lights 401. . . . . . . . . . .
28Security indicator light 14, 27. . . . . . . . . . . . . . . . . . . .
29SRS warning light 61. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
30Trip meter reset knob 57. . . . . . . . . . . . . . . . . . . . . . . . .
31Odometer and trip meter 57. . . . . . . . . . . . . . . . . . . . . .
32Low fuel level warning light 67. . . . . . . . . . . . . . . . . . . .
33Low tire pressure warning light 67. . . . . . . . . . . . . . . .
34Fuel gauge 53. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Page 15 of 641
PICTORIAL INDEX
xv
SEAT AND STEERING WHEEL
Page
1Tilt and telescopic steering
control switch 211. . . . . . . . . . . . . . . . . .
2Seat position, seat cushion
angle and height control
switch 119, 120. . . . . . . . . . . . . . . . . . . .
3Seatback angle control switch 120. . .
4Lumbar support control
switch 121. . . . . . . . . . . . . . . . . . . . . . . . .
For detailed information, refer to the
description given in each Section.
Page 16 of 641
PPY014
PICTORIAL INDEX
xvi
EXTERIOR VIEW
Page
1Rear window defogger 42. . . . . . . . . . .
2Back door 25. . . . . . . . . . . . . . . . . . . . . .
3Fuel filler door 104. . . . . . . . . . . . . . . . .
4Moon roof 107. . . . . . . . . . . . . . . . . . . . .
5Wiper and washer 34, 599. . . . . . . . . .
6Outside rear view mirror 212. . . . . . . .
7Side door 20. . . . . . . . . . . . . . . . . . . . . . .
8Tire and wheel 557. . . . . . . . . . . . . . . . .
9Headlights 31, 600. . . . . . . . . . . . . . . . .
10Hood 103. . . . . . . . . . . . . . . . . . . . . . . . . .
For detailed information, refer to the
description given in each Section.
Page 17 of 641
PICTORIAL INDEX
xvii
Page 18 of 641
BASIC OPERATION
1
QUICK REFERENCE
Driver's seat2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Steering wheel2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Automatic transmission3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Headlight and turn signal switch4 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Wiper switch5 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Page 19 of 641
Seat position
Head restraint angle Head restraint heightLumbar supportSeatback angle Seat cushion heightSeat cushion angle
TILT STEERING WHEEL
TELESCOPIC STEERING WHEEL
To tilt the steering wheel up or down to the desired angle, push
the control switch in the required direction and release the
button when the steering wheel reaches the desired angle.
To move the steering wheel to the desired position, push the
control switch away from you or pull it toward you until the
steering wheel reaches the desired position.
BPY020
(7.2/5.5)
BPY021
(7.2/59.5)
QUICK REFERENCE
2
1. DRIVER'S SEAT 2. STEERING WHEEL
Page 20 of 641
BPY011
BPY019
Shift while pressing the brake pedal.
(Ignition switch must be in the ONº position.)
OPERATION OF SELECTOR LEVER
SELECTOR LEVER POSITION
P:Parking, engine starting and key removal
position
R:Reverse position
N:Neutral position
D:Normal driving position
(shifting into overdrive possible)
4:Position for engine braking
(shifting into overdrive not possible)
3, 2:Position for more powerful engine braking
L:Position for maximum engine braking
NOTE: When the cruise control is being used, even if you downshift from Dº to 4º, engine braking will not be enabled
because the cruise control is not cancelled. For the operation to decrease the vehicle speed, see page 394.
QUICK REFERENCE
3
3. AUTOMATIC TRANSMISSION
