SWITCHES
34
The automatic light control sensor is on top of the driver's side
instrument panel.
Do not place anything on the instrument panel, and/or do not
affix anything on the windshield to block this sensor.
When the headlights are on, they automatically turn off about
30 seconds after any side door is opened and closed with the
ignition key turned to the ªACCº or ªLOCKº position.* If you
want to turn off the lights immediately, push the ªLOCKº button
on the wireless remote control key twice. The lights also can
be turned off immediately by pushing the ªLOCKº button on the
wireless remote control key with all the doors locked.
NOTE:* The time before turning off the lights can be changed.Ask your Lexus dealer for details.
If any of the side door is kept opened, the lights automatically
turn off after 30 minutes.
When the headlight switch is on with all the doors locked,
pushing the ªLOCKº button on the wireless remote control key
turns off the headlights.
If you are going to park for over one week, make sure the
headlight switch is off.
Daytime Running Light System
The daytime running light system make your front turn signal
lights turn on when the parking brake is released with the
engine started and the headlights are turned off. They will not
go off until the ignition switch is turned off.

SWITCHES
36
HEADLIGHT DIMMER AND TURNSIGNAL SWITCH
12PY003
For high beam, push the lever forward. Pull it back for low
beam. For the headlight flasher, pull it further back.
A blue light in the instrument cluster indicates high beam or
headlight flasher is on.
The headlight flasher works even when the headlight switch is
off.
For signaling turns, move the lever up or down in the
conventional manner.
The ignition key must be in the ªONº position.
The turn signal is self±cancelling after a turn, but after a lane
change, you may have to cancel it by hand. You can also signal
a lane change by moving the turn signal lever partway and
holding it there.
If the green light in the instrument cluster flashes faster than
normal, it indicates that the front or rear turn signal bulb has
burned out. If this indicator light does not come on, the fuse
or the indicator light itself has probably failed.

SWITCHES
37
FOG LIGHT SWITCH
To turn on the fog lights, turn the switch to the ªONº
position. The fog lights come on only when the headlights
are on low beam.
WINDSHIELD WIPER AND WASHER SWITCH
Variable intermittent windshield wipers

1Interval adjuster
2Washer on
To turn the wipers on, move the lever down until you reach
the desired speed setting.
The ignition key must be in the ªONº position.
There are 3 settings:
ªINTº position: Variable intermittent operation
ªLOº position: Low speed operation
ªHIº position: High speed operation

GAUGES, METERS AND SERVICE REMINDER INDICATORS
86
INSTRUMENT PANEL LIGHTCONTROL
To adjust the brightness of the instrument panel lights,
turn the dial.
With the dial turned fully up, the intensity of the instrument
panel lights will not be reduced when the headlight switch is on.

STEERING WHEEL AND MIRRORS
234

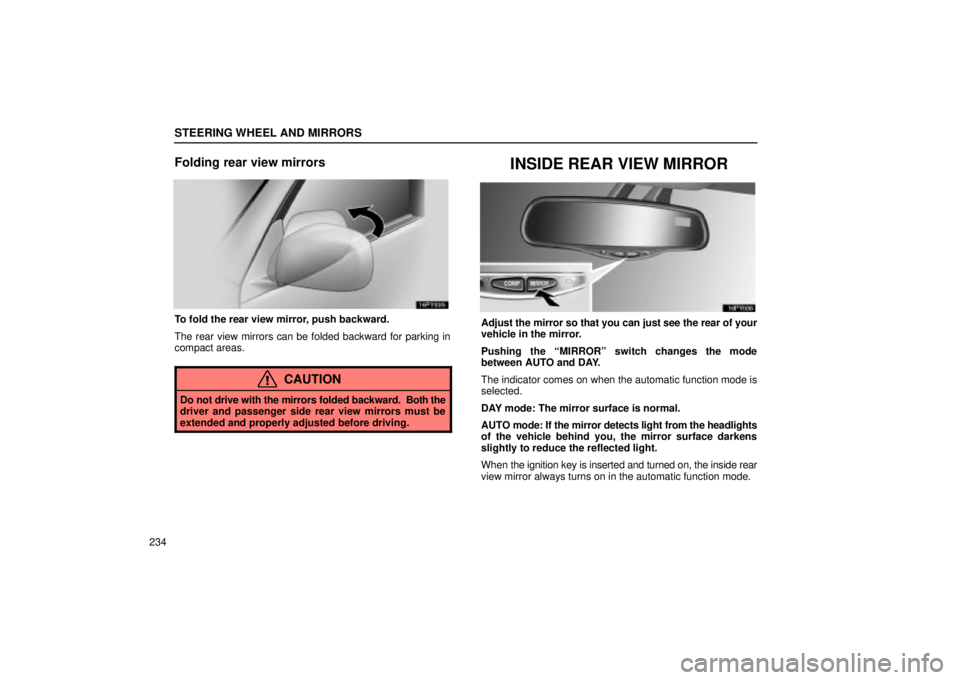

Folding rear view mirrors
To fold the rear view mirror, push backward.
The rear view mirrors can be folded backward for parking in
compact areas.
CAUTION
Do not drive with the mirrors folded backward. Both the
driver and passenger side rear view mirrors must be
extended and properly adjusted before driving.
INSIDE REAR VIEW MIRROR
Adjust the mirror so that you can just see the rear of your
vehicle in the mirror.
Pushing the ªMIRRORº switch changes the mode
between AUTO and DAY.
The indicator comes on when the automatic function mode is
selected.
DAY mode: The mirror surface is normal.
AUTO mode: If the mirror detects light from the headlights
of the vehicle behind you, the mirror surface darkens
slightly to reduce the reflected light.
When the ignition key is inserted and turned on, the inside rear
view mirror always turns on in the automatic function mode.

STEERING WHEEL AND MIRRORS
235
When the outside air temperature is low, it may take a little
longer for the mirror to darken in response to the detection of
headlights.
CAUTION
Do not adjust the mirror while the vehicle is moving.
Doing so may cause the driver to mishandle the vehicle
and an accident may occur resulting in death or serious
injuries.
To ensure correct functioning of anti±glare mirror sensors
located on both sides of the mirror, do not touch or cover
the sensors with your finger or a piece of cloth, etc.
Compass
The compass indicates the direction in which the vehicle
is heading. The illustration shown above indicates the
vehicle is heading north.
Push the ªCOMPº switch to turn the compass system on
and off.
If the ignition switch was turned off with the system on, the
system
will automatically turn back on when the ignition switch
is turned on.

STARTING AND DRIVING
418THE REAR VIEW MONITOR SYSTEM CAMERA
The rear view monitor system camera is located on the back
door as shown in the illustration. The camera uses a special
lens. The distance of the image that appears on the screen
differs from the actual distance.
In the following cases, it may become difficult to
see the images
on the screen, even when the system is functioning.
 In the dark (for example, at night)
 When the temperature near the lens is extremely high or low
 When water droplets are adhering to the camera, or when
humidity is high (for example, when it rains)
 When foreign matter (for example, snow or mud) adheres
to the camera lens
 When the sun or the beam of headlights is shining directly
into the camera lens
Check surroundings for safety.
If a bright light (for example, sunlight reflected off the vehicle
body) is picked up by the camera, the smear effect* peculiar to
the camera may occur.
*: Smear effect Ð A phenomenon that occurs when a bright
light (for example, sunlight reflected off the vehicle body) is
picked up by the camera; when transmitted by the camera, the
light source appears to have a vertical streak above and below
it.

MAINTENANCE
529
Battery
Check the battery condition by the indicator color. See page
608 for additional information.
Brake fluid level
Make sure the brake fluid level is correct. See page 571 for
additional information.
Engine oil level
Check the level on the dipstick with the engine turned off and
the vehicle parked on a level spot. See page 555 for
additional
information.
Power steering fluid level
Check the level through the reservoir. The level should be in
the ªHOTº or ªCOLDº range depending on the fluid
temperature. See page 572 for additional information.
Exhaust system
If you notice any change in the sound of the exhaust or smell
exhaust fumes, have the cause located and corrected
immediately. (See ªEngine exhaust cautionº on page 396.)
Vehicle interior
Items listed below should be checked regularly, e.g. while
performing periodic services, cleaning the vehicle, etc.
Lights
Make sure the headlights, stop lights, tail lights, turn signal
lights, and other lights are working. Check headlight aim. Service reminder indicators and warning buzzers
Check
that all service reminder indicators and warning buzzers
function properly.
Steering wheel
Check that it has the specified free play. Be alert for changes
in steering condition, such as hard steering, excessive free
play or strange noise.
Seats
Check that all front seat controls such as seat adjusters,
seatback recliner, etc. operate smoothly. Check that the head
restraints move up and down smoothly and that the locks hold
securely in any latched position. For folding±up second and
third seats, and detachable third seat, check that the latches
lock securely.
Seat belts
Check that the seat belt system such as buckles, retractors
and anchors operate properly and smoothly. Make sure the
belt webbing is not cut, frayed, worn or damaged.
Accelerator pedal
Check the pedal for smooth operation and uneven pedal ef fort
or catching.
Brake pedal
Check the pedal for smooth operation and the proper
clearance and free play. Check the brake booster function.

CHASSIS
596
REPLACING WHEELS
When to replace your wheels
If you have wheel damage such as bending, cracks or
heavy corrosion, the wheel should be replaced.
If you fail to replace a damaged wheel, the tire may slip off the
wheel or cause loss of handling control.
Replacement with used wheels is not recommended as they
may have been subjected to rough treatment or high mileage
and could fail without warning. Also, bent wheels which have
been straightened may have hidden structural damage and
therefore should not be used. Never use an inner tube in a
leaking wheel which is designed for a tubeless tire.
Wheel selection
When replacing wheels, care should be taken to ensure
that they are equivalent to those removed in load capacity,
diameter, rim width, and offset.
Correct replacement wheels are available at your Lexus
dealer.
A wheel of a different size or type may adversely affect
handling, wheel and bearing life, brake cooling,
speedometer/odometer calibration, stopping ability, headlight
aim, bumper height, vehicle ground clearance, and tire or snow
chain clearance to the body and chassis.
CAUTION
Observe the following instructions. Otherwise, an
accident may occur resulting in death or serious
injuries.
 Do not use wheels other than the manufacturer's
recommended size, as this may cause dangerous
handling characteristics resulting in loss of control.
 Do not use wheels of different brands, sizes and
types, as this may cause dangerous handling
characteristics resulting in loss of control.

ELECTRICAL COMPONENTS
602
11CDS FAN20Electric cooling fan
12RR A/C30Rear air conditioning system
13MIR
HEATER10Outside rear view mirror
defogger
14STOP10
Stop lights, high m ounted
stoplight, shift lock control
system, vehicle stability control
system, electronic m odulated
suspension, rear height control
air suspension, multiport fuel
injection system/sequential
multiport fuel injection system
15AC INV15Power outlet (115 VAC)
16FR FOG15Front fog lights
17OBD7.5On±board diagnosis system
18HEAD
(LO RH)10Right±hand headlight (low beam)
19HEAD
(LO LH)10Left±hand headlight (low beam)
No.FUSEAMPERECIRCUIT
20HEAD
(HI RH)10Right±hand headlight (high
beam)
21HEAD
(HI LH)10Left±hand headlight (high beam)
22EFI NO.210Multiport fuel injection
system/sequential multiport fuel
injection system
23HEATER NO.27.5Air conditioning system
