Lexus GX470 2005 Engine / LEXUS 2005 GX470 OWNER'S MANUAL (OM60B11U)

IN CASE OF AN EMERGENCY
520

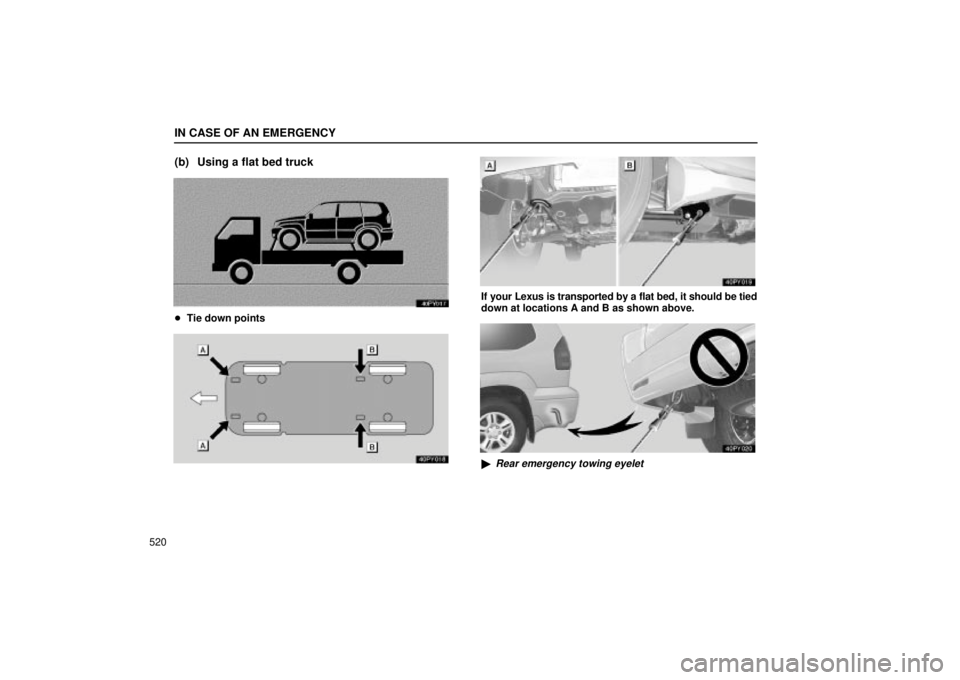

(b) Using a flat bed truck
Tie down points
If your Lexus is transported by a flat bed, it should be tied
down at locations A and B as shown above.

Rear emergency towing eyelet

IN CASE OF AN EMERGENCY
521
NOTICE
Do not use the rear emergency towing eyelet.
Tie down angle
If you use chains or wires to tie down your vehicle, the
angles shaded black must be at 45.
(c) Towing with a sling type truck
NOTICE
Do not tow with a sling type truck, either from the front
or rear. This may cause body damage.

IN CASE OF AN EMERGENCY
522
(d) Emergency towingIf towing is necessary, we recommend you to have it done
by your Lexus dealer or a commercial tow truck service.
If towing service is not available in an emergency, your
vehicle may be temporarily towed by a cable or chain
secured to the emergency towing eyelet. Use extreme
caution when towing the vehicle.
NOTICE
Only use specified towing eyelet; otherwise yourvehicle may be damaged.
Never tow a vehicle from the rear with four wheels on
the ground. This may cause serious damage to the transmission.

IN CASE OF AN EMERGENCY
523
A driver must be in the vehicle to steer it and operate the
brakes.
Towing in this manner may be done only on hard±surfaced
roads
for a short distance and at low speeds. Also, the wheels,
axles, drive train, steering and brakes must all be in good
condition.
CAUTION
Use extreme caution when towing the vehicle. Avoid
sudden starts or erratic driving maneuvers which would
place excessive stress on the emergency towing eyelet
and towing cable or chain. The eyelet and towing cable
or chain may break and cause serious injury or damage.
NOTICE
Use only a cable or chain specifically intended for use in towing vehicles. Securely fasten the cable or chainto the towing eyelet provided.
Before towing, check that the center differential is unlocked.
(The indicator light must be off with the ignition on.) Release
the parking brake and put the transmission in ªNº. The ignition
key must be in ªACCº (engine off) or ªONº (engine running).CAUTION
If the engine is not running, the power assist for the
brakes and steering will not work so steering and
braking will be much harder than usual.
Emergency towing hook precautions:
 Before emergency towing, check that the eyelet is not
broken or damaged and that the installation bolts are not
loose.
 Fasten the towing cable or chain securely to the hook.
 Do not jerk the eyelet. Apply steady and even force.
 To avoid damaging the eyelet, do not pull from the side or at
a vertical angle. Always pull straight ahead.

IN CASE OF AN EMERGENCY
524
CAUTION
If the emergency towing eyelet is used to get out when
your vehicle becomes stuck in the mud, sand or other
condition from which the vehicle cannot be driven out
under its own power, make sure to observe the
precautions mentioned below. Otherwise, excessive
stress will be put on the eyelet and the towing cable or
chain may break, causing serious injury or damage.
If the towing vehicle can hardly move, do not forcibly
continue the towing. Contact your Lexus dealer or a
commercial tow truck service for assistance.
 Tow the vehicle as straight ahead as possible.
 Keep away from the vehicle during towing.
Tips for towing a stuck vehicle:
The following methods are effective to use when your
vehicle is stuck in the mud, sand or other condition from
which the vehicle cannot be driven out under its own
power. Use extreme caution when towing the vehicle. In
addition, keep away from the vehicles and towing cable or
chain when towing.
 Remove the sand and soil in the front and the back of the
tires.
 Place stones or wood under the tires.
IF YOU CANNOT SHIFT AUTOMATIC
TRANSMISSION SELECTOR LEVER
If you cannot shift the selector lever out of ªPº position to
other positions even though the brake pedal is depressed,
use the shift lock override button as follows:
1Turn the ignition key to ªLOCKº. Make sure the parking
brake is applied.
2Pry up the cover with a flat±bladed screwdriver or
equivalent.

IN CASE OF AN EMERGENCY
525
3Push down the shift lock override button. You can shift out
of ªPº position only while pushing the button.
4Shift into ªNº position.
Insert the cover. Start the engine. For your safety, keep
the brake pedal depressed.
Be sure to have the system checked by your Lexus dealer as
soon as possible.
IF YOU LOSE YOUR KEYS OR LOCK YOURSELF OUT
You can purchase a new key at your Lexus dealer if you
can give them the key number and master key.
Even if you lose only one key, contact your Lexus dealer to
make a new key. If you lose all your master keys, you cannot
make new keys; the whole engine immobilizer system must be
replaced.
See the suggestion given in ªKeysº on page 8.
You can use the wireless remote control system with the new
key. Contact your Lexus dealer for detailed information.
If your keys are locked in the vehicle and you cannot get a
duplicate, many Lexus dealers can still open the door for you
using special tools. If you must break a window to get in, we
suggest breaking the smallest side window because it is the
least expensive to replace. Be extremely cautious to avoid
glass cuts.

SECTION 5
526
MAINTENANCE
Maintenance
Maintenance requirements527
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . .
General maintenance 528
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . . . . .
Does your vehicle need repairing? 531
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . .
Emissions inspection and maintenance (I/M) programs 532
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
For scheduled maintenance information, please
refer to the ªOwner's Manual Supplement/Scheduled Maintenanceº.

MAINTENANCE
527
MAINTENANCE REQUIREMENTS
Your Lexus vehicle has been designed to have fewer
maintenance requirements with longer service intervals to
save both your time and money. However, each regular
maintenance as well as day±to±day care is more important
than ever before to ensure smooth, trouble±free, safe, and
economical driving.
It is the owner's responsibility to make sure the specified
maintenance, including general maintenance services, is
performed. Note that both the new vehicle and emission
control system warranties specify that proper maintenance
and care must be performed. See the ªOwner's Guideº,
ªOwner's Manual Supplementº or ªWarranty Bookletº for
complete warranty information.
General maintenance
General maintenance items are those day±to±day care
practices that are important to your vehicle for proper
operation. It is the owner's responsibility to ensure that the
general maintenance items are performed regularly.
These checks or inspections can be done either by yourself or
your Lexus dealer.
Scheduled maintenance
The scheduled maintenance items listed in the ªOwner's
Manual Supplement/Scheduled Maintenanceº are those
required to be serviced at regular intervals. For details of your maintenance schedule, read the ªOwner's
Manual Supplement/Scheduled Maintenanceº.
It is recommended that only genuine Lexus parts be used
for maintenance or for the repair of the emission control
system.
The owner may elect to use non±Lexus supplied parts for
replacement purposes without invalidating the emission
control system warranty. However, use of replacement
parts which are not of equivalent quality may impair the
effectiveness of the emission control systems.
You may also elect to have maintenance, replacement, or
repair of the emission control devices and system
performed by any automotive repair establishment or
individual without invalidating this warranty. See
ªOwner's Guideº, ªOwner's Manual Supplementº or
ªWarranty Bookletº for complete warranty information.
Where to go for service?
Lexus technicians are well±trained specialists and
are kept up
to date with the latest service information through technical
bulletins, service tips, and in±dealership training programs.
They are well informed about the operation of all the systems
on your vehicle.
You can be confident that your Lexus dealer's service
department performs the best job to meet the maintenance
requirements of your vehicle Ð reliably and economically.

MAINTENANCE
528Your copy of the repair order is proof that all required
maintenance has been performed for warranty coverage. If
any problems should arise with your vehicle while under
warranty,
your Lexus dealer will promptly take care of it. Again,
be sure to keep a copy of the repair order for any service
performed on your Lexus.
What about do±it±yourself maintenance?
Many of the maintenance items are easy to do yourself, if you
have a little mechanical ability and a few basic automotive
tools. Simple instructions for how to perform them are
presented in Section 6.
If you are a skilled do±it±yourself mechanic, the Lexus service
manuals are recommended. Please be aware that
do±it±yourself maintenance can affect your warranty
coverage. See your ªOwner's Guideº, ªOwner's Manual
Supplementº or ªWarranty Bookletº for the details.
GENERAL MAINTENANCE
Listed below are the general maintenance items that should be
performed at the intervals specified. It is recommended that
any problem you notice be brought to the attention of your
Lexus dealer or qualified service shop for their advice.
CAUTION
Make these checks only with adequate ventilation if you
run the engine.
Engine compartment
Items listed below should be checked from time to time,
e.g. each time when refueling.
Washer fluid
Make sure there is sufficient fluid in the tank. See page 618 for
additional information.
Engine coolant level
Make sure the coolant level is between the ªFº and ªLº lines on
the see±through reservoir when the engine is cold. See page
560 for additional information.
Radiator, condenser and hoses
Check that the front of the radiator and condenser are clean
and not blocked with leaves, dirt, or insects. See page 563 for
additional information.

MAINTENANCE
529
Battery
Check the battery condition by the indicator color. See page
608 for additional information.
Brake fluid level
Make sure the brake fluid level is correct. See page 571 for
additional information.
Engine oil level
Check the level on the dipstick with the engine turned off and
the vehicle parked on a level spot. See page 555 for
additional
information.
Power steering fluid level
Check the level through the reservoir. The level should be in
the ªHOTº or ªCOLDº range depending on the fluid
temperature. See page 572 for additional information.
Exhaust system
If you notice any change in the sound of the exhaust or smell
exhaust fumes, have the cause located and corrected
immediately. (See ªEngine exhaust cautionº on page 396.)
Vehicle interior
Items listed below should be checked regularly, e.g. while
performing periodic services, cleaning the vehicle, etc.
Lights
Make sure the headlights, stop lights, tail lights, turn signal
lights, and other lights are working. Check headlight aim. Service reminder indicators and warning buzzers
Check
that all service reminder indicators and warning buzzers
function properly.
Steering wheel
Check that it has the specified free play. Be alert for changes
in steering condition, such as hard steering, excessive free
play or strange noise.
Seats
Check that all front seat controls such as seat adjusters,
seatback recliner, etc. operate smoothly. Check that the head
restraints move up and down smoothly and that the locks hold
securely in any latched position. For folding±up second and
third seats, and detachable third seat, check that the latches
lock securely.
Seat belts
Check that the seat belt system such as buckles, retractors
and anchors operate properly and smoothly. Make sure the
belt webbing is not cut, frayed, worn or damaged.
Accelerator pedal
Check the pedal for smooth operation and uneven pedal ef fort
or catching.
Brake pedal
Check the pedal for smooth operation and the proper
clearance and free play. Check the brake booster function.
