EXTERIOR EQUIPMENT
11 8The moon roof also can be opened using the wireless remote
control. For details, see page 19.
Jam protection function

If something gets caught between the moon roof and frame
during slide closing operation, the moon roof stops and
opens half way, and the deflector stops and raises fully.
 If something gets caught between the moon roof and frame
during tilting down operation, the moon roof stops and
opens fully.
If the moon roof receives a strong impact, this function may
work even if nothing is caught.
If the battery is disconnected or run down
The moon roof may not operate automatically and the jam
protection function will not function correctly after you
reconnect, replace or recharge the battery. In any of these
cases, you should normalize the moon roof.
To normalize the moon roof, push and hold the switch on the
ªTILT UPº side until the moon roof tilts all the way up and then
tilts down a little automatically.
Make sure that the moon roof opens and closes automatically.
If the moon roof cannot be operated properly, have it checked
by your Lexus dealer.
CAUTION
To avoid serious personal injury, you must do the
following.
 While the vehicle is moving, always keep the heads,
hands and other parts of the bodies of all occupants
away from the roof opening. Otherwise, they could
be seriously injured if the vehicle stops suddenly or
if the vehicle is involved in an accident.
 Before you close the moon roof, always make sure
there is nobody around the moon roof. You must also
make sure nobody places his or her head, hands and
other parts of the body in the roof opening. If
someone's neck, head or hands get caught in the
closing roof, it could result in death or serious injury.
When anyone closes the moon roof, first make sure
it is safe to do so.
 Be sure to remove the ignition key when you leave
your vehicle.
 Never leave anyone (particularly a small child) alone
in your vehicle, especially with the ignition key still
inserted. Otherwise, he/she could use the moon roof
switch and get trapped in the roof opening.
Unattended p erson (particularly a small child) can be
involved in a serious accident.
 Never sit on top of the vehicle around the roof
opening.

OCCUPANT RESTRAINT SYSTEMS
178
The pad section of the steering wheel or front passenger
airbag cover (shaded in the illustration) is scratched,
cracked, or otherwise damaged.
NOTICE
Do not disconnect the battery cables before contacting
your Lexus dealer.

OCCUPANT RESTRAINT SYSTEMS
193

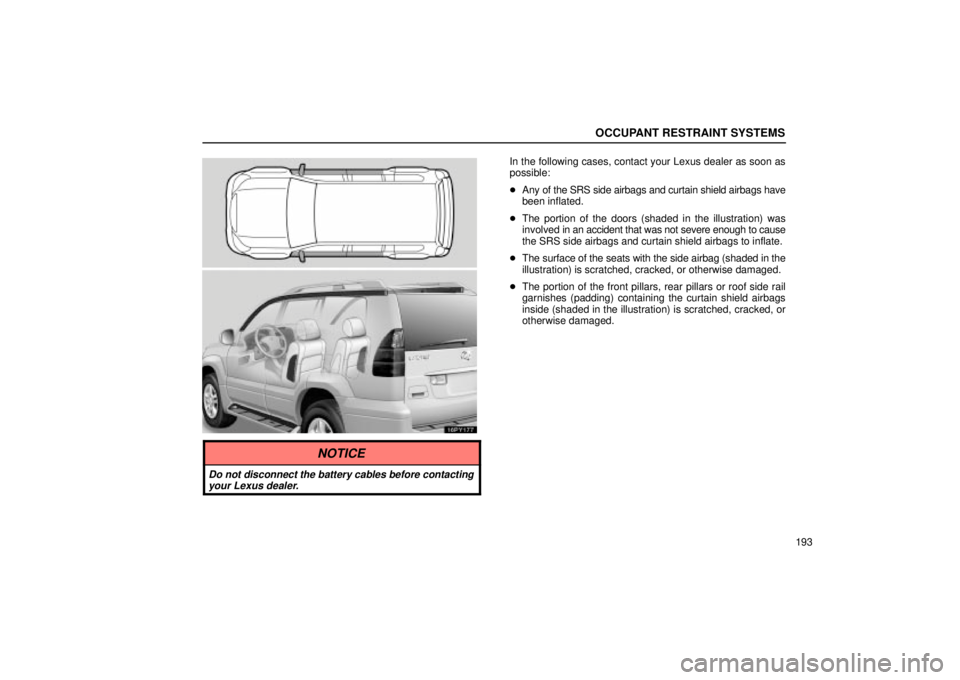

16PY177
In the following cases, contact your Lexus dealer as soon as
possible:
Any of the SRS side airbags and curtain shield airbags have
been inflated.
 The portion of the doors (shaded in the illustration) was
involved in an accident that was not severe enough to cause
the SRS side airbags and curtain shield airbags to inflate.
 The surface of the seats with the side airbag (shaded in the
illustration) is scratched, cracked, or otherwise damaged.
 The portion of the front pillars, rear pillars or roof side rail
garnishes (padding) containing the curtain shield airbags
inside (shaded in the illustration) is scratched, cracked, or
otherwise damaged.
NOTICE
Do not disconnect the battery cables before contacting
your Lexus dealer.

OCCUPANT RESTRAINT SYSTEMS
226The beep sound means that the positions are recorded in the
computer's memory.
By repeating these two steps and pressing the remaining
button, the driving position for another driver can be recorded.
To set a new memorized position, select the desired position
and perform step 2. The previous memory will be erased and
the new position will be set.
To make only slight changes to an already memorized position,
the easiest way is to first activate the memorized position, then
make the desired changes and perform step 2 above.
Recalling the memorized position
When
you push button ª1º or ª2º, the driving position will
be automatically adjusted to the position recorded for that
button. Conditions for memorized position activation

Ignition key ªONº and selector lever in ªPº position.
All parts of the memorized positions can be activated.
 Key not in ignition switch and within 30 seconds of opening
driver's door.
The memorized position can be activated, except for the tilt
and telescopic steering.
If any driving position memory switch is pushed while one of the
memorized driving position profiles is being activated, the
operation will stop.
To activate the system, push the desired button (ª1º or ª2º)\
again.
The driving position memory control system cannot be
operated while the vehicle is moving.
If the vehicle's battery is disconnected, the computer's
memory will be erased and the memorized positions will have
to be set again.

STEERING WHEEL AND MIRRORS
236Displays
Directions
N
NE E
SE S
SW W
NWNorth
Northeast East
Southeast South
Southwest West
Northwest
The compass may not show the correct direction in the
following conditions:
 The vehicle is stopped immediately after turning.
The compass does not adjust while the vehicle is stopped.
 The ignition switch is turned off immediately after turning.
 The vehicle is on an inclined surface.
 The vehicle is in a place where the earth's magnetic field is
subject to interference by artificial magnetic fields
(underground parking, under a steel tower, between
buildings, roof parking, near a crossing, near a large vehicle,
etc.).
 The vehicle is magnetized. (There is a magnet or a metal
object on or near the inside rear view mirror.)
 The battery has been disconnected. If your vehicle is out of the set zone, refer to ªCalibrating the
compassº in this Section to set the zone number.
If the deviation is small, the compass works to calibrate the
direction automatically while the vehicle is in motion.
For additional precision or for complete calibrating, see
ªCalibrating the compassº below.

STEERING WHEEL AND MIRRORS
240Perform
circling calibration just after you have purchased
your Lexus. And then always perform circling calibration
after the battery has been removed, replaced or
disconnected.
 Do not perform circling calibration of the compass in a place
where the earth's magnetic field is subject to interference by
artificial magnetic fields (underground parking, under a steel
tower, between buildings, roof parking, near a crossing,
near a large vehicle, etc.).
 During calibration, do not operate electric systems (moon
roof, power windows, etc.) as they may interfere with the
calibration.
CAUTION
When doing the circling calibration, be sure to secure
a wide space, and watch out for people and vehicles
in the neighborhood. Do not violate any local traffic
rules while performing circling calibration.
 Do not adjust the display while the vehicle is moving.
Be sure to adjust the display only when the vehicle is
stopped.
VANITY MIRRORS
To use the vanity mirrors, swing the sun visor down and
slide the cover.
The vanity light comes on when you slide the cover.

AIR CONDITIONING
244The automatic air conditioning automatically maintains
the set temperature.
In the automatic operation mode, the air conditioning selects
the most suitable fan speed, air flow, air intake and on±off the
air conditioning according to the temperature.
The ignition key must be in the ªONº position.
NOTICE
To prevent the battery from being discharged, do not
leave the air conditioning on longer than necessarywhen the engine is not running.

AIR CONDITIONING
261
(a) Rear cooler ON±OFF
To turn the rear cooler on, push the ªREAR COOLº button
with front air conditioning on. To turn the rear cooler off,
push the button once again.
When you turn the rear cooler on with the front air conditioning
off, the cooling device is not operated.
(b) Air flow control
The fan speed can be set to your desired speed by pushing
the appropriate side of the fan speed control button. ªAUTOº mode:
The fan speed is automatically adjusted only
when the air flow setting of the front air conditioning is in the
panel mode.
(c) Temperature control
The temperature of the cooled air can be adjusted between

10 F (
5C) of the temperature of the front air
conditioning system. Push the left side of the button to
lower the temperature.
NOTICE
To prevent the battery from being discharged, do not leave the rear cooler on longer than necessary when the
engine is not running.

AUDIO
266
Using your audio system: some basics
This section describes some of the basic features of the Lexus
audio system. Some information may not pertain to your
system. Your audio system adjusts to the optimum volume and tone
quality automatically. While the system is adjusting the audio
sound, the audio sound fades out and then fades in.
Your audio system works when the ignition switch is in the
ªACCº or ªONº position.
NOTICE
To prevent the battery from being discharged, do not
leave the audio system on longer than necessary whenthe engine is not running.

AUDIO
273
(b) Presetting a station
1. Tune in the desired station.
2. Push one of the station selector buttons (1 Ð 6) and
hold it until a beep is heard. This sets the station to the
button and the button number (1 Ð 6) appears on the
display.
Each
button can store one AM station and two FM stations. To
change the preset station to a different one, follow the same
procedure.
The preset station memory is cancelled when the power
source is interrupted by battery disconnection or a blown fuse. (c) Selecting a station
Tune in the desired station using one of the following methods.
Seek tuning: Push the ªSEEKº button. The radio will begin
seeking up or down for a station of the nearest frequency and
will stop on reception. Each time you push the button, the
stations will be searched automatically one after another.
Preset tuning:
Push the button (1 Ð 6) for the station you
want. The button number (1 Ð 6) and station frequency
appear on the display.
Manual tuning: Turn the ªAUDIO´TUNEº knob. The radio will
step up or down to another frequency.
