AUDIO
301
Radio operation
(a) Listening to the radio
Push the ªON/SOURCEº button to choose either an AM or
FM station.
ªAMº, ªFM1º or ªFM2º appears on the display.
If the front audio system receives a traffic announcement (TA)
while the rear seat audio system is in the radio mode, ªTRAFº
will flash on the screen and the rear seat audio system will turn
off. When the front audio receives a traffic announcement (TA),
the rear seat audio system cannot select the AM/FM mode. (b) Selecting a station
Tune in the desired station using one of the following methods.Seek tuning: Push and hold the ªº or ªº (TUNE/TRACK)
button. The radio will begin seeking up or down for a station
of the nearest frequency and will stop on reception. Each time
you push the button, the stations will be searched out one after
another.
Manual tuning: Quickly push and release the ª
º or ªº
(TUNE/TRACK) button. The radio will step up or down to
another frequency.
To scan the preset stations: Push the ª
º or ªº
(DISC/CH/PROG) button. The radio will tune in the next preset
station up the band, stay there for a few seconds, and then
move to the next preset station. To select a station, push the
ªSCANº button a second time.
You can scan only the preset stations for the band of the front
audio system. (For instructions, see ª(b) Presetting a stationº\
on page 273.)

AUDIO
321
Using your audio system: some basics
The following instructions are for the rear passengers.
Please let the rear passengers read and follow the
instructions when the rear passengers use the rear seat
entertainment system.
This section describes some of the basic features of the rear
seat entertainment system. Some information may not pertain
to your system.
Your audio system adjusts to the optimum volume and tone
quality automatically. While the system is adjusting the audio
sound, the audio sound fades out and then fades in.
The rear seat entertainment system is designed for the rear
passengers to enjoy audio and DVD video separately from the
front audio system.
The rear seat entertainment system can be operated when the
ignition key is in the ªACCº or ªONº position.
The rear passengers can enjoy all modes (AM and FM radio,
cassette tape player, CD player with changer and DVD player)
on the rear seat entertainment system only if a cassette tape
and a CD are loaded in the front audio system. The rear seat entertainment system can play DVD video, audio
CD, video CD, CD text, dts±CD or DVD audio only when a disc
is loaded in the DVD player.
You can enjoy videos and sound when your personal audio
system is connected to the input terminal adapter on the rear
console box. For details, refer to the manufacturer's
instructions.
You can enjoy the rear seat entertainment system with
commercial headphone. See ªHeadphone input jacksº on
page 380 for details.
You can also enjoy the rear seat entertainment system with a
wireless headphone. The wireless headphone can be used
within rear seat. If the signal becomes weak, the headphone
will mute. For details, refer to the manufacturer's instructions.
With some wireless headphone generally available in the
market, it may be difficult to catch sound properly. Lexus
recommends the use of Lexus genuine wireless headphone.
You can purchase a wireless headphone at a Lexus dealer.

AUDIO
323
Turning the system on and off
To turn on the system, push the ªSOURCEº button.
The screen indicates which mode can be selected. Push the
ªDVDº or ªVIDEOº button when the connected DVD player or
your personal audio machine is on. The rear seat
entertainment system will be turned on.
The rear seat entertainment system can select all the modes.
When a cassette tape, a CD, a DVD video CD, an audio CD,
a video CD, a CD text, a dts±CD or a DVD audio disc is not
loaded on the front audio system or the DVD player, only the
radio mode can be selected on the rear seat entertainment
system.
To turn off the system, push the ªOFFº button.
When the front audio system is turned off, the rear audio
system and the DVD player will be turned off simultaneously.

AUDIO
324
Front audio system operation
All the modes of the front audio system can be operated on the
rear seat entertainment system.
When the same mode is selected on the front and rear audio
systems simultaneously, the system can be operated on the
front audio system.
If the radio mode is selected on the front and rear audio
systems at the same time, AM and FM modes cannot be
changed on the rear seat audio system.

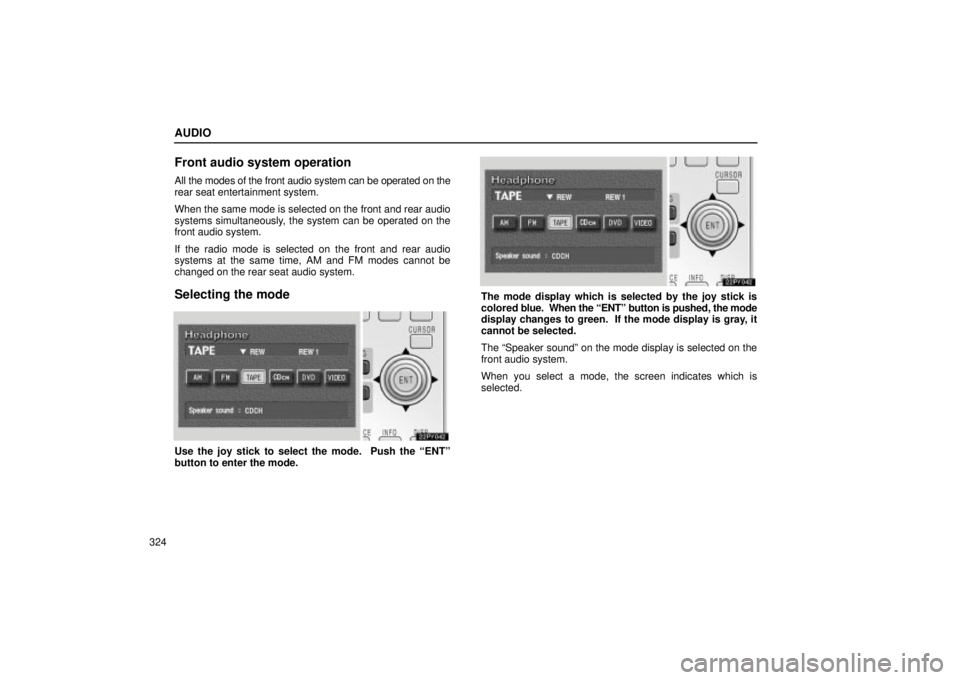

Selecting the mode
Use the joy stick to select the mode. Push the ªENTº
button to enter the mode.
The mode display which is selected by the joy stick is
colored blue. When the ªENTº button is pushed, the mode
display changes to green. If the mode display is gray, it
cannot be selected.
The ªSpeaker soundº on the mode display is selected on the
front audio system.
When you select a mode, the screen indicates which is
selected.

AUDIO
325
Radio operation

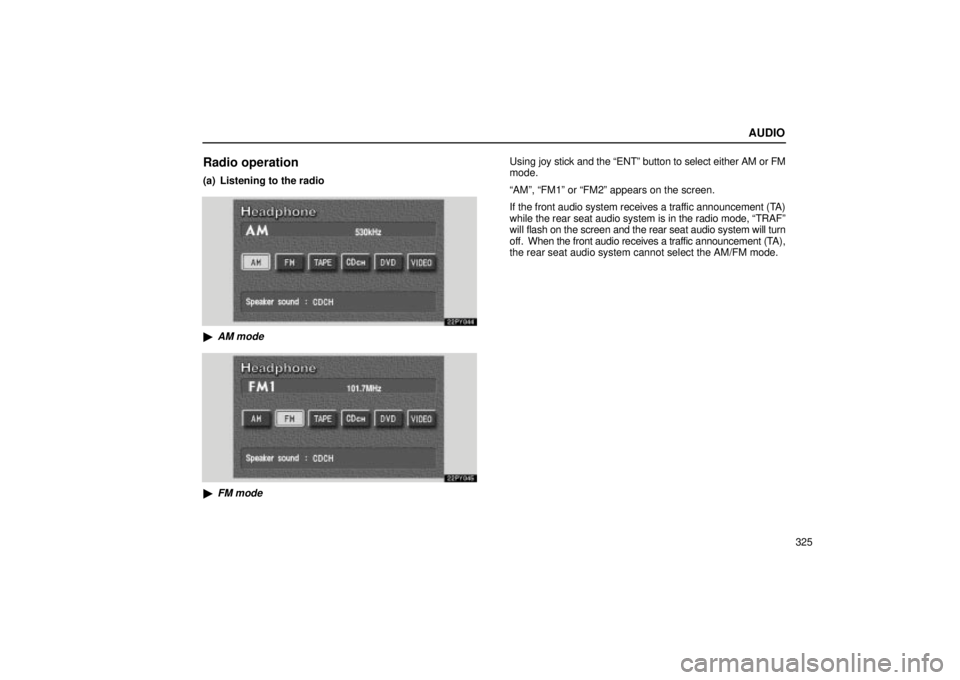

(a) Listening to the radio

AM mode

FM mode
Using joy stick and the ªENTº button to select either AM or FM
mode.
ªAMº, ªFM1º or ªFM2º appears on the screen.
If the front audio system receives a traffic announcement (TA)
while the rear seat audio system is in the radio mode, ªTRAFº
will flash on the screen and the rear seat audio system will turn
off. When the front audio receives a traffic announcement (TA),
the rear seat audio system cannot select the AM/FM mode.

AUDIO
326(b) Selecting a station
Tune in the desired station using one of the following methods.
Seek tuning: Push and hold the ªº or ªº (TUNE/TRACK)
button. The radio will seek up or down for a station of the
nearest frequency and will stop on reception. Each time you
push the button, the stations will be searched one after
another. Manual tuning: Quickly push and release the ª
º or ªº
(TUNE/TRACK) button. Each time you push the button, the
radio will step up or down to another frequency. If you push and
hold the button, and the radio will go into the seek mode.
To scan the preset stations: You can scan only the preset
stations for the band of the front audio system. Push the ªº
or ªº (DISC/CH/PROG) button. The radio will tune in the next
preset station up or down the band. The station frequency will
appear on the screen.

AUDIO
380
NOTICE
To prevent the battery from being discharged, do notuse the power outlet longer than necessary when theengine is not running.
Close the power outlet lid when the power outlet isnot in use. Inserting anything other than anappropriate plug that fits the outlet, or allowing anyliquid to get into the outlet may cause electricalfailure or short circuits.
The power outlet is not designed for the following electric
appliances even though their power consumption is
under 115 VAC/100W. These appliances may not operate
properly.
 Appliances with high initial peak wattage: Cathode±ray
tube type televisions, compressor±driven refrigerators,
electric pumps, electric tools, etc.
 Measuring devices which process precise data: Medical
equipment, measuring instruments, etc.
 Other appliances requiring an extremely stable power
supply: Microcomputer±controlled electric blankets, touch
sensor lamps, etc.
Certain electrical appliances may cause radio noise.Headphone input jacks
To use the jack, push the lid.

AUDIO
384Radio reception
Usually, a
problem with radio reception does not mean there is
a problem with your radio Ð it is just the normal result of
conditions outside the vehicle.
For example, nearby buildings and terrain can interfere with
FM reception. Power lines or telephone wires can interfere
with AM signals. And of course, radio signals have a limited
range. The farther you are from a station, the weaker its signal
will be. In addition, reception conditions change constantly as
your vehicle moves.
Here are some common reception problems that probably do
not indicate a problem with your radio: FM
Fading
and drifting stations Ð Generally, the effective range
of FM is about 40 km (25 miles). Once outside this range, you
may notice fading and drifting, which increase with the distance
from the radio transmitter. They are often accompanied by
distortion.
Multi±path Ð FM signals are reflective, making it possible for
two signals to reach your antenna at the same time. If this
happens, the signals will cancel each other out, causing a
momentary flutter or loss of reception.
Static and fluttering Ð These occur when signals are
blocked by buildings, trees, or other large objects. Increasing
the bass level may reduce static and fluttering.
Station swapping Ð If the FM signal you are listening to is
interrupted or weakened, and there is another strong station
nearby on the FM band, your radio may tune in the second
station until the original signal can be picked up again.

AUDIO
385
AM
Fading Ð AM broadcasts are reflected by the upper
atmosphere Ð especially at night. These reflected signals can
interfere with those received directly from the radio station,
causing
the radio station to sound alternately strong and weak.
Station interference Ð When a reflected signal and a signal
received directly from a radio station are very nearly the same
frequency, they can interfere with each other, making it dif ficult
to hear the broadcast.
Static Ð AM is easily affected by external sources of electrical
noise, such as high tension power lines, lightening, or electrical
motors. This results in static.
Caring for your cassette player and tapes
For the best performance for your cassette player and tapes:
Clean the tape head and other parts regularly.
 A dirty tape head or tape path can decrease sound quality
and tangle your cassette tapes. The easiest way to clean
them is by using a cleaning tape. (A wet type is
recommended.) Use high±quality cassettes.

Low±quality cassette tapes can cause many problems,
including poor sound, inconsistent playing speed, and
constant auto±reversing. They can also get stuck or tangled
in the cassette player.
 Do not use a cassette if it has been damaged or tangled or
if its label is peeling off.
 Do not leave a cassette in the player if you are not listening
to it, especially if it is hot outside.
 Store cassettes in their cases and out of direct sunlight.
 Avoid using cassettes with a total playing time longer than
100 minutes (50 minutes per side). The tape used in these
cassettes is thin and could get stuck or tangled in the
cassette player.
Caring for your CD player, DVD player and CDs
 Your CD player and DVD player are intended for use with 12
cm (4.7 in.) CDs only.
 Extremely high temperatures can keep your CD player and
DVD player from working. On hot days, use the air
conditioning to cool the vehicle interior before you use the
players.
 Bumpy roads or other vibrations may make your CD player
and DVD player skip.

STARTING AND DRIVING
399
ªACCº Ð Accessories such as the radio operate, but the
engine is off.
If you leave the key in the ªACCº or ªLOCKº position and open
the driver's door, a buzzer will remind you to remove the key.
ªLOCKº Ð Engine is off and the steering wheel is locked.
The ignition key can be removed only at this position.
To turn the key from ªACCº to the ªLOCKº position, you must
put the transmission selector lever in the ªPº position.
Once you remove the key, the engine immobilizer system is
automatically set. See ªEngine immobilizer systemº on page
14.
When starting the engine, the key may seem stuck at the
ªLOCKº position. To free it, first be sure the key is pushed all
the way in, and then rock the steering wheel slightly while
turning the key gently.
Approximately
five hours after the engine is turned off, you may
hear sound coming from underneath the luggage compartment
for several minutes. This is normal operation and does not
indicate a malfunction. (See ªLeak detection pumpº on page
vi.)
If, in an emergency, you must turn the engine off while the
vehicle is moving, turn the key only to ªACCº.
