OCCUPANT RESTRAINT SYSTEMS
197

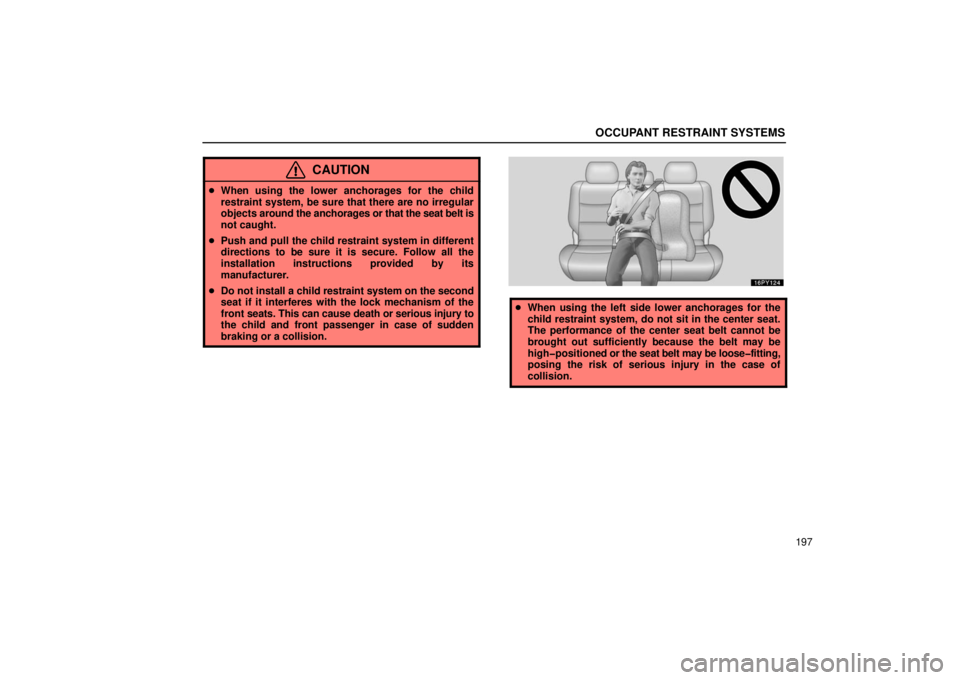

CAUTION
When using the lower anchorages for the child
restraint system, be sure that there are no irregular
objects around the anchorages or that the seat belt is
not caught.
Push and pull the child restraint system in different
directions to be sure it is secure. Follow all the
installation instructions provided by its
manufacturer.
Do not install a child restraint system on the second
seat if it interferes with the lock mechanism of the
front seats. This can cause death or serious injury to
the child and front passenger in case of sudden
braking or a collision.
When using the left side lower anchorages for the
child restraint system, do not sit in the center seat.
The performance of the center seat belt cannot be
brought out sufficiently because the belt may be
high positioned or the seat belt may be loose fitting,
posing the risk of serious injury in the case of
collision.
AUDIO
268
Replacing remote control battery
For replacement, use a CR2025 lithium battery or equivalent.
CAUTION
Special care should be taken that small children do not
swallow the removed battery or components.
NOTICE
When replacing the battery, be careful not to lose the
components.
Replace only with the same or equivalent type of
battery recommended by a Lexus dealer.
Dispose of used batteries according to the local laws.1. Pull the case out while pushing the lock release button to the
side.
2. Remove the discharged battery.
3. Put in a new battery with the positive (+) side up.
4. Put in the case securely.
ELECTRICAL COMPONENTS
551
No.FUSEAMPERECIRCUIT
64D RR P/W20Rear left side power window
65PANEL10Instrument panel lights
66TAIL10Parking lights, tail lights, license
plate lights, front fog lights
67ACC7.5
Shift lock control system, power
outlets, outside rear view
mirrors, audio system, navigation
system, power rear view mirrors,
multiāinformation display, rear
view monitor system
68CIG10Cigarette lighter
69POWER
OR TI&TE30Power windows, moon roof, tilt
and telescopic steering
CHECKING BATTERY CONDITION
Precautions
CAUTION
BATTERY PRECAUTIONS
The battery produces flammable and explosive
hydrogen gas.
Do not cause a spark by contacting the battery
terminals with tools.
Do not smoke or light a match near the battery.
The electrolyte contains poisonous and corrosive
sulfuric acid.
Avoid contact with eyes, skin or clothes.
Never inhale or swallow electrolyte.
Wear protective safety glasses when working near
the battery.
Keep children away from the battery.
EMERGENCY MEASURES
If electrolyte gets in your eyes, flush your eyes with
clean water for at least 15 minutes and get immediate
medical attention. If possible, continue to apply
water with a sponge or cloth while traveling to the
medical office.
