fuel Lexus GX470 2006 Basic Functions In Frequent Use / LEXUS 2006 GX470 (OM60B99U) User Guide

GAUGES, METERS AND SERVICE REMINDER INDICATORS
56
(e) Malfunction Indicator Lamp
This lamp comes on when the ignition key is turned to the
“ON” position and goes off after the engine starts. This
means that the warning light system is operating properly.
If the lamp remains on, or the lamp comes on while driving,
first check the followings.
 Empty fuel tank
If the fuel tank is empty, refuel immediately.
 Loose fuel tank cap
If the fuel tank cap is loose, securely tighten it.
These cases are temporary malfunctions. The malfunction
indicator lamp will go off after taking several driving trips.
If the lamp does not go off even after several trips, contact your
Lexus dealer as soon as possible.
If the fuel tank is not empty or the fuel tank cap is not
loose...
 There is a problem somewhere in the engine, emission
control system, electronic throttle control system, automatic
transmission electrical system or warning light system itself.
Contact your Lexus dealer as soon as possible to service the
vehicle.
If engine speed does not increase when the accelerator pedal
is depressed, there may be a problem somewhere in the
electronic throttle control system. At this time, vibration may occur. However, if you depress the
accelerator pedal more firmly and slowly, you can drive your
vehicle at low speeds. Have your vehicle checked by your
Lexus dealer as soon as possible.
Even if the abnormality of the electronic throttle control system
is corrected during low speed driving, the system may not be
recovered until the engine is stopped and the ignition key is
turned to “ACC” or “LOCK” position.
CAUTION
Be especially careful to prevent erroneous pedal
operation.
Emissions inspection and maintenance (I/M) programs
Your vehicle may not pass a state emission inspection if the
malfunction indicator lamp remains on. Contact your Lexus
dealer to check your vehicle’s emission control system and
OBD (On−Board Diagnostics) system before taking your
vehicle for the inspection.
For details, see “Emissions inspection and maintenance (I/M)
programs” on page 489.

GAUGES, METERS AND SERVICE REMINDER INDICATORS
61
If the system fails to reset, the light will remain flashing. In this
case, return to step 1 and try again.
(o) Low Tire Pressure Warning Light
This light warns that the tire pressure of one or more of your
tires
(including the spare tire) is low. The light comes on when
the ignition key is turned to the “ON” position. It goes off after
a few seconds. This indicates that the tire pressure warning
system is functioning properly.
If the warning light comes on, stop your vehicle in a safe place
as soon as possible and check that the inflation pressure of all
tires (including the spare tire) is as specified on the tire and
loading information label. (See “Checking tire inflation
pressure” on page 523.) The light should go off a few minutes
after the tire pressure is adjusted.
If the warning light blinks, the tire pressure warning system
may be malfunctioning. Contact your Lexus dealer.
For details, see “Tire pressure warning system” on page 387.
(p) Low Fuel Level Warning Light
This light comes on when the fuel level in the tank becomes
very low. Fill the tank as soon as possible.
On inclines or curves, due to the movement of fuel in the tank,
the low fuel level warning light may come on earlier than usual.
(q) Low Washer Fluid Warning Light
This light comes on when the fluid level in the tank becomes
very low. Fill the tank as soon as possible.
(r) Key Reminder Buzzer
This buzzer acts as a reminder to remove the key when you
open the driver’s door with the ignition key in the “ACC” or
“LOCK” position.

GAUGES, METERS AND SERVICE REMINDER INDICATORS
62
How to check all the service reminder
indicators (except the low fuel level warning
light)
1. Apply the parking brake.
2. Open the door.
The following service reminder indicator should come on. It
goes off when you close the door completely.
3. Place the four−wheel drive control lever in “N” position and
the selector lever in “P” position and turn the ignition key to
“ACC”.
The following service reminder indicator should come on. It
goes off when you place the four −wheel drive control lever in
“H” or “L” position.
4. Turn the ignition key to “ON”.
The following service reminder indicators should come on.
or
or or
w72a
w73

GAUGES, METERS AND SERVICE REMINDER INDICATORS
66
Outside temperature and cruise information
The following information is shown with the ignition
switch turned on. Each time you push the “MODE” button,
the display toggles through this information.
 Outside temperature
 Average fuel consumption
 Instantaneous fuel consumption
 Driving range
 Average vehicle speed
 Barometer
 Altimeter
 Elapsed time
The displayed values indicate general driving conditions.
Accuracy varies with driving habits and road conditions.
Outside temperature
 U.S.A.
Canada

GAUGES, METERS AND SERVICE REMINDER INDICATORS
67
In outside temperature mode, outside air temperatures
are displayed.
The displayed value is updated every 1 second.
The displayed temperature ranges from
−22F (− 30C) up to
122 F (50C).
If there is some abnormality in the connection of the outside air
temperature sensor, “ −−” will appear on the display. If “ −−”
appears on the display, contact your Lexus dealer.
In some cases, “ −−” may appear momentarily when the ignition
is quickly turned to “ON”. It is normal if it goes out soon.
Average fuel consumption
 U.S.A.
Canada

GAUGES, METERS AND SERVICE REMINDER INDICATORS
68Average fuel consumption is calculated and displayed
based on total driving distance and total fuel consumption
with the engine running.
The displayed value is updated every 10 seconds.
To reset the calculations, push and hold the “RESET” button for
more than 1 second.

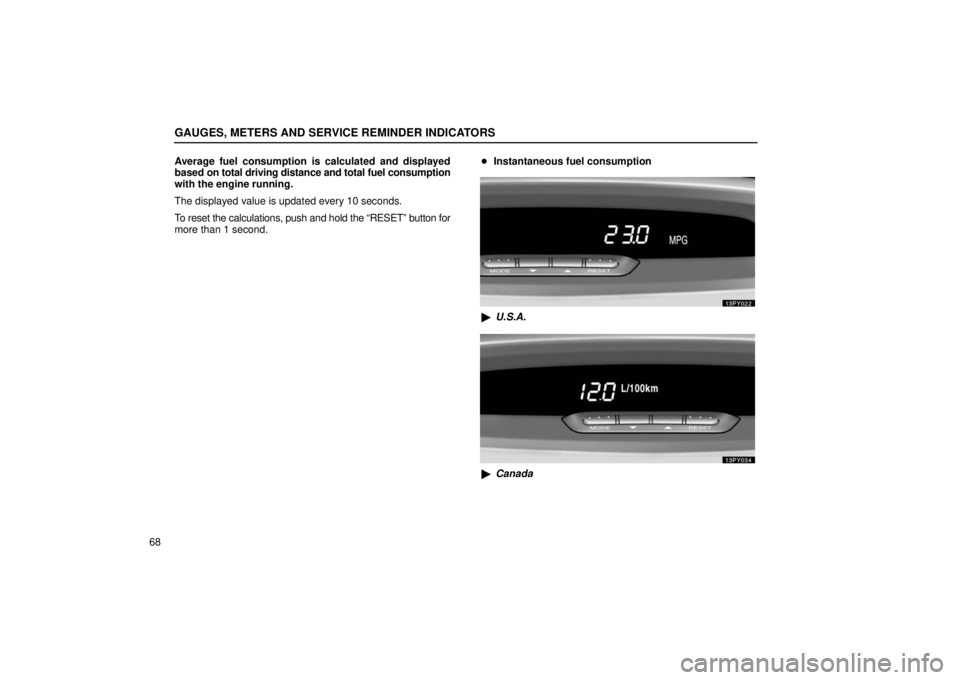

Instantaneous fuel consumption
 U.S.A.
Canada

GAUGES, METERS AND SERVICE REMINDER INDICATORS
69
Instantaneous fuel consumption is calculated and
displayed based on distance and fuel consumption for 2
seconds with the engine running.
The displayed value is updated every 2 seconds.
Note
that an accurate figure may not be shown in the following
cases.
 When the vehicle is stopped with the engine running, the
display will indicate extremely high fuel consumption.
 When the vehicle is driving down a long slope, with the
engine brake applied, the display will indicate extremely low
fuel consumption.

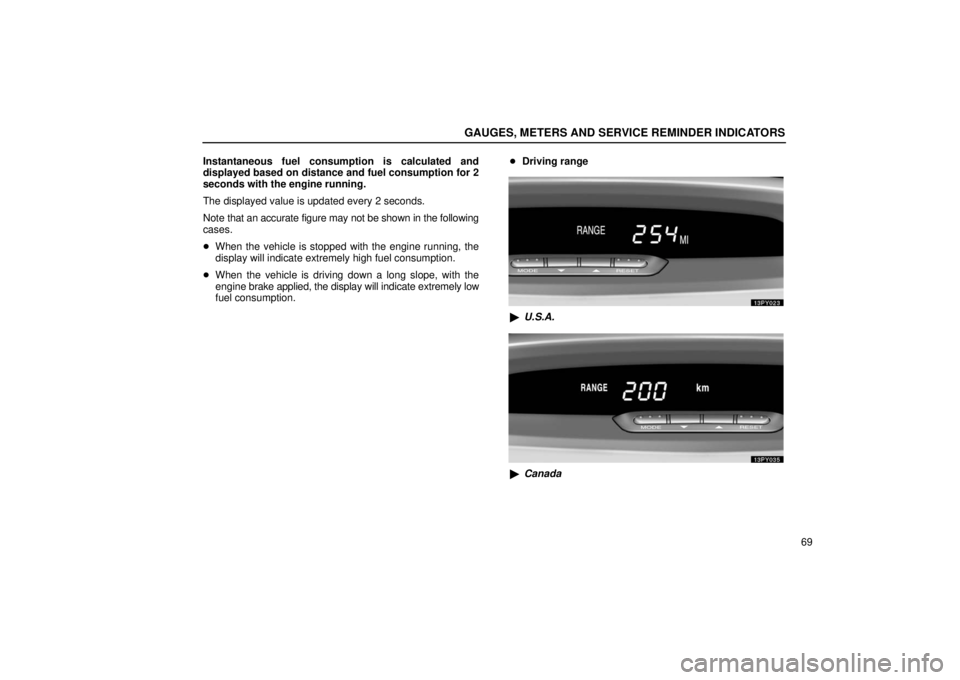

Driving range
 U.S.A.
Canada

GAUGES, METERS AND SERVICE REMINDER INDICATORS
70The distance the vehicle can travel with the remaining fuel
is calculated and displayed based on the quantity of
remaining fuel and past fuel consumption.
The driving range display indicates the approximate distance
that
you can drive until the fuel gauge reaches “E”. It is dif ferent
from the actual distance traveled.
The displayed value is updated every time the fuel required to
travel 1 mile or 1 km is consumed.
Every time you refuel the vehicle, the calculation is reset.
The actual driving range varies with driving habits and road
conditions. If fuel consumption is good, the driving range will
be longer. If fuel consumption is poor, the driving range will be
shorter.
If the low fuel level warning light comes on, refuel even if the
display indicates that the vehicle can be driven further.
Average vehicle speed
 U.S.A.
Canada

SECTION 1 – 5
99
INSTRUMENTS AND CONTROLS
Exterior equipment
Hood100
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . .
Fuel tank cap 101
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . .
Moon roof 103
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . .
Quarter windows 107
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . .
Roof luggage carrier 107
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
.
Rear step bumper 11 0
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . .

EXTERIOR EQUIPMENT
101

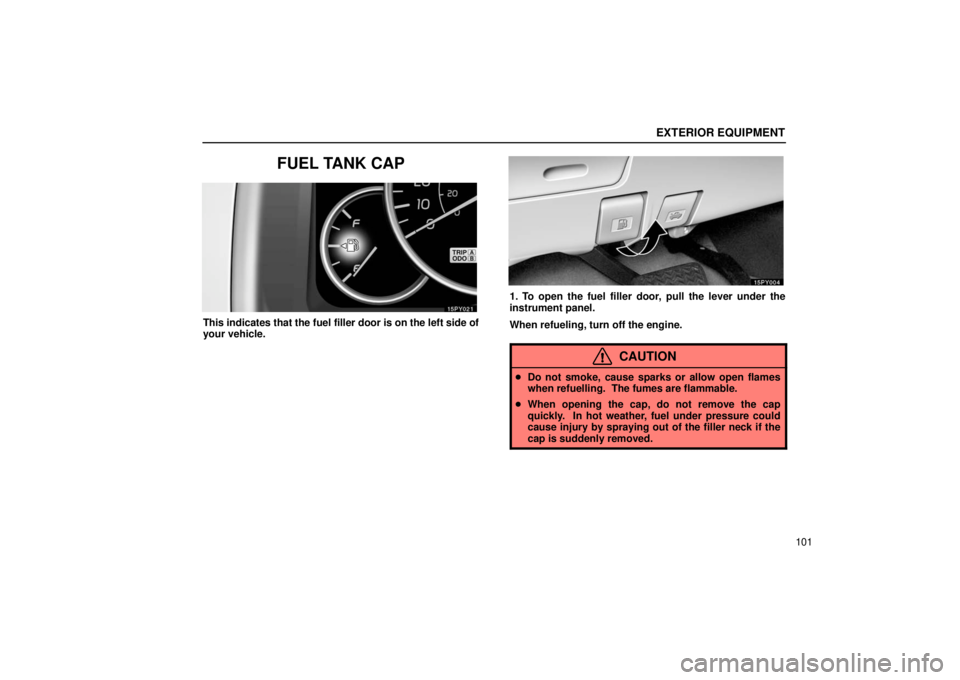

FUEL TANK CAP
This indicates that the fuel filler door is on the left side of
your vehicle.
1. To open the fuel filler door, pull the lever under the
instrument panel.
When refueling, turn off the engine.
CAUTION
Do not smoke, cause sparks or allow open flames
when refuelling. The fumes are flammable.
 When opening the cap, do not remove the cap
quickly. In hot weather, fuel under pressure could
cause injury by spraying out of the filler neck if the
cap is suddenly removed.
