VEHICLE LOAD LIMITS
Vehicle load limits include total load capacity, seating
capacity, towing capacity and cargo capacity. Follow
the load limits shown below. Total load capacity and
seating capacity are also described on the tire and
loading information label. For location of the tire and
loading information label, see “Checking tire inflation
pressure” on page 523.
Total load capacity:With third seats 544 kg (1200 lb.)
Without third seats 454 kg (1000 lb.)
Total load capacity means combined weight of
occupants, cargo and luggage. Tongue load is
included when trailer towing.
Seating capacity: With third seats Total 8 (Front 2, Rear 6)
Without third seats Total 5 (Front 2, Rear 3) Seating capacity means the maximum number of
occupants whose estimated weight is 68 kg (150 lb.)
per person. Depending on the weight of each person,
the seating capacity given may exceed the total load
capacity.
NOTICE
Even if the number of occupants are within the
seating capacity, do not exceed the total load
capacity.
Towing capacity:
2948 kg (6500 lb.)
Towing capacity means the maximum gross trailer
weight (trailer weight plus its cargo weight) that your
vehicle is able to tow.

MAINTENANCE
487
Brakes
In a safe place, check that the brakes do not pull to one side
when applied.
Parking brake
Check that the lever has the proper travel and that, on a safe
incline,
your vehicle is held securely with only the parking brake
applied.
Automatic transmission “Park” mechanism
Check the lock release button of the selector lever for proper
and smooth operation. On a safe incline, check that your
vehicle is held securely with the selector lever in “P” position
and all brakes released.
Vehicle exterior
Items listed below should be performed from time to time,
unless otherwise specified.
Fluid leaks
Check underneath for leaking fuel, oil, water or other fluid after
the vehicle has been parked for a while. If you smell fuel fumes
or notice any leak, have the cause found and corrected
immediately.
Doors and engine hood
Check that all side doors and back door, operate smoothly and
all latches lock securely. Make sure the engine hood
secondary latch secures the hood when the primary latch is
released.
Tire inflation pressure
Check the pressure with a gauge every two weeks,
or at least once a month and adjust as shown on the
tire pressure label. See page 523 for additional
information.
Tire surface
Check the tires carefully for cuts, damage or
excessive wear. See page 538 for additional
information.
Wheel nuts
When checking the tires, make sure to check the nuts
for looseness. Tighten them if necessary.
Tire rotation
Rotate the tires according to the maintenance
schedule. (For scheduled maintenance information,
please refer to the “Owner’s Manual
Supplement/Scheduled Maintenance”.) See page 537
for additional information.

SECTION 6 – 3
517
SERVICE PROCEDURES AND
SPECIFICATIONS
Chassis
Specifications518
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . .
Checking brake fluid 521
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
.
Checking power steering fluid 522
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Checking tire inflation pressure 523
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tire information 527
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . .
Types of tires 536
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . .
Rotating tires 537
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . .
Checking and replacing tires 538
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Installing snow tires and chains 540
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Replacing wheels 543
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . .
Aluminum wheel precautions 544
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Suspension and chassis 544
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

CHASSIS
520— CHASSIS LUBRICATION
Propeller shafts Spiders
Slide yoke
Lithium base chassis grease, NLGI No.2
Molybdenum −disulfide lithium base chassis grease, NLGI No.2 or
lithium base chassis grease, NLGI No.2
— STEERING
Free play
Less than 30 mm (1.2 in.)
Power steering fluidAutomatic transmission fluid DEXRONII or III
— TIRES AND WHEELS
Tire size
P265/65R17 110S
Tire inflation pressure Recommended cold tire inflation
pressure
Front 220 kPa (2.2 kgf/cm2 or bar, 32 psi)
Rear 220 kPa (2.2 kgf/cm2 or bar, 32 psi)
Spare 220 kPa (2.2 kgf/cm2 or bar, 32 psi)
Wheel size17  7 1/2 JJ
Wheel nut torque112 N·m (11.5 kgf·m, 83 ft·lbf)
NOTE:
For complete information on tires (e.g. replacing tires or replacing wh\
eels), see “Checking tire inflation pressure”
through “Aluminum wheel precautions” on pages 523 through 544.

CHASSIS
523
CAUTION
The reservoir may be hot so be careful not to burn
yourself.
NOTICE
Avoid overfilling, or the power steering could be
damaged.
 When adding the power steering fluid, avoid spilling
it. The generator under the power steering reservoir
could be damaged if fluid is spilled on it.
CHECKING TIRE INFLATION
PRESSURE
63PY025

CHASSIS
524
The recommended cold tire inflation pressures,
tire sizes and the combined weight of occupants
and cargo (vehicle capacity weight) are described
on page 520 and 564. They are also described
on the tire and loading information label as
shown.
You should check the tire inflation pressure every two
weeks, or at least once a month. And do not forget
the spare!
The following instructions for checking tire
inflation pressure should be observed:
The pressure should be checked only when the
tires are cold. If your vehicle has been parked
for at least 3 hours and has not been driven for
more than 1.5 km or 1 mile since, you will get an
accurate cold tire inflation pressure reading.
 If you cannot adjust the tire pressure when the
tires are cold, add 20 kPa (0.2 kgf/cm
2 or bar, 2.9
psi) to 30 kPa (0.3 kgf/cm2 or bar, 4.3 psi) more
to the front tires and rear tires than the cold tire
pressure, but never exceed the maximum cold tire
pressure molded on the tire sidewall.
Always use a tire pressure gauge. The
appearance of a tire can be misleading. Besides,
tire inflation pressures that are even just a few
pounds off can degrade handling and ride.
 Do not bleed or reduce tire inflation pressure
after driving. It is normal for the tire inflation
pressure to be higher after driving.
 Never exceed the vehicle capacity weight.
Passengers and luggage weight should be located
so that the vehicle is balanced.

CHASSIS
525
Inspection and adjustment procedure

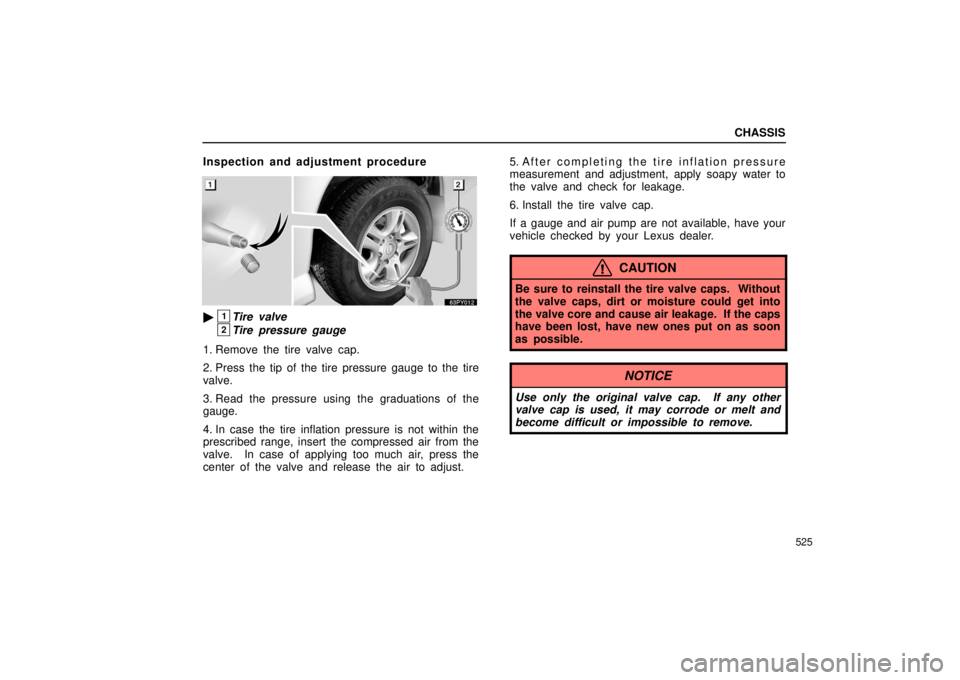

1Tire valve
2Tire pressure gauge
1. Remove the tire valve cap.
2. Press the tip of the tire pressure gauge to the tire
valve.
3. Read the pressure using the graduations of the
gauge.
4. In case the tire inflation pressure is not within the
prescribed range, insert the compressed air from the
valve. In case of applying too much air, press the
center of the valve and release the air to adjust. 5. After completing the tire inflation pressure
measurement and adjustment, apply soapy water to
the valve and check for leakage.
6. Install the tire valve cap.
If a gauge and air pump are not available, have your
vehicle checked by your Lexus dealer.
CAUTION
Be sure to reinstall the tire valve caps. Without
the valve caps, dirt or moisture could get into
the valve core and cause air leakage. If the caps
have been lost, have new ones put on as soon
as possible.
NOTICE
Use only the original valve cap. If any other
valve cap is used, it may corrode or melt and
become difficult or impossible to remove.

CHASSIS
526
Incorrect tire inflation pressure may waste fuel, reduce
the comfort of driving, reduce tire life and make your
vehicle less safe to drive.
If a tire frequently needs refilling, have it checked by
your Lexus dealer.
CAUTION
Keep your tires properly inflated. Otherwise, the
following conditions may occur and cause an
accident resulting in death or serious injuries.
Low tire pressure (underinflation) —
Excessive wear
 Uneven wear
 Poor handling
 Possibility of blowouts from an overheated
tire
 Poor sealing of the tire bead
 Wheel deformation and/or tire separation
 A greater possibility of tire damage from road
hazards
High tire pressure (overinflation) —
Poor handling
 Excessive wear
 Uneven wear
 A greater possibility of tire damage from road
hazards

CHASSIS
528
1Tire size: For details, see “Tire size” on page
529.
2DOT and Tire Identification Number (TIN): For
details, see “DOT and Tire Identification Number
(TIN)” on page 529.
3Location of the tread wear indicators: For
details, see “Checking and replacing tires” on
page 538.
4Tire ply composition and materials: Plies mean
a layer of rubber −coated parallel cords. Cords
mean the strands forming the plies in the tire.
5Radial tires or biasply tires: A radial tire has
“RADIAL” on the sidewall. A tire not marked with
“RADIAL” is a bias −ply tire.
6“TUBELESS” or “TUBE TYPE”: A tubeless tire
does not have a tube inside the tire. A tube type
tire has a tube inside the tire and the tube
maintains the air pressure.
7Load limit at maximum cold tire inflation
pressure: For details, see “Checking and
replacing tires” on page 538.
8Maximum cold tire inflation pressure: This
means the pressure to which a tire may be
inflated. For details about recommended cold tire
inflation pressure, see “Specifications” on page
518.
9Uniform tire quality grading: For details, see
“Uniform tire quality grading” that follows.
10Summer tire or all season tire: An all season
tire has “M+S” on the sidewall. The tire not
marked with “M+S” is a summer tire. For details,
see “Types of tires” on page 536.

CHASSIS
533
Glossary of tire terminology
Tire related termMeaning
Accessory weightthe combined weight (in excess of those standard items which may be rep\
laced)
of automatic transmission, power steering, power brakes, power windows, \
power
seats, radio, and heater, to the extent that these items are available as
factory−installed equipment (whether installed or not)
Cold tire inflation
pressuretire inflation pressure when the vehicle has been parked for at least 3 \
hours or
more, or it has not been driven more than 1.5 km or 1 mile under that co\
ndition
Curb weightthe weight of a motor vehicle with standard equipment including the maxi\
mum
capacity of fuel, oil, and coolant, and, if so equipped, air conditionin\
g and
additional weight optional engine
Intended outboard
sidewall(a) the sidewall that contains a whitewall, bears white lettering or bearsmanufacturer, brand, and/or model name molding that is higher or deeper
than the same molding on the other sidewall of the tire, or
(b) the outward facing sidewall of an asymmetrical tire that has a particula\
r side that must always face outward when mounted on a vehicle
Maximum inflation
pressurethe maximum cold inflation pressure to which a tire may be inflated and \
it is
shown on the sidewall of the tire
Maximum loaded
vehicle weightthe sum of —
(a) curb weight;
(b) accessory weight;
(c) vehicle capacity weight; and
(d) production options weight
