AUDIO

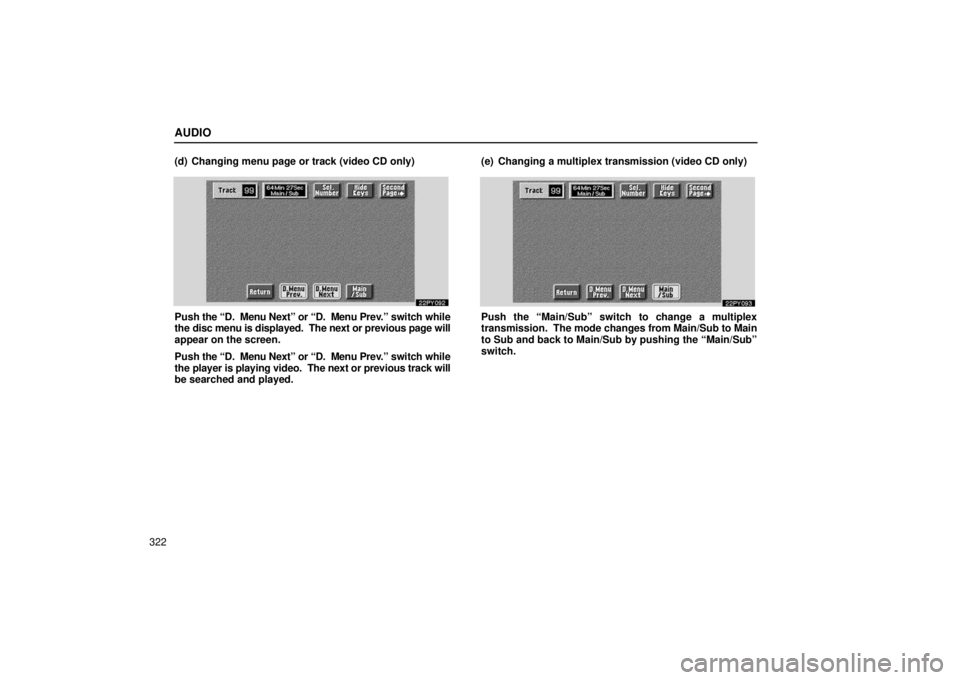

322(d) Changing menu page or track (video CD only)
Push
the “D. Menu Next” or “D. Menu Prev.” s witch while
the disc menu is displayed. The next or previous page will
appear on the screen.
Push the “D. Menu Next” or “D. Menu Prev.” s witch while
the player is playing video. The next or previous track will
be searched and played. (e) Changing a multiplex transmission (video CD only)Push the “Main/Sub” switch to change a multiplex
transmission.
The mode changes from Main/Sub to Main
to Sub and back to Main/Sub by pushing the “Main/Sub”
switch.

SECTION 3 – 1
341
STARTING AND DRIVING
Starting and driving
Three−way catalytic converters342
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Engine exhaust caution 343
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Before starting the engine 344
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Ignition switch 345
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . .
Parking brake 347
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . .
How to start the engine 348
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Automatic transmission 349
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Four−wheel drive system 356
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear view monitor system 358
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cruise control 362
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . .
Rear height control air suspension 366
. . . . . . . . . . . . . . . . . . . . . . . . .
Electronic modulated suspension 371
. . . . . . . . . . . . . . . . . . . . . . . . . .
Active traction control system 372
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Vehicle stability control system 375
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Downhill assist control system 377
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Hill −start assist control 380
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Brake system 383
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . .
Tire pressure warning system 387
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Brake pad wear limit indicators 394
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Limited −slip differential 395
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

STARTING AND DRIVING
346
“LOCK” — Engine is off and the steering wheel is locked.
The ignition key can be removed only at this position.
To turn the key from “ACC” to the “LOCK” position, you must
put the transmission selector lever in the “P” position.
Once you remove the key, the engine immobilizer system is
automatically set. See “Engine immobilizer system” on page
12.
When starting the engine, the key may seem stuck at the
“LOCK” position. To free it, first be sure the key is pushed all
the way in, and then rock the steering wheel slightly while
turning the key gently.
Approximately five hours after the engine is turned off, you may
hear sound coming from underneath the luggage compartment
for several minutes. This is normal operation and does not
indicate a malfunction. (See “Leak detection pump” on page
vii.)
If, in an emergency, you must turn the engine off while the
vehicle is moving, turn the key only to “ACC”. If is not a malfunction if the needles on all meters and gauges
move slightly when the key is turned tp the “ACC”, “ON” or
“START” position.

STARTING AND DRIVING
349
AUTOMATIC TRANSMISSION
Your automatic transmission has a shift lock system to
minimize the possibility of incorrect operation. This
means you can only shift out of “P” position when the
brake pedal is depressed with the ignition switch in “ON”
position. ()
31PY039
The shift position is displayed beside the selector lever
and on the instrument cluster.
P: Parking, engine starting and key removal position
R: Reverse position
N: Neutral position
D: Normal driving position (Shifting into overdrive possible)
4: Position for engine braking (Shifting into overdrive not
possible)
When the cruise control is being used, even if you
downshift from “D” to “4”, engine braking will not be
enabled because the cruise control is not cancelled. For
the operation to decrease the vehicle speed, see page
365.
3, 2: Position for more powerful engine braking
L: Position for maximum engine braking

STARTING AND DRIVING
350Correct
use of the automatic transmission is explained in
the following parts.
(a) Normal driving
(b) Using engine braking
(c) Using the “3”, “2” and “L” positions
(d) Backing up
(e) Parking
(f) Good driving practice
(g) If you cannot shift the selector lever
(h) Driving in second start mode
(a) Normal driving
1“P” (Park) position2“N” (Neutral) position
1. Start the engine as instructed in “How to start the
engine” on page 348.
The transmission must be in “P” or “N”. The engine will not st\
art
in any drive position even if the ignition key is turned to
“START”.

STARTING AND DRIVING
351
1Brake pedal2“D” (Drive) position
2. With your foot holding down the brake pedal, shift the
selector lever to “D”.
Always use the “D” position to improve fuel economy and quiet
driving. Only in this position, shifting into the overdrive gear is
possible. However, while the engine coolant temperature is
low, the transmission will not shift into the overdrive gear even
in the “D” position. (See “(b) Using engine braking” and\
“(f)
Good driving practice” for exceptions.)
CAUTION
Never put your foot on the accelerator pedal while
shifting.
3. Release the parking brake and brake pedal. Depress
the accelerator pedal slowly for smooth starting.
In normal cruising, the vehicle will start in first gear and
automatically shift up to the most suitable gear. On inclines,
declines or winding roads, etc., the vehicle shifts up and down
automatically according to the running conditions to obtain the
suitable driving power and engine braking.
When the lever is in the “4” position, the automatic
transmission system will select the most suitable gear for the
running conditions such as hill climbing, hard towing, etc.
If you need to accelerate rapidly while driving, depress the
accelerator pedal to the full throttle position. This provides
more acceleration by automatically downshifting the
transmission to the next lower gear or beyond, depending on
the vehicle speed.
If engine braking is needed, such as in descending a long hill,
see “(b) Using engine braking”.

STARTING AND DRIVING
352
(b) Using engine braking
To use the braking power of the engine, downshift the
transmission in the way described below:
1Shift into the “4” position. The transmission will downshift
to fourth gear and engine braking will be enabled.
When the cruise control is being used, even if you
downshift from “D” to “4”, engine braking will not be
enabled because the cruise control is not cancelled. If
you need to decrease the vehicle speed, see page 365.
2Shift into the “3” position. The transmission will downshift
to third gear when the vehicle speed is or becomes lower
than the speed listed below and stronger engine braking
will be enabled.
Transfer “H” 139 km/h (86 mph) “L” 54 km/h (33 mph)
3Shift into the “2” position. The transmission will downshift
to second gear when the vehicle speed is or becomes
lower than the speed listed below and more powerful
engine braking than that of “3” position will be enabled.
Transfer “H” 94 km/h (58 mph)“L” 36 km/h (22 mph)
4Shift into the “L” position. The transmission will downshift
to first gear when the vehicle speed is or becomes lower
than the speed listed below and maximum engine braking
will be enabled.
Transfer “H” 40 km/h (24 mph) “L” 15 km/h (9 mph)
CAUTION
Be careful when downshifting on a slippery surface.
The abrupt change in engine speed could cause the
vehicle to skid or spin.

STARTING AND DRIVING
353
(c) Using the “3”, “2” and “L” positions
The “3”, “2” and “L” positions are used for strong engine\
braking
as described previously.
With the selector lever in “3”, “2” or “L”, you can start the vehicle
in motion as with the lever in “D”.
With the selector lever in “3” or “2”, the vehicle will start in firs\
t
gear and automatically shift to second gear.
With the selector lever in “L”, the transmission is engaged in
first gear.
NOTICE
 Be careful not to overrev the engine. Watch the
tachometer to keep engine rpm from going into the
red zone. The approximate maximum allowable
speed for each position is given below for your
reference:
Transmission Transfer
“L” “H”
“3” 60 km/h (37 mph) 154 km/h (96 mph)
“2” 41 km/h (25 mph) 105 km/h (65 mph)
“L” 24 km/h (15 mph) 61 km/h (38 mph)
 Do not continue hill climbing or hard towing for a long
time in the “3”, “2” or “L” position. This may cause
severe automatic transmission damage from
overheating. To prevent such damage, “4” position
should be used in hill climbing or hard towing.
(d) Backing up
1Brake pedal2“R” (Reverse) position
1. Bring the vehicle to a complete stop.
2. With the brake pedal held down with your foot, shift the
selector lever to the “R” position.
NOTICE
Never shift into reverse while the vehicle is moving.
When the shift lever is shifted into “R” position, the outside rear
view mirrors automatically down to help backing up. For
details, see page 204.

STARTING AND DRIVING
355
(f) Good driving practice
If the transmission repeatedly shifts up and down between
the fourth and overdrive gears when climbing a gentle slope,
shift the selector lever to the “4” position. Be sure to shift the
selector lever to the “D” position after climbing the slope.
 When towing a trailer, in order to maintain efficient engine
braking and electrical charging performance, do not use
overdrive.
CAUTION
Always keep your foot on the brake pedal while stopped
with the engine running. This prevents the vehicle from
creeping.
NOTICE
Always use the brake pedal or parking brake to hold the
vehicle on an upgrade. Do not attempt to hold the
vehicle using the accelerator pedal, as this can cause
the transmission to overheat.
(g) If you cannot shift the selector lever
If you cannot shift the selector lever even though the brake
pedal is depressed, use the shift lock override button. For
instructions, see “If you cannot shift automatic transmission
selector lever” on page 453.
(h) Driving in second start mode
In the second start mode, the transmission system shifts up
from second gear. Use this mode when starting your vehicle
in sand, mud, ice or snow.
To set the second start mode, push the “2nd STRT” switch. In
the second start mode, the “2nd STRT” indicator light comes
on. To cancel the second start mode, push the “2nd STRT”
switch once again.

STARTING AND DRIVING
357
“L” (low speed position, center differential unlocked):
Lever at “L”, center differential lock switch left out
Use this for maximum power and traction. Use this for climbing
or descending steep hills, off
−road driving, and hard pulling in
sand or mud.
In this mode, the braking feeling that occurs when the wheels
are negotiating a sharp corner is further reduced than in the “L”
(low position, center differential locked) mode.
“L” (low speed position, center differential locked): Lever
at “L”, center differential lock switch pushed in
Use this for maximum power and traction. Use this for hard
pulling in situations the vehicle cannot negotiate even in the “L”
(low speed position, center differential unlocked) mode. Also,
using this mode when driving down steep off −road inclines will
help contribute to increased vehicle stability.
The indicator light tells when the differential lock is engaged.
Note that the differential is not still locked as long as the
indicator light remains off.
When the operation is not completed, the indicator blinks. If the
indicator light does not go off when you push out the center
differential lock switch, drive straight ahead while accelerating
or decelerating, or drive in reverse.
The center differential lock system operation is not completed
within 5 seconds while the cruise control system is set, cancel
the cruise control system. To cancel the cruise control system,
see “Cruise control” on page 362. If the indicator light does not go off when you push out the
center differential lock switch, drive straight ahead while
accelerating or decelerating, or drive in reverse.
See “(b) Shifting procedure” for further instructions.
(b) Shifting procedure
To shift between unlock and lock modes in “H”,
push the
center differential lock switch.
To shift between unlock and lock modes in “L”, push the
center differential lock switch.
To shift between “H” and “L”, stop the vehicle, put the
transmission into “N” and move the four −wheel drive control
lever.
CAUTION
Never move the fourwheel drive control lever if wheels
are slipping. Stop the slipping or spinning before
shifting.
