STARTING AND DRIVING
353
(c) Using the “3”, “2” and “L” positions
The “3”, “2” and “L” positions are used for strong engine\
braking
as described previously.
With the selector lever in “3”, “2” or “L”, you can start the vehicle
in motion as with the lever in “D”.
With the selector lever in “3” or “2”, the vehicle will start in firs\
t
gear and automatically shift to second gear.
With the selector lever in “L”, the transmission is engaged in
first gear.
NOTICE
 Be careful not to overrev the engine. Watch the
tachometer to keep engine rpm from going into the
red zone. The approximate maximum allowable
speed for each position is given below for your
reference:
Transmission Transfer
“L” “H”
“3” 60 km/h (37 mph) 154 km/h (96 mph)
“2” 41 km/h (25 mph) 105 km/h (65 mph)
“L” 24 km/h (15 mph) 61 km/h (38 mph)
 Do not continue hill climbing or hard towing for a long
time in the “3”, “2” or “L” position. This may cause
severe automatic transmission damage from
overheating. To prevent such damage, “4” position
should be used in hill climbing or hard towing.
(d) Backing up
1Brake pedal2“R” (Reverse) position
1. Bring the vehicle to a complete stop.
2. With the brake pedal held down with your foot, shift the
selector lever to the “R” position.
NOTICE
Never shift into reverse while the vehicle is moving.
When the shift lever is shifted into “R” position, the outside rear
view mirrors automatically down to help backing up. For
details, see page 204.

STARTING AND DRIVING
358
NOTICE
For normal driving on dry and hard surface roads,
unlock the center differential. To prevent damage to the
center differential lock system, do not push the center
differential lock switch when the vehicle is cornering or
when its wheels are spinning freely of f the ground. If the
indicator light does not go off when unlocking the
center differential, drive straight ahead while
accelerating or decelerating, or drive in reverse.
REAR VIEW MONITOR SYSTEM
The rear view monitor system assists the driver by
displaying an image of the rear of the vehicle while
backing up. The displayed image on the screen is a
horizontally reversed mirror image of the inside rear view
mirror.
To display the rear view image on the screen, place the
selector lever in the “R” position when the ignition switch
is in the “ON” position.
If you move the selector lever out of the “R” position, the screen
returns to the previous screen. Operating another function of
the navigation system will display another screen.
The rear view monitor system is a supplemental device
intended to assist back up. When backing up, be sure to check
behind and all around the vehicle visually.

STARTING AND DRIVING
359

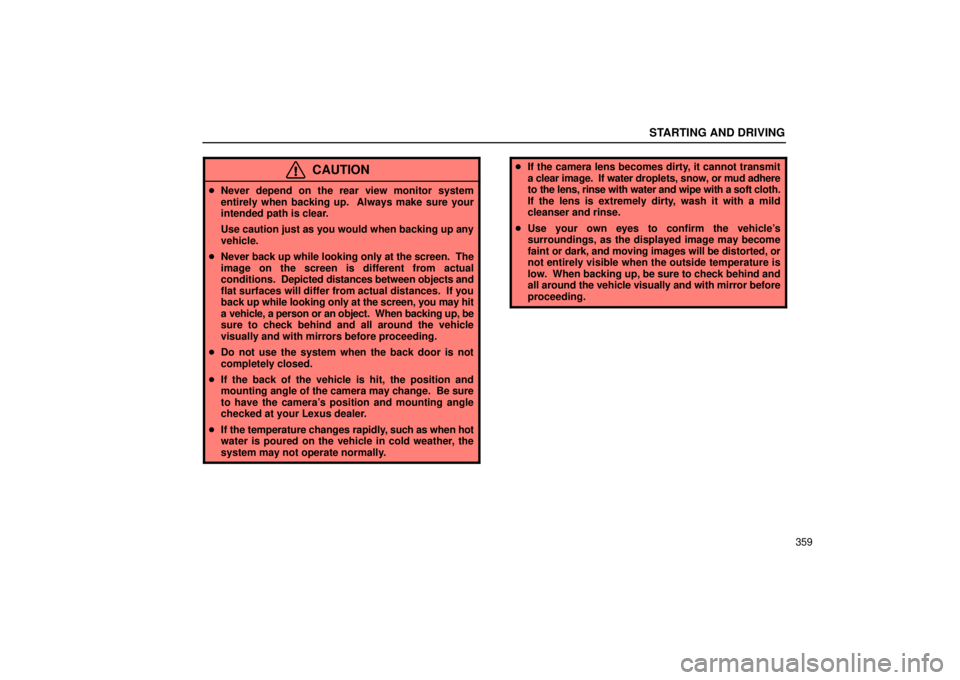

CAUTION
Never depend on the rear view monitor system
entirely when backing up. Always make sure your
intended path is clear.
Use caution just as you would when backing up any
vehicle.
 Never back up while looking only at the screen. The
image on the screen is different from actual
conditions. Depicted distances between objects and
flat surfaces will differ from actual distances. If you
back up while looking only at the screen, you may hit
a vehicle, a person or an object. When backing up, be
sure to check behind and all around the vehicle
visually and with mirrors before proceeding.
 Do not use the system when the back door is not
completely closed.
 If the back of the vehicle is hit, the position and
mounting angle of the camera may change. Be sure
to have the camera’s position and mounting angle
checked at your Lexus dealer.
 If the temperature changes rapidly , such as when hot
water is poured on the vehicle in cold weather, the
system may not operate normally.
 If the camera lens becomes dirty, it cannot transmit
a clear image. If water droplets, snow, or mud adhere
to the lens, rinse with water and wipe with a soft cloth.
If the lens is extremely dirty, wash it with a mild
cleanser and rinse.
 Use your own eyes to confirm the vehicle’s
surroundings, as the displayed image may become
faint or dark, and moving images will be distorted, or
not entirely visible when the outside temperature is
low. When backing up, be sure to check behind and
all around the vehicle visually and with mirror before
proceeding.

DRIVING TIPS
4145. Wait for about 20 seconds until the rear vehicle height is
lowered by the automatic leveling function.
6. Make sure the hitch is disconnected. If not, raise the hitch
higher and repeat steps 2 through 5.
7. Move the vehicle
forward in the “LO” (low) mode where the
hitch does not touch anything in the “N” (normal) mode.
8. Put the rear height control air suspension in the “N” (normal)
mode.
Pretowing safety check
 Check that your vehicle remains level when a loaded or
unloaded trailer is hitched. Do not drive if the vehicle has an
abnormal nose −up or nose− down condition, and check for
improper tongue load, overload, worn suspension or other
possible causes.
 Make sure the trailer cargo is securely loaded so that it
cannot shift.
 Check that your rear view mirrors conform to any federal,
state/provincial or local regulations. If they do not, install
required rear view mirrors appropriate for towing purposes.
Trailer towing tips
When towing a trailer, your vehicle will handle differently
than when not towing. The three main causes of
vehicletrailer accidents are driver error, excessive speed
and improper trailer loading. Keep these in mind when
towing:
 Before starting out, check the operation of the lights and all
vehicle −trailer connections. After driving a short distance,
stop and recheck the lights and connections. Practice
turning, stopping and backing with a trailer in an area away
from traffic until you learn the feel.
 Backing with a trailer is difficult and requires practice. Grip
the bottom of the steering whe el and move your hand to the
left to move the trailer to the left. Move your hand to the right
to move the trailer to the right. (This procedure is generally
opposite to that when backing without a trailer.) Also, just
turn the steering wheel a little at a time, avoiding sharp or
prolonged turning. Have someone guide you when backing
to reduce the risk of an accident.
 Because stopping distance may be increased,
vehicle −to−vehicle distance should be increased when
towing a trailer. For each 16 km/h (10 mph) of speed, allow
at least one vehicle and trailer length between you and the
vehicle ahead. Avoid sudden braking as you may skid,
resulting in jackknifing and loss of control. This is especially
true on wet or slippery surfaces.

IN CASE OF AN EMERGENCY
475
General tips for better speech recognition:

Noise may confuse the speech recognition system. You
usually get better performance from the system in quieter
conditions:

The air conditioning/heater fan creates noise. Turn it down
or off for better speech system performance.
 Driving at high speeds creates louder engine noise and wind
noise. You may get better results at lower speeds.
 An open window or an open moon roof results in more noise
in the vehicle. Close all windows for better results.
 Noisy rainstorms can also reduce performance.
 If passengers are talking while you use the speech system,
it may be confused by their speech. You will get better
results if all occupants of the vehicle are quiet while the
system is listening for commands.

Personal calling — the system is only listening for about 5
seconds after it prompts you to speak. If the system does not
hear a response, it will prompt you again, or cancel the
transaction. If you begin to speak too soon, it will tell you
“Slower, please”. Try pausing for a half second before
speaking.

Speak forcefully and clearly. The noisier the environment,
the louder you need to speak. If you are in the driver’s seat,
speak facing the front of the vehicle. If you are a passenger,
speak facing the inside rear view mirror.
 Speak calmly and naturally. The system may sometimes fail
to hear your repeated attempts to give a command. If your
speech is distorted by shouting or frustration, this may
cause more errors.
 People with high− pitched voices may have better results by
speaking in a deeper, lower−pitched voice. However, do not
lower the volume of the voice.
 Avoid speaking with a rising intonation, like asking a
question. Use a flat or falling intonation, like giving an
answer.

ELECTRICAL COMPONENTS
548
No.FUSEAMPERECIRCUIT
11CDS FAN20Electric cooling fan
12RR A/C30Rear air conditioning system
13MIR
HEATER10Outside rear view mirror
defogger
14STOP10
Stop lights, high m ounted
stoplight, shift lock control
system, vehicle stability control
system, electronic m odulated
suspension, rear height control
air suspension, multiport fuel
injection system/sequential
multiport fuel injection system
15AC INV15Power outlet (115 VAC)
16FR FOG15Front fog lights
17OBD7.5On −board diagnosis system
18HEAD
(LO RH)10Right− hand headlight (low beam)
19HEAD
(LO LH)10Left− hand headlight (low beam)
No.FUSEAMPERECIRCUIT
20HEAD
(HI RH)10Right− hand headlight (high
beam)
21HEAD
(HI LH)10Left− hand headlight (high beam)
22EFI NO.210Multiport fuel injection
system/sequential multiport fuel
injection system
23HEATER
NO.27.5Air conditioning system
24DEFOG30Rear window defogger
25AIRSUSNO.210Rear height control air
suspension
26SEAT
HEATER20Seat heaters
27DOME10
Ignition switch light, interior
lights, personal lights, foot
lights, running board lights,
door courtesy lights, inside
door handle lights,
multi −information display
28RADIO
NO.120Audio system, navigation
system

ELECTRICAL COMPONENTS
549
No.FUSEAMPERECIRCUIT
29ECUB10
Multiplex communication
system, vehicle stability control
system, wireless remote
control system, inside rear
view mirror, air conditioning
system, electronic modulated
suspension, driving position
memory system, power
windows, moon roof, rear view
monitor system
30ECUBNO.210Theft deterrent system
31ABS
MTR40
Anti −lock brake system,
vehicle stability control system,
active traction control system,
brake assist system
32AM230Starting system, all components
in “IGN”, “SRS”, “GAUGE” and
“ST2” fuses
33ABS
SOL30
Anti −lock brake system,
vehicle stability control system,
active traction control system,
brake assist system
No.FUSEAMPERECIRCUIT
34ALTS7.5Charging system
35MAYDAY7.5Lexus Link System
36HORN10Horns
37A/F
HEATER15A/F sensor
38TRNHAZ15Turn signal lights
39ETCS10Electronic throttle control system
40EFI20Multiport fuel injection
system/sequential multiport fuel
injection system
41D FR P/W20Power window
42DR/LCK25Power door lock
43TOWING30Towing converter
44RADIO NO.230Audio system, navigation
system
45A/PUMP50Multiport fuel injection
system/sequential multiport fuel
injection system
46IGN10
Multiport fuel injection
system/sequential multiport fuel
injection system, vehicle
stability control system

ELECTRICAL COMPONENTS
550
No.FUSEAMPERECIRCUIT
47SRS10SRS airbag system, front
passenger occupant
classification system
48GAUGE7.5Gauges and meters
49ST27.5Multiport fuel injection
system/sequential multiport fuel
injection system
50FR
WIPWSH30Windshield wipers, windshield
washer
51TEMS20Electronic modulated
suspension
52DIFF20Four−wheel drive system
53RR WIP15Rear window wiper
54D P/SEAT30Driver’s power seat
55P P/SEAT30Front passenger’s power seat
56PWR
OUTLET15Power outlet (12 VDC)
57IG1 NO.210Rear air conditioning system,
inside rear view mirror, kinetic
dynamic suspension system
58RR WSH15Rear window washer
No.FUSEAMPERECIRCUIT
59ECUIG10
Shift lock control system, power
windows, outside rear view
mirror defogger, anti −lock brake
system, active traction control
system, vehicle stability control
system, air conditioning system,
navigation system, power
windows, moon roof, tilt and
telescopic steering,
multi −information display,
driving position memory
system, rear view monitor
system, tire pressure warning
system
60IG110
Air conditioning system, back −up
lights, rear window defogger,
seat heaters, vehicle stability
control system
61STA7.5Multiport fuel injection
system/sequential multiport fuel
injection system
62P FR P/W20Front passenger’s power window
63P RR P/W20Rear right side power window

ELECTRICAL COMPONENTS
551
No.FUSEAMPERECIRCUIT
64D RR P/W20Rear left side power window
65PANEL10Instrument panel lights
66TAIL10Parking lights, tail lights, license
plate lights, front fog lights
67ACC7.5
Shift lock control system, power
outlets, outside rear view
mirrors, audio system, navigation
system, power rear view mirrors,
multi−information display, rear
view monitor system
68CIG10Cigarette lighter
69POWER
OR TI&TE30Power windows, moon roof, tilt
and telescopic steering
CHECKING BATTERY CONDITION
Precautions
CAUTION
BATTERY PRECAUTIONS
The battery produces flammable and explosive
hydrogen gas.
 Do not cause a spark by contacting the battery
terminals with tools.
 Do not smoke or light a match near the battery.
The electrolyte contains poisonous and corrosive
sulfuric acid.
 Avoid contact with eyes, skin or clothes.
 Never inhale or swallow electrolyte.
 Wear protective safety glasses when working near
the battery.
 Keep children away from the battery.
EMERGENCY MEASURES
 If electrolyte gets in your eyes, flush your eyes with
clean water for at least 15 minutes and get immediate
medical attention. If possible, continue to apply
water with a sponge or cloth while traveling to the
medical office.

SECTION 6 – 5
563
SERVICE PROCEDURES AND
SPECIFICATIONS
Body
Specifications564
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . .
Protecting your vehicle from corrosion 566
. . . . . . . . . . . . . . . . . . . . . .
Washing and waxing 567
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\

Cleaning the interior 569
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
.
Rain clearing mirrors 572
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
