Page 12 of 601
For detailed information, refer to the description given in each Section\
.
PICTORIAL INDEX
xiiPage
1Driving position memory switches
198
. . . . . . . . . . .
2Power window switches 40
. . . . . . . . . . . . . . . . . . . . . . .
3Power door lock switch 22
. . . . . . . . . . . . . . . . . . . . . . .
4Window lock switch 41
. . . . . . . . . . . . . . . . . . . . . . . . . . .
5Power rear view mirror control switches 204 . . . . . .
6Side vents 225
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7Headlight, turn signal and
fog light switches 30, 32, 33 . . . . . . . . . . . . . . . . . . . . . .
8Wiper and washer switches 33
. . . . . . . . . . . . . . . . . . . .
9Center vents 225
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
10Emergency flasher switch 43
. . . . . . . . . . . . . . . . . . . . .
11Audio system 232
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
12Multi information display 63
. . . . . . . . . . . . . . . . . . . . . .
13Automatic air conditioning controls 214
. . . . . . . . . .
14Rear window defogger switch 38
. . . . . . . . . . . . . . . . . .
15Front passenger’s seat belt reminder light 55 . . . . . .
16“AIRBAG ON” and “AIRBAG OFF”
indicator lights 169. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
17Glove box 83
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
18Ashtray 80
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. .
19Cigarette lighter 80
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
20Seat heater switches 44
. . . . . . . . . . . . . . . . . . . . . . . . . . Page
21Four wheel drive control lever
356
. . . . . . . . . . . . . . .
22Automatic transmission selector lever 349 . . . . . . . .
23Parking brake lever 347
. . . . . . . . . . . . . . . . . . . . . . . . .
24Center differential lock switch 356
. . . . . . . . . . . . . . .
25Power outlet (12 VDC) 81
. . . . . . . . . . . . . . . . . . . . . . . . .
26Downhill assist control switch 377
. . . . . . . . . . . . . . .
27Electronic modulated suspension
control switch 371 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
28Rear height control air suspension
switches 366. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
29Ignition switch 345
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
30“2nd STRT” (second start) switch 355
. . . . . . . . . . . .
31Tire pressure warning system
selector switch 393 . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
32Cruise control switch 362
. . . . . . . . . . . . . . . . . . . . . . .
33Audio remote control switches 250
. . . . . . . . . . . . . . .
34Instrument panel light control dial 74
. . . . . . . . . . . . . .
35Hood lock release lever 100
. . . . . . . . . . . . . . . . . . . . .
36Fuel filler door opener 101
. . . . . . . . . . . . . . . . . . . . . . .
37“RSCA OFF” (roll sensing of curtain
shield airbags off) switch 174 . . . . . . . . . . . . . . . . . . . .
38Outside rear view mirror defogger switch 39 . . . . . . .
39Power outlet (115 VAC) main switch 82
. . . . . . . . . . . .
Page 14 of 601
For detailed information, refer to the description given in each Section\
.
PICTORIAL INDEX
xivPage
1Driving position memory switches
198
. . . . . . . . . . .
2Power window switches 40
. . . . . . . . . . . . . . . . . . . . . . .
3Power door lock switch 22
. . . . . . . . . . . . . . . . . . . . . . .
4Window lock switch 41
. . . . . . . . . . . . . . . . . . . . . . . . . . .
5Power rear view mirror control switches 204 . . . . . .
6Side vents 225
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7Headlight, turn signal and
fog light switches 30, 32, 33 . . . . . . . . . . . . . . . . . . . . . .
8Wiper and washer switches 33
. . . . . . . . . . . . . . . . . . . .
9Center vents 225
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
10Emergency flasher switch 43
. . . . . . . . . . . . . . . . . . . . .
11Rear view monitor/navigation system display
including air conditioning controls and audio
system
(For the navigation system, see the separate
“Navigation System Owner’s Manual”.) 358 . . . . . . .
12Multi information display 63
. . . . . . . . . . . . . . . . . . . . . .
13Automatic air conditioning controls
See the separate
. . . . . . . . .
“Navigation System Owner’s Manual”.
14Rear window defogger switch 38
. . . . . . . . . . . . . . . . . .
15Front passenger’s seat belt reminder light 55 . . . . . .
16“AIRBAG ON” and “AIRBAG OFF”
indicator lights 169. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
17Glove box 83
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
18Audio system
See the separate
. . . . . . . . .
“Navigation System Owner’s Manual”.
19Ashtray 80
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. Page
20Cigarette lighter
80
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
21Seat heater switches 44
. . . . . . . . . . . . . . . . . . . . . . . . . .
22Four wheel drive control lever 356
. . . . . . . . . . . . . . .
23Automatic transmission selector lever 349 . . . . . . . .
24Parking brake lever 347
. . . . . . . . . . . . . . . . . . . . . . . . .
25Center differential lock switch 356
. . . . . . . . . . . . . . .
26Power outlet (12 VDC) 81
. . . . . . . . . . . . . . . . . . . . . . . . .
27Downhill assist control switch 377
. . . . . . . . . . . . . . .
28Electronic modulated suspension
control switch 371 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
29Rear height control air suspension
switches 366. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
30Ignition switch 345
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
31“2nd STRT” (second start) switch 355
. . . . . . . . . . . .
32Tire pressure warning system
selector switch 393 . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
33Cruise control switch 362
. . . . . . . . . . . . . . . . . . . . . . .
34Speech command switch
See the separate
. . . . . . . . .
“Navigation System Owner’s Manual”.
35Audio remote control switches 250
. . . . . . . . . . . . . . .
36Instrument panel light control dial 74
. . . . . . . . . . . . . .
37Hood lock release lever 100
. . . . . . . . . . . . . . . . . . . . .
38Fuel filler door opener 101
. . . . . . . . . . . . . . . . . . . . . . .
39“RSCA OFF” (roll sensing of curtain
shield airbags off) switch 174 . . . . . . . . . . . . . . . . . . . .
40Outside rear view mirror defogger switch 39 . . . . . . .
41Power outlet (115 VAC) main switch 82
. . . . . . . . . . . .
Page 16 of 601
For detailed information, refer to the description given in each Section\
.
PICTORIAL INDEX
xviPage
1Automatic transmission second start
indicator light 355
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2Unengaged “Park” warning light 58
. . . . . . . . . . . . . . .
3Automatic transmission fluid temperature
warning light 58 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4Low washer fluid warning light 61
. . . . . . . . . . . . . . . . .
5Automatic transmission indicator lights 349 . . . . . .
6Driver’s seat belt reminder light 54
. . . . . . . . . . . . . . . .
7Turn signal indicator light 32
. . . . . . . . . . . . . . . . . . . . .
8Brake system warning light 53
. . . . . . . . . . . . . . . . . . . .
9Headlight high beam indicator light 32
. . . . . . . . . . . .
10Anti lock brake system warning light 57
. . . . . . . . . . .
11Open door warning light 58
. . . . . . . . . . . . . . . . . . . . . . .
12Tachometer 50
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
13Headlight indicator light 30
. . . . . . . . . . . . . . . . . . . . . . .
14Cruise control indicator light 362
. . . . . . . . . . . . . . . .
15Engine oil replacement reminder light 60
. . . . . . . . . .
16Slip indicator light 373, 375, 378, 381
. . . . . . . . . . . . .
17Low engine oil pressure warning light 60
. . . . . . . . . .
18Charging system warning light 59
. . . . . . . . . . . . . . . . . Page
19Engine coolant temperature gauge
49
. . . . . . . . . . . . .
20Malfunction indicator lamp 56
. . . . . . . . . . . . . . . . . . . .
21Vehicle stability control system off
indicator light 376 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
22Roll sensing of curtain shield airbags off
indicator light 174. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
23Kinetic dynamic suspension system
warning light 59. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
24Center differential lock indicator light 356
. . . . . . . .
25Vehicle stability control system and active
traction control system warning light 59 . . . . . . . . . . .
26Downhill assist control system
indicator light 378. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
27Height control indicator lights 370
. . . . . . . . . . . . . . .
28Security indicator light 12, 27
. . . . . . . . . . . . . . . . . . . .
29SRS warning light 55
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
30Trip meter reset knob 50
. . . . . . . . . . . . . . . . . . . . . . . . .
31Odometer and trip meter 50
. . . . . . . . . . . . . . . . . . . . . .
32Low fuel level warning light 61
. . . . . . . . . . . . . . . . . . . .
33Low tire pressure warning light 61
. . . . . . . . . . . . . . . .
34Fuel gauge 48
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Page 18 of 601
For detailed information, refer to the description given in each Section\
.
PICTORIAL INDEX
xviiiPage
1Automatic transmission second start
indicator light 355
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2Unengaged “Park” warning light 58
. . . . . . . . . . . . . . .
3Automatic transmission fluid temperature
warning light 58 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
4Low washer fluid warning light 61
. . . . . . . . . . . . . . . . .
5Automatic transmission indicator lights 349 . . . . . .
6Driver’s seat belt reminder light 54
. . . . . . . . . . . . . . . .
7Turn signal indicator light 32
. . . . . . . . . . . . . . . . . . . . .
8Brake system warning light 53
. . . . . . . . . . . . . . . . . . . .
9Headlight high beam indicator light 32
. . . . . . . . . . . .
10Anti lock brake system warning light 57
. . . . . . . . . . .
11Open door warning light 58
. . . . . . . . . . . . . . . . . . . . . . .
12Tachometer 50
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
13Tail light indicator light 30
. . . . . . . . . . . . . . . . . . . . . . . .
14Cruise control indicator light 362
. . . . . . . . . . . . . . . .
15Slip indicator light 373, 375, 378, 381
. . . . . . . . . . . . .
16Low engine oil pressure warning light 60
. . . . . . . . . .
17Charging system warning light 59
. . . . . . . . . . . . . . . . .
18Engine coolant temperature gauge 49
. . . . . . . . . . . . . Page
19Malfunction indicator lamp
56
. . . . . . . . . . . . . . . . . . . .
20Vehicle stability control system off
indicator light 376 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
21Roll sensing of curtain shield airbags off
indicator light 174. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
22Kinetic dynamic suspension system
warning light 59. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
23Center differential lock indicator light 356
. . . . . . . .
24Vehicle stability control system and active
traction control system warning light 59 . . . . . . . . . . .
25Downhill assist control system
indicator light 378. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
26Height control indicator lights 370
. . . . . . . . . . . . . . .
27Security indicator light 12, 27
. . . . . . . . . . . . . . . . . . . .
28SRS warning light 55
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
29Trip meter reset knob 50
. . . . . . . . . . . . . . . . . . . . . . . . .
30Odometer and trip meter 50
. . . . . . . . . . . . . . . . . . . . . .
31Low fuel level warning light 61
. . . . . . . . . . . . . . . . . . . .
32Low tire pressure warning light 61
. . . . . . . . . . . . . . . .
33Fuel gauge 48
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Page 24 of 601
BPY011
BPY019
Shift while pressing the brake pedal.
(Ignition switch must be in the “ON” position.)

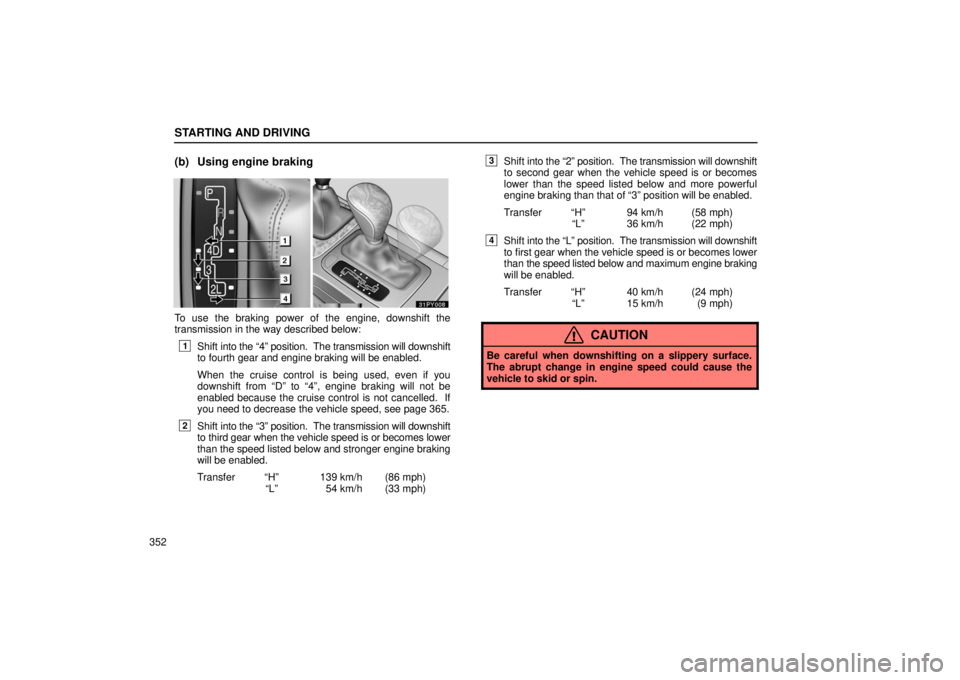

OPERATION OF SELECTOR LEVER
SELECTOR LEVER POSITION
P: Parking, engine starting and key removal
position
R: Reverse position
N: Neutral position
D: Normal driving position
(shifting into overdrive possible)
4: Position for engine braking
(shifting into overdrive not possible)
3, 2: Position for more powerful engine braking
L: Position for maximum engine braking
NOTE: When the cruise control is being used, even if you downshift from \
“D” to “4”, engine braking will not be enabled
because the cruise control is not cancelled. For the operation to decre\
ase the vehicle speed, see page 365.
QUICK REFERENCE
3
3. AUTOMATIC TRANSMISSION
Page 362 of 601
SECTION 3 – 1
341
STARTING AND DRIVING
Starting and driving
Three−way catalytic converters342
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Engine exhaust caution 343
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Before starting the engine 344
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Ignition switch 345
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . .
Parking brake 347
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . .
How to start the engine 348
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Automatic transmission 349
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Four−wheel drive system 356
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear view monitor system 358
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cruise control 362
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . .
Rear height control air suspension 366
. . . . . . . . . . . . . . . . . . . . . . . . .
Electronic modulated suspension 371
. . . . . . . . . . . . . . . . . . . . . . . . . .
Active traction control system 372
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Vehicle stability control system 375
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Downhill assist control system 377
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Hill −start assist control 380
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Brake system 383
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . .
Tire pressure warning system 387
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Brake pad wear limit indicators 394
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
Limited −slip differential 395
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Page 370 of 601
STARTING AND DRIVING
349
AUTOMATIC TRANSMISSION
Your automatic transmission has a shift lock system to
minimize the possibility of incorrect operation. This
means you can only shift out of “P” position when the
brake pedal is depressed with the ignition switch in “ON”
position. ()
31PY039
The shift position is displayed beside the selector lever
and on the instrument cluster.
P: Parking, engine starting and key removal position
R: Reverse position
N: Neutral position
D: Normal driving position (Shifting into overdrive possible)
4: Position for engine braking (Shifting into overdrive not
possible)
When the cruise control is being used, even if you
downshift from “D” to “4”, engine braking will not be
enabled because the cruise control is not cancelled. For
the operation to decrease the vehicle speed, see page
365.
3, 2: Position for more powerful engine braking
L: Position for maximum engine braking
Page 373 of 601
STARTING AND DRIVING
352
(b) Using engine braking
To use the braking power of the engine, downshift the
transmission in the way described below:
1Shift into the “4” position. The transmission will downshift
to fourth gear and engine braking will be enabled.
When the cruise control is being used, even if you
downshift from “D” to “4”, engine braking will not be
enabled because the cruise control is not cancelled. If
you need to decrease the vehicle speed, see page 365.
2Shift into the “3” position. The transmission will downshift
to third gear when the vehicle speed is or becomes lower
than the speed listed below and stronger engine braking
will be enabled.
Transfer “H” 139 km/h (86 mph) “L” 54 km/h (33 mph)
3Shift into the “2” position. The transmission will downshift
to second gear when the vehicle speed is or becomes
lower than the speed listed below and more powerful
engine braking than that of “3” position will be enabled.
Transfer “H” 94 km/h (58 mph)“L” 36 km/h (22 mph)
4Shift into the “L” position. The transmission will downshift
to first gear when the vehicle speed is or becomes lower
than the speed listed below and maximum engine braking
will be enabled.
Transfer “H” 40 km/h (24 mph) “L” 15 km/h (9 mph)
CAUTION
Be careful when downshifting on a slippery surface.
The abrupt change in engine speed could cause the
vehicle to skid or spin.
Page 378 of 601
STARTING AND DRIVING
357
“L” (low speed position, center differential unlocked):
Lever at “L”, center differential lock switch left out
Use this for maximum power and traction. Use this for climbing
or descending steep hills, off
−road driving, and hard pulling in
sand or mud.
In this mode, the braking feeling that occurs when the wheels
are negotiating a sharp corner is further reduced than in the “L”
(low position, center differential locked) mode.
“L” (low speed position, center differential locked): Lever
at “L”, center differential lock switch pushed in
Use this for maximum power and traction. Use this for hard
pulling in situations the vehicle cannot negotiate even in the “L”
(low speed position, center differential unlocked) mode. Also,
using this mode when driving down steep off −road inclines will
help contribute to increased vehicle stability.
The indicator light tells when the differential lock is engaged.
Note that the differential is not still locked as long as the
indicator light remains off.
When the operation is not completed, the indicator blinks. If the
indicator light does not go off when you push out the center
differential lock switch, drive straight ahead while accelerating
or decelerating, or drive in reverse.
The center differential lock system operation is not completed
within 5 seconds while the cruise control system is set, cancel
the cruise control system. To cancel the cruise control system,
see “Cruise control” on page 362. If the indicator light does not go off when you push out the
center differential lock switch, drive straight ahead while
accelerating or decelerating, or drive in reverse.
See “(b) Shifting procedure” for further instructions.
(b) Shifting procedure
To shift between unlock and lock modes in “H”,
push the
center differential lock switch.
To shift between unlock and lock modes in “L”, push the
center differential lock switch.
To shift between “H” and “L”, stop the vehicle, put the
transmission into “N” and move the four −wheel drive control
lever.
CAUTION
Never move the four wheel drive control lever if wheels
are slipping. Stop the slipping or spinning before
shifting.
