GAUGES, METERS AND SERVICE REMINDER INDICATORS

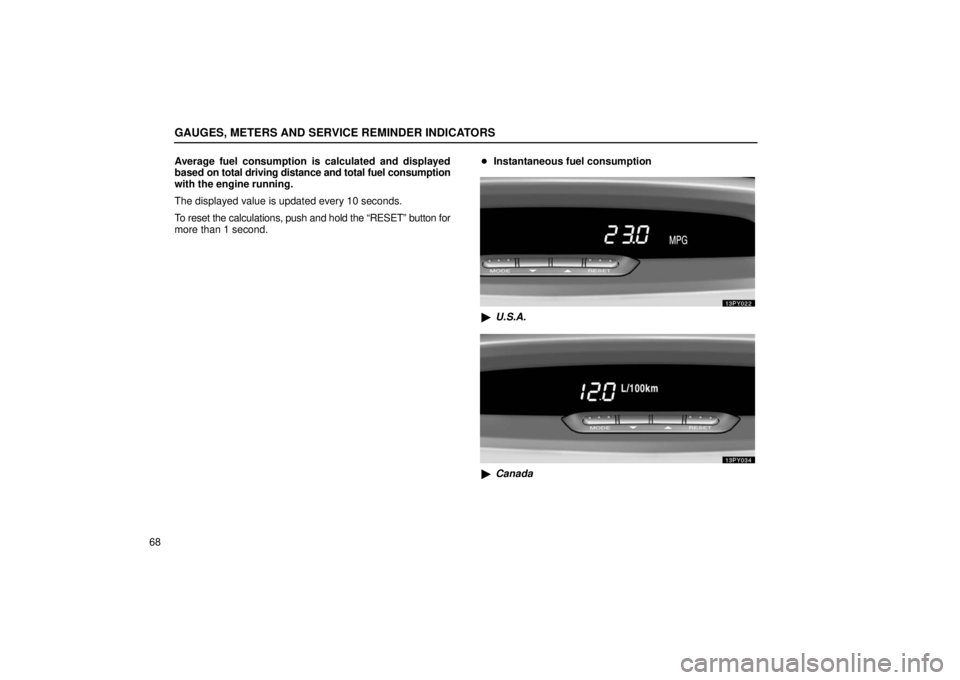

68Average fuel consumption is calculated and displayed
based on total driving distance and total fuel consumption
with the engine running.
The displayed value is updated every 10 seconds.
To reset the calculations, push and hold the “RESET” button for
more than 1 second.

Instantaneous fuel consumption
 U.S.A.
Canada

GAUGES, METERS AND SERVICE REMINDER INDICATORS
69
Instantaneous fuel consumption is calculated and
displayed based on distance and fuel consumption for 2
seconds with the engine running.
The displayed value is updated every 2 seconds.
Note
that an accurate figure may not be shown in the following
cases.
 When the vehicle is stopped with the engine running, the
display will indicate extremely high fuel consumption.
 When the vehicle is driving down a long slope, with the
engine brake applied, the display will indicate extremely low
fuel consumption.
Driving range
 U.S.A.
Canada

GAUGES, METERS AND SERVICE REMINDER INDICATORS
70The distance the vehicle can travel with the remaining fuel
is calculated and displayed based on the quantity of
remaining fuel and past fuel consumption.
The driving range display indicates the approximate distance
that
you can drive until the fuel gauge reaches “E”. It is dif ferent
from the actual distance traveled.
The displayed value is updated every time the fuel required to
travel 1 mile or 1 km is consumed.
Every time you refuel the vehicle, the calculation is reset.
The actual driving range varies with driving habits and road
conditions. If fuel consumption is good, the driving range will
be longer. If fuel consumption is poor, the driving range will be
shorter.
If the low fuel level warning light comes on, refuel even if the
display indicates that the vehicle can be driven further.
Average vehicle speed
 U.S.A.
Canada

GAUGES, METERS AND SERVICE REMINDER INDICATORS
71
Average vehicle speed is calculated and displayed based
on total driving distance and total driving time with the
engine running.
The displayed value is updated every 10 seconds.
To reset the calculations, push and hold the “RESET” button for
more than 1 second.

Barometer
 U.S.A.
Canada

GAUGES, METERS AND SERVICE REMINDER INDICATORS
72In barometer mode, the atmospheric pressure in the
vehicle is displayed.
The displayed atmospheric pressure ranges from 17.8 IN.HG
(600 hPa) up to 31.0 IN.HG (1050 hPa).
The displayed value is updated every 2 seconds.
The displayed value may deviate from the actual atmospheric
pressure
depending on opening or closing of the windows and
doors and the driving conditions.
Altimeter
 U.S.A.
Canada

GAUGES, METERS AND SERVICE REMINDER INDICATORS
73
In altimeter mode, the approximate altitude is displayed.
The displayed altitude ranges from
−1500 ft. (−500 m) up to
13000 ft. (4000 m).
As the altitude value is converted from the atmospheric
pressure, it can be easily affected by air motion and
temperature, so the indication may vary. The indicated altitude
of a single position may deviate according to the atmospheric
pressure and temperature.
The displayed value is updated every 2 seconds.
RECTIFICATION OF THE ALTITUDE
Rectification is valid only when the correct altitude is known.
While the altitude mode is on the display, push the “
” or “”
button to increase or decrease the altitude by 50 ft. (10 m).
To reset the rectified altitude, push and hold the “RESET”
button for more than 1 second.
Elapsed time U.S.A.
Canada

GAUGES, METERS AND SERVICE REMINDER INDICATORS
74The time that has elapsed since the engine started is
displayed.
When the engine is started,
driving time is counted from 0:00.
Up to 19:59 (19 hours, 59 minutes) can be displayed. When
the driving time exceeds 19:59, the counter returns to 0:00.
To reset the calculations, push and hold the “RESET” button for
more than 1 second.
INSTRUMENT PANEL LIGHT CONTROL
To adjust the brightness of the instrument panel lights,
turn the dial.
With the dial turned fully up, the intensity of the instrument
panel lights will not be reduced when the headlight switch is on.
If the instrument panel light control dial is turned fully down, the
foot lights will turn off.

STEERING WHEEL AND MIRRORS
207
Compass
The compass indicates the direction in which the vehicle
is heading. The illustration shown above indicates the
vehicle is heading north.
Push the “COMP” switch to turn the compass system on
and off.
If the ignition switch was turned off with the system on, the
system will automatically turn back on when the ignition switch
is turned on. Displays
Directions
N
NE E
SE S
SW W
NWNorth
Northeast East
Southeast South
Southwest West
Northwest
The compass may not show the correct direction in the
following conditions:
 The vehicle is stopped immediately after turning.
The compass does not adjust while the vehicle is stopped.
 The ignition switch is turned off immediately after turning.
 The vehicle is on an inclined surface.
 The vehicle is in a place where the earth’s magnetic field is
subject to interference by artificial magnetic fields
(underground parking, under a steel tower, between
buildings, roof parking, near a crossing, near a large vehicle,
etc.).
 The vehicle is magnetized. (There is a magnet or a metal
object on or near the inside rear view mirror.)
 The battery has been disconnected.

STEERING WHEEL AND MIRRORS
208If your vehicle is out of the set zone, refer to “Calibrating the
compass” in this Section to set the zone number.
If the deviation is small, the compass works to calibrate the
direction automatically while the vehicle is in motion.
For additional precision or for complete calibrating, see
“Calibrating the compass” below.
If the direction is not indicated or the system does not operate
properly, contact your Lexus dealer.

Compass sensor
NOTICE
Do not put magnets or a metal object on or near the
inside rear view mirror of the vehicle. Doing this may
cause malfunction of the compass sensor in the mirror.
Calibrating the compass (deviation calibration)
The direction display on the compass deviates from the true
direction determined by the earth’s magnetic field. The angle
of deviation varies according to the geographic position of the
vehicle.
To adjust this deviation, stop the vehicle, then push and hold
the “COMP” switch until the zone number appears on the
display. Then push the “COMP” switch, referring to the
following map to select the number of the zone where the
vehicle is.

STEERING WHEEL AND MIRRORS
209
16Z001
Samoa: 5 Guam: 8 Saipan: 8
 Zone numbers Leaving the system after the calibration for several seconds,
the direction will appear on the display. It shows the zone
number is set.
CAUTION
Do not adjust the display while the vehicle is moving.
Be sure to adjust the display only when the vehicle is
stopped.
Calibrating the compass (circling calibration)
To rectify the compass, stop the vehicle and push and hold the
“COMP” switch until “C” appears on the display.
There is also a case that “C” appears on the display in case of
the drastic change of the magnetic field.
