STEERING WHEEL AND MIRRORS
210
Drive the vehicle slowly (at 8 km/h [5 mph] or lower) in a circle
until the direction is displayed. If there is not enough space to
drive in a circle, drive around the block until the direction is
displayed.
After driving in 1 to 3 circles in the above method, calibration
is complete with the direction shown on the display. Perform
circling calibration just after you have purchased
your Lexus. And then always perform circling calibration
after the battery has been removed, replaced or
disconnected.
 Do not perform circling calibration of the compass in a place
where the earth’s magnetic field is subject to interference by
artificial magnetic fields (underground parking, under a steel
tower, between buildings, roof parking, near a crossing,
near a large vehicle, etc.).
 During calibration, do not operate electric systems (moon
roof, power windows, etc.) as they may interfere with the
calibration.
CAUTION
When doing the circling calibration, be sure to secure
a wide space, and watch out for people and vehicles
in the neighborhood. Do not violate any local traffic
rules while performing circling calibration.
 Do not adjust the display while the vehicle is moving.
Be sure to adjust the display only when the vehicle is
stopped.

AIR CONDITIONING
214

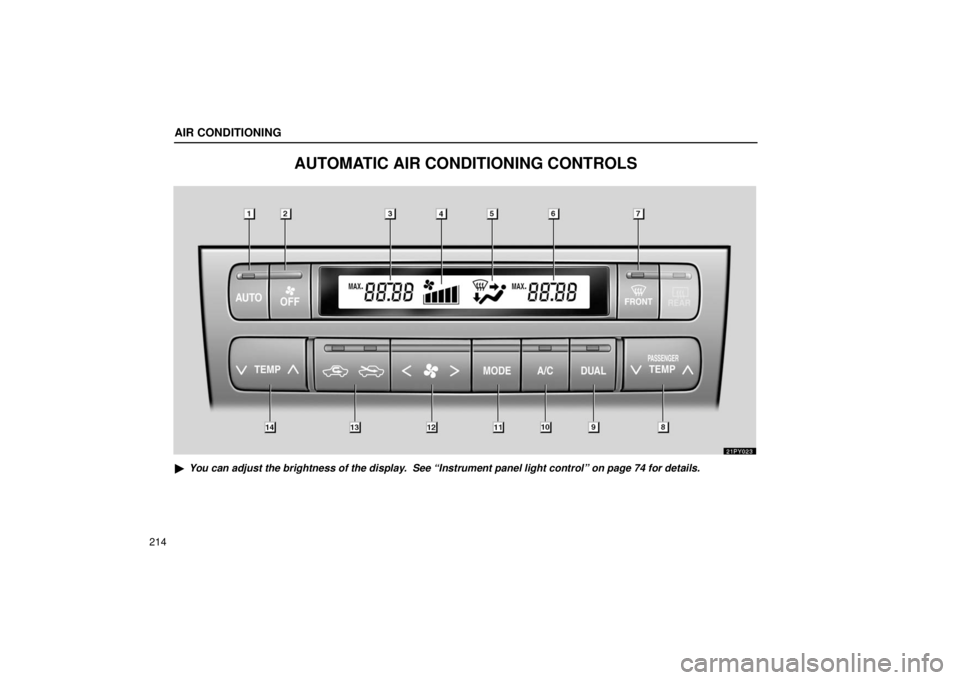

AUTOMATIC AIR CONDITIONING CONTROLS
21PY023
You can adjust the brightness of the display. See “Instrument panel light control” on page 74 for details.

AIR CONDITIONING
215
The automatic air conditioning automatically maintains
the set temperature.
In the automatic operation mode, the air conditioning selects
the most suitable fan speed, air flow, air intake and on−
off the
air conditioning according to the temperature.
The ignition key must be in the “ON” position.
NOTICE
To prevent the battery from being discharged, do not
leave the air conditioning on longer than necessary
when the engine is not running.
1“AUTO” button
2“OFF” button
3Driver side temperature display (in degrees
Fahrenheit or Centigrade)
4Fan speed display
5Air flow display
6Passenger side temperature display (in degrees
Fahrenheit or Centigrade)
7Windshield air flow button
8“PASSENGER TEMP” (passenger side temperature
control) button
9“DUAL” (temperature setting mode change) button
10“A/C” button
11“MODE”(air flow control) button
12Fan speed control button
13Air intake control button
14“TEMP” (driver side temperature control) button

AIR CONDITIONING
219
If quick heating or cooling is desired —
Push the “TEMP” or “PASSENGER TEMP” button on either
side
and hold it until “MAX. HOT” or “MAX. COLD” appears on
the display.
If manual fan speed control is desired —
1Fan speed at low2Fan speed at high
The fan speed can be set to your desired speed by pushing the
appropriate side of fan speed control button. The higher the fan
speed is, the more air is delivered. Pushing the “OFF” button
turns off the fan.
To remove exterior windshield frost, use the high speed setting. If manual switching of air intake is desired —
Each time you push the air intake control button, the mode
changes in order from the RECIRCULATED AIR mode to
OUTSIDE AIR mode, then back to the RECIRCULATED AIR
mode. Each indicator light shows which mode is now
selected.
1RECIRCULATED AIR mode — If quick circulation of
cooled air is desired, select this mode.
2OUTSIDE AIR mode — The system will take fresh
outside air into the vehicle.
To prevent fogging up of the windshield, the air intake mode
may change automatically to the OUTSIDE AIR mode
depending on the condition of the air conditioning system.
For example, when the ambient temperature is low, the air
intake mode may change automatically to the OUTSIDE AIR
mode. This is not a malfunction.

AUDIO
232
AUDIO SYSTEM
Quick reference for your audio system
22PY155
You can adjust the brightness of the display. See “Instrument panel light control” on page 74 for details.
If a Mark Levinson brand audio system is installed, the “Mark Levinso\
n” logo is shown on the panel.

AUDIO
233
1Ejecting a CD
(See page 246 for details.)
2CD slot
(See page 245 for details.)
3Display of functions in TAPE or CD mode
RPT: Automatic repeat
(See page 243 or 248 for details.)
:DOLBY NR
(See page 242 for details.)
Side change
(See page 243 for details.)
\b\b : Rewinding or reversing
(See page 243 or 248 for details.)
 : Fast forwarding
(See page 243 or 248 for details.)
RAND: Random access
(See page 249 for details.)
:CD selection
(See page 247 for details.)
4Station selector and function buttons
(See page 239 for details.)
5Radio mode: Scan tuning
(See page 240 for details.)
CD mode: Scan selection
(See page 247 for details.)
6Radio mode:Radio text message
(See page 241 for details.)
CD mode: CD text
(See page 249 for details.)
7CD load button
(See page 245 for details.)
8AUDIO·TUNE knob
(See page 236 for details.)
9Traffic announcement button
(See page 241 for details.)
10Program type button
(See page 240 for details.)
11Mode selectors
(See page 235 for details.)
12Radio mode:Seek tuning
(See page 239 for details.)
TAPE mode: Direct access to a desired program
(See page 244 for details.)
CD mode: Direct access to a desired program
(See page 248 for details.)
13Cassette tape slot
(See page 242 for details.)
14Stopping and ejecting a cassette tape
(See page 242 for details.)
15Turning the system on and adjusting the volume
(See page 234 for details.)
\b
:

AUDIO
235
Push the “AM”, “FM”, “TAPE” or “DISC” button to turn on
that mode. The selected mode turns on directly.
Push these buttons if you want to switch from one mode to
another.
If the tape or CD is not set, the cassette player or CD player
does not turn on.
You can turn off each player by ejecting the cassette tape or
CD. If the audio system was previously off, then the entire
audio system will be turned off when you eject the cassette
tape or CD. If the other function was previously playing, it will
come on again.
Vehicles with rear seat entertainment system —
The “DISC” button may also be used to operate a DVD player.
Pressing the “DISC” button changes between the CD player
and DVD player. When the DVD player is in operation, “AUX”
appears on the display.In the “TAPE” or “CD” mode, the applicable functions are
shown in the lowest part of the display. Push the switch
just below to turn on each function.
(b) Tone and balance
How good an audio program sounds to you is largely
determined by the mix of the treble, mid −range, and bass
levels. In fact, different kinds of music and vocal programs
usually sound better with different mixes of treble, mid −range
and bass.
A good balance of the left and right stereo channels and of the
front and rear sound levels is also important.
Keep in mind that if you are listening to a stereo recording or
broadcast, changing the right/left balance will increase the
volume of one group of sounds while decreasing the volume
of another.

AUDIO
236
Each time you push the “AUDIO·TUNE” knob, the display
changes as in the following. To adjust the tone and
balance or turn on or off the automatic sound levelizer,
turn the knob.
BAS: Adjusts low −pitched tones.
MID: Adjusts mid− pitched tones.
TRE: Adjusts high− pitched tones.
FAD: Adjusts the sound balance between the front and rear
speakers.
BAL: Adjusts the sound balance between the right and left
speakers.
ASL: Turns on or off the automatic sound levelizer. Automatic sound levelizer (ASL):
When the audio sound
becomes dif ficult to be heard due to road noise, wind noise, etc.
during driving, the system adjusts to the optimum volume and
tone quality according to the noise level. While the automatic
sound levelizer is on, “ASL” appears on the display.
(c) Your radio antennas
The wire antenna is mounted inside the quarter windows.
NOTICE
 When cleaning the inside of the quarter windows, be
careful not to scratch or damage the wire antennas or
connectors.
 Putting a window tint (especially, conductive or
metallic type) on the quarter windows may affect the
reception of radio or mobile telephone. For the
installation of the window tint, consult with your
Lexus dealer.

AUDIO
237
(d) Your cassette player
When you insert a cassette, the exposed tape should face to
the right.
NOTICE
Never try to disassemble or oil any part of the cassette
player. Do
not insert anything other than cassette tape
into the slot.
(e) Your CD player with changer
Your CD player with changer can store up to 6 CDs and play
selected CDs or continuously play all the CDs set in the player.
When you set CDs into the player, make sure their labels face
up. If not, the player will display “ERROR 1” and the CD
number.
NOTICE
 Do not stack up two CDs for insertion, or it will cause
damage to the CD changer. Insert only one CD into
slot at a time.
 Never try to disassemble or oil any part of the CD
player. Do not insert anything other than CD into the
slot.
The player is intended for use with 12 cm (4.7 in.) CDs only.

AUDIO
238
Radio operation
(a) Listening to the radio
Push these buttons to choose either an AM or FM station.
“AM”, “FM1”, “FM2” or “FM TYPE” appears on the d\
isplay.
Turn this knob to the right to step up the frequency or to
the left to step down.
Your radio automatically changes to stereo reception when a
stereo broadcast is received. “ST” appears on the display. If
the signal becomes weak, the radio reduces the amount of
channel separation to prevent the weak signal from creating
noise. If the signal becomes extremely weak, the radio
switches from stereo to mono reception. In this case, “ST”
disappears from the display.
