SWITCHES
40

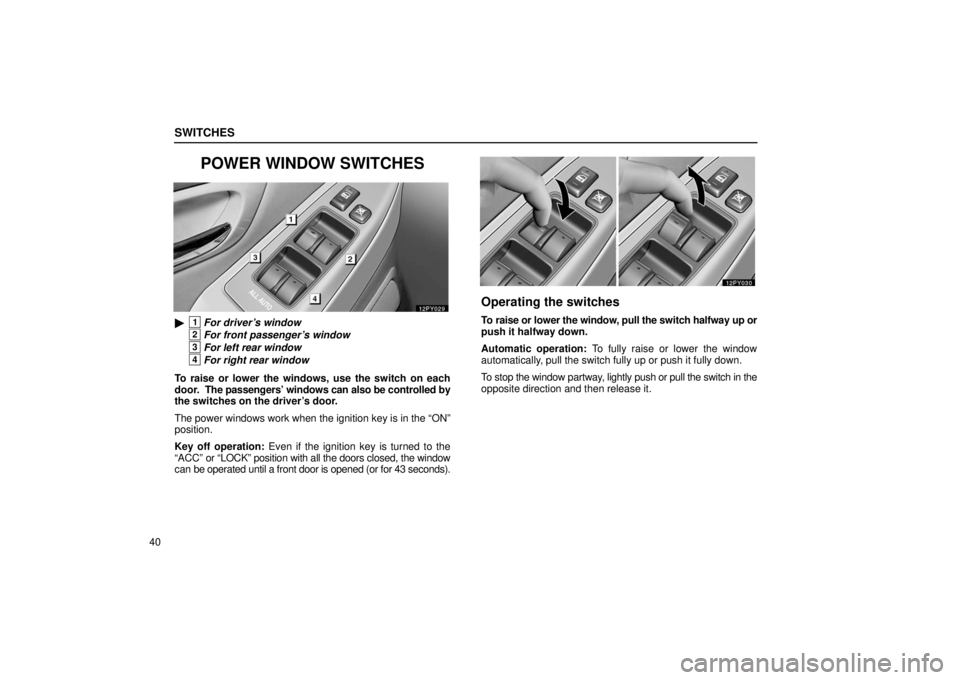

POWER WINDOW SWITCHES
1For driver’s window
2For front passenger’s window
3For left rear window
4For right rear window
To raise or lower the windows, use the switch on each
door. The passengers’ windows can also be controlled by
the switches on the driver’s door.
The power windows work when the ignition key is in the “ON”
position.
Key off operation: Even if the ignition key is turned to the
“ACC” or “LOCK” position with all the doors closed, the window
can be operated until a front door is opened (or for 43 seconds).
Operating the switches
To raise or lower the window, pull the switch halfway up or
push it halfway down.
Automatic operation: To fully raise or lower the window
automatically, pull the switch fully up or push it fully down.
To stop the window partway, lightly push or pull the switch in the
opposite direction and then release it.

SWITCHES
41
Operating the window lock switch
Indicator lights
With the window lock switch pressed in, only the driver’s
window can be raised or lowered.
The indicator lights on the switch tell you which of the switches
can be operated.
Operating the windows from outside the
vehicle
The windows can be operated using an ignition key.*
NOTE:
* This feature can be deactivate.
Ask your Lexus dealer for details.
 Close Open
Insert the ignition key into the key hole on the driver’s
door.
To close the windows: Turn the key in the locking direction
and hold it.
After the doors are locked, the windows begin to close. To stop
in the middle, return the key.

SWITCHES
42To open the windows: Turn the key in the unlocking direction
and hold it.
After
the door is unlocked, the windows begin to open. To stop
in the middle, return the key.
The windows also can be opened using the wireless remote
control. For details, see page 17.
Jam protection function
During automatic raising operation or key off raising operation,
the window stops and is lowered if something gets caught
between the window and window frame.
If the window receives a strong impact, this function may work
even if nothing is caught.
If the power windows do not operate
automatically
If the power windows do not operate automatically or the jam
protection function does not operate correctly, you should
normalize the power windows.
To normalize the power windows:
1. Push down the power window switches of each door and
lower the windows halfway. 2. Pull up the switches until the windows close and hold the
switches for a second.
Make sure that the windows open and close automatically. If
the power windows cannot be operated properly, have it
checked by your Lexus dealer.
CAUTION
To avoid serious personal injury, you must do the
following.

Before you close the power windows, always make
sure there is nobody around the power windows. You
must also make sure the heads, hands and other
parts of the bodies of all occupants are kept
completely inside the vehicle. If someone’s neck,
head or hands get caught in a closing window, it
could result in death or serious injury. When anyone
closes the power windows, make sure he or she
operates the windows safely.
 When small children are in the vehicle, never let them
use the power window switches without supervision.
Use the window lock switch to prevent them from
making unexpected use of the switches.
 Be sure to remove the ignition key when you leave
your vehicle.

SWITCHES
43
Never leave anyone (particularly a small child) alone
in your vehicle, especially with the ignition key still
inserted. Otherwise, he/she could use the power
window switches and get trapped in a window.
Unattended person (particularly a small child) can be
involved in a serious accident.
 Never try jamming any part of your body to activate
the jam protection function intentionally, as it could
result in a serious injury.
 The jam protection function may not work if
something gets caught just before the window fully
closed.EMERGENCY FLASHER SWITCH
To turn on the emergency flashers, push the switch. To
turn them off, push the switch again.
All the turn signal lights will flash. The emergency flashers will
work with the engine running or off and with or without the
ignition key.
Turn on the emergency flashers to warn other drivers if you
must stop your vehicle where it might be a traffic hazard.
Always pull your vehicle as far off the road as possible.
The turn signal light switch will not work when the emergency
flashers are in operation.

SWITCHES
44
NOTICE
To prevent the battery from being discharged, do not
leave the switch on longer than necessary when the
engine is not running.
SEAT HEATER SWITCHES
The seat heater has two dials; one marked “L” (for the
driver’s seat) and the other marked “R” (for the front
passenger’s seat). To turn the seat heaters on, turn the
dials forward. The indicator lights come on. To turn them
off, turn the di als backward until they stop. The indicator
lights go off.
You can adjust the heating temperature to 5 stages. To
increase the temperature, turn them forward. To decrease the
temperature, turn them backward.
The ignition key must be in the “ON” position to operate seat
heaters.

SWITCHES
45
CAUTION
Occupants must use caution when operating the seat
heater because they may experience minor burns even
at low temperatures. Use extra caution for;
Babies, small children, elderly persons, sick persons
or persons with physical disabilities
 Persons who have sensitive skin
 Persons who are exhausted
 Persons who have taken alcohol or drugs which
induce sleep (sleeping drug, cold remedy, etc.)
To prevent the seat from overheating, do not use the
seat heater with a blanket, cushion, or other insulating
objects which cover the seat.
NOTICE
 Do not put unevenly weighted objects on the seat and
do not stick sharp objects (needles, nails, etc.) into
the seat.
 When cleaning the seats, do not use organic
substances (paint thinner, benzine, alcohol,
gasoline, etc.). They may damage the heater and seat
surface.
 To prevent the battery from being discharged, turn
the switches off when the engine is not running.

SWITCHES
46

SECTION 1 – 3
47
INSTRUMENTS AND CONTROLS
Gauges, meters and service reminder indicators
Fuel gauge48
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . .
Engine coolant temperature gauge 49
. . . . . . . . . . . . . . . . . . . . . . . . . .
Tachometer 50
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . .
Odometer and trip meter 50
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Service reminder indicators and warning buzzers 51
. . . . . . . . . . . . . .
Multi−information display 63
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Instrument panel light control 74
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

GAUGES, METERS AND SERVICE REMINDER INDICATORS
48
FUEL GAUGE
Low fuel level warning light
The gauge indicates the approximate quantity of fuel
remaining in the tank when the ignition switch is on.
It is a good idea to keep the tank over 1/4 full.
If the fuel level approaches “E” or the low fuel level warning light\
comes on, fill the fuel tank as soon as possible.
On inclines or curves, due to the movement of fuel in the tank,
the fuel gauge needle may fluctuate or the low fuel level
warning light may come on earlier than usual.
If the fuel tank is completely empty, the malfunction indicator
lamp comes on. Fill the fuel tank immediately.
The indicator lamp goes off after driving several times. If the
indicator lamp does not go off, contact your Lexus dealer as
soon as possible. See the inner back cover for fuel capacity and recommended
fuel selection.

GAUGES, METERS AND SERVICE REMINDER INDICATORS
49
ENGINE COOLANT
TEMPERATURE GAUGE
 Normal range
The gauge indicates the engine coolant temperature when
the ignition switch is on. The engine operating
temperature will vary with changes in weather and engine
load.
If the needle points to the red zone or higher, stop your vehicle
and allow the engine to cool.
Your vehicle may overheat during severe operating conditions,
such as:
 Driving up a long hill on a hot day.
 Reducing speed or stopping after high speed driving.
 Idling for a long period with the air conditioning on in
stop−and−go traffic.
 Towing a trailer.
NOTICE
Do not remove the thermostat in the engine cooling
system as this may cause the engine to overheat. The
thermostat is designed to control the flow of coolant
to keep the temperature of the engine within the
specified operating range.
 Do not continue driving with an overheated engine.
See “If your vehicle overheats” on page 431.
