dashboard Lexus GX470 2006 Gauges, Meters and Service Reminder Indicators / LEXUS 2006 GX470 OWNER'S MANUAL (OM60B99U)

KEYS AND DOORS
11
When starting the engine, do not use the key in
proximity with other transponder keys (including the
flat key and keys of other vehicles), and do not press
other key plates against the key grip. Doing so may
prevent the engine from starting, or may cause the
engine to stop soon after it starts. If this happens,
remove the key once and then insert it again after
removing other transponder keys (including the flat
key and keys of other vehicles) from the ring or while
gripping or covering them with your hand to start the
engine. Do not bend the key grip or flat key.
 Do not cover the key grip or flat key with any material
that cuts off electromagnetic waves.
 Do not knock the key or flat key hard against other
objects.
 Do not leave the key or flat key exposed to high
temperatures for a long period, such as on the
dashboard or hood under direct sunlight.
 Do not put the key or flat key in water or wash it in an
ultrasonic washer.
 Do not use the key or flat key with electromagnetic
materials.

KEYS AND DOORS
14The operational range of the wireless remote control is
approximately 1 meter (3 ft.). The effective range may vary
with different conditions. To activate the wireless remote
control
without fail, do it approximately 1 meter (3 ft.) from your
Lexus.
In the following cases, the battery in the key may be
discharged. If this is the case, replace it using a special
screwdriver.
 The remote control does not work.
 The operational range of wireless remote control becomes
extremely short.
 The indicator light on the key is dimmed or does not come
on.
For the replacement of the battery, see “Replacing the battery”
on page 18. You can also have the battery of the key replaced
by your Lexus dealer.
If you lose the wireless key, contact your Lexus dealer as soon
as possible to avoid the possibility of theft, or an accident.
You can use up to 4 wireless remote control keys for the same
vehicle. Contact your Lexus dealer for detailed information. The wireless remote control key is an electronic
component. Observe the following instructions in order
not to cause damage to the key.

Do not leave the wireless remote control key in places
where the temperature becomes high such as on the
dashboard.
 Do not disassemble it.
 Avoid knocking it hard against other objects or dropping it.
 Avoid putting it in water.

OCCUPANT RESTRAINT SYSTEMS
151
CAUTION
The driver or front passenger who is too close to the
steering wheel or dashboard during airbag deployment
can be killed or seriously injured. Lexus strongly
recommends that:
The driver sit as far back as possible from the
steering wheel while still maintaining control of the
vehicle.
 The front passenger sit as far back as possible from
the dashboard.
 All vehicle occupants be properly restrained using
the available seat belts.
For instructions and precautions concerning the
seating position, see “Front seat precautions” on page
112.
 Do not sit on the edge of the seat or lean over the
dashboard when the vehicle is in use, since the front
passenger airbag could inflates with considerable
speed and force. Anyone who is up against, or very
close to, an airbag when it inflates, can be killed or
seriously injured. Sit up straight and well back in the
seat, and always use your seat belt properly.

OCCUPANT RESTRAINT SYSTEMS
152

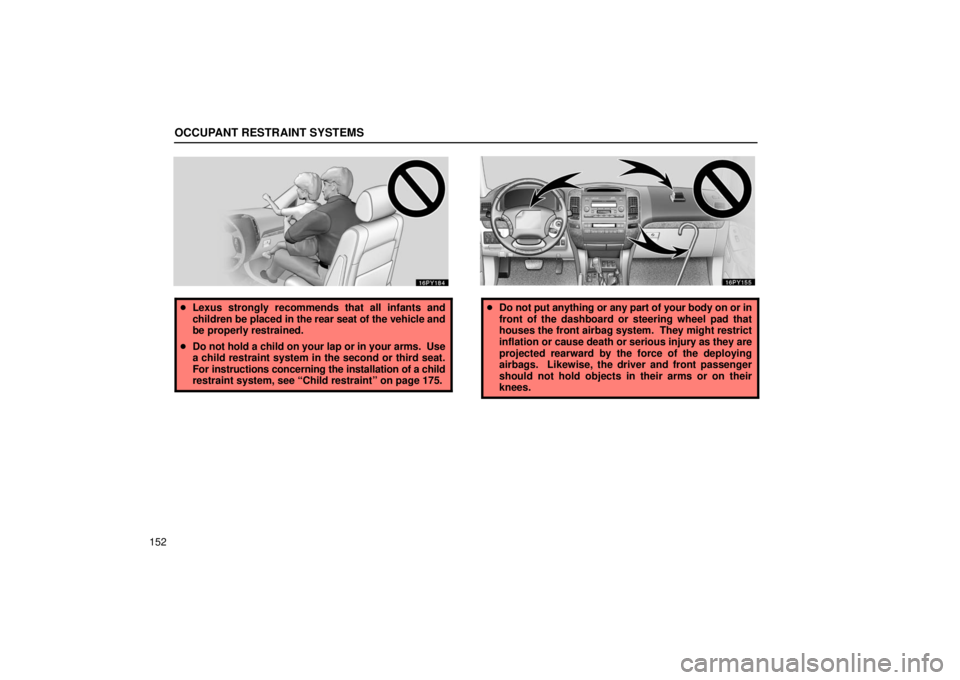

Lexus strongly recommends that all infants and
children be placed in the rear seat of the vehicle and
be properly restrained.
 Do not hold a child on your lap or in your arms. Use
a child restraint system in the second or third seat.
For instructions concerning the installation of a child
restraint system, see “Child restraint” on page 175.Do not put anything or any part of your body on or in
front of the dashboard or steering wheel pad that
houses the front airbag system. They might restrict
inflation or cause death or serious injury as they are
projected rearward by the force of the deploying
airbags. Likewise, the driver and front passenger
should not hold objects in their arms or on their
knees.

OCCUPANT RESTRAINT SYSTEMS
153
Do not modify or remove any wiring. Do not modify,
remove, st rike or open any components, such as the
steering wheel pad, steering wheel, column cover,
front passenger airbag cover, front passenger airbag
or airbag sensor assembly. Doing so may prevent the
front airbag system from activating correctly, cause
sudden activation of the system or disable the
system, which could result in death or serious injury.
Failure to follow these instructions can result in death
or serious injury. Consult your Lexus dealer about any
repair and modification.
If you wish to modify your vehicle for a person with a
physical disability, consult your Lexus dealer. It may
dangerously interfere with the SRS front airbags
operation.NOTICE
Do not perform any of the following changes without
consulting your Lexus dealer. Such changes can
interfere with proper operation of the SRS front airbag
system in some cases.
 Installation of electronic devices such as a mobile
twoway radio, cassette tape player or CD player
 Modification of the suspension system
 Modification of the front end structure
 Attachment of a grille guard (bull bar, kangaroo bar,
etc.), snowplow, winches or any other equipment to
the front end
 Repairs made on or near the front fenders, front end
structure, console, steering column, steering wheel
or dashboard near the front passenger airbag
