MAINTENANCE
485
Your copy of the repair order is proof that all required
maintenance has been performed for warranty coverage. If
any problems should arise with your vehicle while under
warranty,
your Lexus dealer will promptly take care of it. Again,
be sure to keep a copy of the repair order for any service
performed on your Lexus.
What about doityourself maintenance?
Many of the maintenance items are easy to do yourself, if you
have a little mechanical ability and a few basic automotive
tools. Simple instructions for how to perform them are
presented in Section 6.
If you are a skilled do −it− yourself mechanic, the Lexus service
manuals are recommended. Please be aware that
do−it−yourself maintenance can affect your warranty
coverage. See your “Owner’s Guide”, “Owner’s Manual
Supplement” or “Warranty Booklet” for the details.
GENERAL MAINTENANCE
Listed below are the general maintenance items that should be
performed at the intervals specified. It is recommended that
any problem you notice be brought to the attention of your
Lexus dealer or qualified service shop for their advice.
CAUTION
Make these checks only with adequate ventilation if you
run the engine.
Engine compartment
Items listed below should be checked from time to time,
e.g. each time when refueling.
Washer fluid
Make sure there is sufficient fluid in the tank. See page 558 for
additional information.
Engine coolant level
Make sure the coolant level is between the “F” and “L” lines on
the see− through reservoir when the engine is cold. See page
514 for additional information.
Radiator, condenser and hoses
Check that the front of the radiator and condenser are clean
and not blocked with leaves, dirt, or insects. See page 516 for
additional information.

61PY009
INTRODUCTION
494
ENGINE COMPARTMENT OVERVIEW
1Engine oil level
dipstick
2Engine oil filler cap
3Brake fluid reservoir
4Fuse box
5Battery
6Condenser
7Electric cooling fan
8Radiator
9Engine coolant
reservoir
10Washer fluid tank
11Power steering fluid
reservoir

ENGINE
514

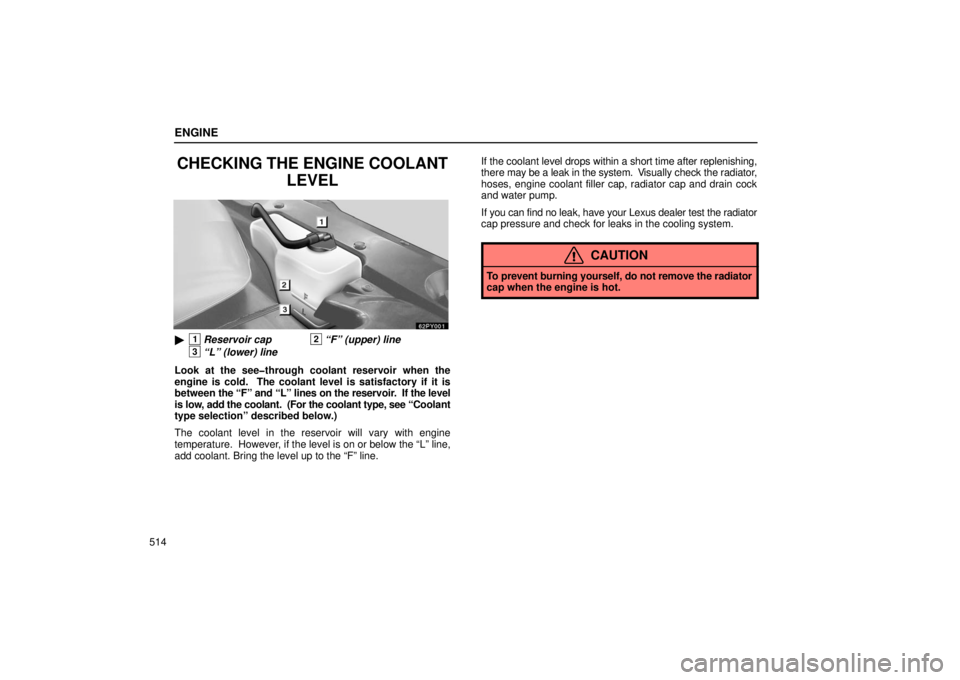

CHECKING THE ENGINE COOLANTLEVEL
1Reservoir cap2“F” (upper) line
3“L” (lower) line
Look at the seethrough coolant reservoir when the
engine is cold. The coolant level is satisfactory if it is
between the “F” and “L” lines on the reservoir. If the level
is low, add the coolant. (For the coolant type, see “Coolant
type selection” described below.)
The coolant level in the reservoir will vary with engine
temperature. However, if the level is on or below the “L” line,
add coolant. Bring the level up to the “F” line. If the coolant level drops within a short time after replenishing,
there
may be a leak in the system. Visually check the radiator,
hoses, engine coolant filler cap, radiator cap and drain cock
and water pump.
If you can find no leak, have your Lexus dealer test the radiator
cap pressure and check for leaks in the cooling system.
CAUTION
To prevent burning yourself, do not remove the radiator
cap when the engine is hot.
