4-1. Maintenance and care
NOTICE
■Cleaning detergents
Do not use the following types of detergent, as they may discolor the vehicle inte-
rior or cause streaks or damage to painted surfaces.
●Non-seat portions: Organic substances su ch as benzene or gasoline, alkaline or
acidic solutions, dye, or bleach.
●Seats: Acidic solutions, such as thinner, benzene, or alcohol.
■Preventing damage to leather surfaces
Observe the following precautions to avoid damage to and deterioration of leather
surfaces.
●Remove any dust or dirt on leather surfaces immediately.
●Do not expose the vehicle to direct sunlight for extended pe riods of time. Park
the vehicle in the shade, especially during summer.
●Do not place items made of vinyl, plastic, or that contain wax on the upholstery, as
they may stick to the leather surface if the vehicle interior heats up significantly.
■Water on the floor
Do not wash the vehicle floor with water.
Vehicle systems such as the audio syst em may be damaged if water comes into
contact with electrical components under the floor of the vehicle, and may also
cause the body to rust.
■Cleaning the inside of the rear window
Be careful not to scratch or damage the heater wires or antenna.

324
4-3. Do-it-yourself maintenance
FuseAmpereCircuit
8TOW I N G40Trailer lights
9CDS FAN20Electric cooling fan
10RR A/C30Rear air conditioning system
11MIR HEATER10Outside rear view mirror defogger
12STOP10
Stop lights, high mounted stoplight,
shift lock control system, vehicle sta-
bility control system, electronic mod-
ulated suspension, rear height control
air suspension, multiport fuel injec-
tion system/sequential multiport fuel
injection system
13AC INV15Power outlet (115V AC)
14FR FOG15Front fog lights
15OBD7. 5On-board diagnosis system
16HEAD (LO RH)10Right hand headlight (low beam)
17HEAD (LO LH)10Left hand headlight (low beam)
18HEAD (HI RH)10Right hand headlight (high beam)
19HEAD (HI LH)10Left hand headlight (high beam)
20EFI NO.210
Multiport fuel injection system/
sequential multiport fuel injection
system
21HEATER No.27. 5Air conditioning system
22DEFOG30Rear window defogger
23AIRSUS NO.210Rear height control air suspension
24S E AT H E AT E R20Seat heaters

325
4-3. Do-it-yourself maintenance
4
Maintenance and care
FuseAmpereCircuit
25DOME10
Ignition switch light, interior lights,
personal lights, foot lights, running
board lights, door courtesy lights,
inside door handle lights, trip infor-
mation display
26RADIO NO.120Audio system, navigation system
27ECU-B10
Multiplex communication system,
vehicle stability control system, wire-
less remote control system, inside
rear view mirror, air conditioning sys-
tem, electronic modulated suspen-
sion, driving position memory system,
power windows, moon roof, rear view
monitor system
28ECU-B NO.210Theft deterrent system
29ABS MTR40
Anti-lock brake system, vehicle sta-
bility control system, active traction
control system, brake assist system
30AM230Starting system, IGN, SRS, GAUGE,
ST2
31ABS SOL30
Anti-lock brake system, vehicle sta-
bility control system, active traction
control system, brake assist system
32ALT-S7. 5Charging system
33MAYDAY7. 5Lexus Link System
34HORN10Horns

327
4-3. Do-it-yourself maintenance
4
Maintenance and care
■Driver’s side instrument panel
FuseAmpereCircuit
1IGN10
Multiport fuel injection system/
sequential multiport fuel injection
system, vehicle stability control sys-
tem
2SRS10SRS airbag system, front passenger
occupant classification system
3GAUGE7. 5Gauges and meters
4ST27. 5
Multiport fuel injection system/
sequential multiport fuel injection
system
5FR WIP-WSH30Windshield wipers, windshield
washer
6TEMS20Electronic modulated suspension
7DIFF20Four-wheel drive system
8RR WIP15Rear window wiper
9D P/SEAT30Driver's power seat
10P P/SEAT30Front passenger's power seat
11PWR OUTLLET15Po w e r o u t l e t ( 1 2 V D C )

328
4-3. Do-it-yourself maintenance
FuseAmpereCircuit
12IG1 NO.210
Rear air conditioning system, inside
rear view mirror, kinetic dynamic sus-
pension system
13RR WSH15Rear window washer
14ECU-IG10
Shift lock control system, power win-
dows, outside rear view mirror defog-
ger, anti-lock brake system, active
traction control system, vehicle stabil-
ity control system, air conditioning
system, navigation system, power
windows, moon roof, tilt and tele-
scopic steering, trip information dis-
play, driving position memory system,
rear view monitor system, tire pres-
sure warning system
15IG110
Air conditioning system, back-up
lights, rear window defogger, seat
heaters, vehicle stability control sys-
tem
16STA7. 5
Multiport fuel injection system/
sequential multiport fuel injection
system
17P FR P/W20Front passenger's power window
18P RR P/W20Rear right side power window
19D RR P/W20Rear left side power window
20PA N E L10Instrument panel lights
21TA I L10Parking lights, tail lights, license plate
lights, front fog lights

329
4-3. Do-it-yourself maintenance
4
Maintenance and care
FuseAmpereCircuit

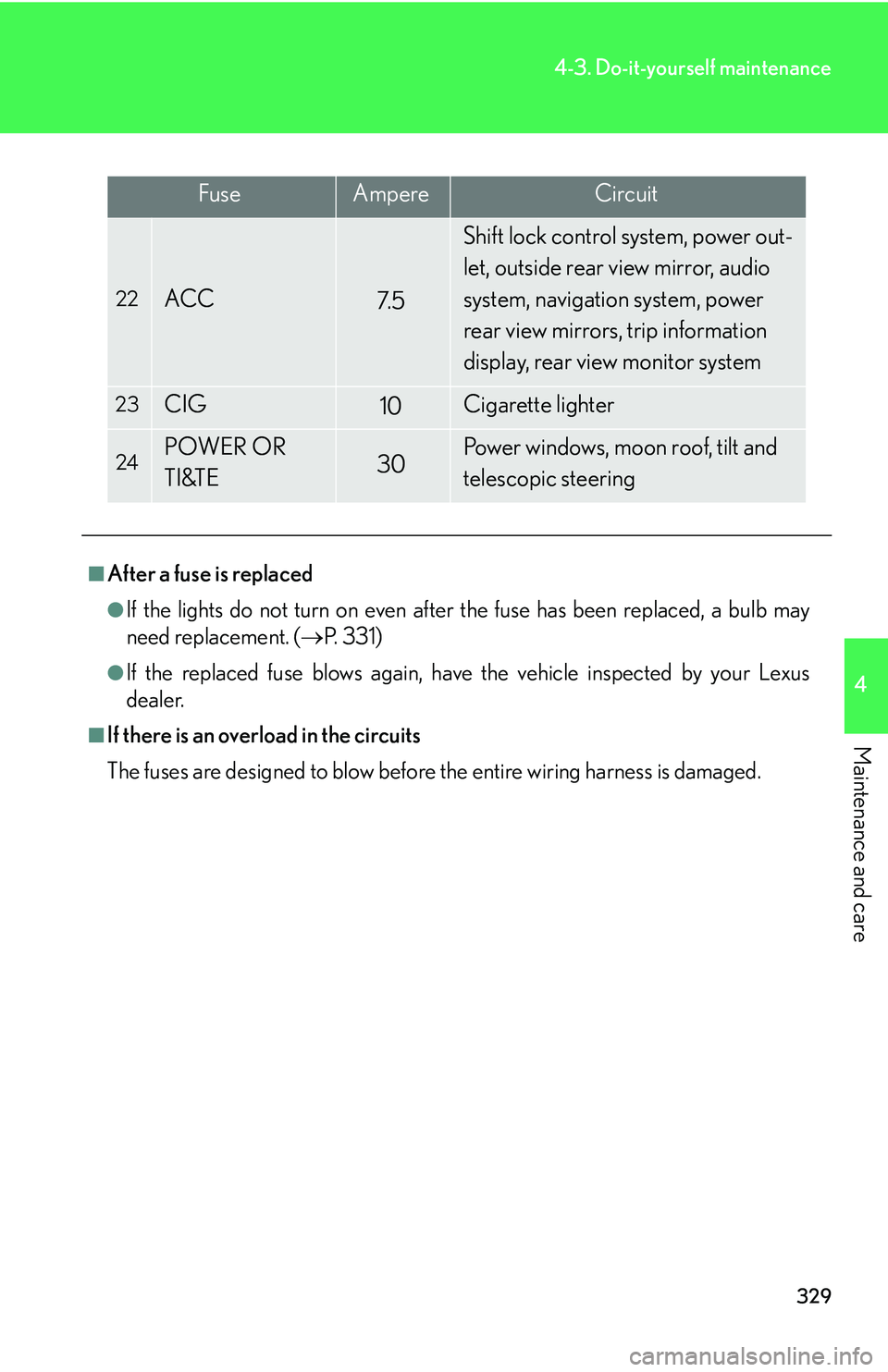

22ACC7. 5
Shift lock control system, power out-
let, outside rear view mirror, audio
system, navigation system, power
rear view mirrors, trip information
display, rear view monitor system
23CIG10Cigarette lighter
24POWER OR
TI&TE30Power windows, moon roof, tilt and
telescopic steering
■After a fuse is replaced
●If the lights do not turn on even after the fuse has been replaced, a bulb may
need replacement. ( P. 3 3 1 )
●If the replaced fuse blows again, have the vehicle inspected by your Lexus
dealer.
■If there is an overload in the circuits
The fuses are designed to blow before the entire wiring harness is damaged.

5
When trouble arises
353
5-2. Steps to take in an emergency
■When the tire pressure warning light comes on
Check the tire inflation pressure and adjust to the appropriate level.
■The tire pressure warning light may turn on due to natural causes
The tire pressure warning light may turn on due to natural causes such as natural air
leaks or tire inflation pressure changes caused by temperature. In this case, adjust-
ing the tire inflation pressure will turn off the warning light.
■When a tire is replaced with a spare tire
The spare tire is also equipped with the tire pressure warning valve and transmitter.
The tire pressure warning light will turn on if the tire inflation pressure of the spare
tire is low. If a tire goes flat, even though the flat tire is replaced with the spare tire,
the warning light does not turn off. Replace the spare tire with the repaired tire and
adjust the proper tire inflation pressure. The warning light will turn off after a few
minutes.
■If the tire pressure warning system is inoperative
The tire pressure warning system may become inoperative in the following condi-
tions:
(When the condition becomes normal, the system will work properly.)
●If tires not equipped with tire pressure warning valves and transmitters are used.
●If the ID code on the tire pressure warning valves and transmitters is not regis-
tered.
●If electronic devices or facilities using similar radio wave frequencies are nearby.
●If a radio set at similar frequencies is in use in the vehicle.
●If a window tint that affects the radio wave signals is installed.
●If the tire pressure warning select switch is set to a different tire setting.
●If there is a lot of snow or ice on the vehicle, in particular around the wheels or
wheel housings.
●If non-genuine Lexus wheels are used.
●If tire chains are used.
●If the tire inflation pressure is 73 psi (500 kPa, 5.1 kgf/cm2 or bar) or higher.
●If the tire is in a location subject to poor radio wave signal reception.

5
When trouble arises
371
5-2. Steps to take in an emergency

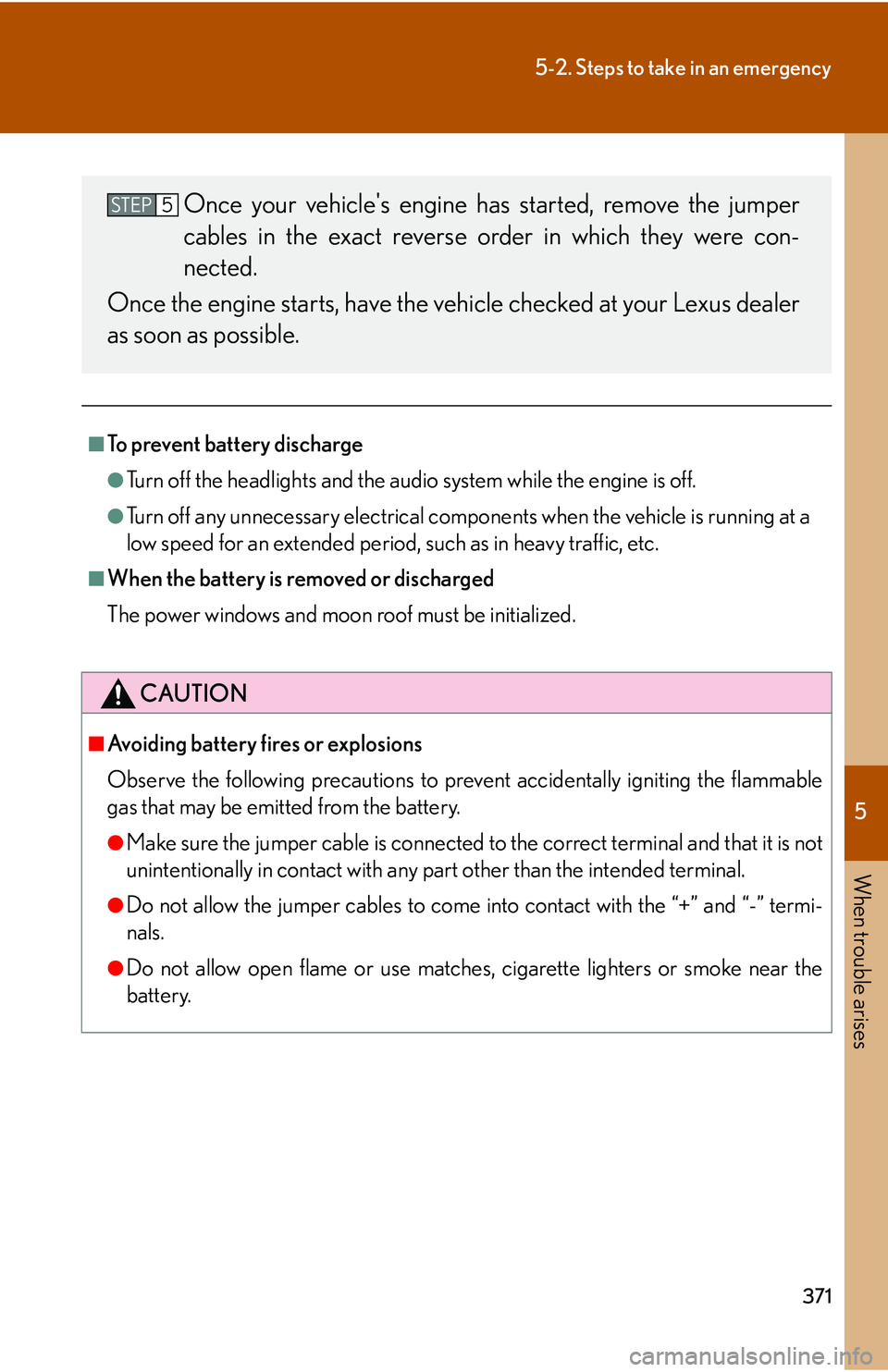

■To prevent battery discharge
●Turn off the headlights and the audio system while the engine is off.
●Turn off any unnecessary electrical components when the vehicle is running at a
low speed for an extended period, such as in heavy traffic, etc.
■When the battery is removed or discharged
The power windows and moon roof must be initialized.
CAUTION
■Avoiding battery fires or explosions
Observe the following precautions to prevent accidentally igniting the flammable
gas that may be emitted from the battery.
●Make sure the jumper cable is connected to the correct terminal and that it is not
unintentionally in contact with any pa rt other than the intended terminal.
●Do not allow the jumper cables to come into contact with the “+” and “-” termi-
nals.
●Do not allow open flame or use matches, cigarette lighters or smoke near the
battery.
Once your vehicle's engine has started, remove the jumper
cables in the exact reverse ord er in which they were con-
nected.
Once the engine starts, have the ve hicle checked at your Lexus dealer
as soon as possible.STEP5

395
6-1. Specifications
6
Vehicle specifications
Warning: The temperature grades for this tire are established for a tire that
is properly inflated and not overloaded.
Excessive speed, underinflation, or excessive loading, either separately or in
combination, can cause heat build up and possible tire failure.
Glossary of tire terminology
Tire related termMeaning
Accessory weight
The combined weight (in excess of those standard
items which may be replaced) of automatic transmis-
sion, power steering, power brakes, power windows,
power seats, radio and heater, to the extent that these
items are available as factory-installed equipment
(whether installed or not)
Cold tire inflation pres-
sureTire pressure when the vehicle has been parked for
three hours or more, or has not been driven more
than 1 mile or 1.5 km under that condition
Curb weight
The weight of a motor vehicle with standard equip-
ment, including the maximum capacity of fuel, oil and
coolant, and if so equipped, air conditioning and
additional weight optional engine
Maximum inflation pres-
sureThe maximum cold inflated pressure to which a tire
may be inflated, shown on the sidewall of the tire
Maximum loaded vehicle
weight
The sum of:
(a) Curb weight
(b) Accessory weight
(c) Vehicle capacity weight
(d) Production options weight
Normal occupant weight150 lb. (68 kg) times the number of occupants speci-
fied in the second column of Table 1
* that follows

407

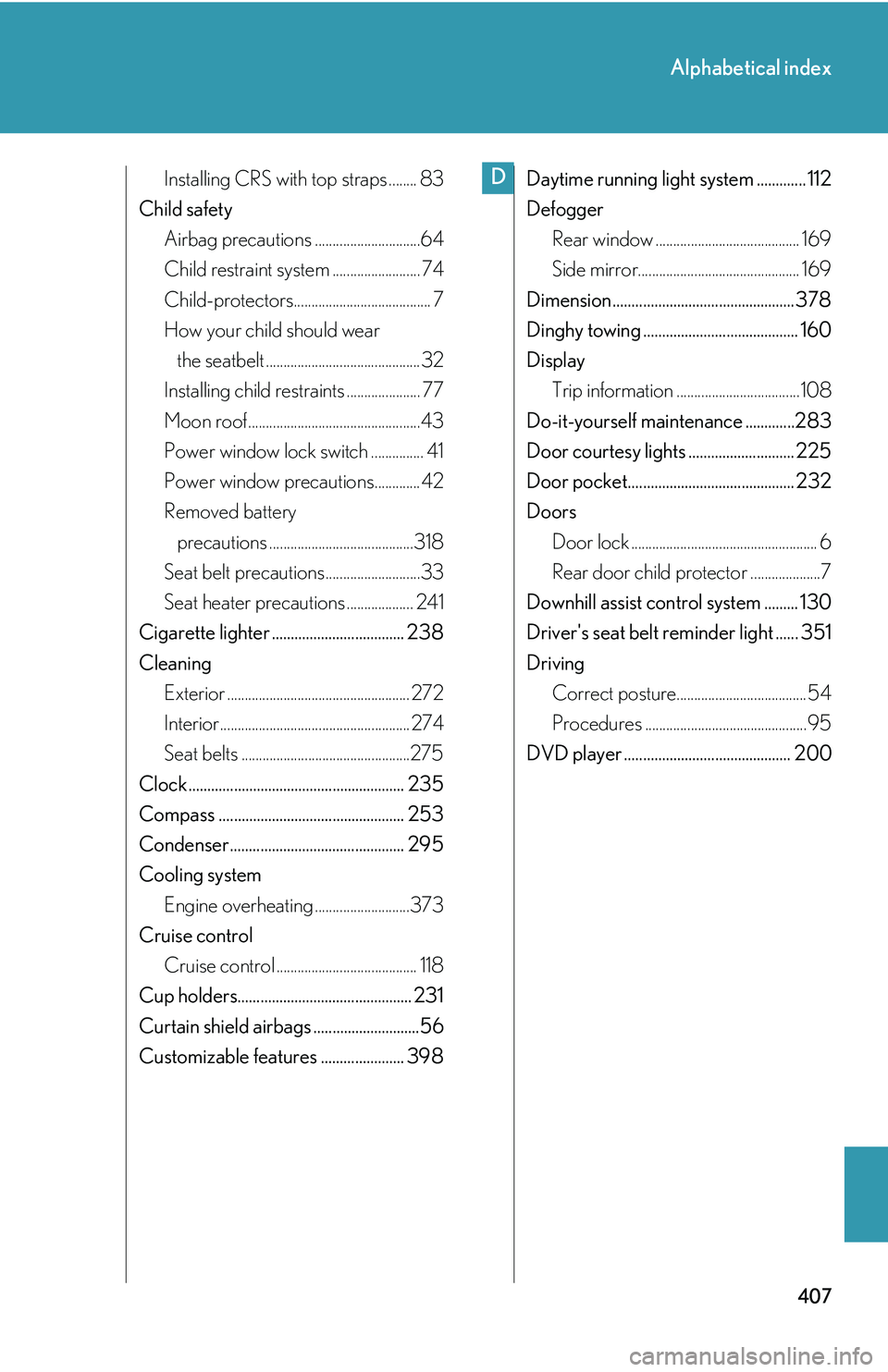

Alphabetical index
Installing CRS with top straps ........ 83
Child safety Airbag precautions ..............................64
Child restraint system ......................... 74
Child-protectors....................................... 7
How your child should wear the seatbelt ............................................32
Installing child restraints ..................... 77
Moon roof .................................................43
Power window lock switch ............... 41
Power window precautions............. 42
Removed battery precautions .........................................318
Seat belt precautions...........................33
Seat heater precautions ................... 241
Cigarette lighter ................................... 238
Cleaning Exterior .................................................... 272
Interior......................................................274
Seat belts ................................................275
Clock......................................................... 235
Compass ................................................. 253
Condenser.............................................. 295
Cooling system Engine overheating ...........................373
Cruise control Cruise control ........................................ 118
Cup holders.............................................. 231
Curtain shield airbags ............................56
Customizable features ...................... 398 Daytime running light system ............. 112
Defogger
Rear window ......................................... 169
Side mirror.............................................. 169
Dimension................................................ 378
Dinghy towing ......................................... 160
Display Trip information ...................................108
Do-it-yourself maintenance .............283
Door courtesy lights ............................ 225
Door pocket............................................ 232
Doors Door lock ..................................................... 6
Rear door child protector ....................7
Downhill assist control system ......... 130
Driver's seat belt reminder light ...... 351
Driving Correct posture..................................... 54
Procedures ..............................................95
DVD player ............................................ 200D
