turn signal Lexus GX470 2007 Using other driving systems /

TABLE OF CONTENTSIndex
ii
1-1. Key information .............................. 2Keys ......................................................... 2
1-2. Opening, closing and locking the doors......................................... 4
Wireless remote control ................. 4
Side doors ............................................. 6
Back door .............................................. 11
1-3. Adjustable components ............. 13 Front seats ........................................... 13
Rear seats ............................................ 15
Driving position memory system ............................................... 24
Head restraints................................. 26
Seat belts ............................................ 28
Steering wheel.................................. 35
Inside rear view mirror.................. 36
Outside rear view mirrors ........... 37
Roof luggage carrier ..................... 39
1-4. Opening and closing the windows and moon roof ........... 41
Power windows................................. 41
Moon roof .......................................... 43
1-5. Refueling ........................................ 46 Opening the fuel tank cap........... 46 1-6. Theft deterrent system............... 49
Engine immobilizer system ......... 49
Alarm..................................................... 51
Theft prevention labels (U.S.A.) ............................................. 53
1-7. Safety information ....................... 54 Correct driving posture ............... 54
SRS airbags ....................................... 56
Front passenger occupant classification system .................... 69
Child restraint sy stems ................. 74
Installing child restraints ............... 77
2-1. Driving procedures.................... 88 Driving the vehicle ......................... 88
Starting the engine ......................... 95
Automatic transmission................ 98
Turn signal lever.............................. 101
Parking brake ................................. 102
2-2. Instrument cluster ..................... 103 Gauges and meters ..................... 103
Indicators and warning lights................................................. 105
Trip information display .............. 108
1Before driving
2When driving

vi
Headlight (high beam) P. 111
Pictorial indexExterior
Turn signal light P. 101
Fog light P. 113
Side marker light P. 111
Headlight (low beam) P. 111
Hood P. 286
Parking light
P. 111
Windshield wipers P. 114Moon roof P. 43
Outside rear viewmirror
P. 37

vii
Tire
●Rotation
● Replacement
● Inflation pressure
● Information
P. 302
P. 356
P. 385
P. 390
Tail lights P. 111
Side marker light P. 111
Back door P. 11
Rear window defogger

P. 169
Door P. 6
Fuel filler door P. 46
Turn signal light P. 101

xii
Pictorial indexInstrument panel
Gauges and meters P. 103
Ignition switch P. 95
Windshield wiper and
washer switch
P. 114
Headlight switch
Turn signal switch
Fog light switch P. 111
P. 101
P. 113
Cruise control switch P. 118
Emergency flashersGlove box
P. 228

24
1-3. Adjustable components
Driving position memory system
Your preferred driving position (the position of the driver's seat, steering
wheel and outside rear view mirrors) can be entered into the computer's
memory and recalled with the touch of a button.
Two different driving positions can be entered into memory.
■Entering a position into memory
Check that the shift lever is set in “P”.
Turn the ignition switch to the “ON” position.
Adjust the driver’s seat, steeri ng wheel, and outside rear view
mirrors to the desired positions.
While pushing the “SET” button,
push button “1” or “2” until the
signal beeps.
If the selected button has
already been preset, the previ-
ously recorded position will be
overwritten.
■Recalling the memorized position
Check that the shift lever is set in “P”.
Turn the ignition switch to the “ON” position. Push button “1” or “2” to recall
the desired position.
STEP1
STEP2
STEP3STEP3
STEP1
STEP2

When driving2
87
2-1. Driving procedures ................. 88Driving the vehicle ...................... 88
Starting the engine ...................... 95
Automatic transmission ............. 98
Turn signal lever ........................... 101
Parking brake ............................... 102
2-2. Instrument cluster................... 103 Gauges and meters .................. 103
Indicators and warning lights.............................................. 105
Trip information display............ 108 2-3. Operating the lights and
windshield wipers.................... 111
Headlight switch............................ 111
Fog light switch ............................. 113
Windshield wipers and washer ........................................... 114
Rear window wiper and washer ........................................... 117
2-4. Using other driving systems ..................................... 118
Cruise control ............................... 118
Four-wheel drive system ........... 121
Rear height control air suspension ................................ 123
Electronic modulated suspension .................................. 129
DAC (Downhill Assist Control system) ....................... 130
Driving assist systems............... 132
2-5. Driving information................ 135 Off-road precautions ............... 135
Cargo and luggage................... 140
Vehicle load limits ...................... 144
Winter driving tips ..................... 146
Trailer towing................................ 150
Dinghy towing ............................. 160

101
2-1. Driving procedures
2
When driving

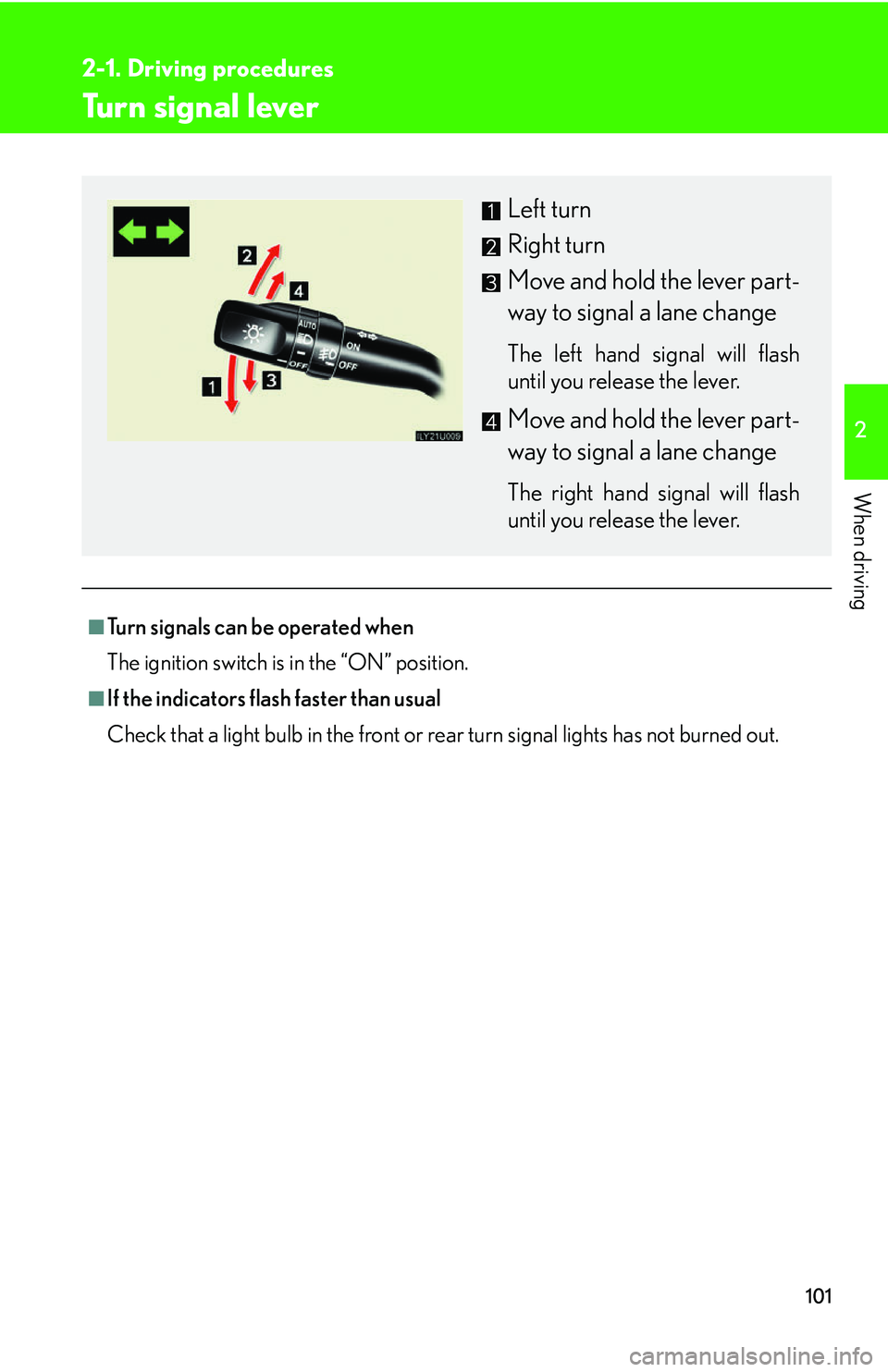

Turn signal lever
■Turn signals can be operated when
The ignition switch is in the “ON” position.
■If the indicators flash faster than usual
Check that a light bulb in the front or re ar turn signal lights has not burned out.
Left turn
Right turn
Move and hold the lever part-
way to signal a lane change
The left hand signal will flash
until you release the lever.
Move and hold the lever part-
way to signal a lane change
The right hand signal will flash
until you release the lever.

106
2-2. Instrument cluster
■Indicators
The indicators inform the driver of th e operating state of the vehi-
cle’s various systems.
Turn signal indicator
( P. 1 0 1 )“RSCA OFF” indicator
(P. 6 8 )
Headlight high beam indi-
cator ( P. 111)Downhill assist control
system indicator
( P. 1 3 0 )
(U.S.A.)
Headlight indicator
( P. 111)
(U.S.A.)
Engine oil replacement
reminder light ( P. 3 5 0 )
(Canada)
Tail light indicator
( P. 111) Slip indicator
(P. 1 3 3 )
Security indicator
(P. 4 9 ) “VSC OFF” indicator
(P. 121)
Shift position indicators
(P. 99)Center differential lock
indicator ( P. 121)
Height control indicator
( P. 1 2 3 ) “AIRBAG ON” indicator
( P. 6 9 )
Automatic transmission
second start indicator
( P. 99)“AIRBAG OFF” indicator
( P. 6 9 )
Cruise control indicator
( P. 118)
*
*
*
*
*
*
*

112
2-3. Operating the lights and windshield wipers
■Daytime running light system
To make your vehicle more visible to other drivers, the front turn signal lights turn on
automatically whenever the engine is started and the parking brake is released.
■Headlight control sensor
■Automatic light off system
The headlights and tail lights turn off 30 seconds after a door is opened or closed if
the ignition switch is turned to the “ACC ” or “LOCK” position while the headlights
are turned on. (The lights turn off immedi ately if the “LOCK” button on the key is
pressed after all doors are locked.)
To turn the lights on again, turn the igniti on switch to the “ON” position, or turn the
light switch “OFF” once and th en back to the or position.
■Customization
Settings (e.g. light sensor sensitivity) can be changed. ( P. 400)
NOTICE
■To prevent battery discharge
Do not leave the lights on longer than necessary when the engine is not running.
The sensor may not function properly if an
object is placed on the sensor, or anything
that blocks the sensor is affixed to the wind-
shield.
Doing so interferes with the sensor detecting
the level of ambient light and may cause the
automatic headlight system to malfunction.

179
3-2. Using the audio system
3
Interior features
■If the satellite radio does not operate normally
If a problem occurs with the XM
® tuner, a message will appear on the screen. Refer
to the table below to identify the problem, and take the suggested corrective action.
ANTENNA
The XM® antenna is not connected. Check whether
the XM® antenna cable is attached securely.
There is a short-circuit in the antenna or the surround-
ing antenna cable. See a Lexus certified dealer.
UPDATING
You have not subscribed to XM® satellite radio. The
radio is being updated with the latest encryption code.
Contact XM
® satellite radio for subscription informa-
tion. When a contract is canceled, you can choose
“CH000” and all free-to-air channels.
The premium channel you selected is not authorized.
Wait for about 2 seconds until the radio returns to the
previous channel or “CH001”. If it does not change
automatically, select another channel. If you want to lis-
ten to the premium channel, contact XM
® satellite
radio.
NO SIGNAL
The XM® signal is too weak at the current location.
Wait until your vehicle reaches a location with a stron-
ger signal.
LOADIN GThe unit is acquiring audio or program information.
Wait until the unit has received the information.
OFF AIRThe channel you selected is not broadcasting any pro-
gramming. Select another channel.
-----
There is no song/program title or artist name/feature
associated with the channel at that time. No action
needed.
