rear entertainment Lexus GX470 2008 Do-it-yourself maintenance / LEXUS 2008 GX470 OWNER'S MANUAL (OM60D82U)

1
2
3
4
5
6
7
3
2-3. Operating the lights and windshield wipers ................... 135
Headlight switch ............................ 135
Fog light switch .............................. 137
Windshield wipers and washer............................................. 138
Rear window wiper and washer............................................... 141
2-4. Using other driving systems.... 142 Cruise control ................................ 142
Four-wheel drive system............ 146
Rear height control air suspension..................................... 149
Electronic modulated suspension..................................... 156
DAC (Downhill Assist Control system)............................................ 157
Driving assist systems.................. 159
2-5. Driving information ................... 163 Off-road precautions .................. 163
Cargo and luggage ...................... 168
Vehicle load limits ......................... 174
Winter driving tips ........................ 176
Trailer towing .................................. 180
Dinghy towing ................................ 190 3-1. Using the air conditioning
system and defogger ............. 192
Automatic air conditioning system ............................................. 192
Rear cooler syst em....................... 198
Rear window and outside rear view mirror defoggers ............. 199
3-2. Using the audio system............ 201 Audio system type ........................ 201
Using the radio.............................. 203
Using the CD player...................... 211
Playing MP3 and WMA discs ................................................. 218
Optimal use of the audio system ............................................ 224
Using the AUX adapter ............ 227
Using the steering switches ..... 228
3-3. Using the rear audio system ........................................ 231
Rear seat entertainment system features (if equipped)
................. 231
Using the DVD player (DVD video)................................ 236
Using the DVD player (video CD) ................................... 243
Using the DVD player (audio CD/CD text) ................ 245
3Interior features

TABLE OF CONTENTSIndex
4
Using the DVD player (MP3 discs) ................................. 246
Using the video mode ............... 248
Changing the initial setting ...... 249
3-4. Using the interior lights .......... 256 Interior lights list............................ 256
3-5. Using the storage features .... 259 List of storage fe atures............... 259
3-6. Other interior features........... 264 Sun visors......................................... 264
Vanity mirror .................................. 265
Clock ................................................. 266
Outside temperature display ........................................... 268
Ashtrays ........................................... 269
Cigarette lighter ............................ 271
Power outlet ................................... 272
Seat heaters .................................... 274
Armrest ............................................ 276
Floor mats........................................ 277
Luggage compartment features .......................................... 278
Garage door opener ................... 281
Compass......................................... 286
Lexus Link System ...................... 290 4-1. Maintenance and care............ 306
Cleaning and protecting the vehicle exterior ......................... 306
Cleaning and protecting the vehicle interior........................... 308
4-2. Maintenance................................ 311 Maintenance requirements ........ 311
General maintenance ................. 313
Emission inspection and maintenance (I/M)
programs ....................................... 316
4-3. Do-it-yourself maintenance ... 317 Do-it-yourself service precautions ................................... 317
Hood................................................. 320
Engine compartment................... 321
Tires ................................................... 336
Tire inflation pressure................. 343
Wheels.............................................. 347
Air conditioning filter.................. 349
Wireless remote control battery ............................................. 351
Rear seat entertainment system controller ...................... 353
Checking and replacing fuses ............................................... 355
Light bulbs ....................................... 365
4Maintenance and care

9
Compass P. 286
Garage door opener switches P. 281
Personal light P. 257
Moon roof switch P. 64
Vanity mirror P. 265
Interior light P. 258
Sun visor P. 264
SRS curtain shield airbag P. 77
A
: If equipped
Lexus Link System switches P. 290
Rear seat entertainmentsystem
 P. 231

44
1-3. Adjustable components (seats, mirrors, steering wheel, etc.)
NOTICE
■Before tumbling, folding up or removing the seats
The seat belts and buckles must be stowed.
■Before tumbling the second seats
The headphone jack lid of the rear seat entertainment system must be closed.
■Removed third seats
Avoid putting heavy loads on the seats. Th e metallic tips of the seat legs may be
damaged, and you may be unable to correctly reinstall the seats.

Interior features3
191
3-1. Using the air conditioning
system and defogger .... 192
Automatic air conditioning system ...................................... 192
Rear cooler system ................. 198
Rear window and outside rear view mirror
defoggers ............................... 199
3-2. Using the audio system ........................... 201
Audio system type................... 201
Using the radio....................... 203
Using the CD player ............... 211
Playing MP3 and WMA discs .......................................... 218
Optimal use of the audio system ..................................... 224
Using the AUX adapter ....... 227
Using the steering switches ................................. 228
3-3. Using the rear audio system ............................ 231
Rear seat entertainment system features ..................... 231
Using the DVD player (DVD video) .......................... 236
Using the DVD player (video CD) ............................. 243
Using the DVD player (audio CD/CD text) ........... 245 Using the DVD player
(MP3 discs) .......................... 246
Using the video mode........... 248
Changing the initial setting ..................................... 249
3-4. Using the interior lights ............................. 256
Interior lights list .................... 256
3-5. Using the storage features ........................ 259
List of storage features......... 259
3-6. Other interior features ........................ 264
Sun visors ................................. 264
Vanity mirror ........................... 265
Clock ......................................... 266
Outside temperature display..................................... 268
Ashtrays.................................... 269
Cigarette lighte r ...................... 271
Power outlet ............................ 272
Seat heaters ............................. 274
Armrest ..................................... 276
Floor mats ................................. 277
Luggage compartment features .................................. 278
Garage door opener ............. 281
Compass .................................. 286
Lexus Link System ................. 290

231
3
Interior features
3-3. Using the rear audio system

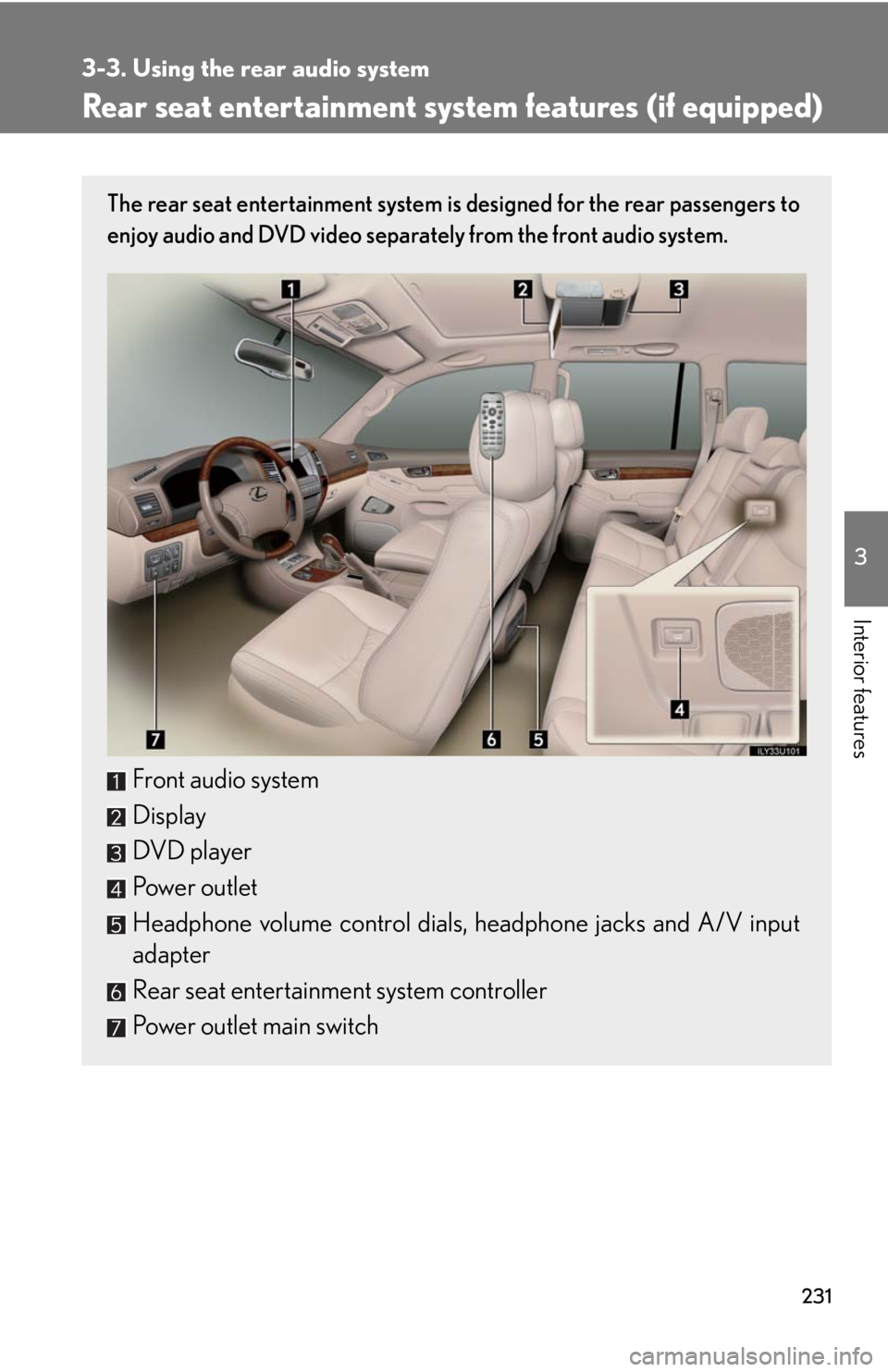

Rear seat entertainment system features (if equipped)
The rear seat entertainment system is designed for the rear passengers to
enjoy audio and DVD video separately from the front audio system.
Front audio system
Display
DVD player
Power outlet
Headphone volume control dials, headphone jacks and A/V input
adapter
Rear seat entertainment system controller
Power outlet main switch

234
3-3. Using the rear audio system
■The rear seat entertainment system can be used when
The engine switch is in the “ACC” or “ON” position.
■Discs that can be used
Discs with the marks shown below can be used.
Playback may not be possible depending on recording format or disc features, or
due to scratches, dirt or deterioration.
■When appears on the screen
This indicates that the selected operation is not currently available.
■Error messages
DISC CHECK: Indicates that the disc is dirty, damaged or was inserted upside
down. Clean the disc or insert it correctly.
REGION ERROR: Indicates that the DVD region code is incorrect.
DVD ERROR: Indicates that there is a problem inside the player. Eject the disc, then reinsert it. If this problem persists, see your Lexus dealer.
If the malfunction still exists, take the vehicle to your Lexus
dealer.
■Before using the remote control (for new vehicle owners)
An insulating sheet is set to prevent the bat-
teries from being discharged. Remove the
insulating sheet before using the remote con-
trol.

235
3-3. Using the rear audio system
3
Interior features
■Headphones
Some headphones may not receive signals from the system clearly. Lexus recom-
mends the use of Lexus genuine wireless headphones.
Please contact your Lexus dealer for further details.
■Vo l u m e
●Adjust the volume when you connect the headphones to the jack. Loud sounds
may have a significant impact on the human body.
●Conversational speech on some DVDs is recorded at a low volume to emphasize
the impact of sound effects. If you adjust the volume assuming that the conversa-
tions represent the maximum volume level that the DVD will play, you may be
startled by louder sound effects or when you change to a different audio source.
Be sure to adjust the volume with this in mind.
CAUTION
■While driving
Do not use headphones.
Doing so may cause an accident, resulting in death or serious injury.
■When the rear seat entertainment system is not used
Keep the display closed.
In the event of an accident or sudden braking, the opened display may hit an occu-
pant’s body, resulting in injury.
■To prevent accidents and electric shock
Do not disassemble or modify the remote control.
■When the remote control is not used
Stow the remote control to the remote control case.
Injuries may result in the event of an accident or sudden braking.

248
3-3. Using the rear audio system
Using the video mode
Using the adapterOpen the cover.
The A/V input adapter is com-
posed of 3 input adapters.
Yellow: Image input adapter
White: Audio input adapter
Red: Audio input adapter
Press to select the video
mode.
Before switching to the video
mode, connect the audio
machine to the input terminal
adapter.
■A/V input adapter
The rear seat entertainment system pl ays videos and sound when audio-video
equipment is connected to the A/V input ad apter. For details, refer to the manufac-
turer’s instructions.
■Powe r o u t l e t
The power outlet is used to connect the audio device. ( P. 2 7 2 )
NOTICE
■When the A/V input adapter is not in use
Keep the A/V input adapter cover closed.
Inserting anything other than an appropri ate plug may cause electrical failure or
short circuit.

258
3-4. Using the interior lights
Interior lightsCenter (without rear seat entertainment system) “ON”
“OFF”
“DOOR”
The lights are turned on/off by the
illuminated entry system.
Center (with rear seat entertainment system)“ON”
“OFF”
“DOOR”
The lights are turned on/off by the
illuminated entry system.
Rear“ON”
“OFF”
“DOOR”
The light turns on when the back
door is opened.
