184
2-5. Driving information
■Before towing
Check that the following conditions are met:
●The vehicle’s tires are properly inflated. (P. 4 1 9 )
●Trailer tires are inflated according to the trailer manufacturer’s recommenda-
tion.
●All trailer lights work.
●All lights work each time you connect them.
●The trailer ball is set up at the proper height for the coupler on the trailer.
●The vehicle remains level when a loaded or unloaded trailer is hitched. Do not
drive if the vehicle is not level, and check for improper tongue load, overloading,
worn suspension, or other possible causes.
●The trailer cargo is securely loaded.
●The rear view mirrors conform to all applicable federal, state/provincial or local
regulations. If they do not, install rear view mirrors appropriate for towing pur-
poses.
■Break-in schedule
Lexus recommends that you do not use a new vehicle or a vehicle with any new
power train components (engine, transmission, differential, wheel bearings, etc.) to
tow a trailer for the first 500 miles (800 km) of driving.
■Maintenance
●If you tow a trailer, your vehicle will require more frequent maintenance due to
the additional load. (See “Warranty and Services Guide/Owner’s Manual Sup-
plement/Scheduled Maintenance”.)
●Retighten the fixing bolts of the towing ball and bracket after approximately
600 miles (1000 km) of trailer towing.

Interior features3
191
3-1. Using the air conditioning
system and defogger .... 192
Automatic air conditioning system ...................................... 192
Rear cooler system ................. 198
Rear window and outside rear view mirror
defoggers ............................... 199
3-2. Using the audio system ........................... 201
Audio system type................... 201
Using the radio....................... 203
Using the CD player ............... 211
Playing MP3 and WMA discs .......................................... 218
Optimal use of the audio system ..................................... 224
Using the AUX adapter ....... 227
Using the steering switches ................................. 228
3-3. Using the rear audio system ............................ 231
Rear seat entertainment system features ..................... 231
Using the DVD player (DVD video) .......................... 236
Using the DVD player (video CD) ............................. 243
Using the DVD player (audio CD/CD text) ........... 245 Using the DVD player
(MP3 discs) .......................... 246
Using the video mode........... 248
Changing the initial setting ..................................... 249
3-4. Using the interior lights ............................. 256
Interior lights list .................... 256
3-5. Using the storage features ........................ 259
List of storage features......... 259
3-6. Other interior features ........................ 264
Sun visors ................................. 264
Vanity mirror ........................... 265
Clock ......................................... 266
Outside temperature display..................................... 268
Ashtrays.................................... 269
Cigarette lighte r ...................... 271
Power outlet ............................ 272
Seat heaters ............................. 274
Armrest ..................................... 276
Floor mats ................................. 277
Luggage compartment features .................................. 278
Garage door opener ............. 281
Compass .................................. 286
Lexus Link System ................. 290

199
3-1. Using the air conditioning system and defogger
3
Interior features
Rear window and outside rear view mirror defoggers
These features are used to defog the rear window, and to remove rain-
drops, dew and frost from the outside rear view mirrors.
■Rear window defogger
With navigation system
ON/OFF
Without navigation system ON/OFF
■ Outside rear view mirror defogger
ON/OFF

200
3-1. Using the air conditioning system and defogger
■Operating conditions
The engine switch must be in the “ON” position.
■Auto shut-off function
The system will automatically shut off after operating for 15 minutes.
CAUTION
■When the outside rear view mirror defoggers are on
Do not touch the rear view mirror surfac es, as they can become very hot and burn
you.
NOTICE
■To prevent battery discharge
Turn the defoggers off when the engine is off.

286
3-6. Other interior features

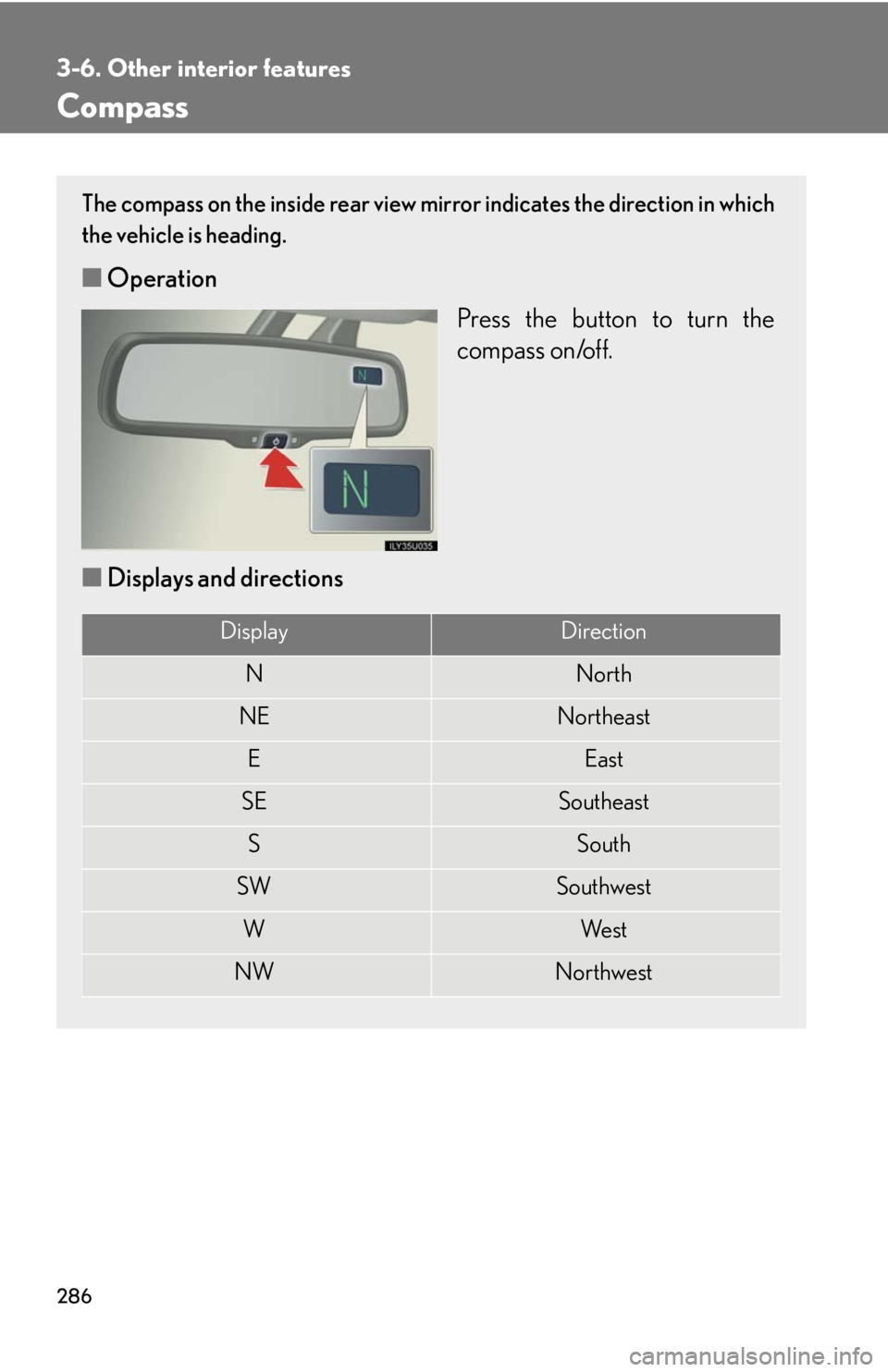

Compass
The compass on the inside rear view mirror indicates the direction in which
the vehicle is heading.
■ Operation
Press the button to turn the
compass on/off.
■ Displays and directions
DisplayDirection
NNorth
NENortheast
EEast
SESoutheast
SSouth
SWSouthwest
WWe s t
NWNorthwest

288
3-6. Other interior features
Wait a few seconds until the compass direction is displayed.
The calibration is complete.
■Circling calibration
If “C” appears on the display, drive
the vehicle at 5 mph (8 km/h) or
less in a circle until a direction is
displayed.
If there is not enough space to
drive in a circle, drive around the
block until the direction is dis-
played.
STEP4
■Conditions unfavorable to correct operation
The compass may not show the correct direction in the following conditions:
●The vehicle is stopped immediately after turning.
●The vehicle is on an inclined surface.
●The vehicle is in a place where the earth’s magnetic field is subject to interfer-
ence by artificial magnetic fields (underground car park/parking lot, under a
steel tower, between buildings, roof car pa rk/parking lot, near an intersection,
near a large vehicle, etc.).
●The vehicle has become magnetized.
(There is a magnet or metal object near the inside rear view mirror.)
●The battery has been disconnected.
●A door is open.

289
3-6. Other interior features
3
Interior features
CAUTION
■Caution while driving
Do not adjust the display.
Be sure to adjust the display only when the vehicle is stopped.
■When doing the circling calibration
Be sure to secure a wide space, and watch out for people and vehicles in the neigh-
borhood. Do not violate any local traffic rules while performing circling calibration.
NOTICE
■To avoid the compass malfunctions
Do not place magnets or any metal objects near the inside rear view mirror.
Doing this may cause a malfunction of the compass sensor.
■To ensure normal operation of the compass
●Do not perform circling calibration of the compass in a place where the earth’s
magnetic field is subject to interference by artificial magnetic fields.
●During calibration, do not operate elec tric systems (moon roof, power windows,
etc.) as they may interfere with the calibration.

301
3-6. Other interior features
3
Interior features
■Speech recognition information
The Lexus Link speech recognition systems use speech technology that is designed
to understand a wide range of speakers of American English. However, the technol-
ogy may not work as well if a regional or ethnic accent is encountered. If the speech
recognition system does not work properly, refer to the following.
●The system does not recognize your command properly if noise is present. Per-
form the following to improve voice command recognition.
• Turn down or off the air conditioning system.
• Slow down to reduce wind noise.
• Close the windows and the moon roof to block outside noise.
• Have all occupants be quiet so that the system does not recognize their con- versation as a command.
●When to speak
Say a command within 5 seconds after the system prompts you to speak.
●How to speak
• Speak forcefully and clearly.
• Speak calmly and naturally.
• The driver should speak while facing forward, and the passenger should
speak facing the inside rear view mirror.
• Avoid speaking with a rising intonati on. Use a flat or falling intonation.
●Tips for one-word commands
• The system recognizes only one word at a time for personal calling. (There
are some exceptions, such as “Advanced services” and “My number”.)
• When inputting the security codes or voice-activated keypad number, you
must say them one digit at a time. When inputting a phone number, the
speech recognition system can recognize 7, 10, and 11-digit numbers as well
as the number 911.

358
4-3. Do-it-yourself maintenance
FuseAmpereCircuit
8TOW I N G40Trailer lights
9CDS FAN20Electric cooling fan
10RR A/C30Rear air conditioning system
11MIR HEATER10Outside rear view mirror defogger
12STOP10
Stop lights, high mounted stoplight,
shift lock control system, vehicle sta-
bility control system, electronic mod-
ulated suspension, rear height control
air suspension, multiport fuel injec-
tion system/sequential multiport fuel
injection system
13AC INV15Power outlet (115V AC)
14FR FOG15Front fog lights
15OBD7. 5On-board diagnosis system
16HEAD (LO RH)10Right hand headlight (low beam)
17HEAD (LO LH)10Left hand headlight (low beam)
18HEAD (HI RH)10Right hand headlight (high beam)
19HEAD (HI LH)10Left hand headlight (high beam)
20EFI NO.210
Multiport fuel injection system/
sequential multiport fuel injection
system
21HEATER No.27. 5Air conditioning system
22DEFOG30Rear window defogger
23AIRSUS NO.210Rear height control air suspension
24S E AT H E AT E R20Seat heaters

359
4-3. Do-it-yourself maintenance
4
Maintenance and care
FuseAmpereCircuit
25DOME10
Engine switch light, interior lights,
personal lights, foot lights, running
board lights, door courtesy lights,
inside door handle lights, trip infor-
mation display
26RADIO NO.120Audio system, navigation system
27ECU-B10
Multiplex communication system,
vehicle stability control system, wire-
less remote control system, inside
rear view mirror, air conditioning sys-
tem, electronic modulated suspen-
sion, driving position memory system,
power windows, moon roof, rear view
monitor system
28ECU-B NO.210Theft deterrent system
29ABS MTR40
Anti-lock brake system, vehicle sta-
bility control system, active traction
control system, brake assist system
30AM230Starting system, IGN, SRS, GAUGE,
ST2
31ABS SOL30
Anti-lock brake system, vehicle sta-
bility control system, active traction
control system, brake assist system
32ALT-S7. 5Charging system
33MAYDAY7. 5Lexus Link System
34HORN10Horns
