431
6-1. Specifications
6
Vehicle specifications
Tire related termMeaning
We a t h e r s i d eThe surface area of the rim not covered by the
inflated tire
Bead
The part of the tire that is made of steel wires,
wrapped or reinforced by ply cords and that is
shaped to fit the rim
Bead separationA breakdown of the bond between components in
the bead
Bias ply tire
A pneumatic tire in which the ply cords that extend
to the beads are laid at alternate angles substantially
less than 90 degrees to the centerline of the tread
CarcassThe tire structure, except tread and sidewall rubber
which, when inflated, bears the load
ChunkingThe breaking away of pieces of the tread or sidewall
CordThe strands forming the plies in the tire
Cord separationThe parting of cords from adjacent rubber com-
pounds
CrackingAny parting within the tread, sidewall, or innerliner
of the tire extending to cord material
CT
A pneumatic tire with an inverted flange tire and rim
system in which the rim is designed with rim flanges
pointed radially inward and the tire is designed to fit
on the underside of the rim in a manner that
encloses the rim flanges inside the air cavity of the
tire
Extra load tire
A tire designed to operate at higher loads and at
higher inflation pressures than the corresponding
standard tire

432
6-1. Specifications
Tire related termMeaning
GrooveThe space between two adjacent tread ribs
InnerlinerThe layer(s) forming the inside surface of a tubeless
tire that contains the inflating medium within the tire
Innerliner separationThe parting of the innerliner from cord material in
the carcass
Intended outboard side-
wall
(a)The sidewall that contains a whitewall, bears white
lettering, or bears manufacturer, brand, and/or
model name molding that is higher or deeper than
the same molding on the other sidewall of the tire, or
(b)The outward facing sidewall of asymmetrical tire
that has a particular side that must always face out-
ward when mounted on a vehicle
Light truck (LT) tire
A tire designated by its manufacturer as primarily
intended for use on lightweight trucks or multipur-
pose passenger vehicles
Load ratingThe maximum load that a tire is rated to carry for a
given inflation pressure
Maximum load ratingThe load rating for a tire at the maximum permissible
inflation pressure for that tire
Maximum permissible
inflation pressureThe maximum cold inflation pressure to which a tire
may be inflated
Measuring rimThe rim on which a tire is fitted for physical dimen-
sion requirements
Open spliceAny parting at any junction of tread, sidewall, or
innerliner that extends to cord material

433
6-1. Specifications
6
Vehicle specifications
Tire related termMeaning
Outer diameterThe overall diameter of an inflated new tire
Overall width
The linear distance between the exteriors of the
sidewalls of an inflated tire, including elevations due
to labeling, decorations, or protective bands or ribs
Passenger car tire
A tire intended for use on passenger cars, multipur-
pose passenger vehicles, and trucks, that have a
gross vehicle weight rating (GVWR) of 10,000 lb.
or less
PlyA layer of rubber-coated parallel cords
Ply separationA parting of rubber compound between adjacent
plies
Pneumatic tire
A mechanical device made of rubber, chemicals,
fabric and steel or other materials, that, when
mounted on an automotive wheel, provides the trac-
tion and contains the gas or fluid that sustains the
load
Radial ply tire
A pneumatic tire in which the ply cords that extend
to the beads are laid at substantially 90 degrees to
the centerline of the tread
Reinforced tire
A tire designed to operate at higher loads and at
higher inflation pressures than the corresponding
standard tire
Section width
The linear distance between the exteriors of the
sidewalls of an inflated tire, excluding elevations due
to labeling, decoration, or protective bands

434
6-1. Specifications
Tire related termMeaning
SidewallThat portion of a tire between the tread and bead
Sidewall separationThe parting of the rubber compound from the cord
material in the sidewall
Snow tire
A tire that attains a traction index equal to or greater
than 110, compared to the ASTM E-1136 Standard
Reference Test Tire, when using the snow traction
test as described in ASTM F-1805-00, Standard
Test Method for Single Wheel Driving Traction in a
Straight Line on Snow-and Ice-Covered Surfaces,
and which is marked with an Alpine Symbol ( )
on at least one sidewall
Te s t r i mThe rim on which a tire is fitted for testing, and may
be any rim listed as appropriate for use with that tire
Tr e a dThat portion of a tire that comes into contact with the
road
Tr e a d r i bA tread section running circumferentially around a
tire
Tr e a d s e p a r a t i o nPulling away of the tread from the tire carcass
Treadwear indicators
(TWI)The projections within the principal grooves
designed to give a visual indication of the degrees of
wear of the tread
Wheel-holding fixtureThe fixture used to hold the wheel and tire assembly
securely during testing

435
6-1. Specifications
6
Vehicle specifications

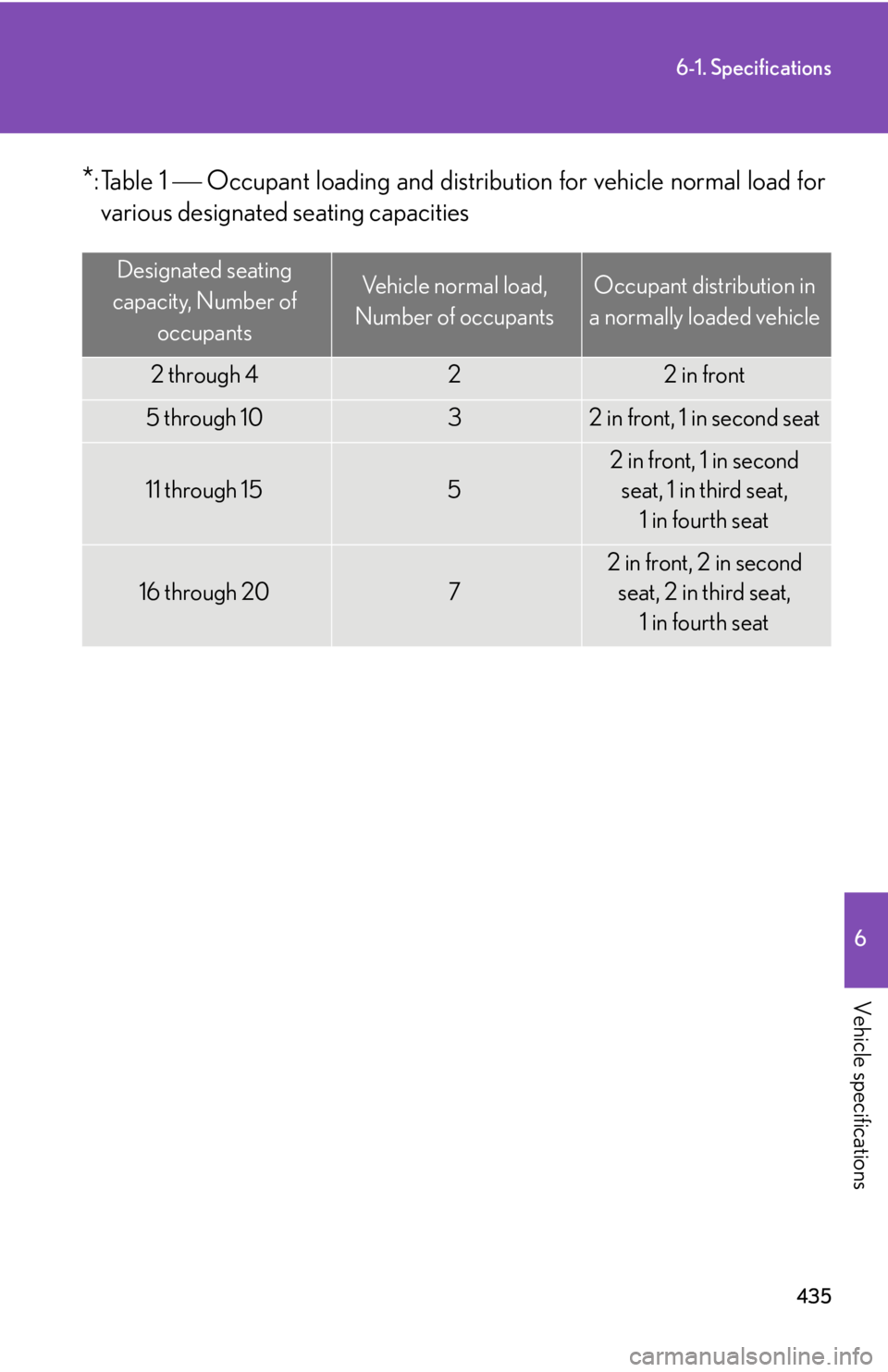

*: Table 1  Occupant loading and distribution for vehicle normal load for
various designated seating capacities
Designated seating
capacity, Number of
occupantsVehicle normal load,
Number of occupantsOccupant distribution in
a normally loaded vehicle
2 through 422 in front
5 through 1032 in front, 1 in second seat
11 through 155
2 in front, 1 in second seat, 1 in third seat,
1 in fourth seat
16 through 207
2 in front, 2 in second seat, 2 in third seat,
1 in fourth seat

436

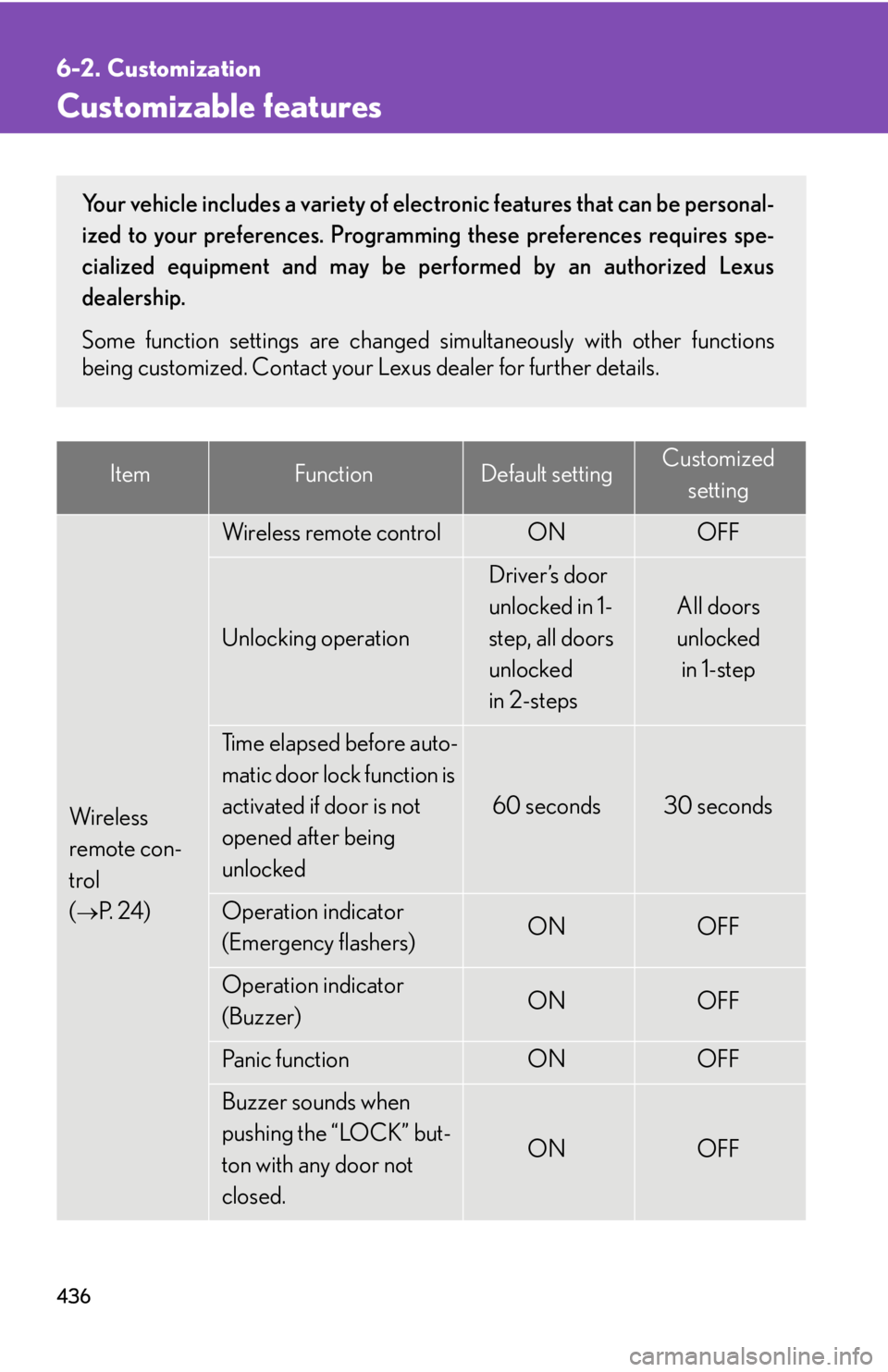

6-2. Customization
Customizable features
ItemFunctionDefault settingCustomizedsetting
Wireless
remote con-
trol
(
P. 2 4 )
Wireless remote controlONOFF
Unlocking operation
Driver’s door
unlocked in 1-
step, all doors
unlocked
in 2-steps
All doors
unlocked in 1-step
Time elapsed before auto-
matic door lock function is
activated if door is not
opened after being
unlocked
60 seconds30 seconds
Operation indicator
(Emergency flashers)ONOFF
Operation indicator
(Buzzer) ONOFF
Panic functionONOFF
Buzzer sounds when
pushing the “LOCK” but-
ton with any door not
closed.
ONOFF
Your vehicle includes a variety of elec tronic features that can be personal-
ized to your preferences. Programming these preferences requires spe-
cialized equipment and may be performed by an authorized Lexus
dealership.
Some function settings are changed simultaneously with other functions
being customized. Contact your Lexus dealer for further details.

437
6-2. Customization
6
Vehicle specifications
ItemFunctionDefault settingCustomizedsetting
Door lock (
P. 2 6 )
Unlocking using a key
Driver’s door
unlocked in 1-
step, all doors
unlocked
in 2-steps
All doors
unlocked in 1-step
Speed-detecting auto-
matic door lock functionOFFON
Opening driver’s door
unlocks all doors OFFON
Shift the shift lever to “P”
unlocks all doors.ONOFF
Shift the shift lever to posi-
tion other than “P” locks
all doors.
ONOFF
Pow e r w i n -
dows
(
P. 6 1 )
Linked door lock opera-
tionONOFF
Linked door key opera-
tionOpen and closeOpen only
Close only
Wireless remote control
linked operationONOFF

438
6-2. Customization
*: Vehicles sold outside Canada
ItemFunctionDefault settingCustomizedsetting
Moon roof
(
P. 6 4 )
Linked door lock opera-
tionONOFF
Linked door key opera-
tionOpen and closeOpen only
Close only
Linked operation of com-
ponents when door key is
used
Slide onlyTilt only
Wireless remote control
linked operationONOFF
Linked operation of com-
ponents when wireless
remote control used
Slide onlyTilt only
Automatic
light control
system
(
P. 1 3 5 )
Light sensor sensitivityLevel 3Levels 1 to 5
Ti m e e l a p s e d b e f o r e
headlights automatically
turn off after doors are
closed
30 seconds
0 seconds
60 seconds
90 seconds
Daytime running lightONOFF*
Illumination
(
P. 2 5 6 )
Time elapsed before lights
turn off15 seconds7. 5 s e c o n d s
30 seconds
Operation when the
doors are unlockedONOFF
Operation after the
engine switch is turned to
the “ACC” position
ONOFF

439
6
Vehicle specifications

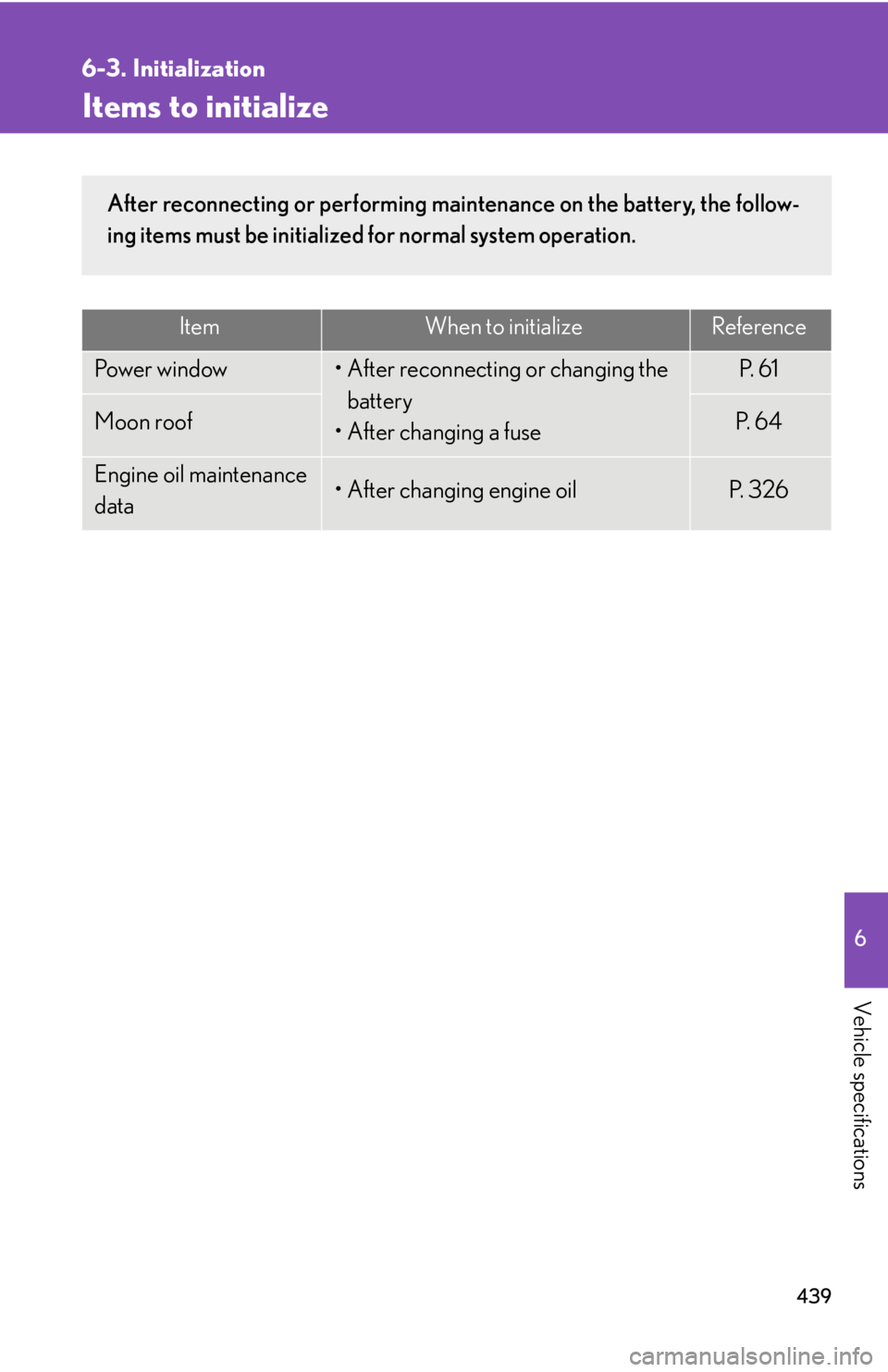

6-3. Initialization
Items to initialize
ItemWhen to initializeReference
Pow e r w i n d ow• After reconnecting or changing the battery
• After changing a fuseP. 6 1
Moon roofP. 6 4
Engine oil maintenance
data• After changing engine oilP. 3 2 6
After reconnecting or performing main tenance on the battery, the follow-
ing items must be initialized for normal system operation.
