6-1. Specifications
Engine
Fuel
Model2UZ-FE
Ty p e8-cylinder V type, 4-cycle, gasoline
Bore and stroke3.70  3.31 in. (94.0  84.0 mm)
Displacement284.5 cu.in. (4664 cm3)
Drive belt tensionAutomatic adjustment
Fuel typePremium unleaded gasoline only
Octane rating91 (Research Octane Number 96) or higher
Fuel tank capacity23 gal. (87 L, 19.1 Imp.gal)

427
6-1. Specifications
6
Vehicle specifications
Tire section namesBead
Sidewall
Shoulder
Tread
Belt
Inner liner
Reinforcing rubber
Carcass
Rim lines
Bead wires
Chafer
Uniform Tire Quality GradingThis information has b een prepared in accordance with regulations
issued by the National Highway Tr affic Safety Administration of the
U.S.A. Department of Transportation.
It provides the purchasers and/or prospective purchasers of Lexus vehi-
cles with information on uniform tire quality grading.
Your Lexus dealer will help answer an y questions you may have as you read
this information.
■ DOT quality grades
All passenger vehicle tires must co nform to Federal Safety Require-
ments in addition to these grades. Quality grades can be found where
applicable on the tire sidewall between tread shoulder and maximum
section width.
For example: Treadwear 200 Traction AA Temperature A

For owners7
441
Reporting safety defects for U.S. owners..................... 442
Seat belt instructions for Canadian owners
(in French) ............................ 443

443
7
For owners
Seat belt instructions for Canadian owners (in French)

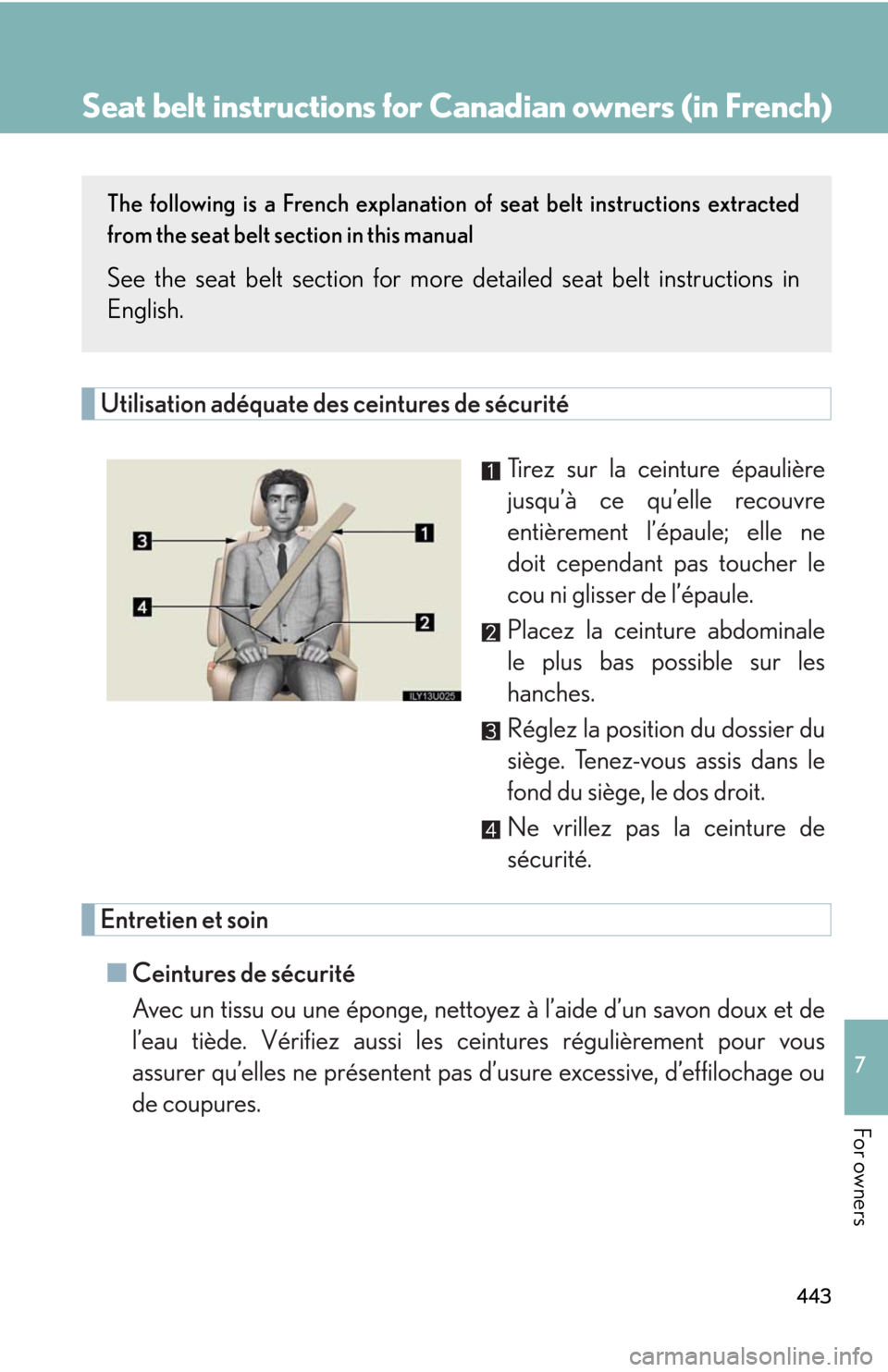

The following is a French explanation of seat belt instructions extracted
