automatic transmission Lexus GX470 2008 Operating the lights and windshield wipers / LEXUS 2008 GX470 OWNER'S MANUAL (OM60D82U)

TABLE OF CONTENTSIndex
2
1-1. Key information ........................... 22Keys ...................................................... 22
1-2. Opening, closing and locking the doors...................................... 24
Wireless remote control .............. 24
Side doors .......................................... 26
Back door ............................................ 31
1-3. Adjustable components (seats, mirrors, steering
wheel, etc.) .................................. 34
Front seats .......................................... 34
Rear seats ........................................... 36
Driving position memory system ............................................... 45
Head restraints................................. 47
Seat belts ............................................ 49
Steering wheel.................................. 57
Inside rear view mirror................. 58
Outside rear view mirrors ........... 59
1-4. Opening and closing the windows and moon roof ........... 61
Power windows................................. 61
Moon roof .......................................... 64
1-5. Refueling ........................................ 67 Opening the fuel tank cap........... 67 1-6. Theft deterrent system............... 70
Engine immobilizer system ......... 70
Alarm.................................................... 72
Theft prevention labels (U.S.A.) ............................................. 74
1-7. Safety information ....................... 75 Correct driving posture ............... 75
SRS airbags ....................................... 77
Front passenger occupant classification system .................... 90
Child restraint sy stems ................. 95
Installing child restraints ............... 98
2-1. Driving procedures.................... 110 Driving the vehicle ......................... 110
Engine (ign ition) switch ............... 118
Automatic transmission................ 121
Turn signal lever............................. 124
Parking brake ................................. 125
2-2. Instrument cluster ..................... 126 Gauges and meters ..................... 126
Indicators and warning lights ... 129
Trip information display .............. 132
1Before driving
2When driving

13
A
B
Audio remote control switches P. 228
Automatic transmission second start switch P. 122
Tire selector switch P. 338

When driving2
109
2-1. Driving procedures ........ 110Driving the vehicle................... 110
Engine (ignition) switch .......... 118
Automatic transmission ......... 121
Turn signal lever ....................... 124
Parking brake ........................... 125
2-2. Instrument cluster .......... 126 Gauges and meters ................ 126
Indicators and warning lights ......................................... 129
Trip information display ......... 132 2-3. Operating the lights and
windshield wipers ........ 135
Headlight switch ..................... 135
Fog light switch ........................ 137
Windshield wipers and washer ..................................... 138
Rear window wiper and washer ...................................... 141
2-4. Using other driving systems .......................... 142
Cruise control.......................... 142
Four-wheel drive system....... 146
Rear height control air suspension.............................. 149
Electronic modulated suspension.............................. 156
DAC (Downhill Assist Control system) ..................... 157
Driving assist systems ............ 159
2-5. Driving information........ 163 Off-road precautions ............ 163
Cargo and luggage ................ 168
Vehicle load limits .................... 174
Winter driving tips ................... 176
Trailer towing ........................... 180
Dinghy towing .......................... 190

121
2-1. Driving procedures
2
When driving

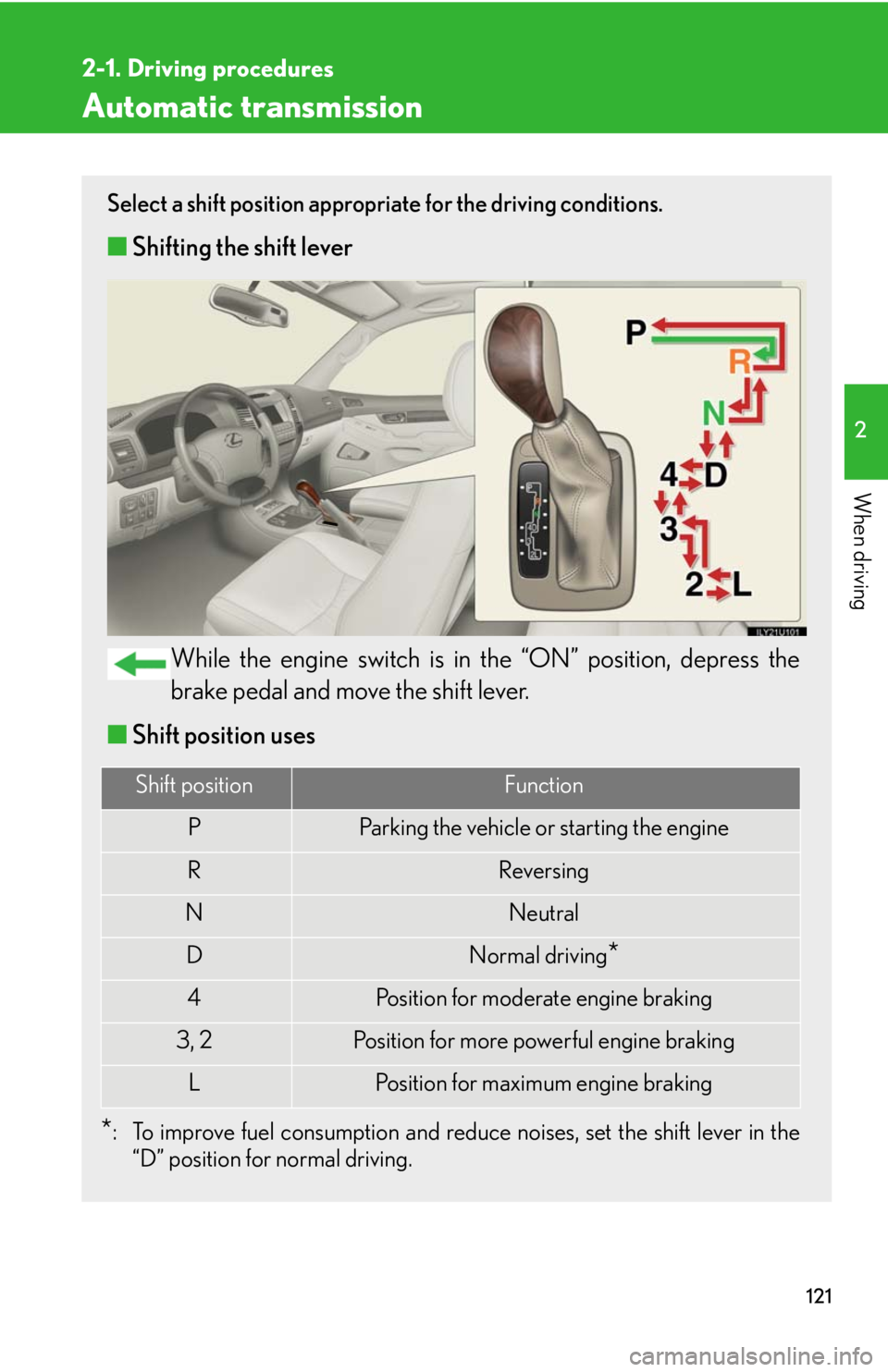

Automatic transmission
Select a shift position appropriate for the driving conditions.
■Shifting the shift lever
While the engine switch is in the “ON” position, depress the
brake pedal and move the shift lever.
■ Shift position uses
*: To improve fuel consumption and reduce noises, set the shift lever in the
“D” position for normal driving.
Shift positionFunction
PParking the vehicle or starting the engine
RReversing
NNeutral
DNormal driving*
4Position for moderate engine braking
3, 2Position for more powerful engine braking
LPosition for maximum engine braking

130
2-2. Instrument cluster
■Indicators
The indicators inform the driver of th e operating state of the vehi-
cle’s various systems.
Turn signal indicator
( P. 1 2 4 )“RSCA OFF” indicator
(P. 8 9 )
Headlight high beam indi-
cator ( P. 1 3 5 )Downhill assist control
system indicator
( P. 1 5 7 )
(U.S.A.)
Headlight indicator
( P. 1 3 5 )
(U.S.A.)
Engine oil replacement
reminder light ( P. 3 8 4 )
(Canada)
Tail light indicator
( P. 1 3 5 ) Slip indicator
(P. 1 6 0 )
Security indicator
(P. 7 0 ) “VSC OFF” indicator
(P. 1 4 7 )
Shift position indicators
(P. 121)Center differential lock
indicator ( P. 1 4 7 )
Height control indicator
( P. 1 5 0 ) “AIR BAG ON” indicator
( P. 9 0 )
Automatic transmission
second start indicator
( P. 122)“AIR BAG OFF” indicator
( P. 9 0 )
Cruise control indicator
( P. 1 4 2 )
*
*
*
*
*
*
*

166
2-5. Driving information
CAUTION
■Off-road driving precautions
Always observe the following precautions to minimize the risk of serious personal
injury or damage to your vehicle:
●Drive carefully when off the road. Do not take unnecessary risks by driving in
dangerous places.
●Do not grip the steering wheel spokes wh en driving off-road. A bad bump could
jerk the wheel and injure your hands. Keep both hands and especially your
thumbs on the outside of the rim.
●Always check your brakes for effectiveness immediately after driving in sand,
mud, water or snow.
●After driving through tall grass, mud, rock, sand, rivers, etc., check that there is no
grass, bush, paper, rags, stone, sand, etc. adhering or trapped on the underbody.
Clear off any such matter from the underbody. If the vehicle is used with these
materials trapped or adhering to the underbody, a breakdown or fire could occur.
●When driving off-road or in rugged te rrain, do not drive at excessive speeds,
jump, make sharp turns, strike objects, etc. This may cause loss of control or vehi-
cle rollover causing death or serious injury. You are also risking expensive dam-
age to your vehicle’s suspension and chassis.
NOTICE
■To prevent the water damage
Take all necessary safety measures to ensure that water damage to the engine or
other components does not occur.
●Water entering the engine air intake will cause severe engine damage.
●Water entering the automatic transmission will cause deterioration in shift quality,
locking up of your transmission accompanied by vibration, and ultimately dam-
age.
●Water can wash the grease from wheel bearings, causing rusting and premature
failure, and may also enter the differentials, transmission and transfer case, reduc-
ing the gear oil’s lubricating qualities.

314
4-2. Maintenance
Vehicle interior
ItemsCheck points
Accelerator pedal• Moves smoothly (without uneven pedal effort or catching)?
Automatic transmission “Park”
mechanism• Can the vehicle be held securely on an incline with the shift lever in “P”?
Brake pedal
• Moves smoothly?
• Does it have appropriate clearance
and correct amount of free play?
Brakes
• Pulls to one side when applied?
• Loss of brake effectiveness?
• Spongy feeling brake pedal?
• Pedal almost touches floor?
Head restraints• Move smoothly and lock securely?
Indicators/buzzers• Function properly?
Lights• Do all the lights come on?
Pa r k i n g b r a ke
• Moves smoothly?
• Can hold the vehicle securely on an incline?
Seat belts
• Does the seat belt system operate smoothly?
• Are the belts undamaged?
Seats• Do the seat controls operate properly?
Steering wheel
• Moves smoothly?
• Has correct free play?
• No strange noises?

318
4-3. Do-it-yourself maintenance
ItemsPa r t s a n d t o o l s
Engine oil level (P. 3 2 3 )
• “Toyota Genuine Motor Oil” or
equivalent
• Rag or paper towel, funnel (used only for adding engine oil)
Fuses ( P. 3 5 5 )• Fuse with same amperage rating as
original
Power steering fluid level ( P. 3 3 1 )
• Automatic transmission fluid
DEXRON® II or III
•Rag or paper towel
• Clean funnel
Radiator and condenser ( P. 3 2 9 )
Tire inflation pressure ( P. 3 4 3 )• Tire pressure gauge
• Compressed air source
Wa s h e r f l u i d ( P. 3 3 5 )
• Water washer fluid containing anti-
freeze (for winter use)
•Funnel

332
4-3. Do-it-yourself maintenance
■Checking the fluid level
Make sure to check the fluid type and prepare the necessary items.
Clean all dirt off the reservoir.
Remove the cap by turning it counterclockwise.
Wipe the dipstick clean.
Reinstall and remove the reservoir cap again.
Check the fluid level.
Fluid typeAutomatic transmission fluid DEXRON® II or III
ItemsRag or paper, clean funnel (only for adding fluid)
CAUTION
■When checking the reservoir
Take care, as the reservoir may be hot.
NOTICE
■When adding fluid
Avoid overfilling, or the power steering may be damaged.
■After replacing the reservoir cap
Check the steering box case, vane pump and hose connections for leaks or dam-
age.
STEP1
STEP2
STEP3
STEP4
STEP5

382
5-2. Steps to take in an emergency
Stop the vehicle immediately.The following warning indicates the po ssibility of damage to the vehicle
that may lead to an ac cident. Immediately stop the vehicle in a safe place
and contact your Lexus dealer.
Have the vehicle inspected by y our Lexus dealer immediately.
Failing to investigate the cause of the following warnings may lead to the
system operating abnormally and possibly cause an accident. Have the
vehicle inspected by your Lexus dealer immediately.
Warning lightWarning light/Details
Charging system warning light
Indicates a malfunction in the vehicle’s charging system
while the engine is running.
Low engine oil pressure warning light
Indicates an abnormal level of engine oil pressure.
This warning light may turn on if the level of engine oil
declines. The light should turn off after checking the oil and
adding oil if necessary.
Warning lightWarning light/Details
(U.S.A.)

(Canada)
Malfunction indicator lampMalfunction in:
• The electronic engine control system;
• The electronic throttle control system; or
• The electronic automatic transmission control system.
SRS warning lightMalfunction in:
• The SRS airbag system;
• The front passenger occupant classification system; or
• The seat belt pretensioner system.
