Lexus GX470 2008 Owner's Manual

240
3-3. Using the rear audio system
Changing the audio languagePress or select to
display the audio language screen.
Each time is pressed or is selected, another lan-
guage stored on the disc is
selected.
Select to return to the pre-
vious screen.
Changing the angle
Press or select to
display the screen to change the
angle.
Each time is pressed or is selected, the angle
changes.
Select to return to the pre-
vious screen.
■DVD player and DVD video discs
This DVD player is compatible with NTSC color TV formats. DVD video discs con-
forming to other formats such as PAL or SECAM cannot be used.
■Region codes
Some DVD video discs have a region code indicating where you can use them. If
the DVD video disc is not labeled ALL or I, you cannot use it in this DVD player. If
you attempt to play an inappropriate DVD video disc in this player, REGION
CODE ERROR appears on the screen. Even if the DVD video disc does not have a
region code, in some cases you cannot use it.

241
3-3. Using the rear audio system
3
Interior features
■Symbols shown on DVD video discs
■DVD video disc glossary
●DVD video discs: Digital Versatile Discs that hold the world’s standard video.
DVD video discs have adopted “MPEG2”, one of the world standards of digital
compression technologies. The picture data is compressed by 1 /40 on average
and stored. Variable rate encoding technology has been adopted in which the
volume of data assigned to the picture is changed depending on the picture for-
mat. Audio data is stored using PCM and Dolby digital, which enables higher
sound. Furthermore, multi-angle and multi-language features will also help you
enjoy the more advanced technology of DVD video.
Indicates NTSC format.
Indicates the number of audio tracks.
Indicates the number of language subtitles.
Indicates the number of angles.
Indicates the screen display ratios available.
Wide screen: 16:9
Standard: 4:3
Indicates the disc’s region code.
All: all countries
Number: region code

242
3-3. Using the rear audio system
●Viewer restrictions: This feature limits what can be viewed in conformity with the
level of restrictions of the country. The level of restrictions varies depending on
the DVD video disc. Some DVD video discs cannot be played at all, or violent
scenes are skipped or replaced with other scenes.
• Level 1: DVD video discs for children can be played.
• Level 2 - 7: DVD video discs for children and G-rated movies can be played.
• Level 8: All types of DVD video discs can be played.
●Multi-angle feature: Allows you to enjoy the same scene from different angles.
●Multi-language feature: Allows you to select the language of the subtitles and
audio.
●Region codes: Region codes are found on DVD players and DVD discs. If a DVD
video disc does not have the same region code as the DVD player, you cannot
play the disc on that DVD player.
●Audio: This DVD player can play liner PCM, Dolby digital, dts and MPEG audio
format DVD. Other decoded type cannot be played.
●Title and chapter: Video and audio programs stored on DVD video discs are
divided into sections by title and chapter.
●Title: The largest unit of the video and audio programs stored on DVD video discs.
Usually, one movie, one album, or one audio program is assigned as a title.
●Chapter: A unit smaller than a title. A title comprises multiple chapters.
■Audio
Manufactured under license from Dolby Laboratories. “Dolby”, “Pro Logic”,
and are trademarks of Dolby
® Laboratories. Confidential unpublished works.
1992-1997 Dolby® Laboratories. All rights reserved.
“dts” is a trademark of Digital Theater Systems, Inc.

243
3-3. Using the rear audio system
3
Interior features
Using the DVD player (video CD)
■Remote control
Select a switch
Select a chapter
Play/pause
Rewind
Display operation switches
Enter the selected option
Fas t for ward
Stop
Change the initial setting

244
3-3. Using the rear audio system
Selecting a disc menu numberSelect
to display the disc menu number search screen.
Select the disc menu number, and press “ENT” to input it.
Select to return to the previous screen.
■ Display (page 1)
Select a disc menu number
Turn off the menu screen
Display page 2
Turn on the disc menu
Return to the previous page
screen (with the disc menu
displayed)
Proceed to the next page
screen (with the disc menu
displayed)
Change to a multiplex trans-
mission
■ Display (page 2)
Display page 1
Rewind
Play/pause
Fas t for ward

245
3-3. Using the rear audio system
3
Interior features
Using the DVD player (audio CD/CD text)
■Canceling random, repeat and scan play
Select , or again.
■Control screen
Press to display the con-
trol screen.
Repeat play
Random play
Scan play

246
3-3. Using the rear audio system
Using the DVD player (MP3 discs)
Repeat play■ Repeat a file
Select .
■ Repeat all of files in a folder
Select , and press and hold “ENT” on the remote control.
Random play
■ Playing files from a particular folder in random order
Select .
■ Playing all of the files on a disc in random order
Select , and press and hold “ENT” on the remote control.
■Control screen
Press to display the con-
trol screen.
Repeat play
Random play
Scan play
Display file information
Select a folder

247
3-3. Using the rear audio system
3
Interior features
Scan play■ Selecting the desired file by cu eing the files in the folder
Select .
The player will scan all the files in the folder. Each file will be played for
10 seconds.
■ Selecting the desired file by cu eing the folders on the disc
Select , and press and ho ld “ENT” remote control.
The player will scan all the folders on the disc. The first file in each
folder will be played for 10 seconds.
■Canceling random, repeat and scan play
Select , or again.

248
3-3. Using the rear audio system
Using the video mode
Using the adapterOpen the cover.
The A/V input adapter is com-
posed of 3 input adapters.
Yellow: Image input adapter
White: Audio input adapter
Red: Audio input adapter
Press to select the video
mode.
Before switching to the video
mode, connect the audio
machine to the input terminal
adapter.
■A/V input adapter
The rear seat entertainment system plays videos and sound when audio-video
equipment is connected to the A/V input adapter. For details, refer to the manufac-
turer’s instructions.
■Po w e r o u t l e t
The power outlet is used to connect the audio device. ( →P. 2 7 2 )
NOTICE
■When the A/V input adapter is not in use
Keep the A/V input adapter cover closed.
Inserting anything other than an appropriate plug may cause electrical failure or
short circuit.

249
3-3. Using the rear audio system
3
Interior features

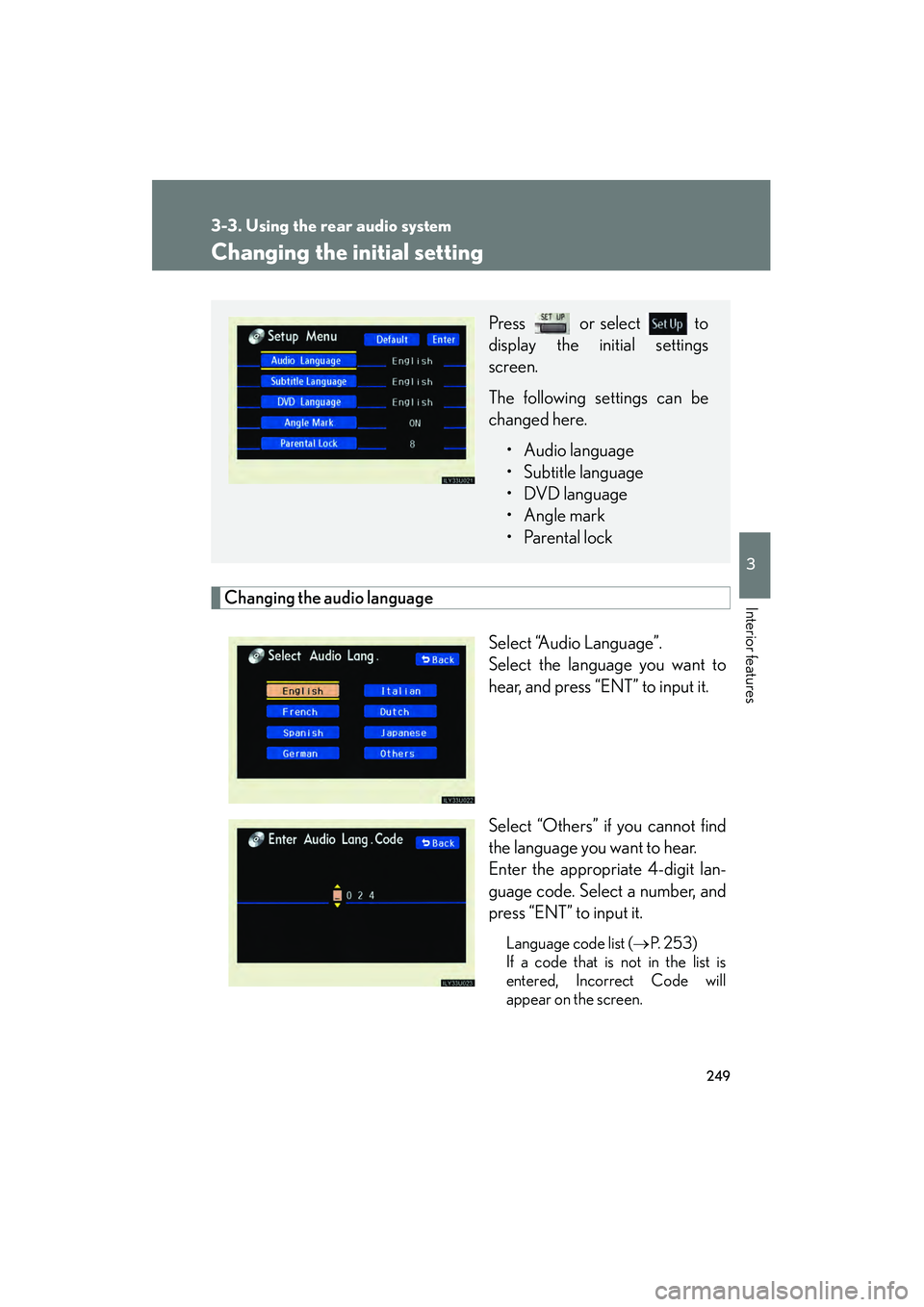

Changing the initial setting
Changing the audio languageSelect “Audio Language”.
Select the language you want to
hear, and press “ENT” to input it.
Select “Others” if you cannot find
the language you want to hear.
Enter the appropriate 4-digit lan-
guage code. Select a number, and
press “ENT” to input it.
Language code list (→P. 2 5 3 )
If a code that is not in the list is
entered, Incorrect Code will
appear on the screen.
Press or select to
display the initial settings
screen.
The following settings can be
changed here.
• Audio language
• Subtitle language
• DVD language
• Angle mark
• Parental lock
