2-2. Instrument cluster
2
When driving
Indicators and warning lights
The indicator and warning lights on the instrument cluster and center
panel inform the driver of the status of the vehicle’s various systems.
Instrument cluster
Center panel (without a navigation system)
Center panel (with a navigation system)

171
2-2. Instrument cluster
2
When driving
Display order may vary depending on vehicle condition.
Electronic feature control contentsSetting electronic feature controls
AFS (if equipped)P. 1 8 5
Intuitive parking assist 
(if equipped)Refer to “Navigation System
Owner’s Manual”.
Other contentsDetails
Customization ( P. 5 7 2 )
Settings of functions such as the
door lock and light illumination time
can be changed
Dynamic radar cruise control 
(if equipped) ( P. 2 0 5 )Automatically displayed when using
the dynamic radar cruise control
LKA (Lane Keeping Assist) 
(if equipped) ( P. 2 1 7 )Automatically displayed when using
the lane keeping assist
PCS (Pre-Collision System) 
(if equipped) ( P. 232, 502, 505)Automatically displayed if there is a
possibility of collision.

172
2-2. Instrument cluster
Trip information
■Energy monitor
Displays the status of the hybrid system ( P
. 32)
■ T
otal distance/Total average fuel consumption
Displays the total distance and aver age fuel consumption since the last
r
eset.
Press the “ENTER” switch for 1 second or more when the total distance and
the average fuel consumption is displayed.
“Past Record” screen on the navigation system (if equipped) will also be
re
set. ( P. 3 6 )
■Current fuel consumption/Averag e fuel consumption after refueling
Displays the instant fu el consumption and av
erage fuel consumption
after refueling.
■ Cruising r
ange
Displays the estimated maximum distan ce that can be driv
en with the
quantity of fuel remaining.
• This distance is computed based on your average fuel consumption. 
As a result, the actual distance that can be driven may differ from that dis -
played.
• When only a small amount of fuel is added to the tank, the display may not
be updated.
Other contentsDetails
Wa r n i n g m e s s a g e ( P. 5 0 1 )
Automatically displayed when a mal-
function occurs in any of the vehi-
cle's systems

177
2-2. Instrument cluster
2
When driving
HUD (Head-up Display) main switch
Pressing the switch turns the head-
up display on/off and changes the
vehicle speed display units as fol-
lows:
Vehicles sold in the U.S.A. 
OFF  ON (mph)  ON (km/h)
 OFF
Except vehicles sold in the U.S.A. 
OFF  ON (km/h)  ON (mph)
 OFF
When the head-up display is on, a
pr
olonged press will turn the touch
tracer display or audio display
ON/OFF. ( P. 1 8 1
)
●Turn-by-turn navigation
Displays a notification of upcoming intersections
during navigation system route guidance

●Touch tracer display
Displays the switch operation status when the
steering switch is operated. 


252
3-1. Using the air conditioning system and defogger

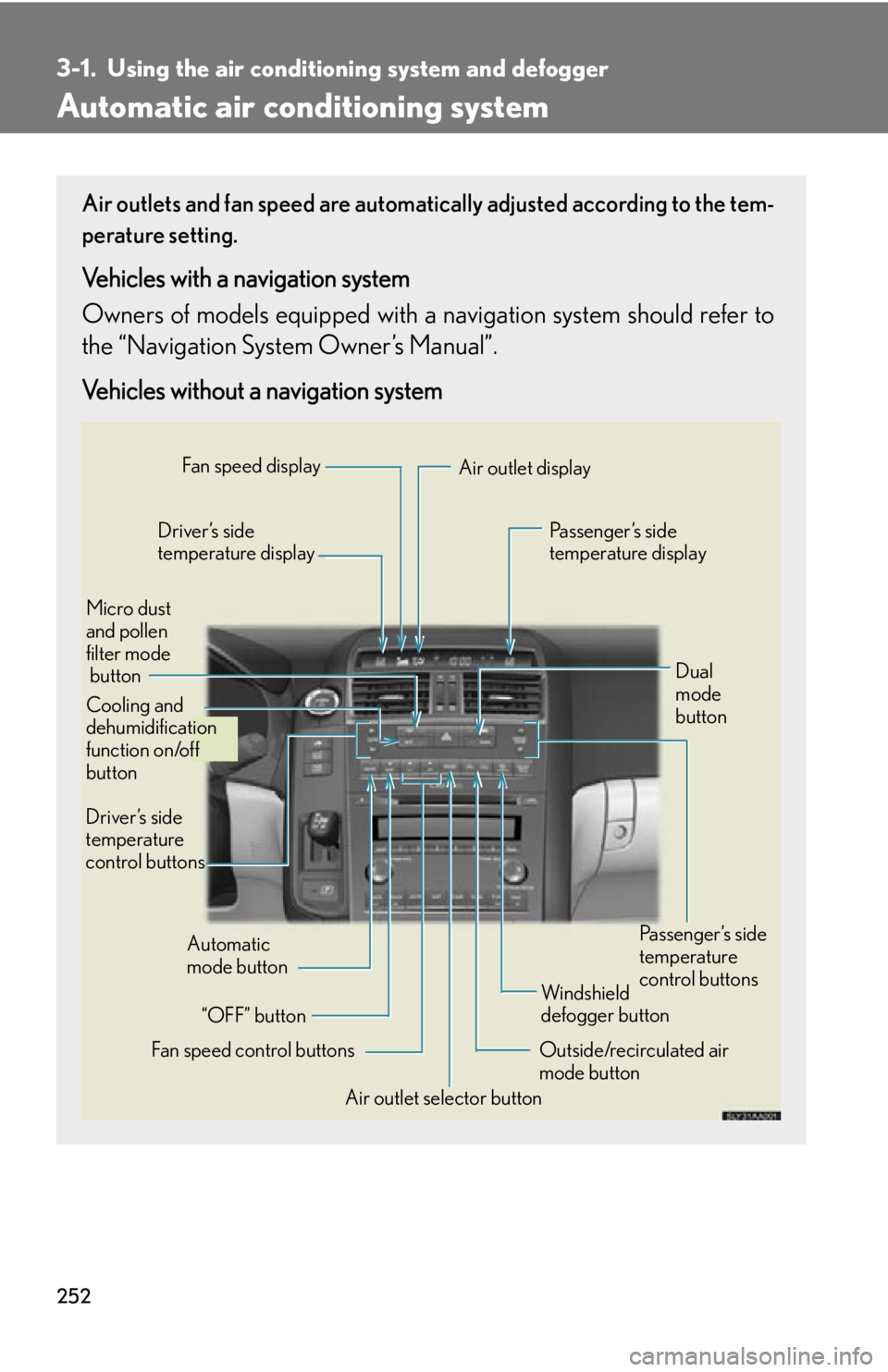

Automatic air conditioning system
Air outlets and fan speed are automati cally adjusted according to the tem-
perature setting.
Vehicles with a navigation system
Owners of models equi pped with a na
vigation system should refer to
the “Navigation System Owner’s Manual”.
Vehicles without a navigation system
Automatic
mode button
Driver’s side 
temperature display
Dual
mode
button
Fan speed control buttons Air outlet display
Fan speed display
Passenger’s side 
temperature display
Driver’s side
temperature 
control buttons
Outside/recirculated air
mode buttonWindshield
defogger button Passenger’s side

temperature 
control buttons
Micro dust 
and pollen 
filter mode 
button
“OFF” button Air outlet selector button
Cooling and 
dehumidification 
function on/off 
button

262
3-2. Using the audio system
Audio system
Vehicles without a navigation system:
CD player with a changer and AM/FM radio
Vehicles with a navigation system:
Owners of models equi pped with a na
vigation system should refer to
the “Navigation System Owner’s Manual”.

311
3
Interior features
3-3. Using the Bluetooth® audio system
Bluetooth® audio system
■Conditions under which the system will not operate
●If using a portable player that does not support Bluetooth®
●If the portable player is switched off
●If the portable player is not connected
●If the portable player’s battery is low
●If the portable player is behind the seat or in the glove box or console box
●If metal is covering or touching the portable player
The Bluetooth® audio system enables you to enjoy music played on a por-
table digital audio player (portable pl ay
er) from the vehicle speakers via
wireless communication.
This audio system supports Bluetooth
®, a wireless data system capable of
playing portable audio music without ca bles. If your portable player does
not support Bluetooth
®, the Bluetooth® audio system will not function.
Vehicles without a navigation system:
Vehicles with a navigation system:
Owners of models equi pped with a na
vigation system should refer to
the “Navigation System Owner’s Manual”.
Ti t l ePa g e
Using the Bluetooth® audio systemP. 3 1 4
Operating a Bluetooth® enabled portable playerP. 3 1 9
Setting up a Bluetooth® enabled portable playerP. 3 2 2
Bluetooth® audio system setupP. 3 2 7

328
3-4. Using the hands-free phone system (for cellular phones)
Hands-free system for cellular phones
The hands-free system is a function th at allows you to use your cellular
phone without touching it.
This system supports Bluetooth® cellular phones. Bluetooth® is a wireless
data system that allows the cellular phone to wirelessly connect to the
hands-free system and make/receive calls.
Vehicles without a navigation system:
Vehicles with a navigation system:
Owners of models equi pped with a na
vigation system should refer to
the “Navigation System Owner’s Manual”.
Ti t l ePa g e
Using the hands-free systemP. 3 3 2
Making a phone callP. 3 4 0
Setting a cellular phoneP. 3 4 5
Security and system setupP. 3 5 0
Using the phone bookP. 3 5 4

373
3-7. Other interior features
3
Interior features
Clock
■The clock is displayed when
The “POWER” switch is in ACCESSORY or ON mode.
Vehicles with a navigation system
Refer to the “Navigation System Owner’s Manual”.
Vehicles without navigation systemRounds to the nearest hour*
Adjusts the hours
Adjusts the minutes
*
: e.g.1:00 to 1:291:00
1:30 to 1:59 2:00

459
4-3. Do-it-yourself maintenance
4
Maintenance and care
10AM27. 5 A
Smart access system with push-button
start, hybrid system, multiport fuel
injection system/sequential multiport
fuel injection system, P position con-
trol system, cruise control system,
dynamic radar cruise control system
11ECU-B27. 5 A
Smart access system with push-button
start, multiport fuel injection system/
sequential multiport fuel injection sys-
tem, trunk opener switch
12MAYDAY10 ALexus link system
13ECU-B310 AAir conditioning system, rear window
defogger, mirror heater
14TURN & HAZ10 ATurn signal lights, emergency flashers
15ETCS10 A
Multiport fuel injection system/
sequential multiport fuel injection sys-
tem
16ABS MAIN NO.120 AElectronically controlled brake system
17P/I 240 A
P position control system, hybrid sys-
tem, transmission, smart access sys-
tem with push-button start, horn,
headlights (low beam), back-up lights
18ABS MTR 130 AElectronically controlled brake system
19ABS MTR 230 AElectronically controlled brake system
20H-LP HI MAIN20 AHeadlights (high beam)
21AMP NO.230 AAudio system, navigation system
22DOOR NO.225 ANo circuit
FuseAmpereCircuit
