Page 21 of 608
21

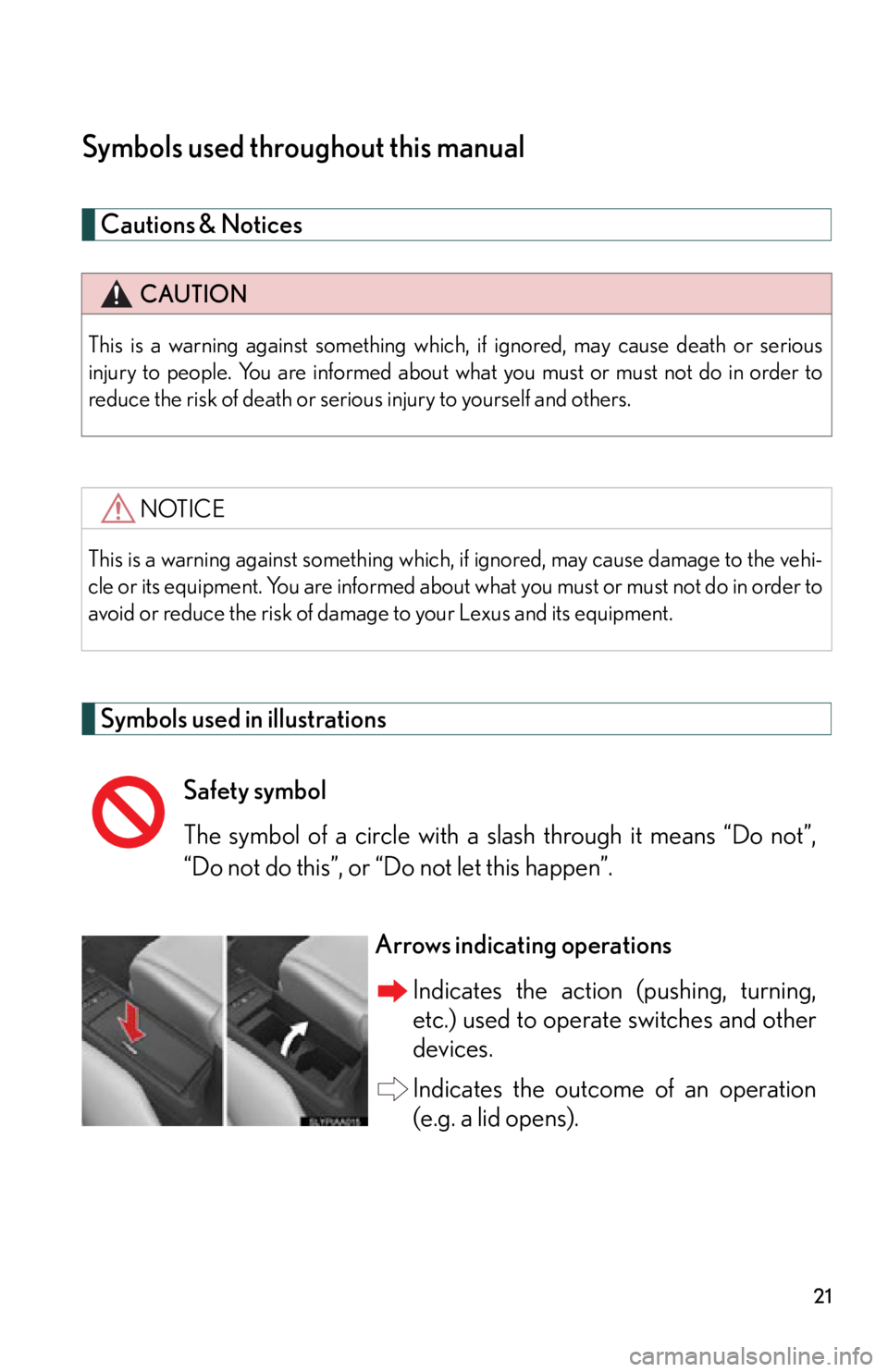

Symbols used throughout this manual
Cautions & Notices
Symbols used in illustrations
CAUTION
This is a warning against something which, if ignored, may cause death or serious
injury to people. You are informed about what you must or must not do in order to
reduce the risk of death or serious injury to yourself and others.
NOTICE
This is a warning against something which, if ignored, may cause damage to the vehi-
cle or its equipment. You are informed about what you must or must not do in order to
avoid or reduce the risk of damage to your Lexus and its equipment.
Safety symbol
The symbol of a circle with a slash through it means “Do not”,
“Do not do this”, or “Do not let this happen”.
Arrows indicating operationsIndicates the action (pushing, turning,
etc.) used to operate switches and other
devices.
Indicates the outcome of an operation
(e.g. a lid opens).
Page 22 of 608
22
Page 23 of 608
Before driving1
23
1-1. Hybrid systemHybrid system ............................ 24
Hybrid system precautions .... 27
Energy monitor/
consumption screen ............. 32
Hybrid vehicle driving tips...... 37
1-2. Key information Keys ............................................... 39
1-3. Opening, closing and locking the doors
Smart access system with
push-button start .................... 44
Wireless remote control ......... 54
Doors ............................................ 57
Trunk ............................................. 60
1-4. Adjustable components
(seats, mirrors, steering
wheel)
Front seats ................................... 64
Driving position
memory (driver’s seat).......... 68
Head restraints ........................... 71
Seat belts ..................................... 73
Steering wheel ........................... 79
Inside rear view mirror ............. 81 Outside rear view mirrors...... 83
1-5. Opening and closing the
windows and moon roof
Power windows .......................... 86
Moon roof ................................... 89
1-6. Refueling Opening the fuel tank cap ..... 92
1-7. Theft deterrent system Immobilizer system .................. 96
Alarm............................................ 98
Theft prevention labels
(for U.S.A.) ............................. 100
1-8. Safety information Correct driving posture ........ 101
SRS airbags .............................. 103
Front passenger occupant
classification system............. 115
Child restraint systems ......... 120
Installing child restraints....... 124
Page 24 of 608
24
1-1. Hybrid system
Hybrid system
Your vehicle is a hybrid vehicle. It has characteristics different from con-
ventional vehicles. Be sure you are clos ely familiar
with the characteristics
of your vehicle, and operate with care.
The hybrid system combines the use of a gasoline engine and an electric
motor (
traction motor) according to driving conditions, improving fuel effi -
ciency and reducing exhaust emissions.
Gasoline engine
Electric motor (Traction motor)
■ When stopped/
during start off
The gasoline engine stops* when the v
ehicle is stopped. During
start off, the electric motor (traction motor) drives the vehicle. At
slow speeds or when traveling down a gentle slope, the engine is
stopped* and the motor is used.
When shift position N is selected, the hybrid batter
y (traction bat-
tery) will not be charged. Thus, sele ct P when the v
ehicle is stopped.
In addition, when driving in heavy traffic, use D or B.
Page 25 of 608
25
1-1. Hybrid system
1
Before driving
■Regenerative braking
In the following situations, kinetic energy is converted to electric energy and decel-
eration force can be obtained in conjunction with the recharging of the hybrid bat -
tery (traction battery).
●The accelerator pedal is released while driving with shift position D or B
selected.
●The brake pedal is depressed while driving with shift position D or B selected.
■Conditions in which the gasoline engine may not stop
The gasoline engine starts and
stops automatically. However, it may not stop auto -
matically in the following conditions:
●During gasoline engine warm-up
●During hybrid battery (traction battery) charging
●When the temperature of the hybrid battery (traction battery) is high or low
●When the heater is switched on
*: However, when the hybrid battery (traction battery) need to be
charged or while the engine is being warmed up, the gasoline
engine may not stop automatically.
■ During normal driving
The gasoline engine is predomina ntly used. The electric motor
(tr
action motor) charges the hybrid battery as necessary.
■ When acceler
ating sharply
The power of the hybrid battery (tract ion batter
y) is added to that of
the gasoline engine via the electric motor (traction motor).
■ When br
aking (regenerative braking)
The electric motor (traction motor) char
ges the hybrid battery
(traction battery).
Page 26 of 608
26
1-1. Hybrid system
■Charging the battery
As the gasoline engine charges the hybrid battery (traction battery), the battery
does not need to be charged from an outside source. However, if the vehicle is left
parked for a long time the hybrid battery will slowly discharge. For this reason, be
sure to drive the vehicle at least once every few months for at least 30 minutes or
10 miles (16 km). If the hybrid battery be comes fully discharged and you are unable
to jump-start the vehicle with the 12-v olt battery, contact your Lexus dealer.
■After the 12-volt battery has discharged or has been changed or removed
The gasoline engine may not stop even if the vehicle is running on the hybrid battery
(traction battery). If this continues for a few days, contact your Lexus dealer.
■Sounds and vibrations specific to a hybrid vehicle
There may be no engine sounds or vibrat ion even though the vehicle is able to
move. Always change the shift position to P when parked.
The following sounds or vibrations may occur when the hybrid system is operating
and are not a malfunction:
●Motor sounds may be heard fr om the engine compartment.
●Sounds may be heard from the hybrid ba ttery (traction battery) behind the rear
seats when the hybrid system starts or stops.
●Sounds from the hybrid system may be heard when the trunk lid is open.
●Sounds may be heard from the transaxle wh en the hybrid system starts or stops,
or while the vehicle is idling.
●Engine sounds may be heard when accelerating sharply.
●Sounds may be heard due to regenerati ve braking when the brake pedal is
depressed and accelerator is loosened.
●Other sounds, such as motors and mechanical noises, may be heard from the
brake system when the brake pedal is depressed.
●Vibration may be felt when the gasoline engine starts or stops.
●Cooling fan sounds may be heard from the air intake vent on the side of rear left
seatback.
When driving in Eco mode, the fan noise may be louder than when driving nor-
mally.
■Maintenance, repair, recycling, and disposal
Contact your Lexus dealer regarding main tenance, repair, recycling and disposal.
Do not dispose of the vehicle yourself.
Page 27 of 608
27
1
1-1. Hybrid system
Before driving
Hybrid system precautions
Take care when handling the hybrid system, as it contains a high voltage
system (about 650V at maximum) as well as parts that become extremely
hot when the hybrid system is operatin g. Obey the caution labels attached
to the vehicle.
Air conditioning compressor
Power control unit
Hybrid battery (traction bat-
tery) and DC/DC converter
Service plug High voltage cables (orange)
Electric motor (traction motor)
Caution label
Page 28 of 608
28
1-1. Hybrid system
Hybrid battery air vent
There is an air intake vent on the
side of the rear left seatback for
the purpose of cooling the hybrid
battery (traction battery). If the
vent become blocked, the hybrid
battery may overheat, leading to a
reduction in hybrid battery output.
Emergency shut off system
When a certain level of impact is detected by the impact sensor, the
emergency shut off system blocks off the high voltage current and stops
the fuel pump to minimize the risk of electrocution and fuel leakage. If the
emergency shut off system activates, yo ur vehicle will not restart. To
restart the hybrid system, contact your Lexus dealer.
Hybrid warning message
A message is automatically displayed when a malfunction occurs in the
hybrid system or an improper operation is attempted.
If a warning message is shown on
the multi-information display
, read
the message and follow the
instructions.
( P. 501 )
Page 29 of 608
29
1-1. Hybrid system
1
Before driving
■If a warning light comes on, a warning message is displayed, or the 12-volt battery
is disconnected
The hybrid system may not start. In that case,
try to start the system again. If the
“READY” indicator does not come on, contact your Lexus dealer.
■Electromagnetic waves
●High voltage parts and cables on the hybrid vehicles incorporate electromag -
netic shielding, and therefore emit appr o
ximately the same amount of electro-
magnetic waves as conventional gasoline powered vehicles or home electronic
appl
iances.
●Your vehicle may cause sound interference in some third party produced radio
parts.
●Consult your Lexus dealer before installing or removing third party-produced
radio parts.
■Running out of fuel
When the vehicle has run out of fuel and the hybrid sy
stem cannot be started, refuel
the vehicle with at least enough gasoline to make the low fuel level warning light
( P. 4 9 5 ) go off. If there is only a small amount of fuel, the hybrid system may not
be able to start. (The minimum amount of
fuel to add to make the low fuel level
warning light go out is more than 2.6 gal. [1 0 L, 2.1 Imp.gal.], when the vehicle is on a
level surface. This value may vary when the vehicle is on a slope.)
■Hybrid battery (traction battery)
The hybrid battery (traction battery) has a limited service life. The lifespan of the
hybri
d battery (traction battery) can chan ge in accordance with driving style and
driving conditions.
Page 30 of 608
30
1-1. Hybrid system
CAUTION
■High voltage precautions
The vehicle has high voltage DC and AC systems as well as a 12-volt system. DC
and AC high voltage is very dangerous and can cause severe burns and electric
shock that may result in death or serious injury.
●Never touch, disassemble, remove or replace the high voltage parts, cables or
their connectors.
●The hybrid system will become hot after starting as the system uses high voltage.
Be careful of both the high voltage and the high temperature, and always obey
the caution labels attached to the vehicle.
■Road accident cautions
Observe the following precautions to reduce the risk of death or serious injury:
●Pull your vehicle off the road, change the shift position to P, apply the parking
brake, and turn the hybrid system off.
●Do not touch the high voltage parts, cables and connectors.
●If electric wires are exposed inside or outside your vehicle, an electric shock may
occur. Never touch exposed electric wires.
●If a fluid leak occurs, do not touch the flui d as it may be strong alkaline electrolyte
from the hybrid battery (traction battery). If it comes into contact with your skin or
eyes, wash it off immediately with a large amount of water or, if possible, boric
acid solution. Seek immediate medical attention.
●If a fire occurs in the hybrid vehicle, leave the vehicle as soon as possible. Never
use a fire extinguisher that is not meant for electric fires. Using even a small
amount of water may be dangerous.
●Never try to open the service plug access
hole located in the luggage compartment.
The service plug is used only when the
vehicle is serviced an d is subject to high
voltage.
