311
3
Interior features
3-3. Using the Bluetooth® audio system
Bluetooth® audio system
■Conditions under which the system will not operate
●If using a portable player that does not support Bluetooth®
●If the portable player is switched off
●If the portable player is not connected
●If the portable player’s battery is low
●If the portable player is behind the seat or in the glove box or console box
●If metal is covering or touching the portable player
The Bluetooth® audio system enables you to enjoy music played on a por-
table digital audio player (portable pl ay
er) from the vehicle speakers via
wireless communication.
This audio system supports Bluetooth
®, a wireless data system capable of
playing portable audio music without ca bles. If your portable player does
not support Bluetooth
®, the Bluetooth® audio system will not function.
Vehicles without a navigation system:
Vehicles with a navigation system:
Owners of models equi pped with a na
vigation system should refer to
the “Navigation System Owner’s Manual”.
Ti t l ePa g e
Using the Bluetooth® audio systemP. 3 1 4
Operating a Bluetooth® enabled portable playerP. 3 1 9
Setting up a Bluetooth® enabled portable playerP. 3 2 2
Bluetooth® audio system setupP. 3 2 7

312
3-3. Using the Bluetooth® audio system
■When transferring ownership of the vehicle
Be sure to initialize the system to prevent personal data from being improperly
accessed. ( P. 3 5 3 )
■About Bluetooth®
■Compatible models
●Bluetooth® specifications: 
Ver. 1.2, or higher (Recommended: Ver. 2.0+EDR or higher)
●Following Profiles:
• A2DP (Advanced Audio Distribution Profile) Ver. 1.0
• AVRCP (Audio/Video Remote Control Profile) Ver. 1.0 or higher (Ver. 1.3 or
higher recommended)
Portable players must correspond to the above specifications in order to be con-
nected to the Bluetooth
® audio system. However, please note that some functions
may be limited depending on the type of portable player.
■Certification for the Bluetooth® audio system
FCC ID: AJDK018
IC ID: 775E-K018 
MADE IN JAPAN
This device complies with Part 15 of the FCC Rules and RSS-210 Rules. Operation
is subject to the following two conditions : (1) This device may not cause harmful
interference, and (2) this device must a ccept any interference received, including
interference that may cause undesired operation.
Bluetooth is a registered trademark of 
Bluetooth SIG. Inc.

313
3-3. Using the Bluetooth® audio system
3
Interior features
CAUTION
■FCC WARNING
Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
Radio Frequency Radiation Exposure. This equipment complies with FCC radiation
exposure limits set forth for uncontrolled equipment and meets the FCC radio fre-
quency (RF) Exposure Guidelines in Supplement C to OET65. This equipment has
very low levels of RF energy that it de emed to comply without maximum permissive
exposure evaluation (MPE). But it is desirable that it should be installed and oper-
ated with at least 7.9 in. (20 cm) and more between the radiator and person’s body
(excluding extremities: hands, wrists, feet and legs).
This transmitter must not be co-located or operated in conjunction with any other
antenna or transmitter.
■Caution while driving
Do not connect portable players or operate the controls.
NOTICE
■To prevent damage to portable players
Do not leave portable players in the vehicle. The temperature inside the vehicle
may become high, resulting in damage to the player.

314
3-3. Using the Bluetooth® audio system
Using the Bluetooth® audio system

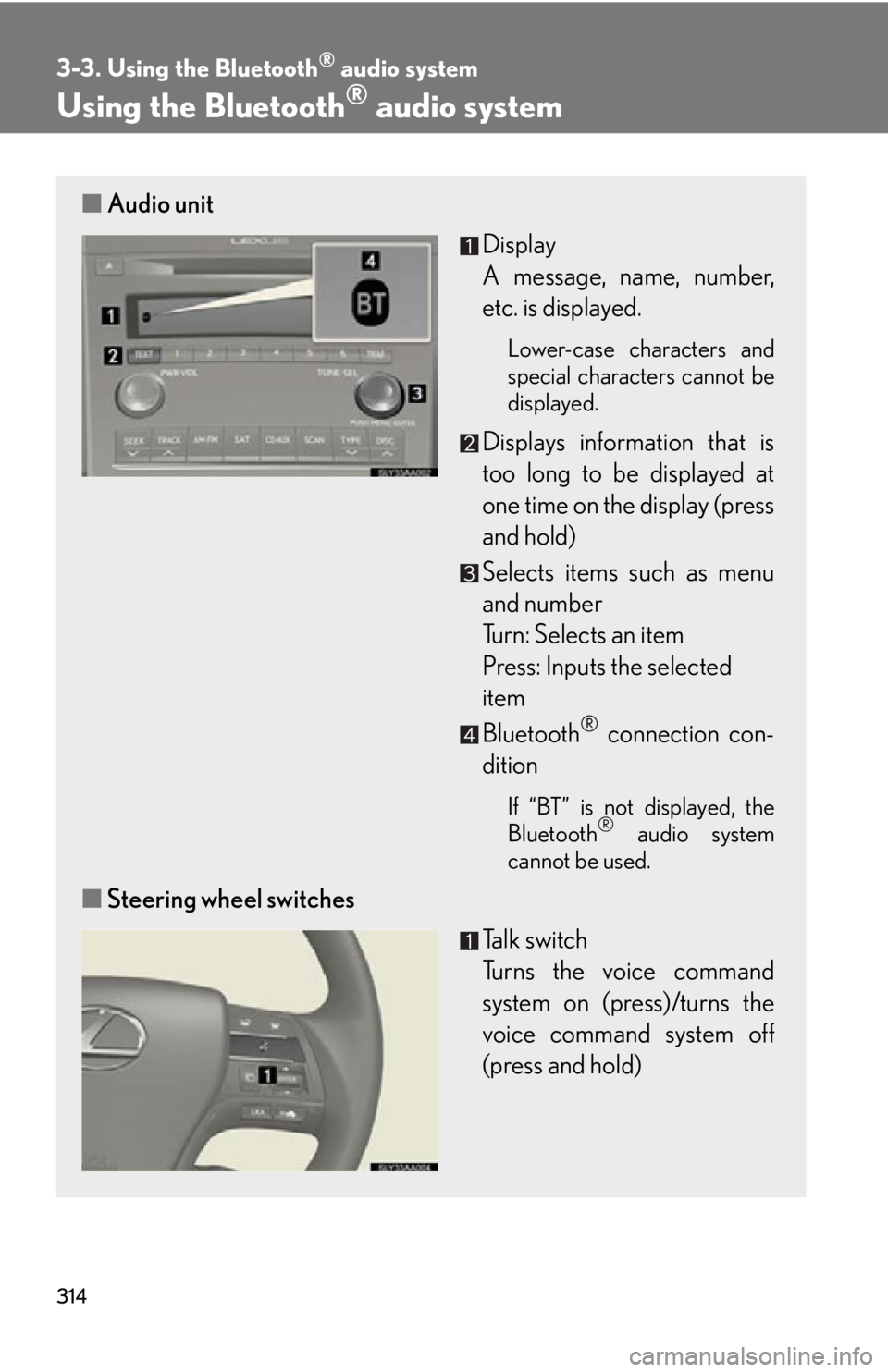

■Audio unit
Display 
A message, name, number,
etc. is display
ed.
Lower-case characters and
special characters cannot be
displayed.
Displays information that is
too long to be displayed at
one time on the display (pr

ess
and hold)
Selects items such as menu
and number 
Turn: Selects an item 
Press: Inputs the selected
item
Bluetooth
® connection con -
dition
If “BT” is not displayed, the
Bluetooth® audio system
cannot be used.
■ Steering wheel switches
Talk switch
Turns the voice command
s

ystem on (press)/turns the
voice command system off
(press and hold)

315
3-3. Using the Bluetooth® audio system
3
Interior features
Operating the system using voice commands
By following voice guidance instructions output from the speaker, voice
commands enable to the operation of the Bluetooth
® audio system with -
out the need to check the display or operate .
■ Oper
ation procedure when using voice commands
Press the talk switch and follo
w voice guidance instructions.
■ A
uxiliary commands when using voice commands
The following auxiliary commands ca n be used when oper
ating the
system using a voice command:
“Cancel”: Exits the Bluetooth
® audio system 
“Repeat”: Repeats the previous v
oice guidance instruction
“Go back”: Returns to the previous procedure 
“Help”: Reads aloud the function summar
y if a help comment is regis-
tered for the selected function
■Microphone

316
3-3. Using the Bluetooth® audio system
Using the Bluetooth® audio system for the first time
Before using the Bluetooth
® audio system, it is necessary to register a
Bluetooth® enabled portable player in the system. Follow the procedure
below to register (pair) a portable player:
Press and select “BT•A MENU” using .
Press the talk switch or select “BT•A Setup” using .
The introductory guidance and portable player name registration
instructions ar
e heard.
Select “Pair Audio Player (Pair A
udio)” using a voice command
or .
Register a portable player name b
y either of the following meth-
ods:
a. Select “Record Name” using , and say the name to be
registered.
b. Press the talk switch and say the name to be registered.
A voice guidance instruction to confirm the inpu
t is heard.
Select “Confirm” using a voice command or .
A passkey is displayed and heard, an d a v
oice guidance instruction for
inputting the passkey into the portable player is heard.
Input the passkey into the portable player.
Refer to the manual that comes with the portable player for the opera -
tion of the portable player.

317
3-3. Using the Bluetooth® audio system
3
Interior features
Guidance for registration completion is heard.
If the portable play
er has a Bluetooth® phone, the phone can be regis -
tered at the same time. A voice guid ance instruction to r
egister a Blue-
tooth® phone is heard.
Select “Yes” or “No” using a voice command or .
(Bluetooth
® phone P. 3 3 0 )
Menu list of the Bluetooth® audio system
■ Normal oper
ation
First menuSecondmenuOperation detail
“BT•A 
Setup”
“Pair Audio”Registering a portable player
“Connect”Selecting a portable player to be used
“Change Name”Changing the registered name of a
portable player
“List Audios”Listing the registered portable players
“Set Passkey”Changing the passkey
“Delete Audio”Deleting a registered portable player
“System
Setup”
“Guidance Vol”Setting voice guidance volume
“Device Name”Displaying the Bluetooth® device
address and name
“Initialize”Initializing the system

318
3-3. Using the Bluetooth® audio system
■When using a voice command
For numbers, say a combination of sin
gle digits from zero to nine.
Say the command correctly and clearly.
■Situations that the system may not recognize your voice
●When driving on rough roads
●When driving at high speeds
●When air is blowing out of the vents onto the microphone
●When the air conditioning fan emits a loud noise
■Operations that cannot be performed while driving
●Operating the system with
●Registering a portable player to the system
■Changing the passkey
P.
3 2 5

319
3-3. Using the Bluetooth® audio system
3
Interior features

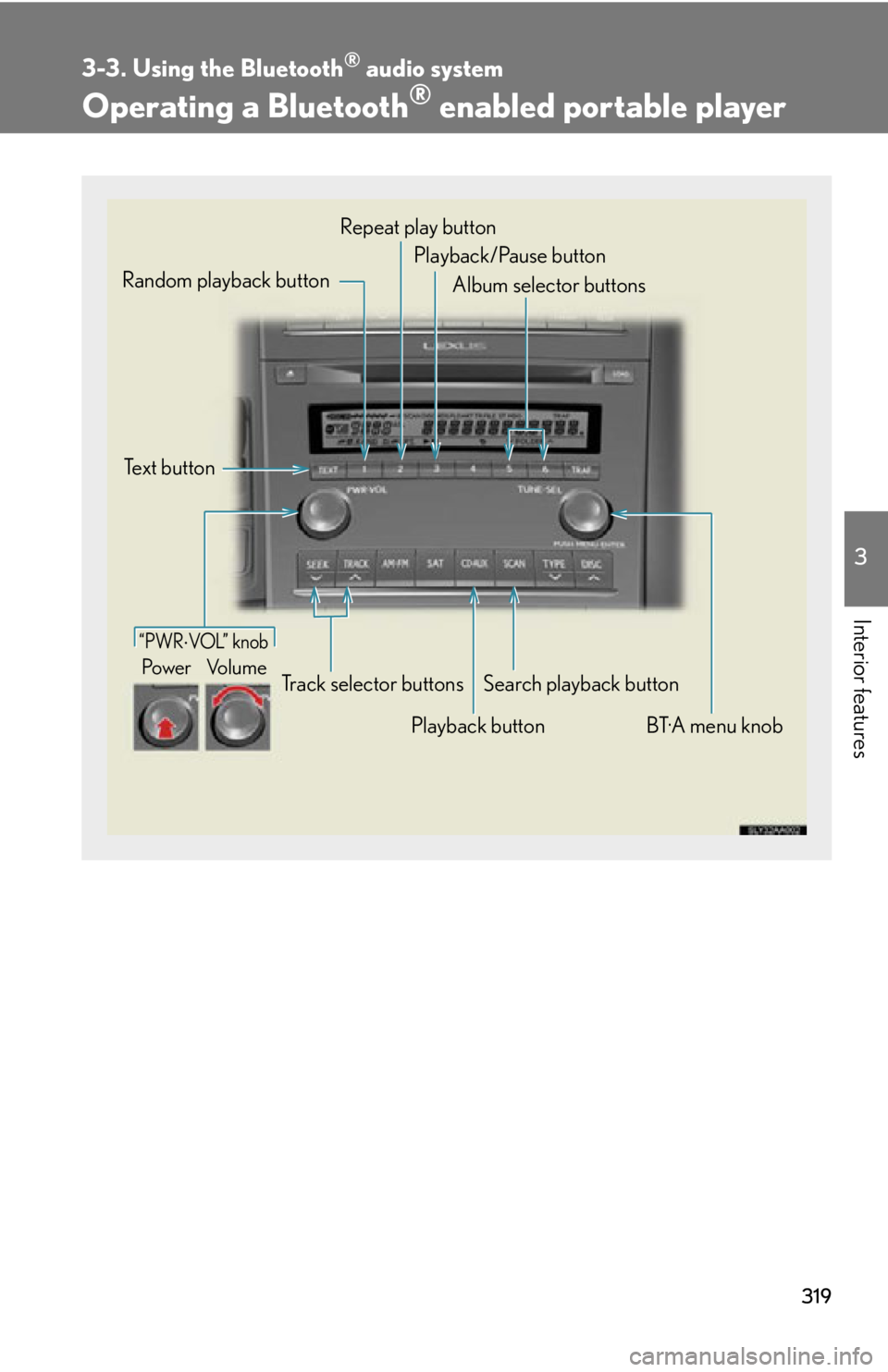

Operating a Bluetooth® enabled portable player
“PWRVOL” k nob
Pow e r Vo l u m e
Te x t b u t t o n
Playback buttonSearch playback button
Random playback button
BT·A menu knob
Repeat play button
Track selector buttons Playback/Pause button
Album selector buttons

320
3-3. Using the Bluetooth® audio system
Selecting an album
To select the desired album, press or .
Selecting tracks
Press or to select the desired track.
Playing and pausing tracks
To play or pause a track, press .
Fast-forwarding and rewinding tracks
To fast-forward or rewind, press and hold or until you hear a
beep.
Random playback
Press .
To cancel, press again.
Repeat play
Press .
To cancel, press again.
Scanning tracks
Press .
To cancel, press again.
