bluetooth Lexus HS250h 2010 User Guide

316
3-3. Using the Bluetooth® audio system
HS250h_U_75033U(Canada)
Using the Bluetooth® audio system for the first time
Before using the Bluetooth
® audio system, it is necessary to register a
Bluetooth® enabled portable player in the system. Follow the procedure
below to register (pai r) a portable player:
Press and select “BT•A MENU” using .
Press the talk switch or select “BT•A Setup” using .
The introductory guidance and portable player name registration
instructions are heard. Select “Pair Audio Player (Pair Audio)” using a voice command
or .
Register a portable player name by either of the following meth-
ods:
a. Select “Record Name” using , and say the name to beregistered.
b. Press the talk switch and say the name to be registered.
A voice guidance instruction to confirm the input is heard.
Select “Confirm” using a voice command or .
A passkey is displayed and heard, and a voice guidance instruction for
inputting the passkey into the portable player is heard. Input the passkey into the portable player.
Refer to the manual that comes with the portable player for the opera-
tion of the portable player.

317
3-3. Using the Bluetooth® audio system
3
Interior features
HS250h_U_75033U(Canada)Guidance for registration completion is heard.
If the portable player has a Bluetooth
® phone, the phone can be regis-
tered at the same time. A voice guidance instruction to register a Blue-
tooth
® phone is heard.
Select “Yes” or “No” using a voice command or .
(Bluetooth
® phone →P. 3 3 0 )
Menu list of the Bluetooth® audio system
■ Normal operation
First menuSecondmenuOperation detail
“BT•A
Setup”
“Pair Audio”Registering a portable player
“Connect”Selecting a portable player to be used
“Change Name”Changing the registered name of a
portable player
“List Audios”Listing the registered portable players
“Set Passkey”Changing the passkey
“Delete Audio”Deleting a registered portable player
“System
Setup”
“Guidance Vol”Setting voice guidance volume
“Device Name”Displaying the Bluetooth® device
address and name
“Initialize”Initializing the system

318
3-3. Using the Bluetooth® audio system
HS250h_U_75033U(Canada)
■When using a voice command
For numbers, say a combination of single digits from zero to nine.
Say the command correctly and clearly.
■Situations that the system may not recognize your voice
●When driving on rough roads
●When driving at high speeds
●When air is blowing out of the vents onto the microphone
●When the air conditioning fan emits a loud noise
■Operations that cannot be performed while driving
●Operating the system with
●Registering a portable player to the system
■Changing the passkey
→P. 3 2 5

319
3-3. Using the Bluetooth® audio system
3
Interior features
HS250h_U_75033U(Canada)
Operating a Bluetooth® enabled portable player
“PWR⋅VOL” knob
Po we r Vo l u m e
Text button
Playback buttonSearch playback button
Random playback button
BT·A menu knob
Repeat play button
Track selector buttons Playback/Pause button
Album selector buttons

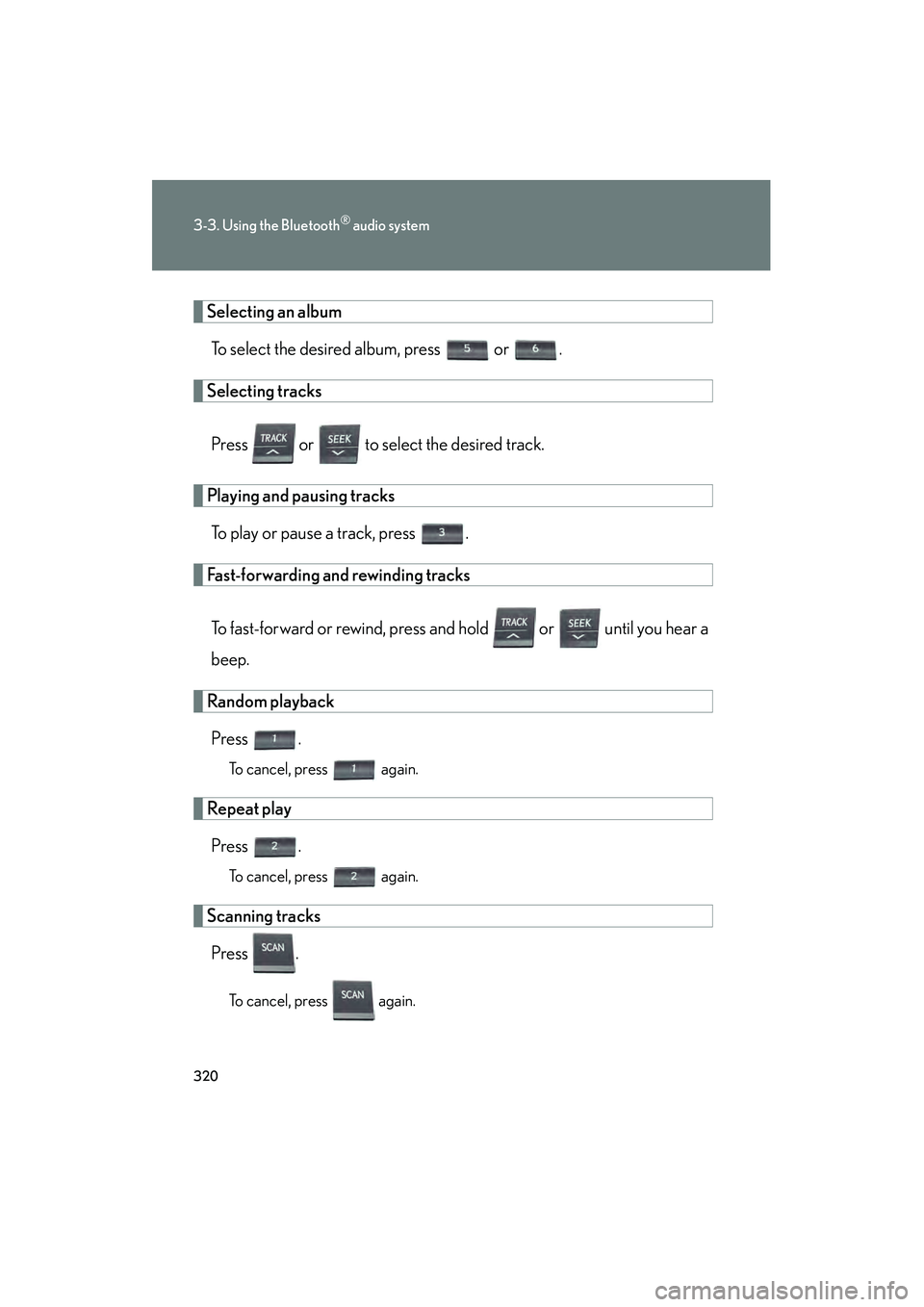

320
3-3. Using the Bluetooth® audio system
HS250h_U_75033U(Canada)
Selecting an albumTo select the desired album, press or .
Selecting tracks
Press or to select the desired track.
Playing and pausing tracksTo play or pause a track, press .
Fast-forwarding and rewinding tracks
To fast-forward or rewind, press and hold or until you hear a
beep.
Random playbackPress .
To cancel, press again.
Repeat playPress .
To cancel, press again.
Scanning tracksPress .
To cancel, press again.

321
3-3. Using the Bluetooth® audio system
3
Interior features
HS250h_U_75033U(Canada)
Switching the displayPress .
Each time the button is pressed, the display changes in the following order:
Elapsed time → Album title → Track title → Artist name
Using the steering wh eel audio switches
→ P. 308
■Bluetooth® audio system functions
Depending on the portable player that is connected to the system, certain functions
may not be available.
■Display
→ P. 2 7 7
■Error messages
“Memory Error”: This indicates a problem in the system.

322
3-3. Using the Bluetooth® audio system
HS250h_U_75033U(Canada)
Setting up a Bluetooth® enabled portable player
Registering a portable player in the Bluetooth® audio system allows the
system to function. The following functions can be used for registered por-
table players:
■ Functions and operation procedures
To enter the menu for each function, follow the steps below using a
voice command or :
●Registering a portable player
1. “Bluetooth Audio Setup (BT•A Setup)” →
2. “Pair Audio Player (Pair Audio)”
● Selecting a portable player to be used
1. “Bluetooth Audio Setup (BT•A Setup)” →
2. “Connect Audio Player (Connect)”
● Changing the registered name of a portable player
1. “Bluetooth Audio Setup (BT•A Setup)” → 2. “Change Name”
● Listing the registered portable players
1. “Bluetooth Audio Setup (BT•A Setup)” →
2. “List Audio Players (List Audios)”
● Changing the passkey
1. “Bluetooth Audio Setup (BT•A Setup)” → 2 “Set Passkey”
● Deleting a registered portable player
1. “Bluetooth Audio Setup (BT•A Setup)” →
2. “Delete Audio Player (Delete Audio)”

323
3-3. Using the Bluetooth® audio system
3
Interior features
HS250h_U_75033U(Canada)
Registering a portable playerSelect “Pair Audio Player (Pair Audio)” using a voice command or
, and perform the procedure for registering a portable player.
( → P. 3 1 6 )
Selecting a portable player to be used
Select “Connect Audio Player (Connect)” using a voice com-
mand or .
Select the portable player to be used by either of the following
methods, and select “Confirm” by using a voice command or :
a. Press the talk switch and say the name of the desired portable player.
b. Press the talk switch and say “List Audio Players”. When the name of the desired portable player is read aloud, press the
talk switch.
Press the talk switch and say “From Car” or “From Audio player”,
and select “Confirm” by using a voice command or .
If “From Car” is selected, the portable player will be automatically con-
nected whenever the “POWER” switch is in either ACCESSORY or
IGNITION ON mode.

324
3-3. Using the Bluetooth® audio system
HS250h_U_75033U(Canada)
Changing the registered name of a portable playerSelect “Change Name” using a voice command or .
Select the name of the portable player to be changed by either of
the following methods, and select “Confirm” using a voice com-
mand or :
a. Press the talk switch and say the name of desired portableplayer.
b. Press the talk switch and say “List Audio Players”. When the name of the desired portable player is read aloud, press the
talk switch.
Press the talk switch or select “Record Name” using ,
and say the new name.
Select “Confirm” using a voice command or .
Listing the registered portable players Select “List Audio Players (List Audios)” using a voice command or
. The list of registered portable players will be read aloud.
When listing is complete, the system returns to “BT•A Setup”.
Pressing the talk switch while the name of a portable player is being read
aloud selects the portable player, and the following functions will become
available:
● Selecting a portable player: “Connect Audio Player (Connect)”
● Changing a registered name: “Change Name”
● Deleting a portable player: “Delete Audio Player (Delete Audio)”

325
3-3. Using the Bluetooth® audio system
3
Interior features
HS250h_U_75033U(Canada)

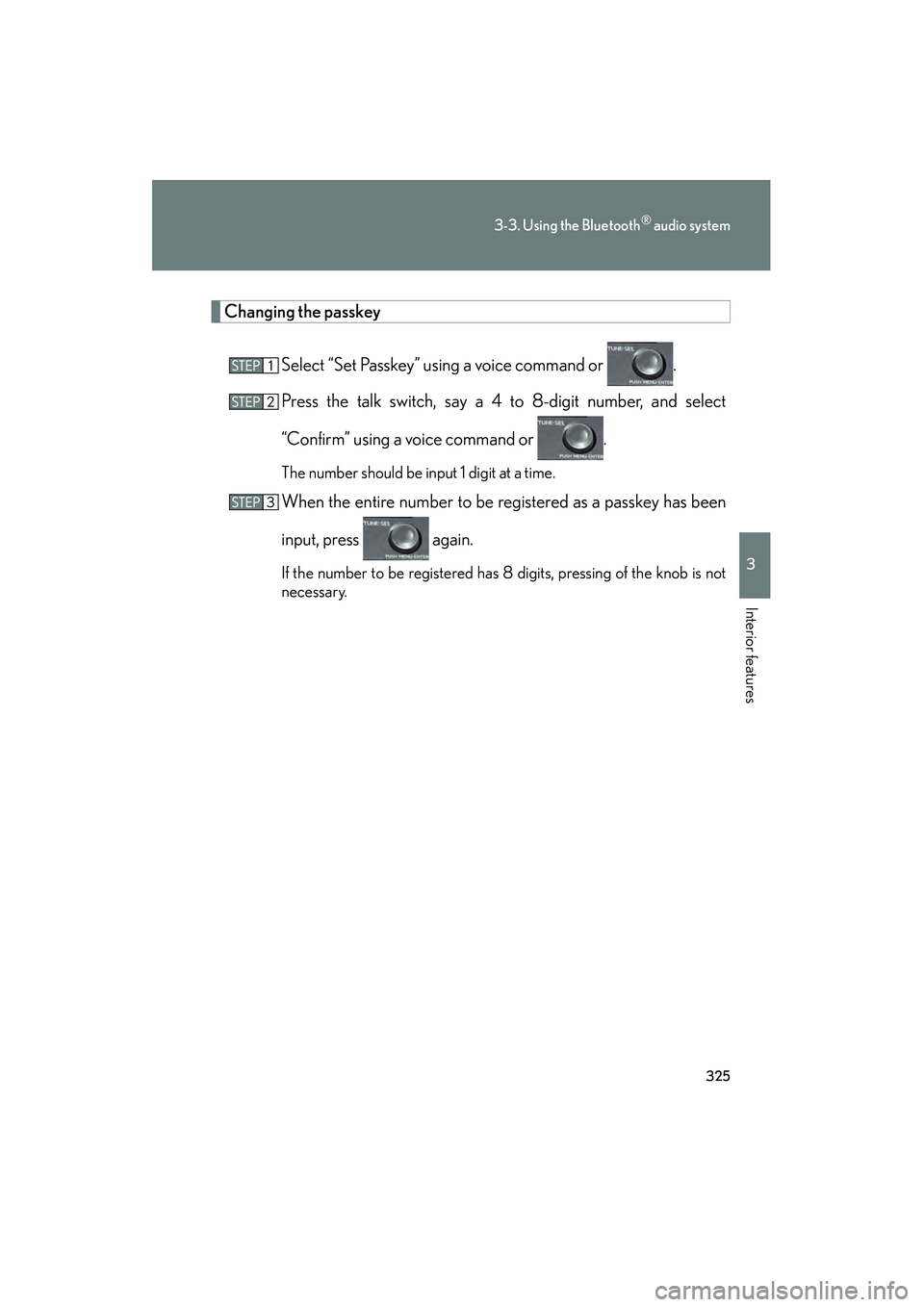

Changing the passkeySelect “Set Passkey” using a voice command or .
Press the talk switch, say a 4 to 8-digit number, and select
“Confirm” using a voice command or .
The number should be input 1 digit at a time.
When the entire number to be registered as a passkey has been
input, press again.
If the number to be registered has 8 digits, pressing of the knob is not
necessary.
