headlight bulb Lexus HS250h 2010 User Guide

479

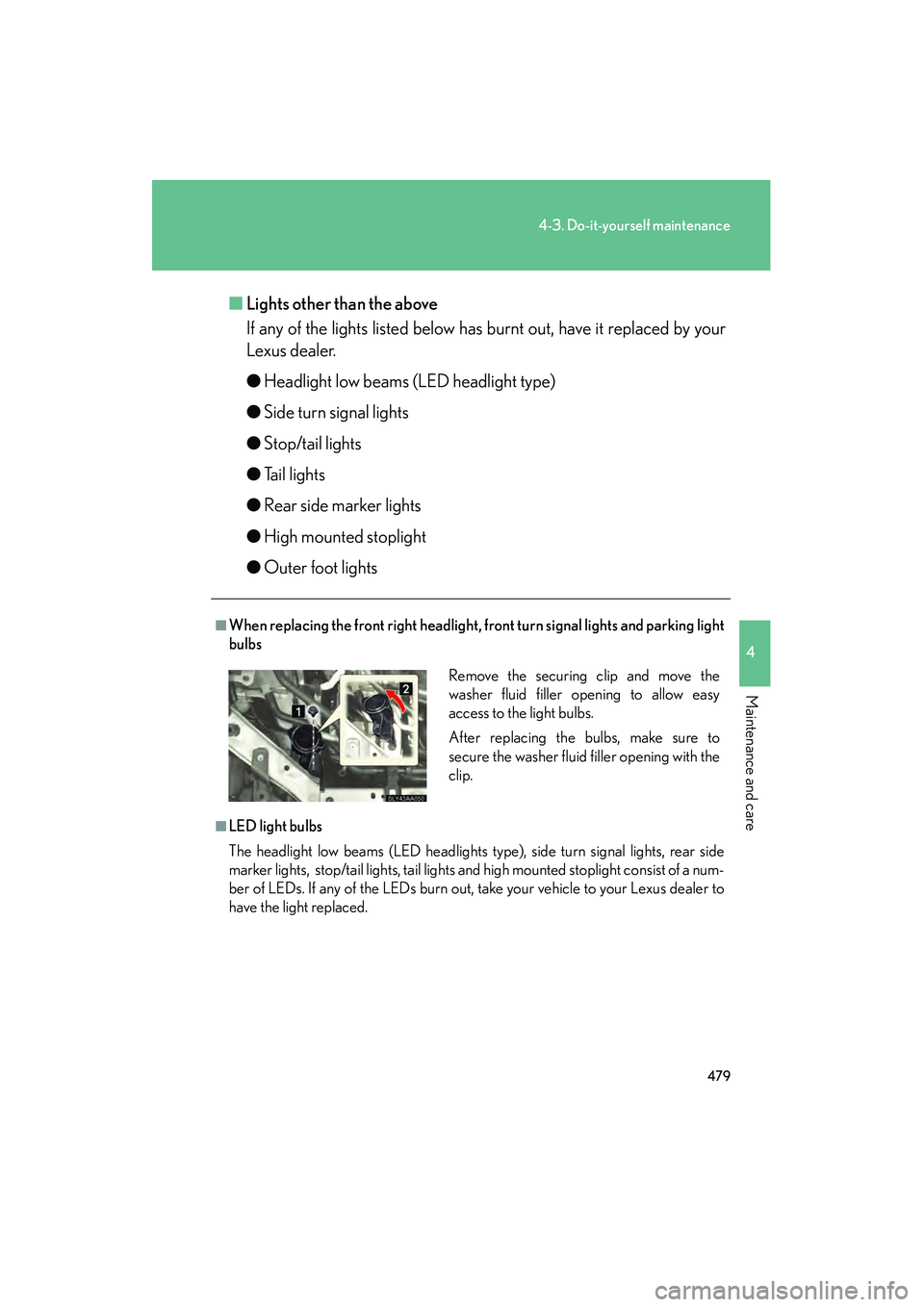

4-3. Do-it-yourself maintenance
4
Maintenance and care
HS250h_U_75033U(Canada)■
Lights other than the above
If any of the lights listed below has burnt out, have it replaced by your
Lexus dealer.
● Headlight low beams (LED headlight type)
● Side turn signal lights
● Stop/tail lights
● Tail lights
● Rear side marker lights
● High mounted stoplight
● Outer foot lights
■When replacing the front righ t headlight, front turn signal lights and parking light
bulbs
■LED light bulbs
The headlight low beams (LED headlights type), side turn signal lights, rear side
marker lights, stop/tail lights, tail lights and high mounted stoplight consist of a num-
ber of LEDs. If any of the LEDs burn out, take your vehicle to your Lexus dealer to
have the light replaced. Remove the securing clip and move the
washer fluid filler opening to allow easy
access to the light bulbs.
After replacing the bulbs, make sure to
secure the washer fluid filler opening with the
clip.

480
4-3. Do-it-yourself maintenance
HS250h_U_75033U(Canada)
■Condensation build-up on the inside of the lens
Contact your Lexus dealer for more information in the following situations. Tempo-
rary condensation build-up on the inside of the headlight lens does not indicate a
malfunction.
●Large drops of water have built up on the inside of the lens.
●Water has built up inside the headlight.
CAUTION
■Replacing light bulbs
●Turn off the lights. Do not attempt to replace the bulb immediately after turning
off the lights.
The bulbs become very hot and may cause burns.
●Do not touch the glass portion of the light bulb with bare hands. Hold the bulb by
the plastic or metal portion.
If the bulb is scratched or dropped, it may blow out or crack.
●Fully install light bulbs and any parts used to secure them. Failur to do so may
result in heat damage, fire, or water entering the headlight unit. This may damage
the headlights or cause condensation to build up on the lens.
■To prevent damage or fire
Make sure bulbs are fully seated and locked.

558
6-1. Specifications
HS250h_U_75033U(Canada)
Light bulbs
A: HB3 halogen bulbs
B: Double end bulbs
C: Wedge base bulbs (clear)
D: Wedge base bulbs (amber)
E: H11 halogen bulbs
F: Single end bulbs
Light BulbsBulb No.WTy p e
Exterior
LED headlights
High beam
Halogen headlights
High beam
Low beam
9005
9005
H1160
6055A
A E
Front side marker lightsW5W5C
Front turn signal lights3457NA28 /8F
Parking lightsW5W5C
Front fog lightsH1155E
Rear turn signal lightsWY21W21D
Back-up lightsW16W16C
License plate lightsW5W5C
Outer foot lights5C
Interior
Vanity lights8C
Front interior lights/Personal lights8C
Rear interior light8B
Tr u n k l i g h t3.8C
Door courtesy lights5C

598
Alphabetical index
HS250h_U_75033U(Canada)
Front side marker lightReplacing light bulbs........................ 469
Wattage................................................. 558
Front turn signal lights
Replacing light bulbs........................ 469
Switch ....................................................... 159
Wattage................................................. 558
Fuel
Capacity................................................. 552
Fuel gauge .............................................. 162
Gas station information................. 608
Information............................................559
Refueling ................................................... 92
Type..........................................................559
Fuel door ..................................................... 92
Fuel filler door ........................................... 92
Fuses ..........................................................455
Garage door opener ......................... 383
Gas station information..................... 608
Gauges ...................................................... 162
Glove box ................................................364
Grocery bag hooks .............................. 381
Hands-free system (for cellular phone) ...........................328
Head restraints Adjustment ............................................... 71
Headlights aim ....................................... 467
Headlights cleaner .............................. 200
Headlights Adaptive front lighting
system ................................................... 185
Discharge headlights
precautions ...................................... 480
Replacing light bulbs........................ 469 Switch ........................................................ 183
Wattage .................................................558
Heaters Seat heaters ..........................................375
Side mirrors.......................................... 260
Hill-start assist control ........................ 230
Hood ............................................................419
Hooks
Grocery bag ......................................... 381
Horn .............................................................. 161
Hybrid system Emergency shut off system ..............28
Energy monitor/consumption ........................................ 32
Engine switch ........................................ 145
High voltage components................ 27
Hybrid system indicators ................ 165
Ignition switch ....................................... 145
Power switch ......................................... 145
I/M test .......................................................415
Identification Electric motor .......................................551
Engine ....................................................... 551
Vehicle....................................................550
Ignition switch ..........................................145
Illuminated entry system ....................360
Immobilizer system................................. 96
Indicator lights .........................................165
Initialization
Items to initialize.................................586
Inside rear view mirror ............................81
Instrument panel light control ...........163
Interior lights
Interior lights ........................................ 360
Switch ........................................................ 361
G
H
I

599
Alphabetical index
HS250h_U_75033U(Canada)
Wattage .................................................558
Intuitive parking assist*
Jack
Positioning the jack .......................... 420
Vehicle-equipped jack ..................... 521
Jack handle ............................................... 521
Keyless entry ..............................................54
Keys Electronic key......................................... 39
Engine switch ........................................ 145
If the electronic key does not operate properly ............................ 533
If you lose your keys ........................ 532
Key number............................................. 39
Keyless entry........................................... 54
Keys............................................................. 39
Mechanical key ..................................... 40
Wireless remote control key.......... 54
Lane keeping assist ............................... 217
License plate lights Replacing light bulbs ....................... 470
Wattage .................................................558
Light bulbs Replacing............................................... 469
Wattage .................................................558
Light
Door courtesy lights ........................360
Fog light switch..................................... 194
Footwell lights .....................................360
Headlight switch ..................................183
Interior light list....................................360
Interior light switch..............................361 Outer foot lights ................................ 360
Personal light switch.......................... 361
Remote touch light ........................... 360
Replacing light bulbs ....................... 469
Scuff lighting ........................................ 360
Turn signal lever .................................. 159
Turn signal light bulbs ..................... 469
Turn signal light switch ..................... 159
Vanity lights .......................................... 372
Wattage................................................. 558
LKA .............................................................. 217
Load capacity ......................................... 243
Maintenance Do-it-yourself maintenance........... 416
General maintenance ........................ 411
Maintenance data ............................. 550
Maintenance requirements ......... 409
Meter Instrument panel light control....... 163
Meters........................................................162
Micro dust and pollen filter............... 256
Mirrors Inside rear view mirror ........................ 81
Side mirror heater ............................ 260
Side mirrors .............................................83
Vanity mirrors ...................................... 372
Moon roof...................................................89
MP3 disc ................................................... 281
Multi-information display ................... 169
Navigation system*
Noise from under vehicle...................... 18
J
K
L
M
N
*: Refer to “Navigation System Owner’s Manual”.
