CD player Lexus HS250h 2010 Owner's Guide

311
3
Interior features
HS250h_U_75033U(Canada)
3-3. Using the Bluetooth® audio system
Bluetooth® audio system
■Conditions under which the system will not operate
●If using a portable player that does not support Bluetooth®
●If the portable player is switched off
●If the portable player is not connected
●If the portable player’s battery is low
●If the portable player is behind the seat or in the glove box or console box
●If metal is covering or touching the portable player
The Bluetooth® audio system enables you to enjoy music played on a por-
table digital audio player (portable player) from the vehicle speakers via
wireless communication.
This audio system supports Bluetooth
®, a wireless data system capable of
playing portable audio music without cables. If your portable player does
not support Bluetooth
®, the Bluetooth® audio system will not function.
Vehicles without a navigation system:
Vehicles with a navigation system:
Owners of models equipped with a navigation system should refer to
the “Navigation System Owner’s Manual”.
Ti t l ePa g e
Using the Bluetooth® audio systemP. 3 1 4
Operating a Bluetooth® enabled portable playerP. 3 1 9
Setting up a Bluetooth® enabled portable playerP. 3 2 2
Bluetooth® audio system setupP. 3 2 7

312
3-3. Using the Bluetooth® audio system
HS250h_U_75033U(Canada)
■When transferring ownership of the vehicle
Be sure to initialize the system to prevent personal data from being improperly
accessed. (→P. 3 5 3 )
■About Bluetooth®
■Compatible models
●Bluetooth® specifications:
Ver. 1.2, or higher (Recommended: Ver. 2.0+EDR or higher)
●Following Profiles:
• A2DP (Advanced Audio Distribution Profile) Ver. 1.0
• AVRCP (Audio/Video Remote Control Pr ofile) Ver. 1.0 or higher (Ver. 1.3 or
higher recommended)
Portable players must correspond to the above specifications in order to be con-
nected to the Bluetooth
® audio system. However, please note that some functions
may be limited depending on the type of portable player.
■Certification for the Bluetooth® audio system
FCC ID: AJDK018
IC ID: 775E-K018
MADE IN JAPAN
This device complies with Part 15 of the FCC Rules and RSS-210 Rules. Operation
is subject to the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation. Bluetooth is a registered trademark of
Bluetooth SIG. Inc.

313
3-3. Using the Bluetooth® audio system
3
Interior features
HS250h_U_75033U(Canada)
CAUTION
■FCC WARNING
Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
Radio Frequency Radiation Exposure. This equipment complies with FCC radiation
exposure limits set forth for uncontrolled equipment and meets the FCC radio fre-
quency (RF) Exposure Guidelines in Supplement C to OET65. This equipment has
very low levels of RF energy that it deemed to comply without maximum permissive
exposure evaluation (MPE). But it is desirable that it should be installed and oper-
ated with at least 7.9 in. (20 cm) and more between the radiator and person’s body
(excluding extremities: hands, wrists, feet and legs).
This transmitter must not be co-located or operated in conjunction with any other
antenna or transmitter.
■Caution while driving
Do not connect portable players or operate the controls.
NOTICE
■To prevent damage to portable players
Do not leave portable players in the vehicle. The temperature inside the vehicle
may become high, resulting in damage to the player.

316
3-3. Using the Bluetooth® audio system
HS250h_U_75033U(Canada)

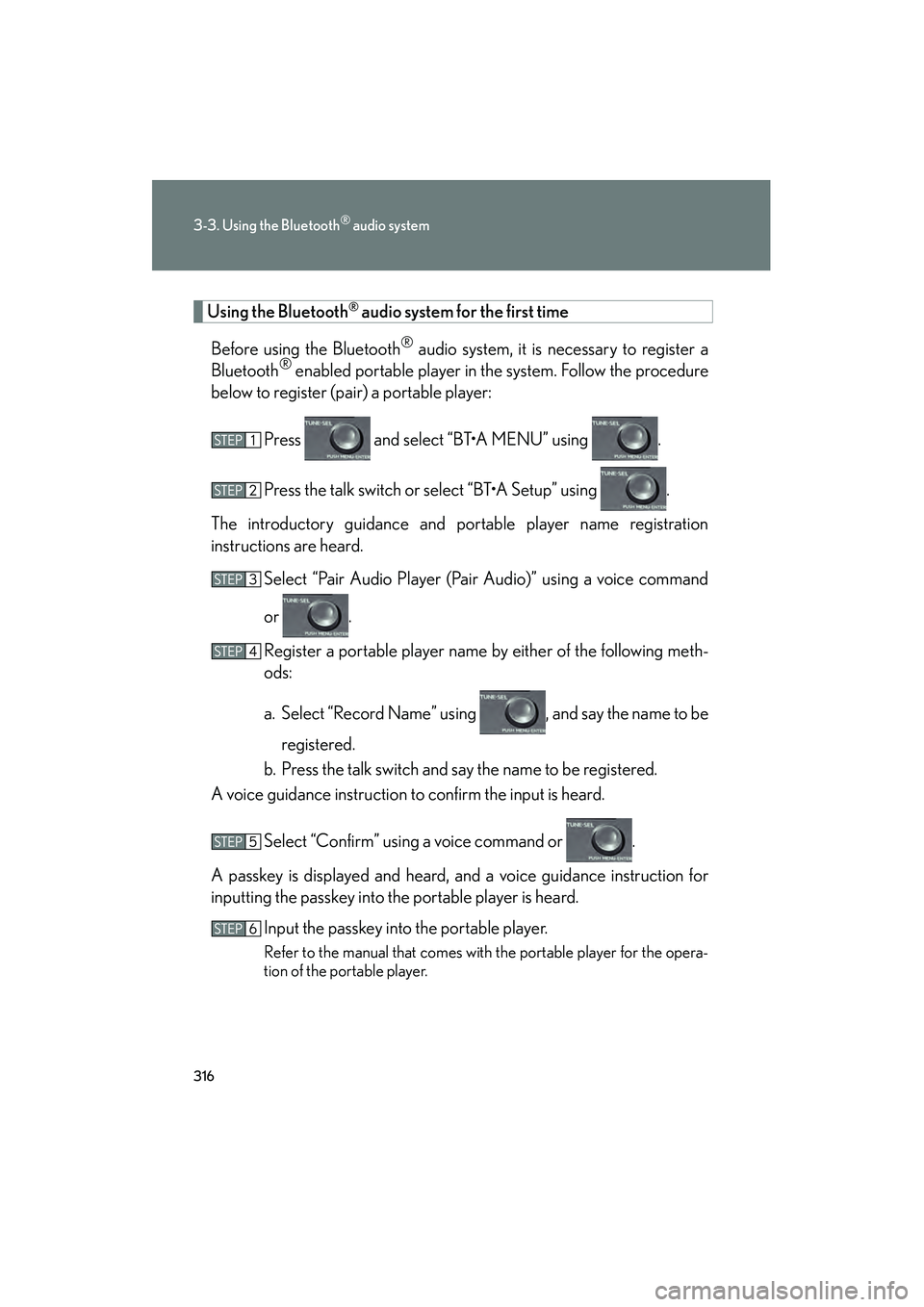

Using the Bluetooth® audio system for the first time
Before using the Bluetooth
® audio system, it is necessary to register a
Bluetooth® enabled portable player in the system. Follow the procedure
below to register (pai r) a portable player:
Press and select “BT•A MENU” using .
Press the talk switch or select “BT•A Setup” using .
The introductory guidance and portable player name registration
instructions are heard. Select “Pair Audio Player (Pair Audio)” using a voice command
or .
Register a portable player name by either of the following meth-
ods:
a. Select “Record Name” using , and say the name to beregistered.
b. Press the talk switch and say the name to be registered.
A voice guidance instruction to confirm the input is heard.
Select “Confirm” using a voice command or .
A passkey is displayed and heard, and a voice guidance instruction for
inputting the passkey into the portable player is heard. Input the passkey into the portable player.
Refer to the manual that comes with the portable player for the opera-
tion of the portable player.

317
3-3. Using the Bluetooth® audio system
3
Interior features
HS250h_U_75033U(Canada)Guidance for registration completion is heard.
If the portable player has a Bluetooth
® phone, the phone can be regis-
tered at the same time. A voice guidance instruction to register a Blue-
tooth
® phone is heard.
Select “Yes” or “No” using a voice command or .
(Bluetooth
® phone →P. 3 3 0 )
Menu list of the Bluetooth® audio system
■ Normal operation
First menuSecondmenuOperation detail
“BT•A
Setup”
“Pair Audio”Registering a portable player
“Connect”Selecting a portable player to be used
“Change Name”Changing the registered name of a
portable player
“List Audios”Listing the registered portable players
“Set Passkey”Changing the passkey
“Delete Audio”Deleting a registered portable player
“System
Setup”
“Guidance Vol”Setting voice guidance volume
“Device Name”Displaying the Bluetooth® device
address and name
“Initialize”Initializing the system

318
3-3. Using the Bluetooth® audio system
HS250h_U_75033U(Canada)

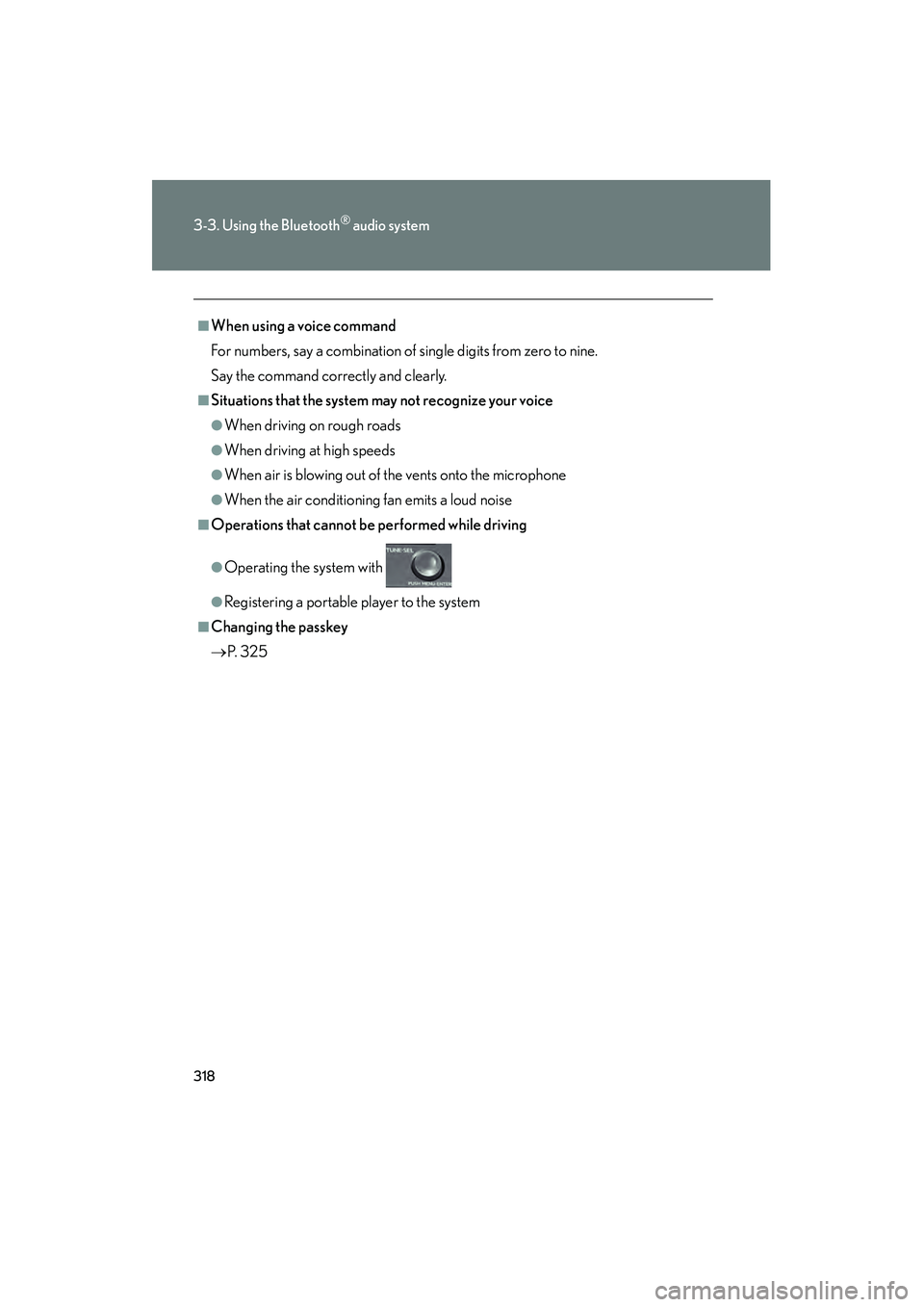

■When using a voice command
For numbers, say a combination of single digits from zero to nine.
Say the command correctly and clearly.
■Situations that the system may not recognize your voice
●When driving on rough roads
●When driving at high speeds
●When air is blowing out of the vents onto the microphone
●When the air conditioning fan emits a loud noise
■Operations that cannot be performed while driving
●Operating the system with
●Registering a portable player to the system
■Changing the passkey
→P. 3 2 5

319
3-3. Using the Bluetooth® audio system
3
Interior features
HS250h_U_75033U(Canada)

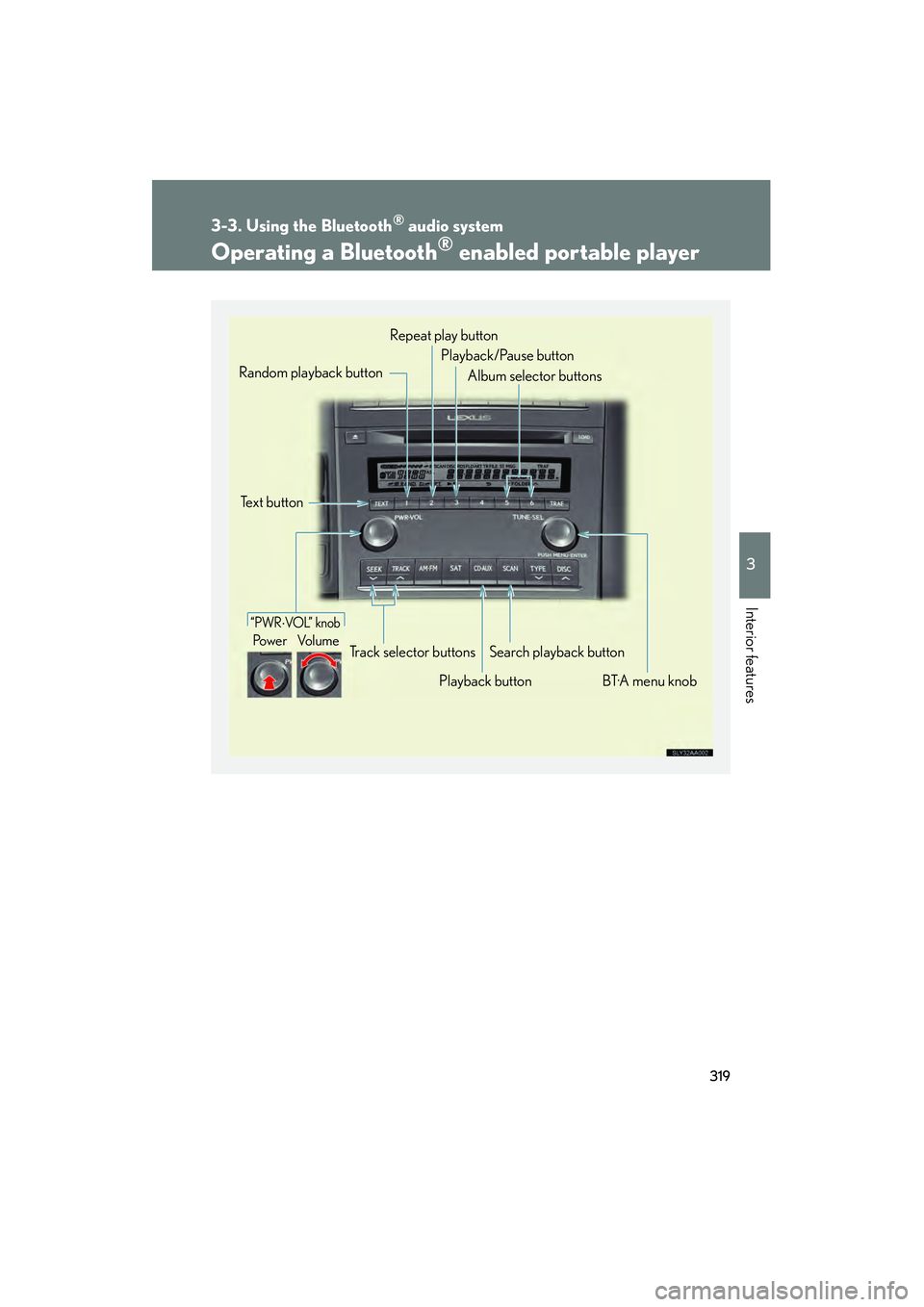

Operating a Bluetooth® enabled portable player
“PWR⋅VOL” knob
Po we r Vo l u m e
Text button
Playback buttonSearch playback button
Random playback button
BT·A menu knob
Repeat play button
Track selector buttons Playback/Pause button
Album selector buttons

321
3-3. Using the Bluetooth® audio system
3
Interior features
HS250h_U_75033U(Canada)
Switching the displayPress .
Each time the button is pressed, the display changes in the following order:
Elapsed time → Album title → Track title → Artist name
Using the steering wh eel audio switches
→ P. 308
■Bluetooth® audio system functions
Depending on the portable player that is connected to the system, certain functions
may not be available.
■Display
→ P. 2 7 7
■Error messages
“Memory Error”: This indicates a problem in the system.

322
3-3. Using the Bluetooth® audio system
HS250h_U_75033U(Canada)

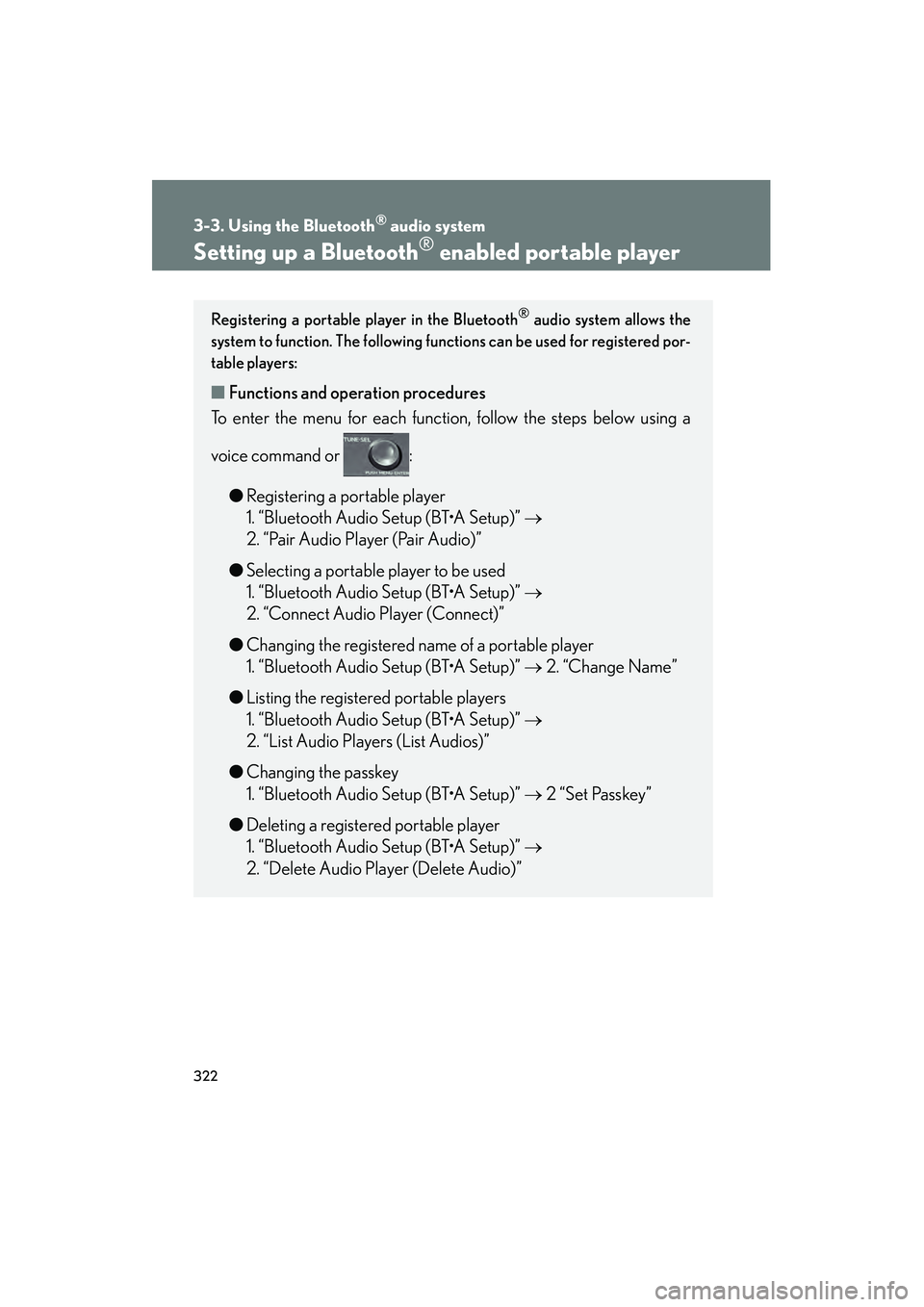

Setting up a Bluetooth® enabled portable player
Registering a portable player in the Bluetooth® audio system allows the
system to function. The following functions can be used for registered por-
table players:
■ Functions and operation procedures
To enter the menu for each function, follow the steps below using a
voice command or :
●Registering a portable player
1. “Bluetooth Audio Setup (BT•A Setup)” →
2. “Pair Audio Player (Pair Audio)”
● Selecting a portable player to be used
1. “Bluetooth Audio Setup (BT•A Setup)” →
2. “Connect Audio Player (Connect)”
● Changing the registered name of a portable player
1. “Bluetooth Audio Setup (BT•A Setup)” → 2. “Change Name”
● Listing the registered portable players
1. “Bluetooth Audio Setup (BT•A Setup)” →
2. “List Audio Players (List Audios)”
● Changing the passkey
1. “Bluetooth Audio Setup (BT•A Setup)” → 2 “Set Passkey”
● Deleting a registered portable player
1. “Bluetooth Audio Setup (BT•A Setup)” →
2. “Delete Audio Player (Delete Audio)”

323
3-3. Using the Bluetooth® audio system
3
Interior features
HS250h_U_75033U(Canada)

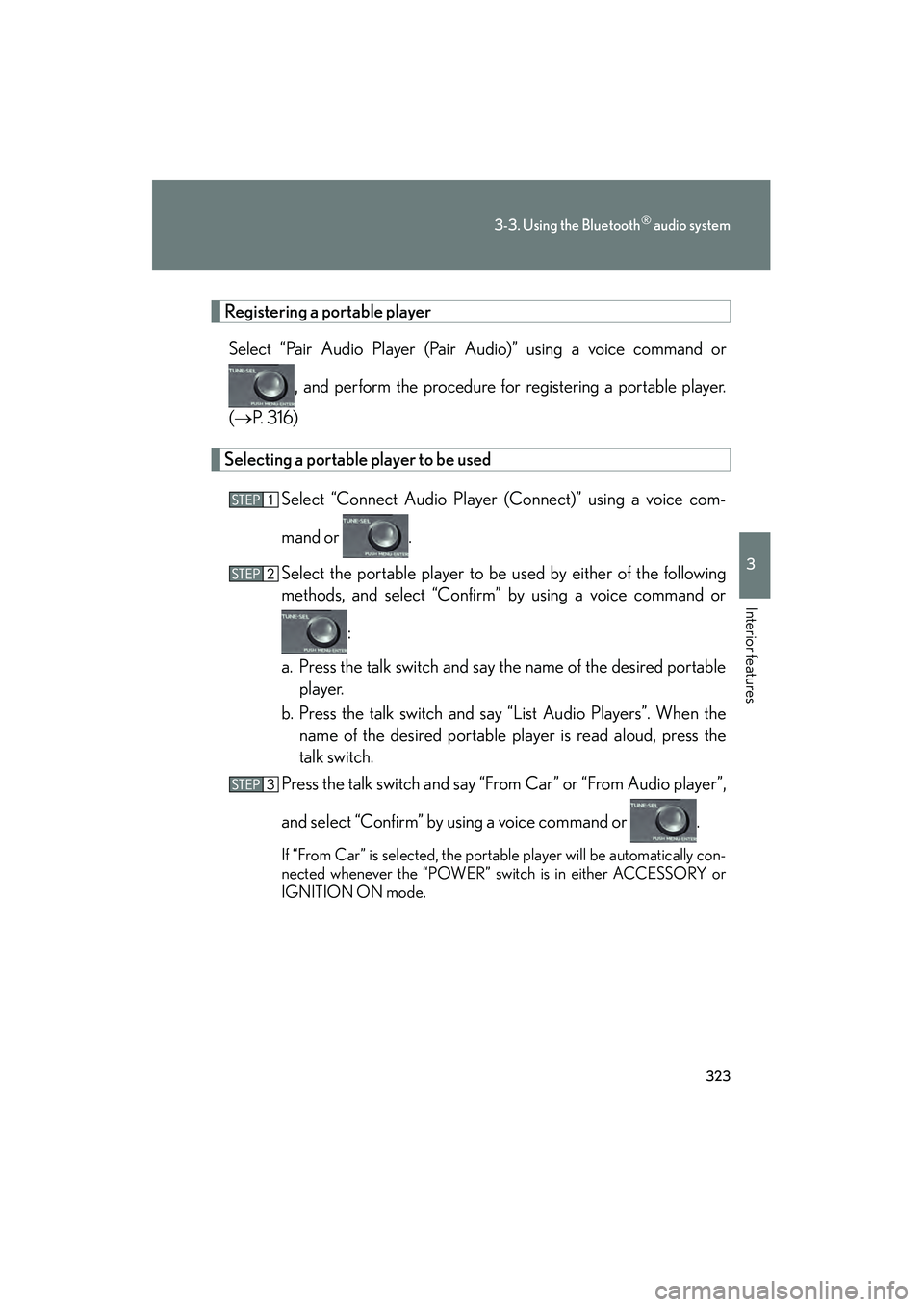

Registering a portable playerSelect “Pair Audio Player (Pair Audio)” using a voice command or
, and perform the procedure for registering a portable player.
( → P. 3 1 6 )
Selecting a portable player to be used
Select “Connect Audio Player (Connect)” using a voice com-
mand or .
Select the portable player to be used by either of the following
methods, and select “Confirm” by using a voice command or :
a. Press the talk switch and say the name of the desired portable player.
b. Press the talk switch and say “List Audio Players”. When the name of the desired portable player is read aloud, press the
talk switch.
Press the talk switch and say “From Car” or “From Audio player”,
and select “Confirm” by using a voice command or .
If “From Car” is selected, the portable player will be automatically con-
nected whenever the “POWER” switch is in either ACCESSORY or
IGNITION ON mode.
