check engine Lexus HS250h 2010 Owner's Guide

5
When trouble arises
507
5-2. Steps to take in an emergency
HS250h_U_75033U(Canada)
(U.S.A. only)

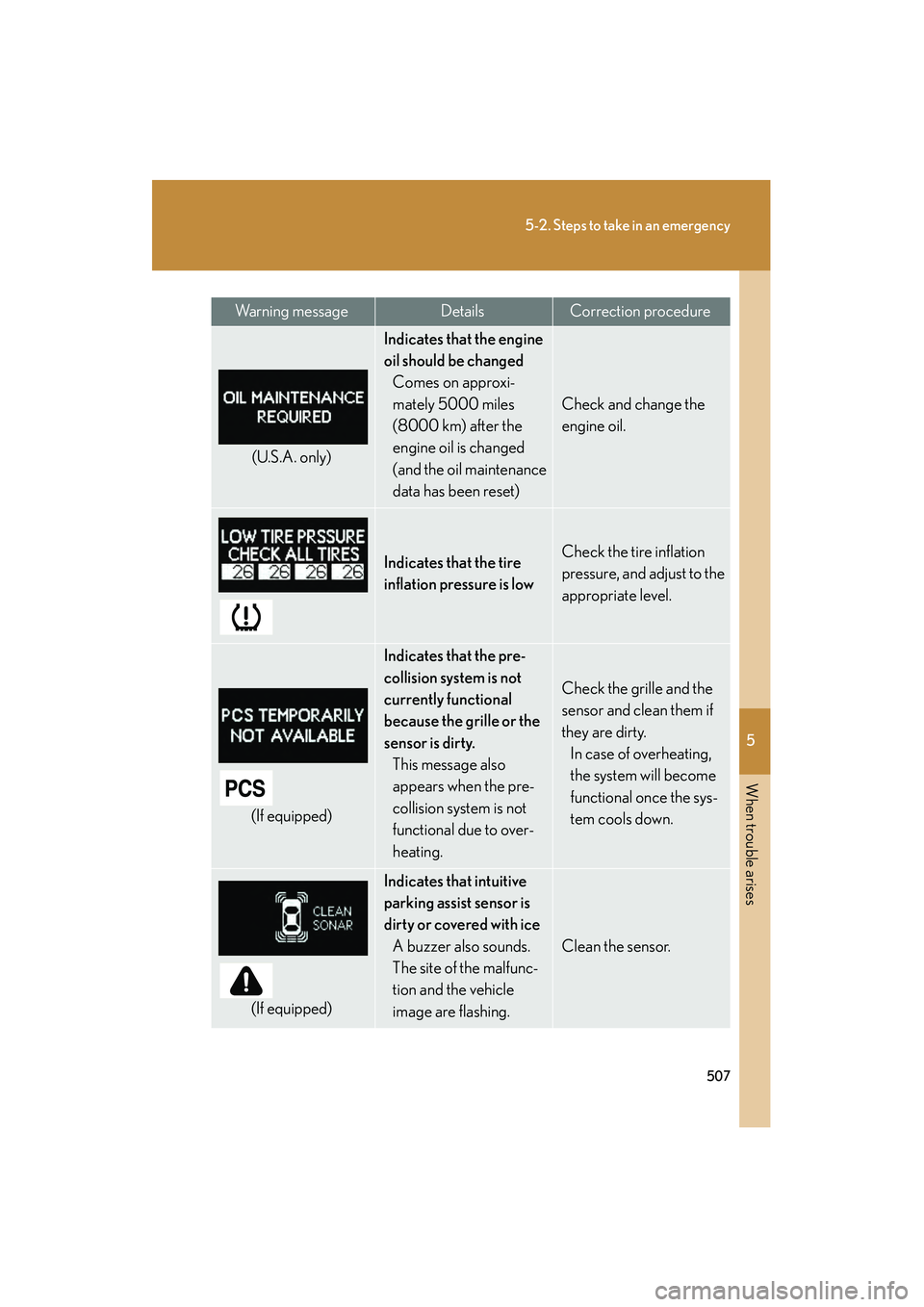

Indicates that the engine
oil should be changedComes on approxi-
mately 5000 miles
(8000 km) after the
engine oil is changed
(and the oil maintenance
data has been reset)
Check and change the
engine oil.
Indicates that the tire
inflation pressure is lowCheck the tire inflation
pressure, and adjust to the
appropriate level.
(If equipped)
Indicates that the pre-
collision system is not
currently functional
because the grille or the
sensor is dirty.This message also
appears when the pre-
collision system is not
functional due to over-
heating.
Check the grille and the
sensor and clean them if
they are dirty.In case of overheating,
the system will become
functional once the sys-
tem cools down.
(If equipped)
Indicates that intuitive
parking assist sensor is
dirty or covered with ice
A buzzer also sounds.
The site of the malfunc-
tion and the vehicle
image are flashing.
Clean the sensor.
Wa r n i n g m e s s a g eDetailsCorrection procedure

5
When trouble arises
541
5-2. Steps to take in an emergency
HS250h_U_75033U(Canada)
If your vehicle overheats
Correction procedures■ If the engine coolant temperature warning light comes on or flashes
Stop the vehicle in a safe place and turn off the air conditioning
system.
Check to see if steam is coming out from the engine area.
If you see steam:
Stop the hybrid system. Carefully lift the hood after the steam
subsides and then restart the hybrid system.
If you do not see steam:
Leave the hybrid system operating and carefully lift the hood.
Remove the engine compartment cover. ( →P. 423)
Check to see if the cooling fans are operating.
If the fans are operating:
Wait until the high engine coolant temperature warning light goes
off and then stop the hybrid system.
If the fans are not operating:
Stop the hybrid system immediately and call your Lexus dealer.
The following may indicate that your vehicle is overheating:
● The high engine coolant temperature warning light comes on or
flashes:
The engine may be overheating.
● “HYBRID SYSTEM OVERHEAT” is shown on the multi-information
display:
The power control unit may be overheating.
Follow the correction procedure as described below.

542
5-2. Steps to take in an emergency

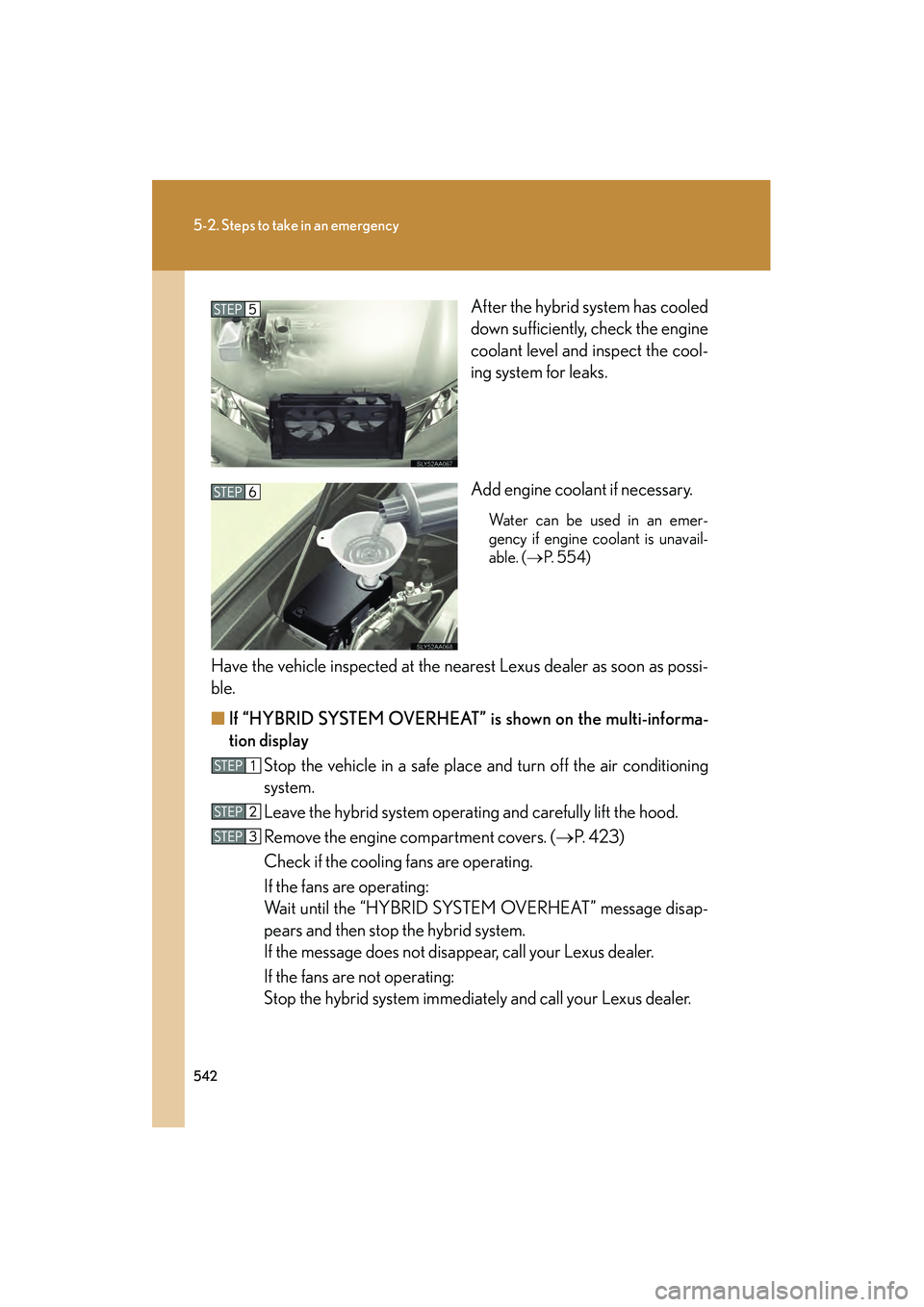

HS250h_U_75033U(Canada)After the hybrid system has cooled
down sufficiently, check the engine
coolant level and inspect the cool-
ing system for leaks.
Add engine coolant if necessary.
Water can be used in an emer-
gency if engine coolant is unavail-
able. (
→P. 5 5 4 )
Have the vehicle inspected at the nearest Lexus dealer as soon as possi-
ble.
■If “HYBRID SYSTEM OVERHEAT” is shown on the multi-informa-
tion display
Stop the vehicle in a safe place and turn off the air conditioning
system.
Leave the hybrid system operating and carefully lift the hood.
Remove the engine compartment covers. ( →P. 423)
Check if the cooling fans are operating.
If the fans are operating:
Wait until the “HYBRID SYSTEM OVERHEAT” message disap-
pears and then stop the hybrid system.
If the message does not disappear, call your Lexus dealer.
If the fans are not operating:
Stop the hybrid system immediat ely and call your Lexus dealer.

5
When trouble arises
543
5-2. Steps to take in an emergency
HS250h_U_75033U(Canada)After the hybrid system has cooled
down, check the power control
unit coolant level and inspect the
cooling system for leaks.
Add power control unit coolant if
necessary.
Water can be used in an emer-
gency if power control unit coolant
is unavailable. (
→P. 5 5 4 )
Have the vehicle inspected at the nearest Lexus dealer as soon as possi-
ble.
■Overheating
The following symptoms may occur when your vehicle is overheating:
●The high engine coolant temperature warning light comes on or flashes, or the
hybrid system output decreases.
●Steam comes out from the engine area.
●“HYBRID SYSTEM OVERHEAT” is displayed on the multi-information display.

544
5-2. Steps to take in an emergency
HS250h_U_75033U(Canada)
CAUTION
■To prevent an accident or injury when inspecting under the hood of your vehicle
●If steam is seen coming from under the hood, do not open the hood until the
steam has subsided. The engine compartment may be very hot, causing serious
injuries such as burns.
●Check that the indicator on the “POWER” switch and the READY indicator are
off.
●For vehicles with a hybrid system, there are times when the gasoline engine auto-
matically starts to run or the cooling fans suddenly start to operate. Do not touch
or approach the rotating parts of the belt or fans. Doing so may lead to fingers,
clothes or tools getting caught, resulting in injury.
●Do not loosen the coolant reservoir cap while the hybrid system and radiator are
hot.
Serious injuries, such as burns, may result from hot coolant and steam released
under pressure.
NOTICE
■When adding engine/power control unit coolant
Wait until the hybrid system has cooled down before adding engine/power control
unit coolant.
When adding coolant, do so slowly. Adding cool coolant to a hot hybrid system too
quickly can cause damage to the hybrid system.

597
Alphabetical index
HS250h_U_75033U(Canada)
If your vehicle has to be stopped in an emergency............................. 547
If your vehicle needs to be towed ................................................... 483
If your vehicle overheats.................. 541
Emergency flasher
Switch ...................................................... 482
Engine
Accessory mode ................................. 146
Compartment ......................................422
Engine switch ........................................ 145
Hood ......................................................... 419
How to start the engine.................... 145
How to start the hybrid system.................................................... 145
Identification number.......................550
If the engine will not start ...............530
If the hybrid system will not
start........................................................530
Ignition switch........................................ 145
Overheating........................................... 541
Power switch ......................................... 145
Engine compartment cover..............423
Engine coolant Capacity................................................. 554
Checking ............................................... 428
Preparing and checking before winter.....................................244
Engine/power control unit coolant Capacity................................................. 554
Checking ............................................... 428
Preparing and checking
before winter.....................................244
Engine immobilizer system ..................96 Engine oil
Capacity .................................................552
Checking ............................................... 424
Preparing and checking
before winter .................................... 244
Engine oil maintenance data............ 426
Engine switch .......................................... 145
Enhanced VSC...................................... 225
EPS ............................................................. 225
EV drive mode switch.......................... 150
Event data recorder ............................490
Floor mat ................................................. 380
Fluid
Brake ....................................................... 556
Washer ................................................... 432
Fog lights Replacing light bulbs ....................... 469
Switch........................................................ 194
Wattage................................................. 558
Foot light...................................................360
Foot well lighting ...................................360
Front fog lights Replacing light bulbs ....................... 469
Switch........................................................ 194
Wattage................................................. 558
Front passenger occupant classification system ............................ 116
Front passenger's seat belt reminder light......................................495
Front seats Adjustment ............................................... 64
Driver’s seat position memory .......68
F
*: Refer to “Navigation System Owner’s Manual”.

602
Alphabetical index
HS250h_U_75033U(Canada)
Steering wheel position memory.................................................. 68
Stop light Replacing light bulbs........................ 479
Wattage................................................. 558
Storage feature......................................363
Stuck If the vehicle becomes stuck........545
Sun visors .................................................. 371
Sunshade Rear .......................................................... 378
Roof ............................................................. 89
Switch Audio remote control switch *
Driving mode selector switch .................................................... 155
Engine switch.........................................145
Fog light switch.....................................194
Ignition switch........................................145
Light switches ....................................... 183
Mode select switch............................ 155
OPEN CLOSE switch *
Power door lock switch .................... 57
Power switch .........................................145
Power window switch ........................ 86
Talk switch (vehicles without navigation system)............. 314, 333
Talk switch (vehicles with
navigation system) *
Telephone switch (vehicles
without navigation system) ....... 333
Telephone switch (vehicles
with navigation system)*
TILT switch*
Tire pressure warning reset switch ................................................... 439
Window lock switch ........................... 86 Wiper and washer switch............... 195
Tail lights Replacing light bulbs ........................479
Switch ........................................................ 183
Wattage .................................................558
Talk switch (vehicles without navigation system) .................. 314, 333
Talk switch (vehicles with navigation system)*
Telephone switch (vehicles without navigation system)............ 333
Telephone switch (vehicles with navigation system)*
Theft deterrent system Alarm.......................................................... 98
Immobilizer system ..............................96
Theft prevention labels.......................... 101
TILT switch*
Tire inflation pressure ......................... 445
Tire information Glossary ................................................568
Size ........................................................... 565
Tire identification number ............. 564
Uniform Tire Quality Grading ... 566
Tires
Chains..................................................... 245
Checking................................................437
Compact spare tire............................ 521
If you have a flat tire ........................... 521
Inflation pressure ............................... 445
Inflation pressure sensor ............... 438
Information ........................................... 562
Replacing ................................................ 521
Rotating tires.........................................437
Size ........................................................... 557
T
