Engine Lexus HS250h 2010 Owner's Guide

417
4-3. Do-it-yourself maintenance
4
Maintenance and care
HS250h_U_75033U(Canada)
ItemsParts and tools
Engine oil level (→P. 4 2 4 )
• “Toyota Genuine Motor Oil” or
equivalent
•Rag or paper towel
• Funnel (used only for adding
engine oil)
Fuses (→ P. 4 5 5 )• Fuse with same amperage rating as
original
Headlight aim ( →P. 4 6 7 )• Phillips-head screwdriver
Light bulbs (→ P. 4 6 9 )
• Bulb with same number and watt-
age rating as original
• Phillips-head screwdriver
•Flathead screwdriver
•Wrench
Radiator and condenser (→P. 4 3 0 )
Tire inflation pressure ( →P. 4 4 5 )• Tire pressure gauge
• Compressed air source
Wa s h e r f l u i d ( →P. 4 3 2 )
• Water or washer fluid containing
antifreeze (for winter use)
• Funnel (used only for adding water
or washer fluid)

418
4-3. Do-it-yourself maintenance
HS250h_U_75033U(Canada)
CAUTION
The engine compartment contains many mechanisms and fluids that may move sud-
denly, become hot, or become electrically energized. To avoid death or serious injury,
observe the following precautions:
■When working on the engine compartment
●Make sure that the indicator on the “POWER” switch and the “READY” indicator
are both off.
●Keep hands, clothing and tools away from the moving fans and engine drive belt.
●Be careful not to touch the engine, power control unit, radiator, exhaust manifold,
etc. right after driving as they may be hot. Oil and other fluids may also be hot.
●Do not leave anything that may burn easily, such as paper and rags, in the engine
compartment.
●Do not smoke, cause sparks or expose an open flame to fuel. Fuel fumes are flam-
mable.
■When working near the electric cooling fans or radiator grille
Be sure the “POWER” switch is off.
With the “POWER” switch in ON mode, the electric cooling fans may automati-
cally start to run if the air conditioning is on and/or the coolant temperature is high.
(→ P. 4 3 0 )
■Safety glasses
Wear safety glasses to prevent flying or falling material, fluid spray, etc. from getting
in your eyes.
NOTICE
■If you remove the air cleaner filter
Driving with the air cleaner filter removed may cause excessive engine wear due to
dirt in the air. Also, a backfire could cause a fire in the engine compartment.

422
4-3. Do-it-yourself maintenance
HS250h_U_75033U(Canada)
Engine compartment
Engine coolant reservoir (→P. 4 2 8 )
Engine oil filler cap (→P. 425)
Engine oil level dipstick (→P. 4 2 4 )
Power control unit coolant
reservoir ( →P. 4 2 8 )
Brake fluid reservoir (→P. 4 3 1 )Fuse box ( →P. 455)
Engine coolant radiator (→P. 4 3 0 )
Power control unit coolant
radiator (→ P. 4 3 0 )
Condenser ( →P. 4 3 0 )
Electric cooling fans
Washer fluid tank (→P. 4 3 2 )

423
4-3. Do-it-yourself maintenance
4
Maintenance and care
HS250h_U_75033U(Canada)

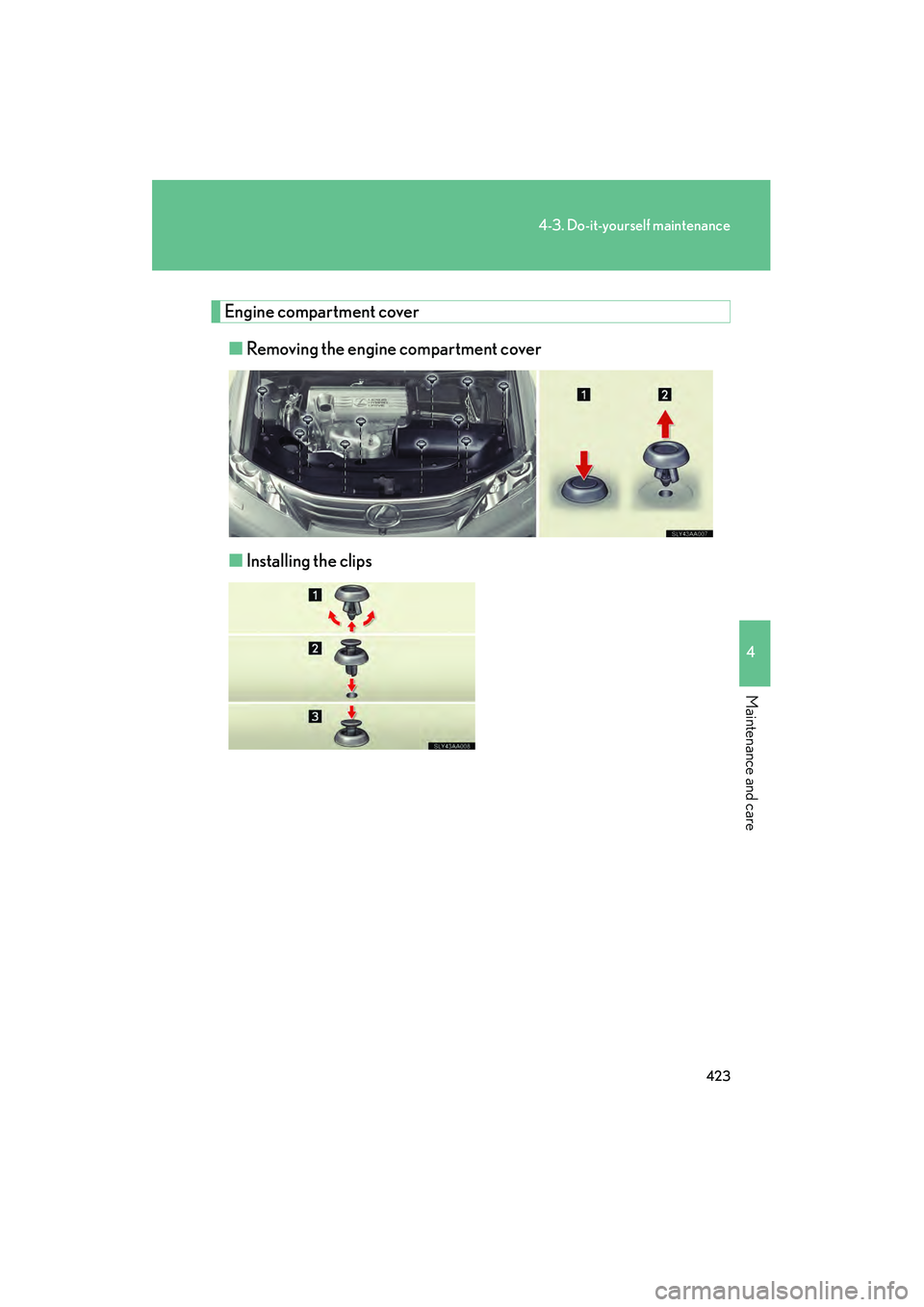

Engine compartment cover■ Removing the engine compartment cover
■ Installing the clips

424
4-3. Do-it-yourself maintenance
HS250h_U_75033U(Canada)
Engine oilWith the engine at operating temperature and turned off, check the oil
level on the dipstick.
■ Checking the engine oil
Park the vehicle on level ground. After turning off the hybrid sys-
tem, wait more than 5 minutes for the oil to drain back into the
bottom of the engine.
Holding a rag under the end, pull
the dipstick out.
Wipe the dipstick clean.
Reinsert the dipstick fully.
Holding a rag under the end, pull the dipstick out and check the
oil level.
Wipe the dipstick and reinsert it fully. Low
Full

425
4-3. Do-it-yourself maintenance
4
Maintenance and care
HS250h_U_75033U(Canada)■
Adding engine oil
If the oil level is below or near the
low level mark, add engine oil of
the same type as that already in the
engine.
Make sure to check the oil type and prepare the items needed before
adding oil.
Remove the oil filler cap by turning it counterclockwise.
Add engine oil slowly, checking the dipstick.
Install the oil filler cap by turning it clockwise.
Engine oil selection→P. 5 5 3
Oil quantity
(Low → Full)1.2 qt. (1.1 L, 1.0 lmp. qt.)
ItemsClean funnel

426
4-3. Do-it-yourself maintenance
HS250h_U_75033U(Canada)

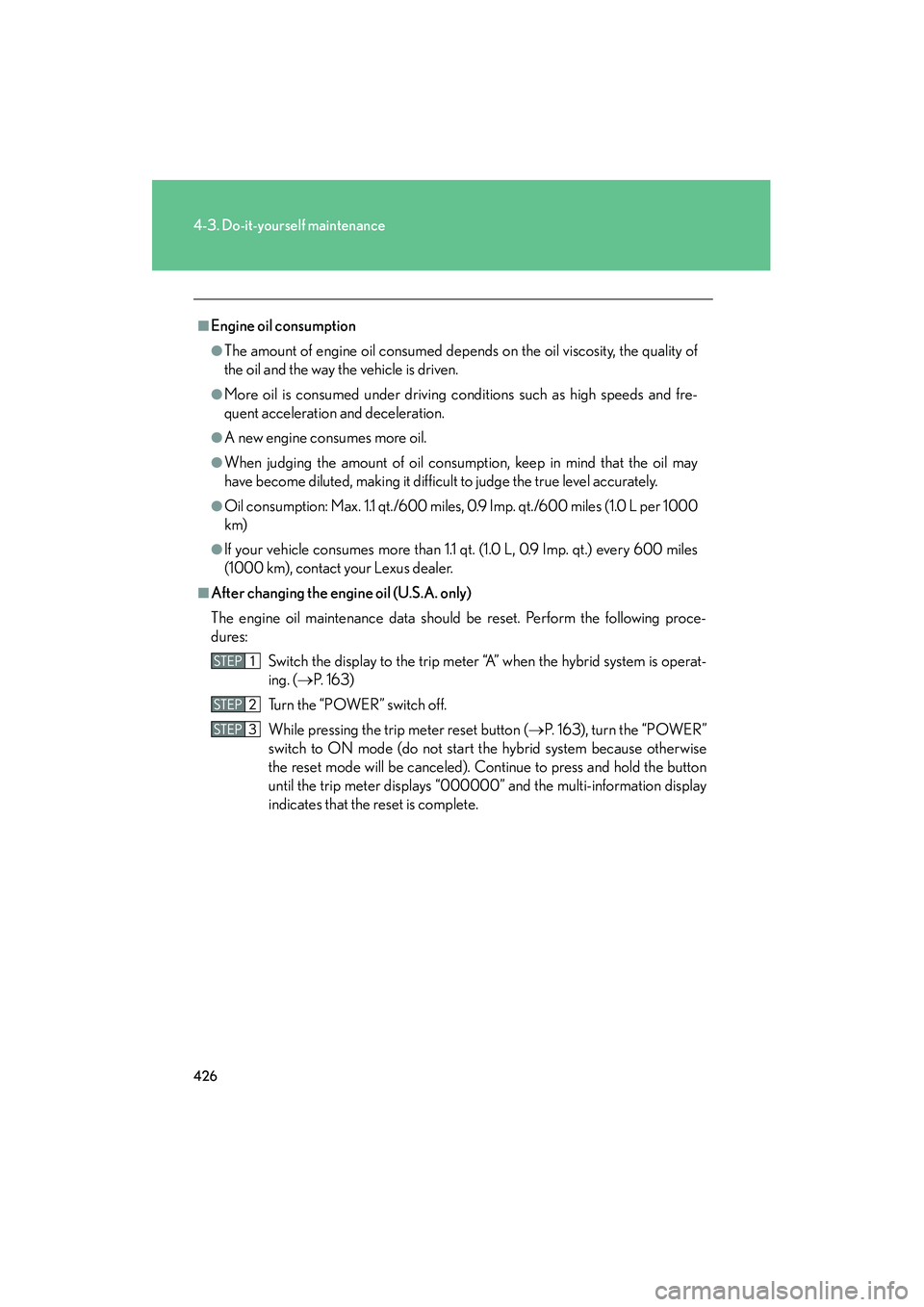

■Engine oil consumption
●The amount of engine oil consumed depends on the oil viscosity, the quality of
the oil and the way the vehicle is driven.
●More oil is consumed under driving conditions such as high speeds and fre-
quent acceleration and deceleration.
●A new engine consumes more oil.
●When judging the amount of oil consumption, keep in mind that the oil may
have become diluted, making it difficult to judge the true level accurately.
●Oil consumption: Max. 1.1 qt./600 miles, 0.9 Imp. qt./600 miles (1.0 L per 1000
km)
●If your vehicle consumes more than 1.1 qt. (1.0 L, 0.9 Imp. qt.) every 600 miles
(1000 km), contact your Lexus dealer.
■After changing the engine oil (U.S.A. only)
The engine oil maintenance data should be reset. Perform the following proce-
dures:Switch the display to the trip meter “A” when the hybrid system is operat-
ing. (→P. 1 6 3 )
Turn the “POWER” switch off.
While pressing the trip meter reset button ( →P. 1 6 3 ) , t u r n t h e “ P O W E R ”
switch to ON mode (do not start the hybrid system because otherwise
the reset mode will be canceled). Continue to press and hold the button
until the trip meter displays “000000” and the multi-information display
indicates that the reset is complete.

427
4-3. Do-it-yourself maintenance
4
Maintenance and care
HS250h_U_75033U(Canada)
CAUTION
■Used engine oil
●Used engine oil contains potentially harmful contaminants which may cause skin
disorders such as inflammation and skin cancer, so care should be taken to avoid
prolonged and repeated contact. To remove used engine oil from your skin, wash
thoroughly with soap and water.
●Dispose of used oil and filters only in a safe and acceptable manner. Do not dis-
pose of used oil and filters in household trash, in sewers or onto the ground.
Call your Lexus dealer, service station or auto parts store for information con-
cerning recycling or disposal.
●Do not leave used engine oil within the reach of children.
NOTICE
■To prevent serious engine damage
Check the oil level on a regular basis.
■When replacing the engine oil
●Be careful not to spill engine oil on the vehicle components.
●Avoid overfilling, or the engine could be damaged.
●Check the oil level on the dipstick every time you refill the vehicle.
●Be sure the engine oil filler cap is properly tightened.

428
4-3. Do-it-yourself maintenance
HS250h_U_75033U(Canada)
CoolantThe coolant level is satisfactory if it is between the “FULL” and “LOW”
lines on the reservoir when the hybrid system is cold.
Engine coolant reservoir Reservoir cap
“FULL” line
“LOW” line
If the level is on or below the
“LOW” line, add coolant up to the
“FULL” line. (→P. 5 5 4 )

429
4-3. Do-it-yourself maintenance
4
Maintenance and care
HS250h_U_75033U(Canada)Power control unit coolant reservoir
Reser voir cap
“FULL” line
“LOW” line
If the level is on or below the
“LOW” line, add coolant up to the
“FULL” line. (→P. 5 5 4 )
■Coolant selection
Only use “Toyota Super Long Life Coolant” or a similar high quality ethylene glycol
based non-silicate, non-amine, non-nitrite, and non-borate coolant with long-life
hybrid organic acid technology.
U.S.A.: “Toyota Super Long Life Coolant” is a mixture of 50% coolant and 50% deionized water. (Minimum temperature: -31 °F [-35 °C])
Canada: “Toyota Super Long Life Coolant” is a mixture of 55% coolant and 45% deionized water. (Minimum temperature: -44 °F [-42 °C])
For more details about coolant, contact your Lexus dealer.
■If the coolant level drops within a short time of replenishing
Visually check the radiators, hoses, engine/power control unit coolant reservoir
caps, drain cock and water pump.
If you cannot find a leak, have your Lexus dealer test the cap and check for leaks in
the cooling systems.
