Lexus HS250h 2010 Owner's Manual

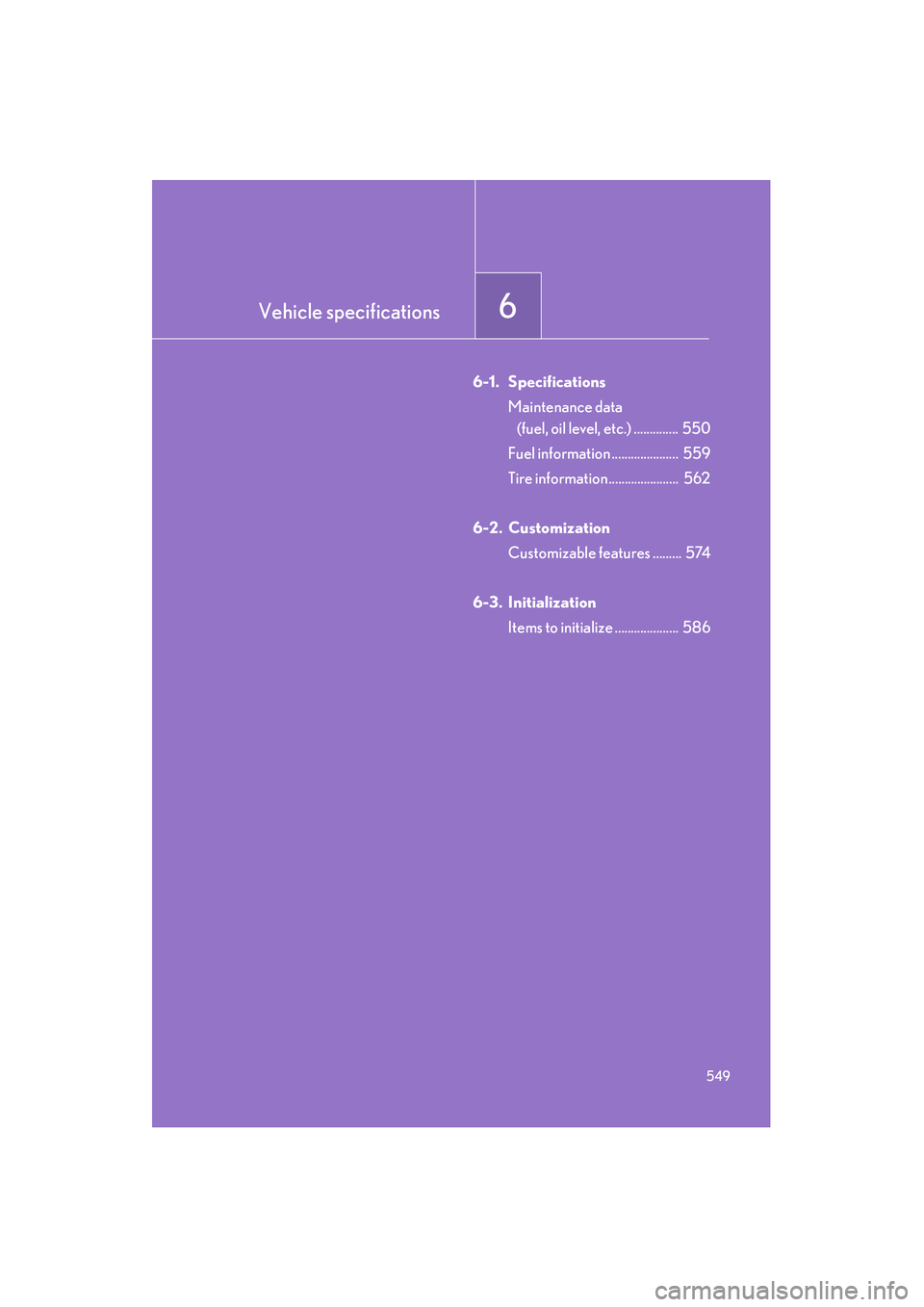

Vehicle specifications6
549
HS250h_U_75033U(Canada)
6-1. SpecificationsMaintenance data (fuel, oil level, etc.) .............. 550
Fuel information ..................... 559
Tire information...................... 562
6-2. Customization Customizable features ......... 574
6-3. Initialization Items to initialize .................... 586

550
HS250h_U_75033U(Canada)
6-1. Specifications
Maintenance data (fuel, oil level, etc.)
Dimensions and weights
*: Unladen vehicles
Vehicle identification■ Vehicle identification number
The vehicle identification number (VIN) is the legal identifier for your
vehicle. This is the primary identification number for your Lexus. It is used
in registering the ownership of your vehicle.
This number is stamped on the top left of the instrument panel and under the
front passenger’s seat (on some models).
Overall length184.8 in. (4695 mm)
Overall width70.3 in. (1785 mm)
Overall height*59.3 in. (1505 mm)
Wheelbase106.3 in. (2700 mm)
Tr e a dFront60.4 in. (1535 mm)
Rear60.2 in. (1530 mm)
Vehicle capacity weight
(Occupants + luggage)825 lb. (375 kg)

551
6-1. Specifications
6
Vehicle specifications
HS250h_U_75033U(Canada)This number is also on the Certifi-
cation Label.
■ Engine number and electric mo tor (traction motor) number
The numbers are stamped on the locations shown in the above illustration.
Engine
Model2AZ-FXE
Ty p e4-cylinder in line, 4-cycle, gasoline
Bore and stroke3.48 × 3.78 in. (88.5 × 96.0 mm)
Displacement144.1 cu.in. (2362 cm3)
Drive belt tensionAutomatic adjustment
Valve clearance
(engine cold)Intake: 0.007  0.011 in. (0.19  0.29 mm)
Exhaust: 0.015
 0.019 in. (0.38  0.48 mm)

552
6-1. Specifications
HS250h_U_75033U(Canada)
Fuel
Electric motor (Traction motor)
Hybrid battery (Traction battery)
Lubrication system
Fuel typeUnleaded gasoline only
Octane rating87 (Research octane number 91) or higher
Fuel tank capacity
(Reference)14.5 gal. (55 L, 12.5 Imp. gal.)
Ty p ePermanent magnet synchronous motor
Maximum output105 kW
Maximum torque199 ft•lbf (270 N•m, 27.5 kgf•m)
Ty p eNickel-metal hydride battery
Vo l t a g e7. 2 V/m o d u l e
Capacity6.5 Ah (3HR)
Quantity34 modules
Overall voltage244.8 V
Oil capacity
(Drain and refill
-reference)
Wi th f il ter
Without filter
4.5 qt. (4.3 L, 3.8 lmp.qt.)
4.3 qt. (4.1 L, 3.6 lmp.qt.)

553
6-1. Specifications
6
Vehicle specifications
HS250h_U_75033U(Canada)■
Engine oil selection
“Toyota Genuine Motor Oil” is used in your Lexus vehicle. Use Lexus
approved “Toyota Genuine Motor Oil” or equivalent to satisfy the follow-
ing grade and viscosity.
Oil grade: ILSAC multigrade engine oil
Recommended viscosity: SAE 5W-20 or 0W-20
SAE 5W-20 or 0W-20 engine oil
may be used. However, SAE 0W-
20 is the best choice for good fuel
economy and good starting in cold
weather.
The 0W portion of the oil viscosity rating indicates the characteristic of the oil
which allows cold startability. Oils with a lower value before the W allow for
easier starting of the engine in cold weather.
The 20 in 0W-20 indicates the oil viscosity when the oil is at its operating
temperature. An oil with a higher viscosity may be better suited if the vehicle
is operated at high speeds, or under extreme load conditions.
How to read oil container label:
The ILSAC (International Lubricant Standardization and Approval Com-
mittee) Certification Mark is added to some oil containers to help you
select the oil you should use.
Outside temperature

554
6-1. Specifications
HS250h_U_75033U(Canada)
Cooling system
Ignition system
Capacity
Gasoline engine
Po w e r c o n t ro l u n i t
7.7 qt. (7.3 L, 6.4 Imp. qt.)
3.1 qt. (2.9 L, 2.6 Imp. qt.)
Coolant type
Use either of the following.
• “Toyota Super Long Life Coolant”
• A similar high-quality ethylene glycol-based non-silicate, non-amine, non-nitrite,
and non-borate coolant with long-life
hybrid organic acid technology
Do not use plain water alone.
Spark plug
Make
GapDENSO SK20R11
NGK IFR6A11
0.043 in. (1.1 mm)
NOTICE
■Iridium-tipped spark plugs
Use only iridium-tipped spark plugs. Do not adjust spark plug gap.

555
6-1. Specifications
6
Vehicle specifications
HS250h_U_75033U(Canada)
Electrical system
Hybrid transaxle
*: The fluid capacity is a reference quantity. If replacement is necessary, contactyour Lexus dealer.
12-volt battery
Open voltage* at
68 °F (20 °C):12.6  12.8 V Fully charged
12.2 
12.4 V Half charged
11.8 
12.0 V Discharged
(*: Voltage checked 20 minutes after the hybrid sys-
tem and all the lights are turned off)
Charging rates5 A max.
Fluid capacity *4.4 qt. (4.2 L, 3.7 Imp. qt.)
Fluid typeTo y o t a G e n u i n e AT F W S
NOTICE
■Hybrid transaxle fluid type
Using hybrid transaxle fluid other than “Toyota Genuine ATF WS” may cause dete-
rioration in shift quality, locking up of the transaxle accompanied by vibration, and
ultimately damage the hybrid transaxle of your vehicle.

556
6-1. Specifications
HS250h_U_75033U(Canada)

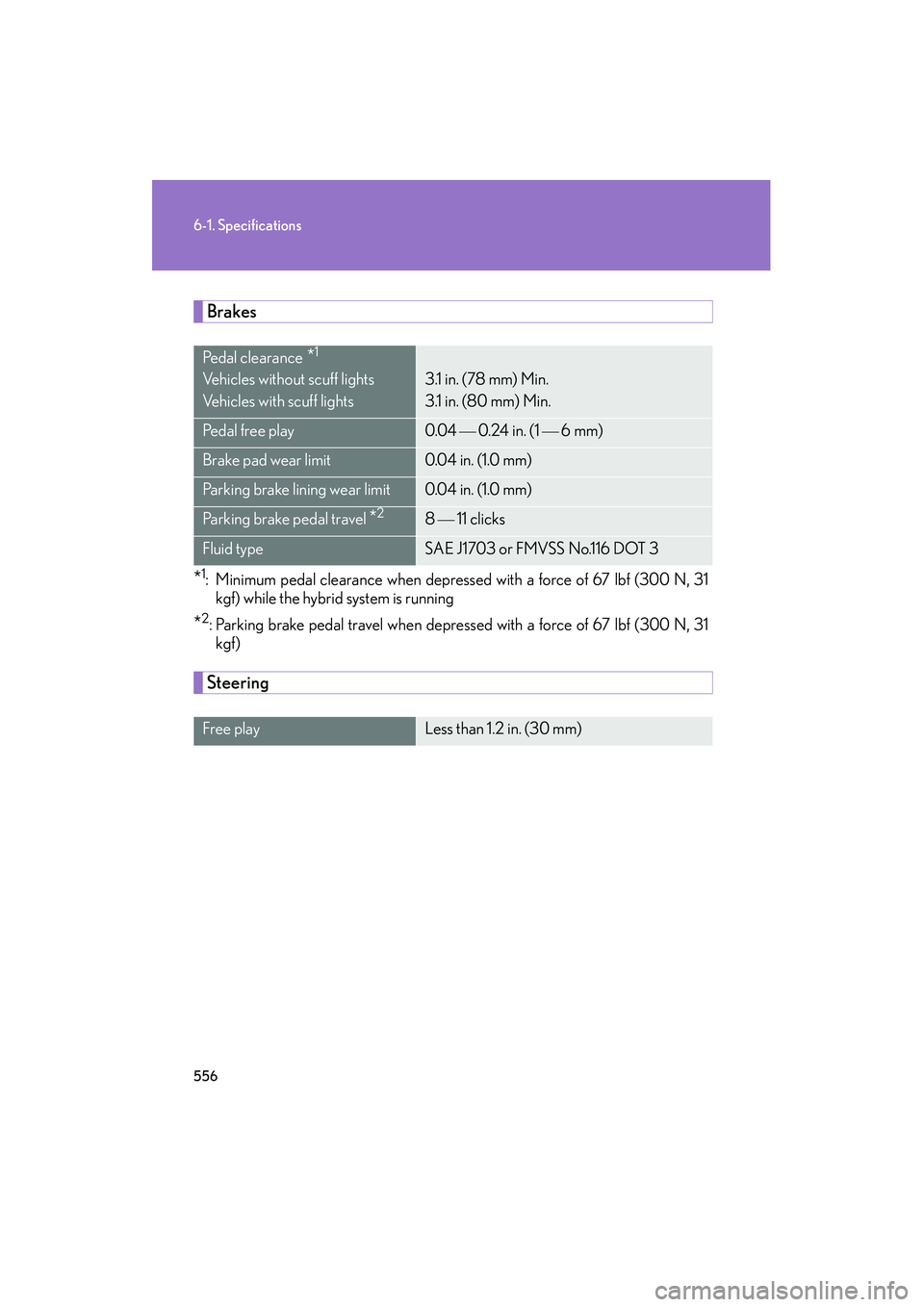

Brakes
*1: Minimum pedal clearance when depressed with a force of 67 lbf (300 N, 31
kgf) while the hybrid system is running
*2: Parking brake pedal travel when depressed with a force of 67 lbf (300 N, 31kgf)
Steering
Pe d a l c l e a r a n c e *1
Vehicles without scuff lights
Vehicles with scuff lights3.1 in. (78 mm) Min.
3.1 in. (80 mm) Min.
Pedal free play0.04  0.24 in. (1  6 mm)
Brake pad wear limit0.04 in. (1.0 mm)
Parking brake lining wear limit0.04 in. (1.0 mm)
Parking brake pedal travel *28  11 clicks
Fluid typeSAE J1703 or FMVSS No.116 DOT 3
Free playLess than 1.2 in. (30 mm)

557
6-1. Specifications
6
Vehicle specifications
HS250h_U_75033U(Canada)
Tires and wheels
Ty p e A
Ty p e B
Ti r e s i z eP215/55R17 93V, T145/70D17 106M (spare)
Tire inflation pressure
(recommended cold tire
inflation pressure)
Driving under normal conditions Front:
33 psi (230 kPa, 2.3 kgf/cm
2 or bar)
Rear:
33 psi (230 kPa, 2.3 kgf/cm
2 or bar)
Spare:
60 psi (420 kPa, 4.2 kgf/cm
2 or bar)
Wheel size17 × 7J, 17 × 4T (spare)
Wheel nut torque76 ft•lbf (103 N•m, 10.5 kgf•m)
Ti r e s i z eP225/45R18 91W, T145/ 70D17 106M (spare)
Tire inflation pressure
(recommended cold tire
inflation pressure)
Driving under normal conditions
Front:
33 psi (230 kPa, 2.3 kgf/cm
2 or bar)
Rear:
32 psi (220 kPa, 2.2 kgf/cm
2 or bar)
Spare:
60 psi (420 kPa, 4.2 kgf/cm
2 or bar)
Wheel size18 × 7 1 /2J, 17 × 4T (spare)
Wheel nut torque76 ft•lbf (103 N•m, 10.5 kgf•m)

558
6-1. Specifications
HS250h_U_75033U(Canada)
Light bulbs
A: HB3 halogen bulbs
B: Double end bulbs
C: Wedge base bulbs (clear)
D: Wedge base bulbs (amber)
E: H11 halogen bulbs
F: Single end bulbs
Light BulbsBulb No.WTy p e
Exterior
LED headlights
High beam
Halogen headlights
High beam
Low beam
9005
9005
H1160
6055A
A E
Front side marker lightsW5W5C
Front turn signal lights3457NA28 /8F
Parking lightsW5W5C
Front fog lightsH1155E
Rear turn signal lightsWY21W21D
Back-up lightsW16W16C
License plate lightsW5W5C
Outer foot lights5C
Interior
Vanity lights8C
Front interior lights/Personal lights8C
Rear interior light8B
Tr u n k l i g h t3.8C
Door courtesy lights5C
