TABLE OF CONTENTSIndex
HS250h_U_75033U(Canada)
2
1-1. Hybrid systemHybrid system................................... 24
Hybrid system precautions ......... 27
Energy monitor/consumption screen................................................ 32
Hybrid vehicle driving tips........... 37
1-2. Key information Keys ...................................................... 39
1-3. Opening, closing and locking the doors
Smart access system with push-button start .......................... 44
Wireless remote control .............. 54
Doors.................................................... 57
Trunk..................................................... 60 1-4. Adjustable components (seats,
mirrors, steering wheel)
Front seats.......................................... 64
Driving position memory (driver’s seat) ................................. 68
Head restraints................................... 71
Seat belts ............................................ 73
Steering wheel.................................. 79
Inside rear view mirror................... 81
Outside rear view mirrors ........... 83
1-5. Opening and closing the windows and moon roof
Power windows................................ 86
Moon roof .......................................... 89
1-6. Refueling Opening the fuel tank cap........... 92
1-7. Theft deterrent system Immobilizer system ........................ 96
Alarm.................................................... 98
Theft prevention labels (for U.S.A.) ..................................... 101
1Before driving
For information regarding the equipment listed below, refer to the “Navigation
System Owner’s Manual”.
• Navigation system
• Air conditioning
• Windshield wiper de-icer
• Rear view monitor system
• Intuitive parking assist • Audio/video system
• Rear window and outside rear view
mirror defogging
•Climate control
• Wide view front monitor system

HS250h_U_75033U(Canada)
8
Pictorial indexExterior
Moon roof P. 89
Headlights (low beam) P. 183
Fog lights P. 194
Turn signal lights P. 159
Side marker lights P. 183
Hood P. 419
Parking lights P. 183
Windshield wipers P. 195Outside rear viewmirrors
P. 83
Turn signal lights P. 159
Headlights (high beam) and
daytime running lights
∗ P. 183, 186

HS250h_U_75033U(Canada)
11
Anti-glare inside rear view mirror Garage door opener switches
∗
Compass
P. 81
P. 383
P. 391
Sun visors P. 371
Auxiliary box ∗ P. 370
SRS curtain shield airbags P. 104
Interior light
Personal light P. 361
P. 361
Moon roof switches
“SOS” button P. 89
P. 395
Garage door opener switches ∗ P. 383
Vanity mirrors P. 372
∗: If equipped
Vanity lights P. 372
Interior light P. 361

HS250h_U_75033U(Canada)
15
Without navigation system
∗: If equipped
*1: Refer to “Navigation System Owner's Manual”.*2: For vehicles with a navigation system, refer to the “Navigation System Owner’s Manual”.
Rear window and
outside rear view
mirror defogger
switch
P. 260Emergency flasher
switch
P. 482
Security indicator

P. 96, 98
Clock P. 373
Air
conditioning
system
P. 252
With navigation systemNavigation system
*1
Air conditioning
system
*1
Emergency flasher
switch
P. 482Clock*1
Security indicator

P. 96, 98
Rear window and out-
side rear view mirror
defogger switch
*1

HS250h_U_75033U(Canada)
17
Instrument panel light control switches P. 163
Rear sunshade
switch
∗ P. 378
Headlight cleanerswitch
∗ P. 200
VIEW switch ∗*1
Windshield wiper de-icer
switch
∗ P. 261
Trunk opener P. 60
Fuel filler door opener
P. 92
HUD (Head-up Display)
main switch
∗ P. 175Outside rear view mirror
switches
P. 83
HUD (Head-up
Display) contrast
adjustment switch
∗
P. 175
HUD (Head-up
Display) position
adjustment switch
∗
P. 175
VSC OFF switch P. 225
∗: If equipped
*1: Refer to “Navigation System Owner's Manual”.
*2: For vehicles with a navigation system, refer to the “Navigation System Owner’s Manual”.
NAVI switch ∗
P. 175

Before driving1
23
HS250h_U_75033U(Canada)
1-1. Hybrid systemHybrid system ............................ 24
Hybrid system precautions .... 27
Energy monitor/consumption screen ............. 32
Hybrid vehicle driving tips...... 37
1-2. Key information Keys ............................................... 39
1-3. Opening, closing and locking the doors
Smart access system with push-button start .................... 44
Wireless remote control ......... 54
Doors ............................................ 57
Trunk ............................................. 60
1-4. Adjustable components (seats, mirrors, steering
wheel)
Front seats ................................... 64
Driving position memory (driver’s seat).......... 68
Head restraints ........................... 71
Seat belts ..................................... 73
Steering wheel ........................... 79
Inside rear view mirror ............. 81 Outside rear view mirrors...... 83
1-5. Opening and closing the windows and moon roof
Power windows .......................... 86
Moon roof ................................... 89
1-6. Refueling Opening the fuel tank cap ..... 92
1-7. Theft deterrent system Immobilizer system .................. 96
Alarm............................................ 98
Theft prevention labels (for U.S.A.) .............................. 101
1-8. Safety information Correct driving posture ....... 102
SRS airbags .............................. 104
Front passenger occupant classification system.............. 116
Child restraint systems .......... 121
Installing child restraints....... 125

68
1-4. Adjustable components (seats, mirrors, steering wheel)
HS250h_U_75033U(Canada)

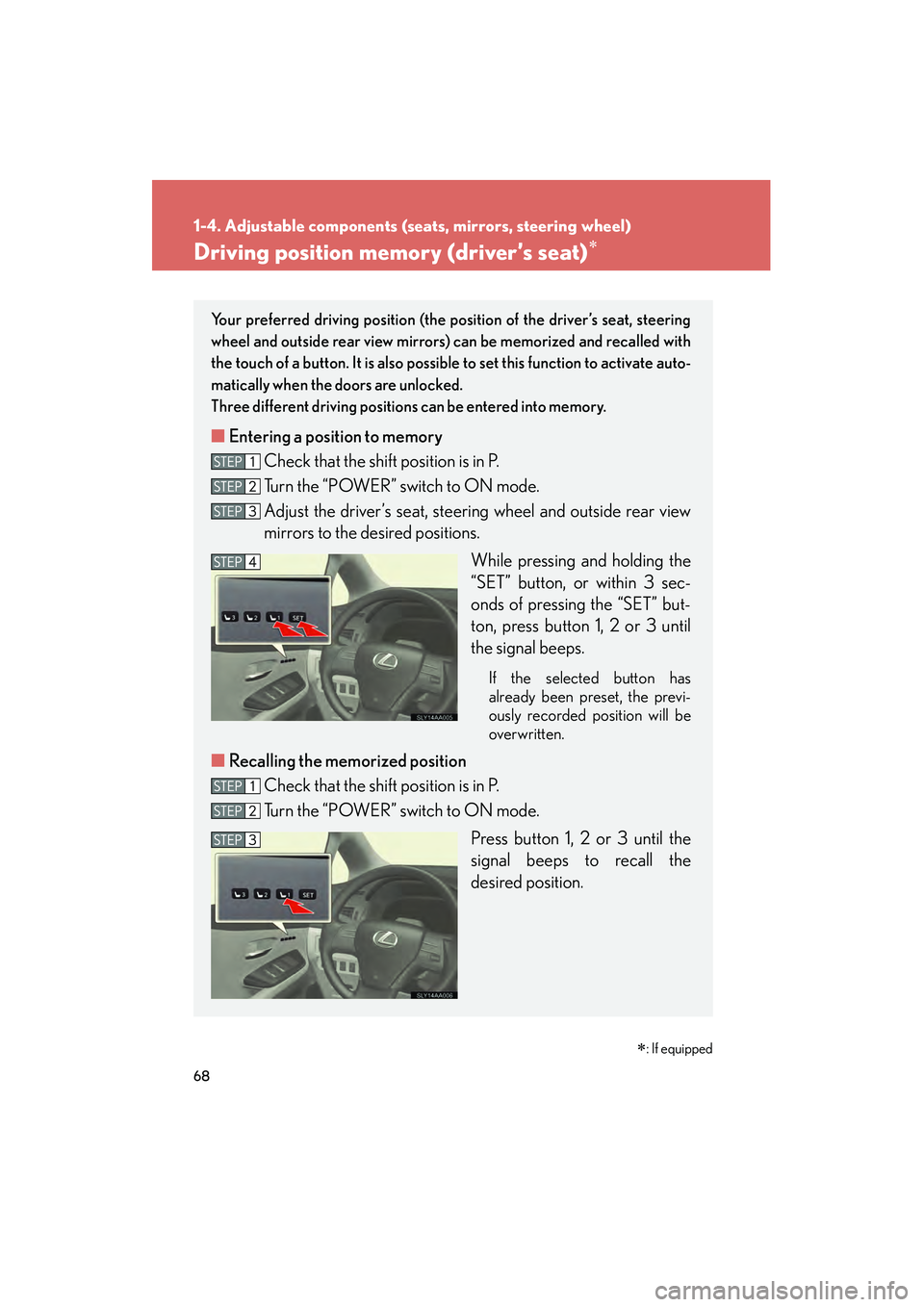

Driving position memory (driver’s seat)∗∗
: If equipped
Your preferred driving position (the po sition of the driver’s seat, steering
wheel and outside rear view mirrors) can be memorized and recalled with
the touch of a button. It is also possible to set this function to activate auto-
matically when the doors are unlocked.
Three different driving positions can be entered into memory.
■ Entering a position to memory
Check that the shift position is in P.
Turn the “POWER” switch to ON mode.
Adjust the driver’s seat, steering wheel and outside rear view
mirrors to the desired positions.
While pressing and holding the
“SET” button, or within 3 sec-
onds of pressing the “SET” but-
ton, press button 1, 2 or 3 until
the signal beeps.
If the selected button has
already been preset, the previ-
ously recorded position will be
overwritten.
■Recalling the memorized position
Check that the shift position is in P.
Turn the “POWER” switch to ON mode.
Press button 1, 2 or 3 until the
signal beeps to recall the
desired position.

81
1
1-4. Adjustable components (seats, mirrors, steering wheel)
Before driving
HS250h_U_75033U(Canada)
Inside rear view mirror
In automatic mode, sensors are used to detect the headlights of vehicles
behind and the reflected light is automatically reduced.
Type ATurns automatic mode on/ off
The indicator comes on when
automatic mode is turned on.
The mirror will revert to auto-
matic mode each time the
“POWER” switch is turned to
ON mode.
Type BTurns automatic mode on/off
The indicator comes on when
automatic mode is turned on.
The mirror will revert to auto-
matic mode each time the
“POWER” switch is turned to
ON mode.
Indicator
Indicator

83
1
1-4. Adjustable components (seats, mirrors, steering wheel)
Before driving
HS250h_U_75033U(Canada)

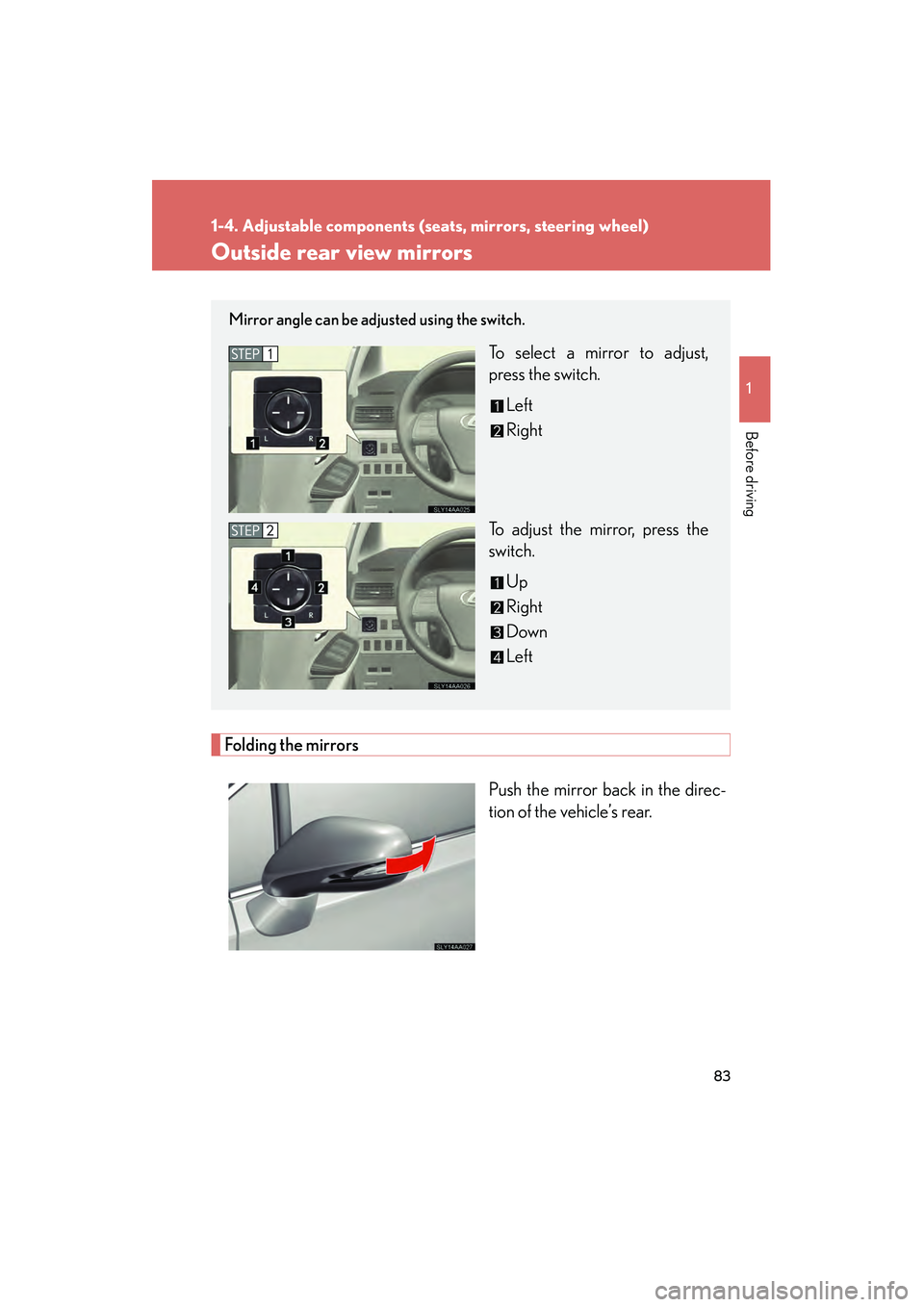

Outside rear view mirrors
Folding the mirrorsPush the mirror back in the direc-
tion of the vehicle’s rear.
Mirror angle can be adjusted using the switch.
To select a mirror to adjust,
press the switch.Left
Right
To adjust the mirror, press the
switch. Up
Right
Down
Left

84
1-4. Adjustable components (seats, mirrors, steering wheel)
HS250h_U_75033U(Canada)

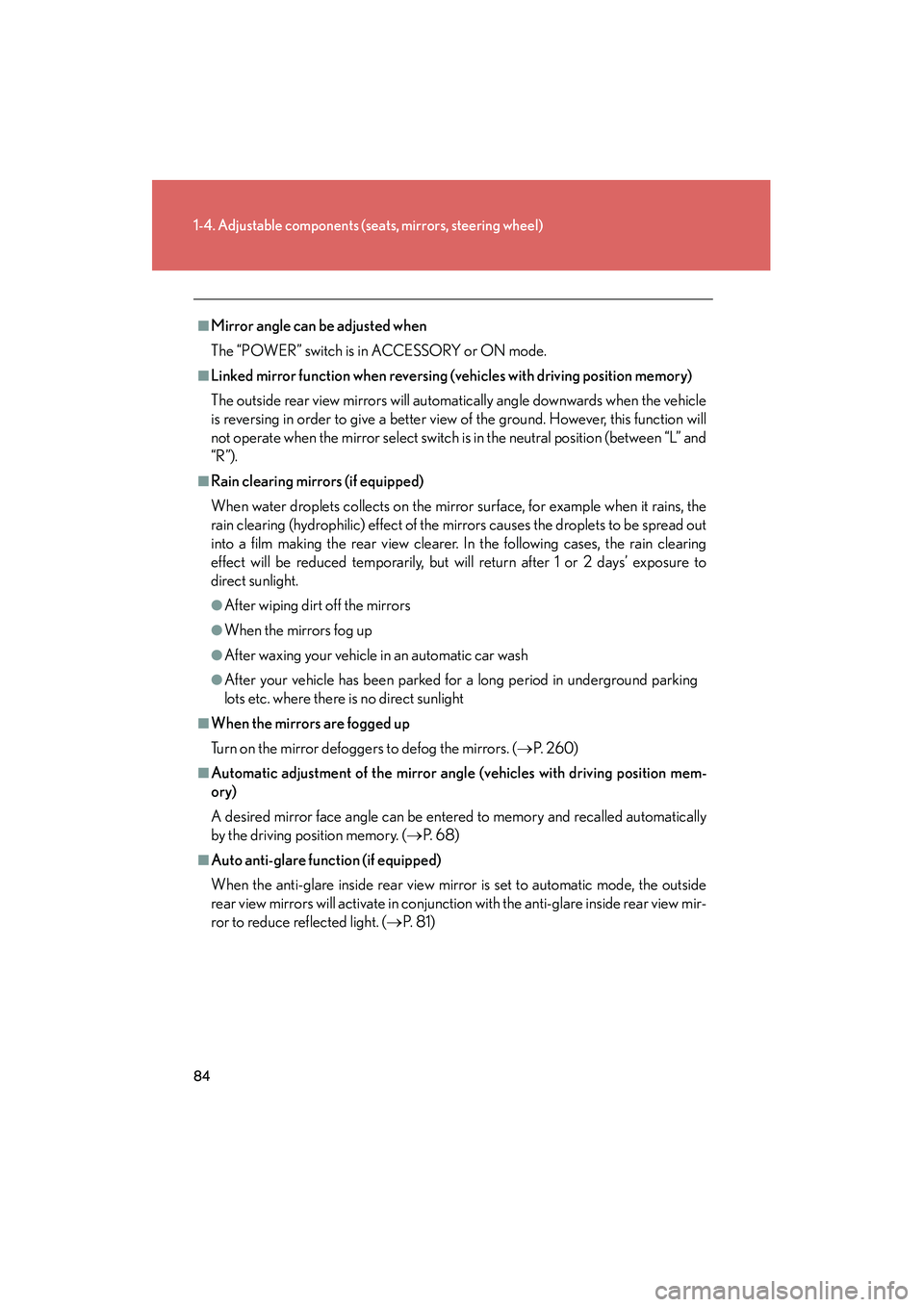

■Mirror angle can be adjusted when
The “POWER” switch is in ACCESSORY or ON mode.
■Linked mirror function when reversing (vehicles with driving position memory)
The outside rear view mirrors will automatically angle downwards when the vehicle
is reversing in order to give a better view of the ground. However, this function will
not operate when the mirror select switch is in the neutral position (between “L” and
“R”).
■Rain clearing mirrors (if equipped)
When water droplets collects on the mirror surface, for example when it rains, the
rain clearing (hydrophilic) effect of the mirrors causes the droplets to be spread out
into a film making the rear view clearer. In the following cases, the rain clearing
effect will be reduced temporarily, but will return after 1 or 2 days’ exposure to
direct sunlight.
●After wiping dirt off the mirrors
●When the mirrors fog up
●After waxing your vehicle in an automatic car wash
●After your vehicle has been parked for a long period in underground parking
lots etc. where there is no direct sunlight
■When the mirrors are fogged up
Turn on the mirror defoggers to defog the mirrors. ( →P. 260)
■Automatic adjustment of the mirror angl e (vehicles with driving position mem-
ory)
A desired mirror face angle can be entered to memory and recalled automatically
by the driving position memory. ( →P. 6 8 )
■Auto anti-glare fu nction (if equipped)
When the anti-glare inside rear view mirror is set to automatic mode, the outside
rear view mirrors will activate in conjunction with the anti-glare inside rear view mir-
ror to reduce reflected light. ( →P. 8 1 )
