64
HS250h_U_75033U(Canada)
1-4. Adjustable components (seats, mirrors, steering wheel)
Front seats
Seat position adjustment switch
Seatback angle adjustment switch
Seat cushion (front) angle adjustment switch
Vertical height adjustment switch
Lumbar support adjustment switch

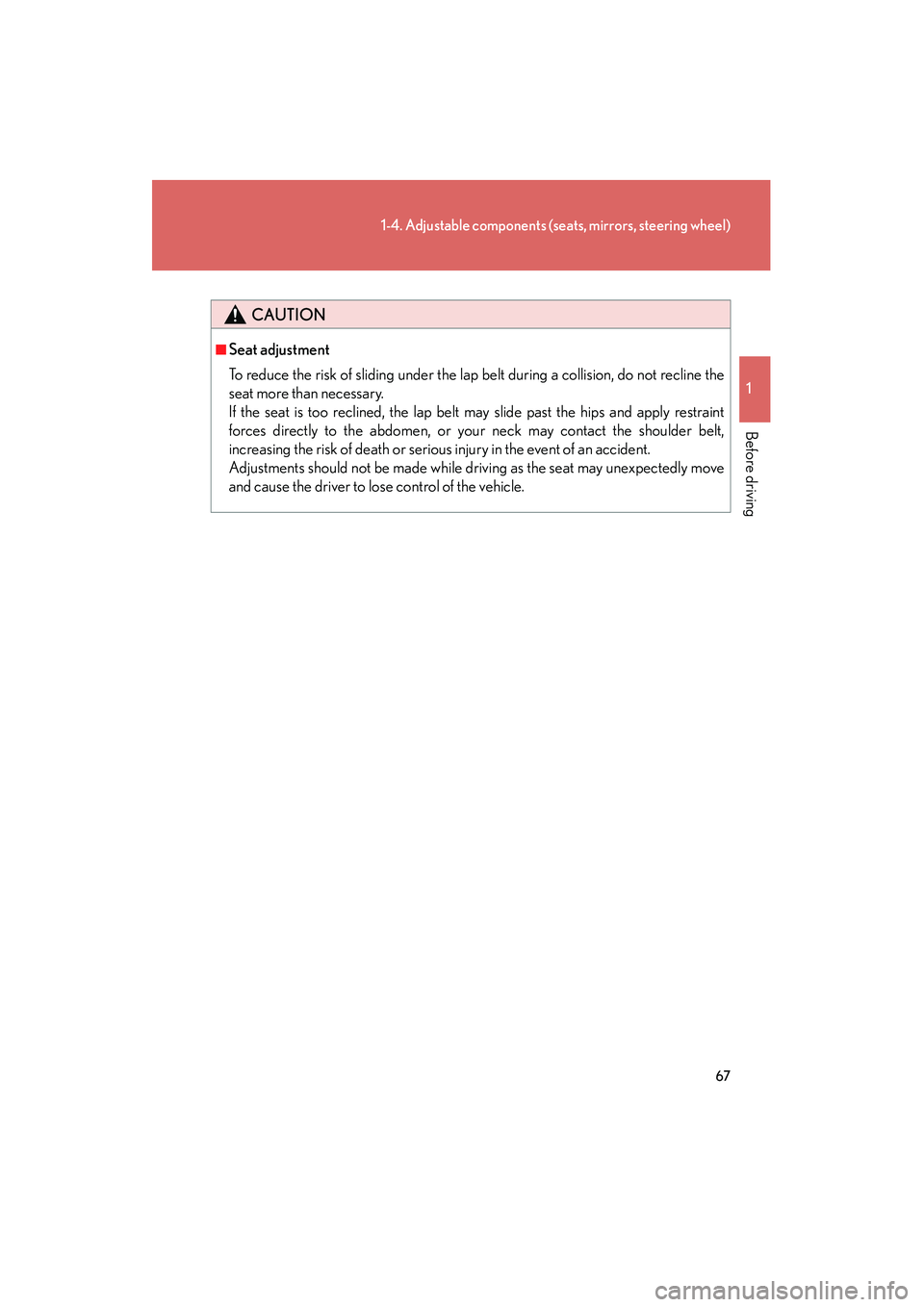

67
1-4. Adjustable components (seats, mirrors, steering wheel)
1
Before driving
HS250h_U_75033U(Canada)
CAUTION
■Seat adjustment
To reduce the risk of sliding under the lap belt during a collision, do not recline the
seat more than necessary.
If the seat is too reclined, the lap belt may slide past the hips and apply restraint
forces directly to the abdomen, or your neck may contact the shoulder belt,
increasing the risk of death or serious injury in the event of an accident.
Adjustments should not be made while driving as the seat may unexpectedly move
and cause the driver to lose control of the vehicle.

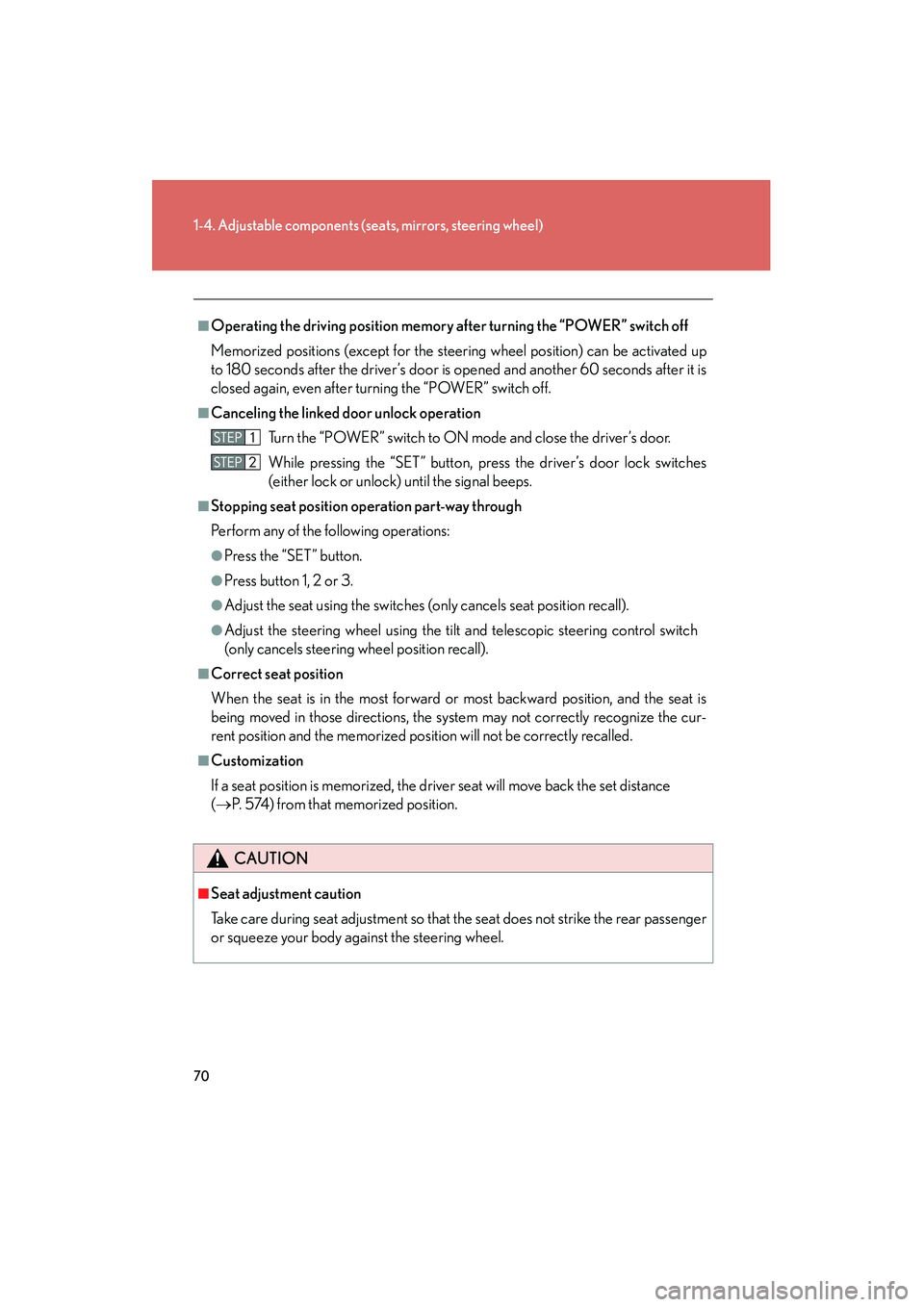

70
1-4. Adjustable components (seats, mirrors, steering wheel)
HS250h_U_75033U(Canada)
■Operating the driving position memory after turning the “POWER” switch off
Memorized positions (except for the steering wheel position) can be activated up
to 180 seconds after the driver’s door is opened and another 60 seconds after it is
closed again, even after turning the “POWER” switch off.
■Canceling the linked door unlock operation
Turn the “POWER” switch to ON mode and close the driver’s door.
While pressing the “SET” button, press the driver’s door lock switches
(either lock or unlock) until the signal beeps.
■Stopping seat position operation part-way through
Perform any of the following operations:
●Press the “SET” button.
●Press button 1, 2 or 3.
●Adjust the seat using the switches (only cancels seat position recall).
●Adjust the steering wheel using the tilt and telescopic steering control switch
(only cancels steering wheel position recall).
■Correct seat position
When the seat is in the most forward or most backward position, and the seat is
being moved in those directions, the system may not correctly recognize the cur-
rent position and the memorized position will not be correctly recalled.
■Customization
If a seat position is memorized, the driver seat will move back the set distance
(→ P. 574) from that memorized position.
CAUTION
■Seat adjustment caution
Take care during seat adjustment so that the seat does not strike the rear passenger
or squeeze your body against the steering wheel.

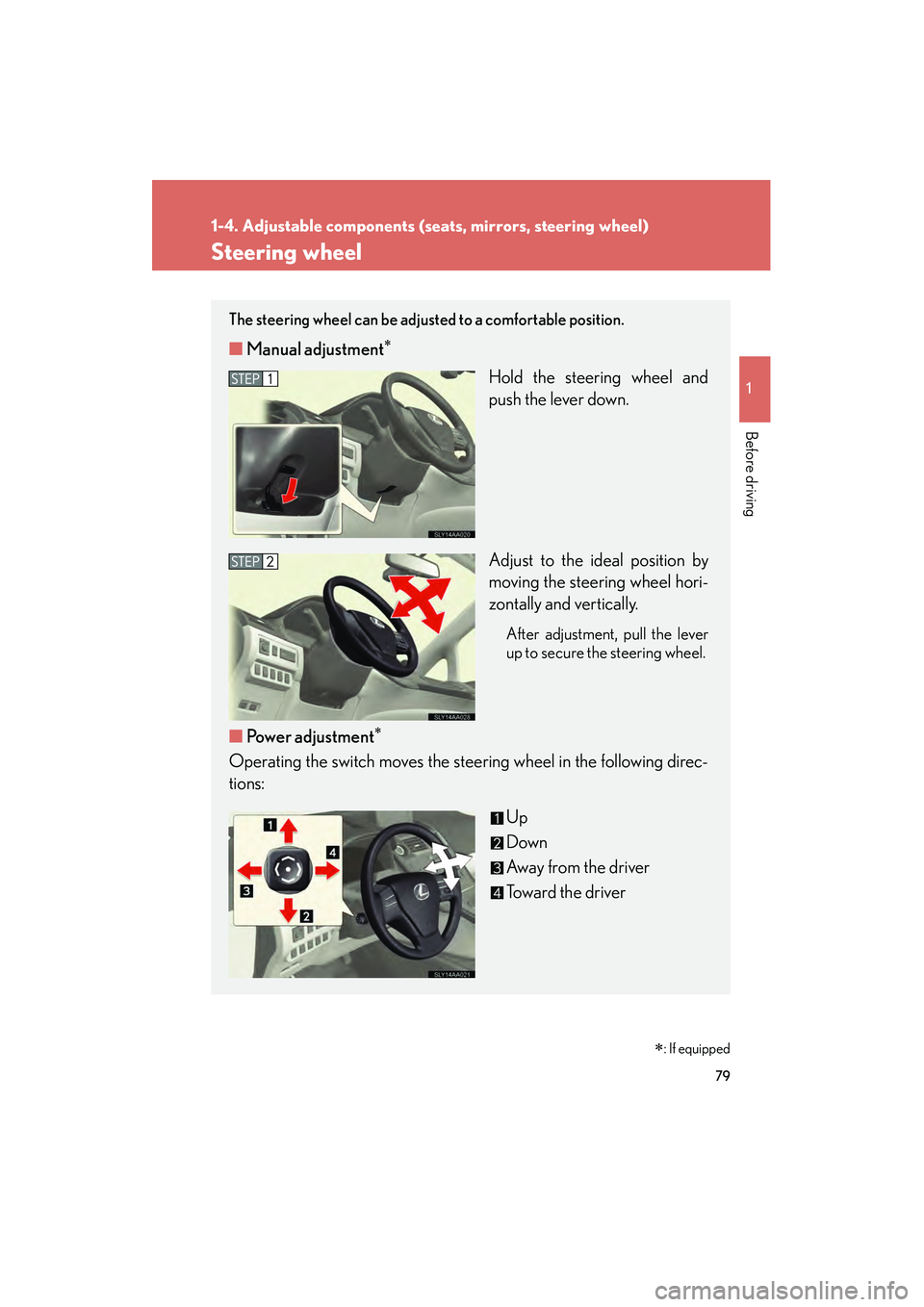

79
1
1-4. Adjustable components (seats, mirrors, steering wheel)
Before driving
HS250h_U_75033U(Canada)
Steering wheel
∗: If equipped
The steering wheel can be adjusted to a comfortable position.
■Manual adjustment∗
Hold the steering wheel and
push the lever down.
Adjust to the ideal position by
moving the steering wheel hori-
zontally and vertically.
After adjustment, pull the lever
up to secure the steering wheel.
■Power adjustment∗
Operating the switch moves the steering wheel in the following direc-
tions:
Up
Down
Away from the driver
Toward the driver

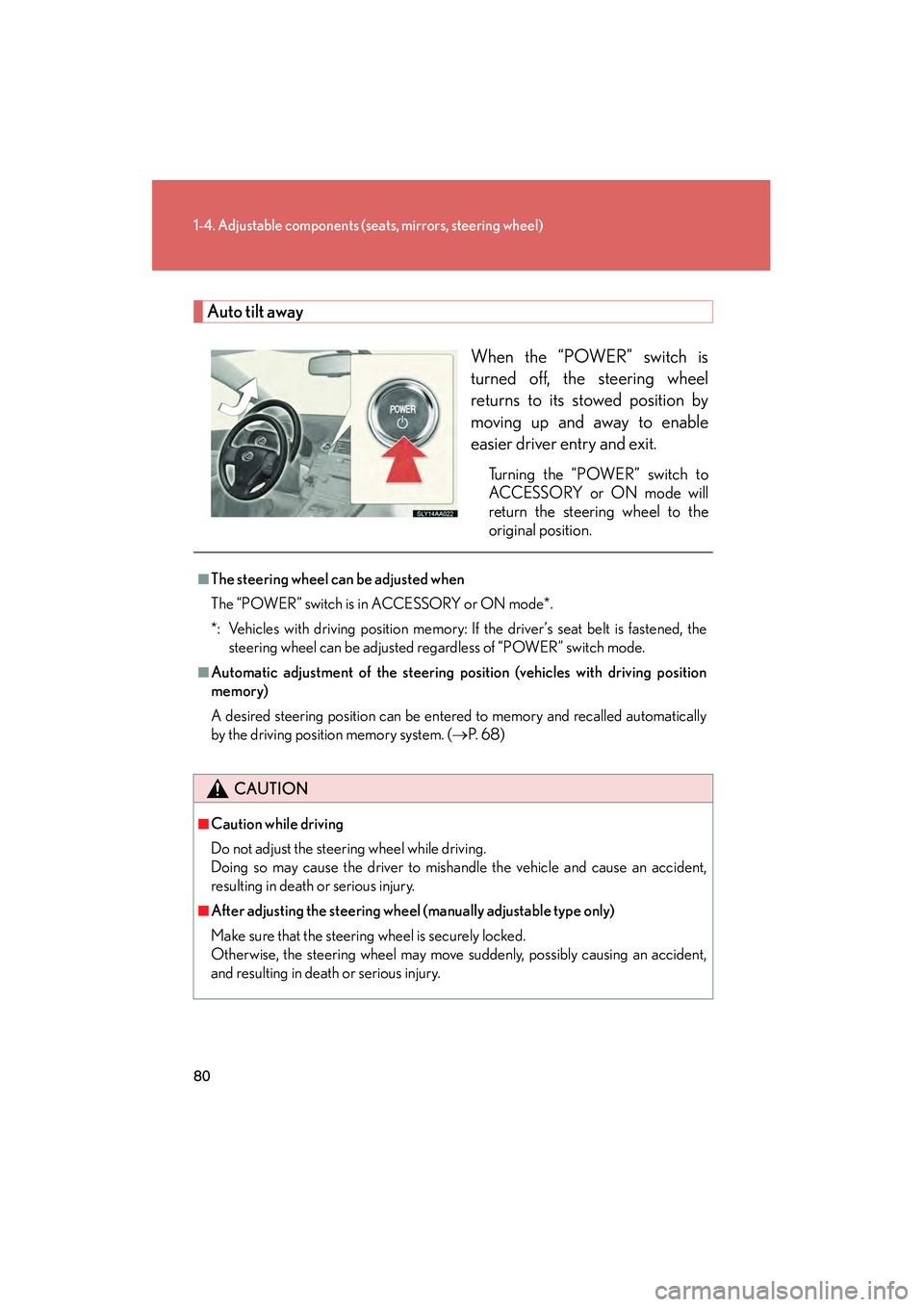

80
1-4. Adjustable components (seats, mirrors, steering wheel)
HS250h_U_75033U(Canada)
Auto tilt away
When the “POWER” switch is
turned off, the steering wheel
returns to its stowed position by
moving up and away to enable
easier driver entry and exit.
Turning the “POWER” switch to
ACCESSORY or ON mode will
return the steering wheel to the
original position.
■The steering wheel can be adjusted when
The “POWER” switch is in ACCESSORY or ON mode*.
*: Vehicles with driving position memory: If the driver’s seat belt is fastened, thesteering wheel can be adjusted regardless of “POWER” switch mode.
■Automatic adjustment of the steering position (vehicles with driving position
memory)
A desired steering position can be entered to memory and recalled automatically
by the driving position memory system. ( →P. 6 8 )
CAUTION
■Caution while driving
Do not adjust the steering wheel while driving.
Doing so may cause the driver to mishandle the vehicle and cause an accident,
resulting in death or serious injury.
■After adjusting the steering wheel (manually adjustable type only)
Make sure that the steering wheel is securely locked.
Otherwise, the steering wheel may move suddenly, possibly causing an accident,
and resulting in death or serious injury.

84
1-4. Adjustable components (seats, mirrors, steering wheel)
HS250h_U_75033U(Canada)
■Mirror angle can be adjusted when
The “POWER” switch is in ACCESSORY or ON mode.
■Linked mirror function when reversing (vehicles with driving position memory)
The outside rear view mirrors will automatically angle downwards when the vehicle
is reversing in order to give a better view of the ground. However, this function will
not operate when the mirror select switch is in the neutral position (between “L” and
“R”).
■Rain clearing mirrors (if equipped)
When water droplets collects on the mirror surface, for example when it rains, the
rain clearing (hydrophilic) effect of the mirrors causes the droplets to be spread out
into a film making the rear view clearer. In the following cases, the rain clearing
effect will be reduced temporarily, but will return after 1 or 2 days’ exposure to
direct sunlight.
●After wiping dirt off the mirrors
●When the mirrors fog up
●After waxing your vehicle in an automatic car wash
●After your vehicle has been parked for a long period in underground parking
lots etc. where there is no direct sunlight
■When the mirrors are fogged up
Turn on the mirror defoggers to defog the mirrors. ( →P. 260)
■Automatic adjustment of the mirror angl e (vehicles with driving position mem-
ory)
A desired mirror face angle can be entered to memory and recalled automatically
by the driving position memory. ( →P. 6 8 )
■Auto anti-glare fu nction (if equipped)
When the anti-glare inside rear view mirror is set to automatic mode, the outside
rear view mirrors will activate in conjunction with the anti-glare inside rear view mir-
ror to reduce reflected light. ( →P. 8 1 )

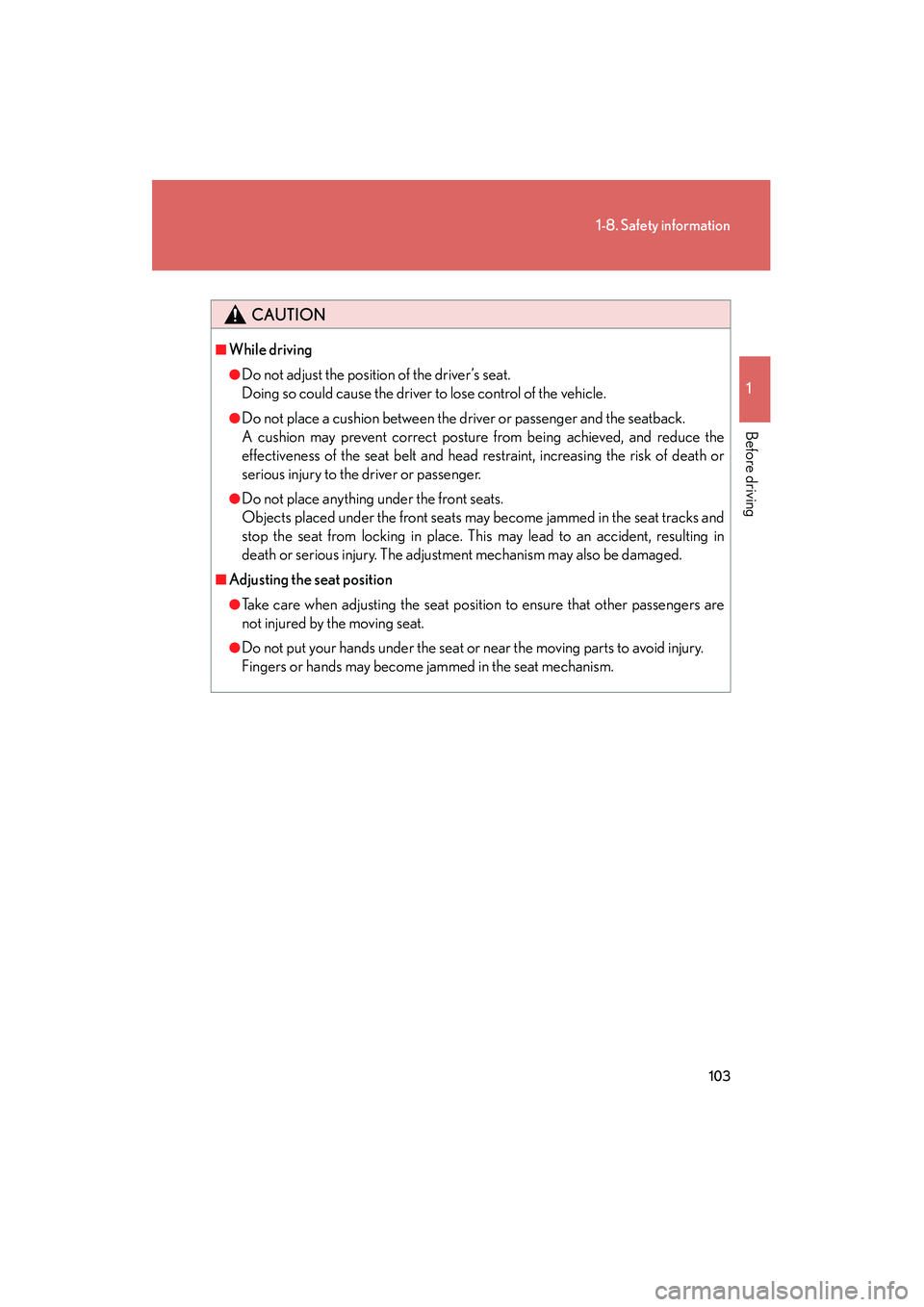

103
1-8. Safety information
1
Before driving
HS250h_U_75033U(Canada)
CAUTION
■While driving
●Do not adjust the position of the driver’s seat.
Doing so could cause the driver to lose control of the vehicle.
●Do not place a cushion between the driver or passenger and the seatback.
A cushion may prevent correct posture from being achieved, and reduce the
effectiveness of the seat belt and head restraint, increasing the risk of death or
serious injury to the driver or passenger.
●Do not place anything under the front seats.
Objects placed under the front seats may become jammed in the seat tracks and
stop the seat from locking in place. This may lead to an accident, resulting in
death or serious injury. The adjustment mechanism may also be damaged.
■Adjusting the seat position
●Take care when adjusting the seat position to ensure that other passengers are
not injured by the moving seat.
●Do not put your hands under the seat or near the moving parts to avoid injury.
Fingers or hands may become jammed in the seat mechanism.

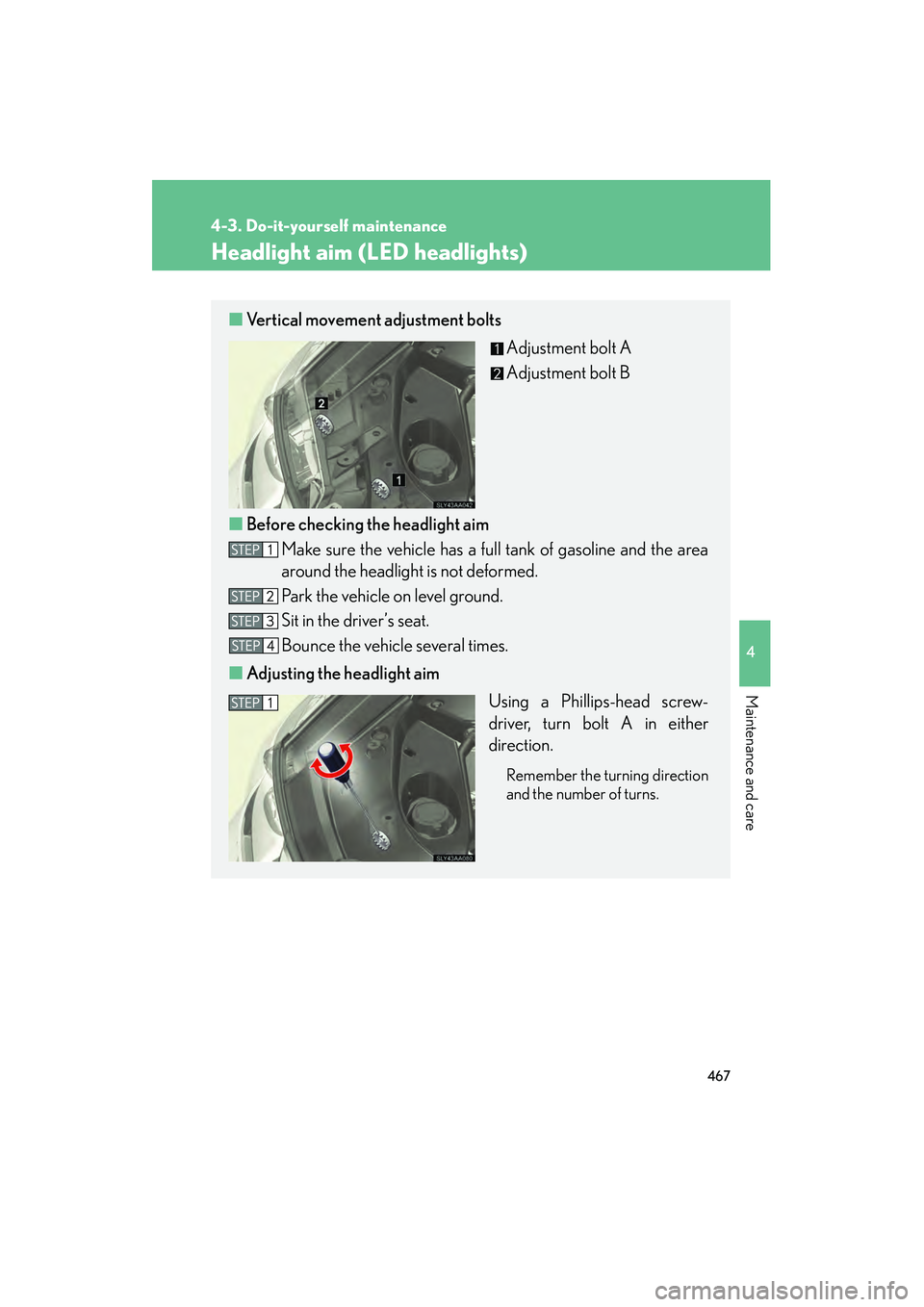

467
4-3. Do-it-yourself maintenance
4
Maintenance and care
HS250h_U_75033U(Canada)
Headlight aim (LED headlights)
■Vertical movement adjustment bolts
Adjustment bolt A
Adjustment bolt B
■ Before checking the headlight aim
Make sure the vehicle has a full tank of gasoline and the area
around the headlight is not deformed.
Park the vehicle on level ground.
Sit in the driver’s seat.
Bounce the vehicle several times.
■ Adjusting the headlight aim
Using a Phillips-head screw-
driver, turn bolt A in either
direction.
Remember the turning direction
and the number of turns.

597
Alphabetical index
HS250h_U_75033U(Canada)
If your vehicle has to be stopped in an emergency............................. 547
If your vehicle needs to be towed ................................................... 483
If your vehicle overheats.................. 541
Emergency flasher
Switch ...................................................... 482
Engine
Accessory mode ................................. 146
Compartment ......................................422
Engine switch ........................................ 145
Hood ......................................................... 419
How to start the engine.................... 145
How to start the hybrid system.................................................... 145
Identification number.......................550
If the engine will not start ...............530
If the hybrid system will not
start........................................................530
Ignition switch........................................ 145
Overheating........................................... 541
Power switch ......................................... 145
Engine compartment cover..............423
Engine coolant Capacity................................................. 554
Checking ............................................... 428
Preparing and checking before winter.....................................244
Engine/power control unit coolant Capacity................................................. 554
Checking ............................................... 428
Preparing and checking
before winter.....................................244
Engine immobilizer system ..................96 Engine oil
Capacity .................................................552
Checking ............................................... 424
Preparing and checking
before winter .................................... 244
Engine oil maintenance data............ 426
Engine switch .......................................... 145
Enhanced VSC...................................... 225
EPS ............................................................. 225
EV drive mode switch.......................... 150
Event data recorder ............................490
Floor mat ................................................. 380
Fluid
Brake ....................................................... 556
Washer ................................................... 432
Fog lights Replacing light bulbs ....................... 469
Switch........................................................ 194
Wattage................................................. 558
Foot light...................................................360
Foot well lighting ...................................360
Front fog lights Replacing light bulbs ....................... 469
Switch........................................................ 194
Wattage................................................. 558
Front passenger occupant classification system ............................ 116
Front passenger's seat belt reminder light......................................495
Front seats Adjustment ............................................... 64
Driver’s seat position memory .......68
F
*: Refer to “Navigation System Owner’s Manual”.

598
Alphabetical index
HS250h_U_75033U(Canada)
Front side marker lightReplacing light bulbs........................ 469
Wattage................................................. 558
Front turn signal lights
Replacing light bulbs........................ 469
Switch ....................................................... 159
Wattage................................................. 558
Fuel
Capacity................................................. 552
Fuel gauge .............................................. 162
Gas station information................. 608
Information............................................559
Refueling ................................................... 92
Type..........................................................559
Fuel door ..................................................... 92
Fuel filler door ........................................... 92
Fuses ..........................................................455
Garage door opener ......................... 383
Gas station information..................... 608
Gauges ...................................................... 162
Glove box ................................................364
Grocery bag hooks .............................. 381
Hands-free system (for cellular phone) ...........................328
Head restraints Adjustment ............................................... 71
Headlights aim ....................................... 467
Headlights cleaner .............................. 200
Headlights Adaptive front lighting
system ................................................... 185
Discharge headlights
precautions ...................................... 480
Replacing light bulbs........................ 469 Switch ........................................................ 183
Wattage .................................................558
Heaters Seat heaters ..........................................375
Side mirrors.......................................... 260
Hill-start assist control ........................ 230
Hood ............................................................419
Hooks
Grocery bag ......................................... 381
Horn .............................................................. 161
Hybrid system Emergency shut off system ..............28
Energy monitor/consumption ........................................ 32
Engine switch ........................................ 145
High voltage components................ 27
Hybrid system indicators ................ 165
Ignition switch ....................................... 145
Power switch ......................................... 145
I/M test .......................................................415
Identification Electric motor .......................................551
Engine ....................................................... 551
Vehicle....................................................550
Ignition switch ..........................................145
Illuminated entry system ....................360
Immobilizer system................................. 96
Indicator lights .........................................165
Initialization
Items to initialize.................................586
Inside rear view mirror ............................81
Instrument panel light control ...........163
Interior lights
Interior lights ........................................ 360
Switch ........................................................ 361
G
H
I
