131
1-8. Safety information
1
Before driving
Fully extend the shoulder belt and
then allow it to retract slightly in
order to activate the ALR lock
mode.
Lock mode allows the seat belt to
retract only.
While pushing the child restraint
system down into the rear seat,
allow the shoulder belt to retract
until the child restraint system is
securely in place.
After the shoulder belt has
retracted to a point where there is
no slack in the belt, pull the belt to
check that it cannot be extended.
■Forward-facing Convertible seat
Remove the head restraint.
Place the child restraint system on
the seat facing the front of the vehi-
cle.

132
1-8. Safety information
Run the seat belt through the child
restraint system and insert the
plate into the buckle. Make sure
that the belt is not twisted.
Fully extend the shoulder belt and
then allow it to retract slightly in
order to activate the ALR lock
mode.
Lock mode allows the seat belt to
retract only.
While pushing the child restraint
system into the rear seat, allow the
shoulder belt to retract until the
child restraint system is securely in
place.
After the shoulder belt has
retracted to a point where there is
no slack in the belt, pull the belt to
check that it cannot be extended.
If the child restraint has a top tether strap, the top tether strap
should be latched onto the top tether strap anchor. ( P. 1 3 4 )

133
1-8. Safety information
1
Before driving
■Booster seat
Place the booster seat on the seat
facing the front of the vehicle.
Sit the child in the booster seat. Fit
the seat belt to the booster seat
according to the manufacturer’s
instructions and insert the plate
into the buckle. Make sure that the
belt is not twisted.
Check that the shoulder belt is cor-
rectly positioned over the child’s
shoulder and that the lap belt is as
low as possible. (
P. 74)
Removing a child restraint installed with a seat belt
Press the buckle release button
and fully retract the seat belt.

134
1-8. Safety information
Child restraint systems with a top tether strapSecure the child restraint system
using the seat belt or the LATCH
anchors, and remove the head
restraint.
Open the anchor bracket cover,
latch the hook onto the anchor
bracket and tighten the top tether
strap.
Make sure the top tether strap is
securely latched.
■Laws and regulations pertaining to anchors
The LATCH system conforms to FMVSS225 or CMVSS210.2.
Child restraint systems conforming to FMVSS213 or CMVSS213 specifications
can be used.
This vehicle is designed to conform to the SAE J1819.

135
1-8. Safety information
1
Before driving
CAUTION
■When installing a booster seat
To prevent the belt from going into ALR lock mode, do not fully extend the shoulder
belt. ALR mode causes the belt to tighten only. This could cause injury or discom-
fort to the child. ( P. 76 )
■When installing a child restraint system
Follow the directions given in the child re straint system installation manual and fix
the child restraint system securely in place.
If the child restraint system is not correctl y fixed in place, the child or other passen-
gers may be seriously injured or even killed in the event of sudden braking, sudden
swerving or an accident.
●If the driver’s seat interferes with the child
restraint system and prevents it from being
attached correctly, attach the child restraint
system to the right-hand rear seat.
●Adjust the front passen ger seat so that it
does not interfere with the child restraint
system.
●Only put a forward-facing child restraint
system on the front seat when unavoidable.
When installing a forward-facing child
restraint system on the front passenger
seat, move the seat as far back as possible
even if the “AIR BAG OFF” indicator light is
illuminated. Failure to do so may result in
death or serious injury if the airbags deploy
(inflate).

136
1-8. Safety information
CAUTION
■When installing a child restraint system
●When a booster seat is installed, always ensure that the shoulder belt is posi-
tioned across the center of the child’s shoulder. The belt should be kept away from
the child’s neck, but not so that it could fall off the child’s shoulder. Failing to do so
may result in death or serious injury in the event of sudden braking, sudden
swerving or an accident.
●Ensure that the belt and plate are securely locked and the seat belt is not twisted.
●Push and pull the child restraint system from side to side and forward to be sure it
is secure.
●After securing a child restraint system, never adjust the seat.
●Follow all installation instructions provided by the child restraint system manufac-
turer.
■Do not use a seat belt extender
If a seat belt extender is used when inst alling a child restraint system, the seat belt
will not securely hold the child restraint system, which could cause death or serious
injury to the child or other passengers in the event of sudden braking, sudden
swerving or an accident.
■To correctly attach a child restraint system to the anchors
When using the LATCH anchors, be sure that there are no foreign objects around
the anchors and that the seat belt is not caught behind the child restraint. Make sure
the child restraint system is securely at tached, or it may cause death or serious
injury to the child or other passengers in the event of a sudden stop, sudden swerve
or accident.

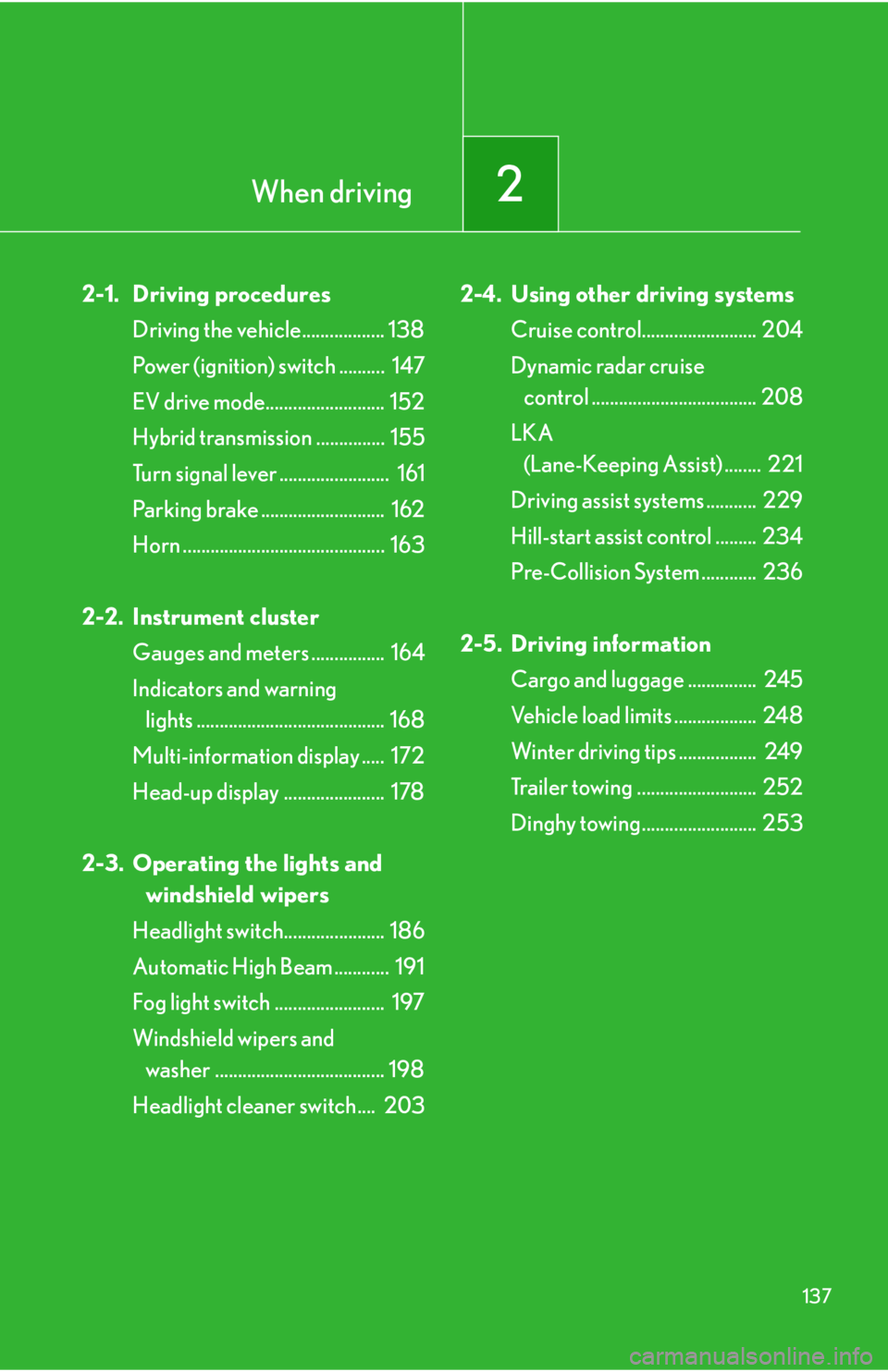

When driving2
137
2-1. Driving proceduresDriving the vehicle.................. 138
Power (ignition) switch .......... 147
EV drive mode.......................... 152
Hybrid transmission ............... 155
Turn signal lever ........................ 161
Parking brake ........................... 162
Horn ............................................ 163
2-2. Instrument cluster Gauges and meters ................ 164
Indicators and warning lights ......................................... 168
Multi-information display ..... 172
Head-up display ...................... 178
2-3. Operating the lights and windshield wipers
Headlight switch...................... 186
Automatic High Beam ............ 191
Fog light switch ........................ 197
Windshield wipers and washer ..................................... 198
Headlight cleaner switch.... 203 2-4. Using other driving systems
Cruise control......................... 204
Dynamic radar cruise control .................................... 208
LKA (Lane-Keeping Assist) ........ 221
Driving assist systems ........... 229
Hill-start assist control ......... 234
Pre-Collision System ............ 236
2-5. Driving information Cargo and luggage ............... 245
Vehicle load limits .................. 248
Winter driving tips ................. 249
Trailer towing .......................... 252
Dinghy towing ......................... 253

138

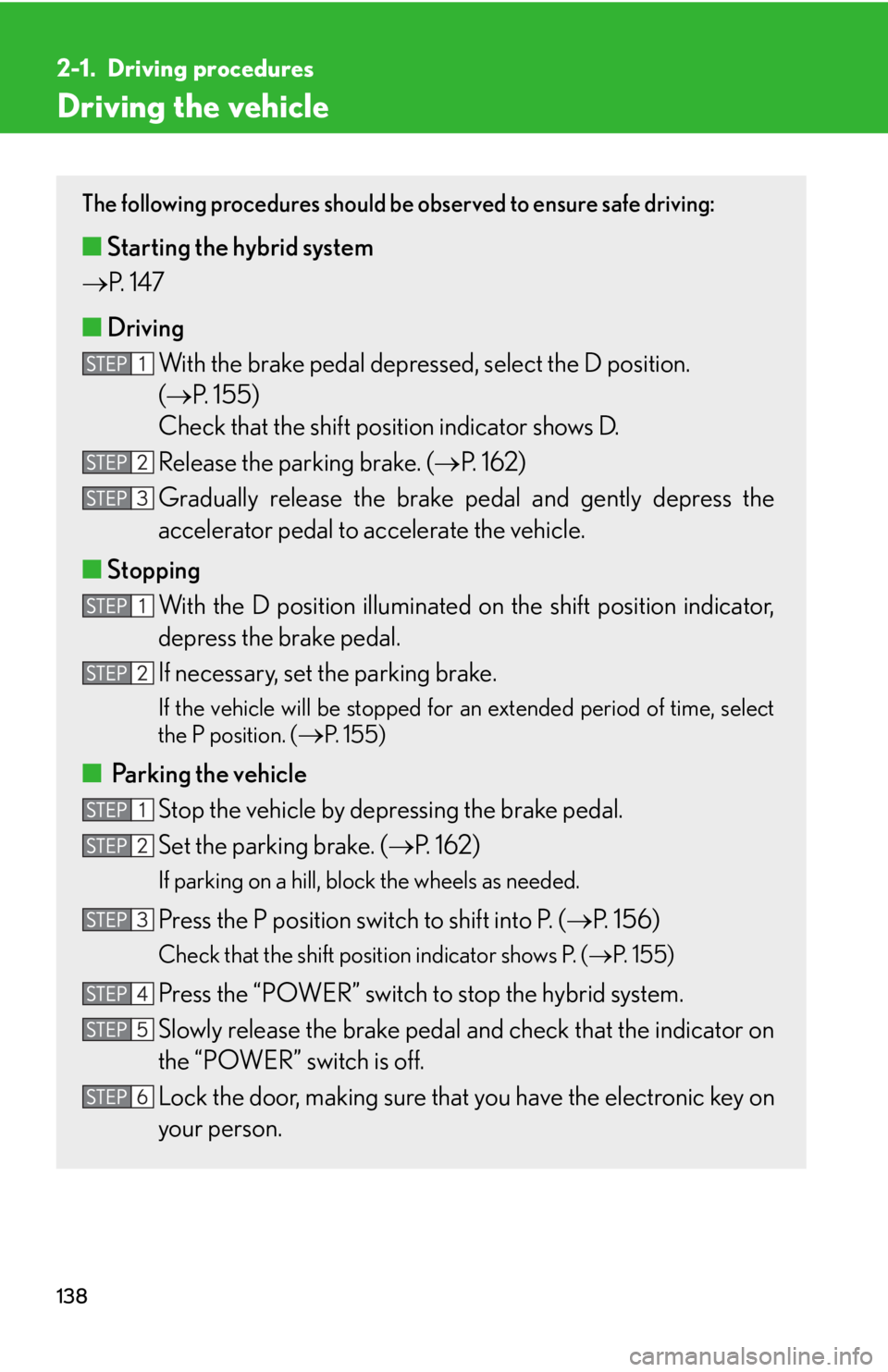

2-1. Driving procedures
Driving the vehicle
The following procedures should be observed to ensure safe driving:
■Starting the hybrid system
 P. 1 4 7
■ Driving
With the brake pedal depressed, select the D position.
(P. 155)
Check that the shift position indicator shows D.
Release the parking brake. ( P. 162)
Gradually release the brake pedal and gently depress the
accelerator pedal to accelerate the vehicle.
■ Stopping
With the D position illuminated on the shift position indicator,
depress the brake pedal.
If necessary, set the parking brake.
If the vehicle will be stopped for an extended period of time, select
the P position. (
P. 1 5 5 )
■ Parking the vehicleStop the vehicle by depressing the brake pedal.
Set the parking brake. ( P. 162)
If parking on a hill, block the wheels as needed.
Press the P position switch to shift into P. ( P. 1 5 6 )
Check that the shift position indicator shows P. ( P. 1 5 5 )
Press the “POWER” switch to stop the hybrid system.
Slowly release the brake pedal and check that the indicator on
the “POWER” switch is off.
Lock the door, making sure that you have the electronic key on
your person.

139
2-1. Driving procedures
2
When driving
Starting off on a steep uphillMake sure that the pa rking brake is set secu rely, and then select
shift position D.
Check that the shift position indicator shows D.
Gently depress the accelerator pedal.
Release the parking brake.
■Driving in the rain
●Drive carefully when it is raining, becaus e visibility will be reduced, the windows
may become fogged-up, and the road will be slippery.
●Drive carefully when it starts to rain, be cause the road surface will be especially
slippery.
●Refrain from high speeds when driving on an expressway in the rain, because
there may be a layer of water between th e tires and the road surface, preventing
the steering and brakes from operating properly.
■Breaking in your new Lexus
To extend the life of the vehicle, observing the following precautions is recom-
mended:
●For the first 186 miles (300 km):
Avoid sudden stops.
●For the first 994 miles (1600 km):
• Do not drive at extremely high speeds.
• Avoid sudden acceleration.
• Do not drive at a constant speed for extended periods.
■Drum-in-disc type parking brake system
Your vehicle has a drum-in-disc type parking brake system. This type of brake sys-
tem needs bedding-down of the brake shoes periodically or whenever the parking
brake shoes and/or drum are replaced. Have your Lexus dealer perform the bed-
ding down operation.

140
2-1. Driving procedures
■Operating your vehicle in a foreign country
Comply with the relevant vehicle registration laws and confirm the availability of the
correct fuel. (P. 5 5 8 )
■For efficient use
●Select the D position when driving.
In the N position, the gasoline engine op erates but electricity cannot be gener-
ated. The hybrid battery (traction battery) will discharge, requiring unnecessary
engine power to recharge.
●Drive your vehicle smoothly.
Avoid abrupt acceleration and deceleration. Gradual acceleration and decel-
eration will make more effective use of the electric motor (traction motor) with-
out having to use gasoline engine power.
●Avoid repeated acceleration.
Repeated acceleration consumes hybrid battery (traction battery) power,
resulting in poor acceleration. Battery power can be restored by driving with
the accelerator pedal slightly released.
●Select the P position when parking.
In the N position, the hybrid battery (traction battery) does not recharge.
Leaving the N position selected for an extended period of time may discharge
the hybrid battery. The vehicle cannot ru n if the hybrid battery is discharged.
■Eco-friendly driving
■Customization
Settings for Eco Driving Indicator Light can be changed.
(Customizable features P. 5 8 0 )
During Eco-friendly acceleration (Eco driv-
ing), Eco Driving Indicator Light will turn on.
When the accelerator pedal is depressed
excessively, and when the vehicle is stopped,
the light turns off.
Eco Driving Indicator Li ght will operate when
the vehicle is being driven with the shift posi-
tion in D at a speed of about 80 mph (130
km/h) or below. The indicator will not operate
when the vehicle is in power mode or EV
drive mode. ( P. 1 5 2 ,
157)
