81
1-4. Adjustable components (seats, mirrors, steering wheel)
1
Before driving
Auto tilt awayWhen the “POWER” switch is
turned off, the steering wheel
returns to its stowed position by
moving up and away to enable
easier driver entry and exit.
Turning the “POWER” switch to
ACCESSORY or ON mode will
return the steering wheel to the
original position.
■The steering wheel can be adjusted when
The “POWER” switch is in ACCESSORY or ON mode*.
*: Vehicles with driving position memory: If the driver’s seat belt is fastened, the
steering wheel can be adjusted rega rdless of “POWER” switch mode.
■Automatic adjustment of the steering position (vehicles with driving position
memory)
A desired steering position can be ente red to memory and recalled automatically
by the driving position memory system. ( P. 6 9 )
CAUTION
■Caution while driving
Do not adjust the steering wheel while driving.
Doing so may cause the driver to mishandle the vehicle and cause an accident,
resulting in death or serious injury.
■After adjusting the steering wheel (manually adjustable type only)
Make sure that the steering wheel is securely locked.
Otherwise, the steering wheel may move suddenly, possibly causing an accident,
and resulting in death or serious injury.

82
1-4. Adjustable components (seats, mirrors, steering wheel)

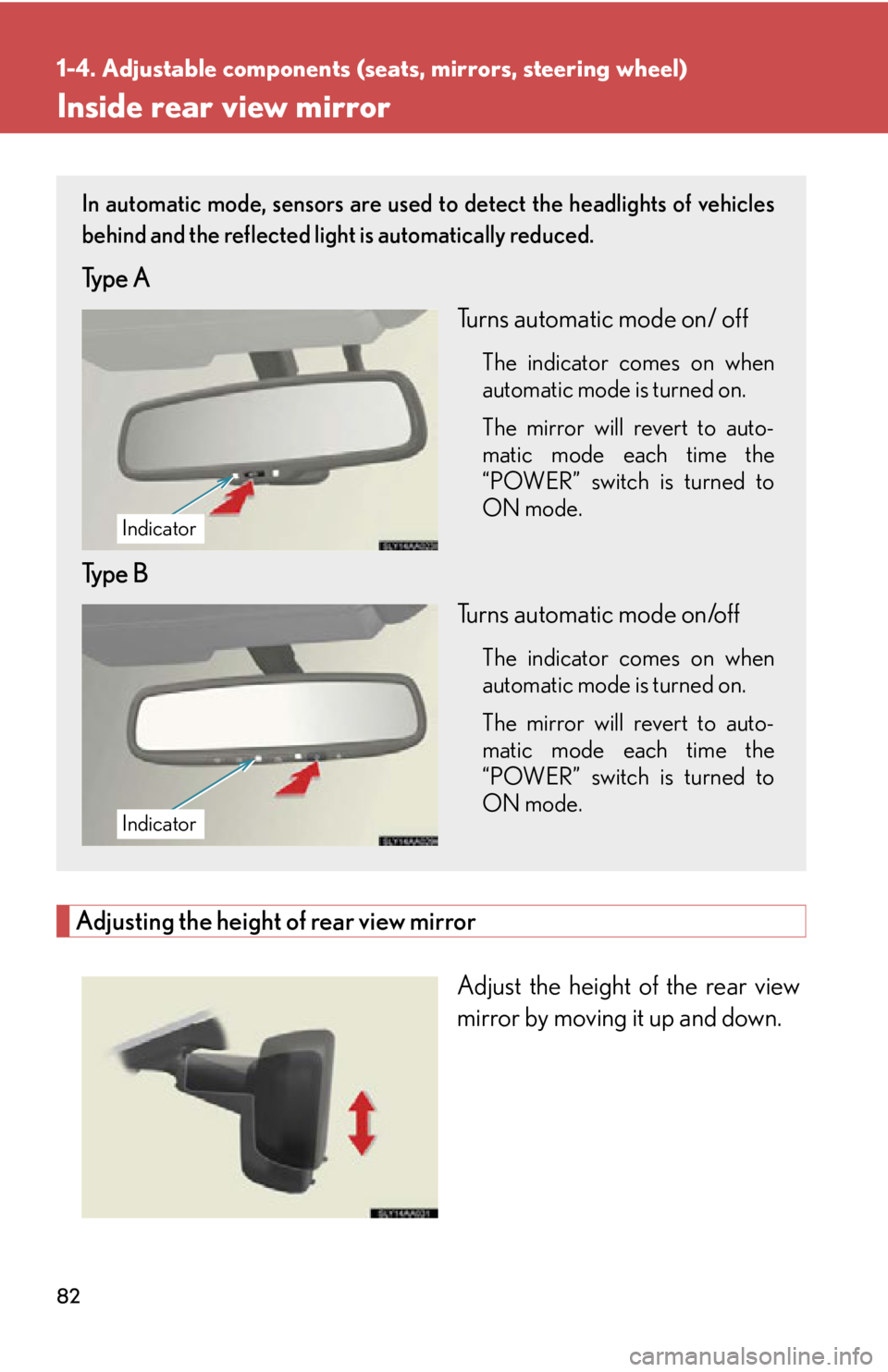

Inside rear view mirror
Adjusting the height of rear view mirror
Adjust the height of the rear view
mirror by moving it up and down.
In automatic mode, sensors are used to detect the headlights of vehicles
behind and the reflected light is automatically reduced.
Type A
Turns automatic mode on/ off
The indicator comes on when
automatic mode is turned on.
The mirror will revert to auto-
matic mode each time the
“POWER” switch is turned to
ON mode.
Type BTurns automatic mode on/off
The indicator comes on when
automatic mode is turned on.
The mirror will revert to auto-
matic mode each time the
“POWER” switch is turned to
ON mode.
Indicator
Indicator

83
1-4. Adjustable components (seats, mirrors, steering wheel)
1
Before driving
■To prevent sensor error
Ty p e A
Ty p e B
CAUTION
■Caution while driving
Do not adjust the position of the mirror while driving.
Doing so may lead to mishandling of the vehicle and cause an accident, resulting in
death or serious injury.
To ensure that the sensors operate properly,
do not touch or cover them.
To ensure that the sensors operate properly,
do not touch or cover them.

84
1-4. Adjustable components (seats, mirrors, steering wheel)

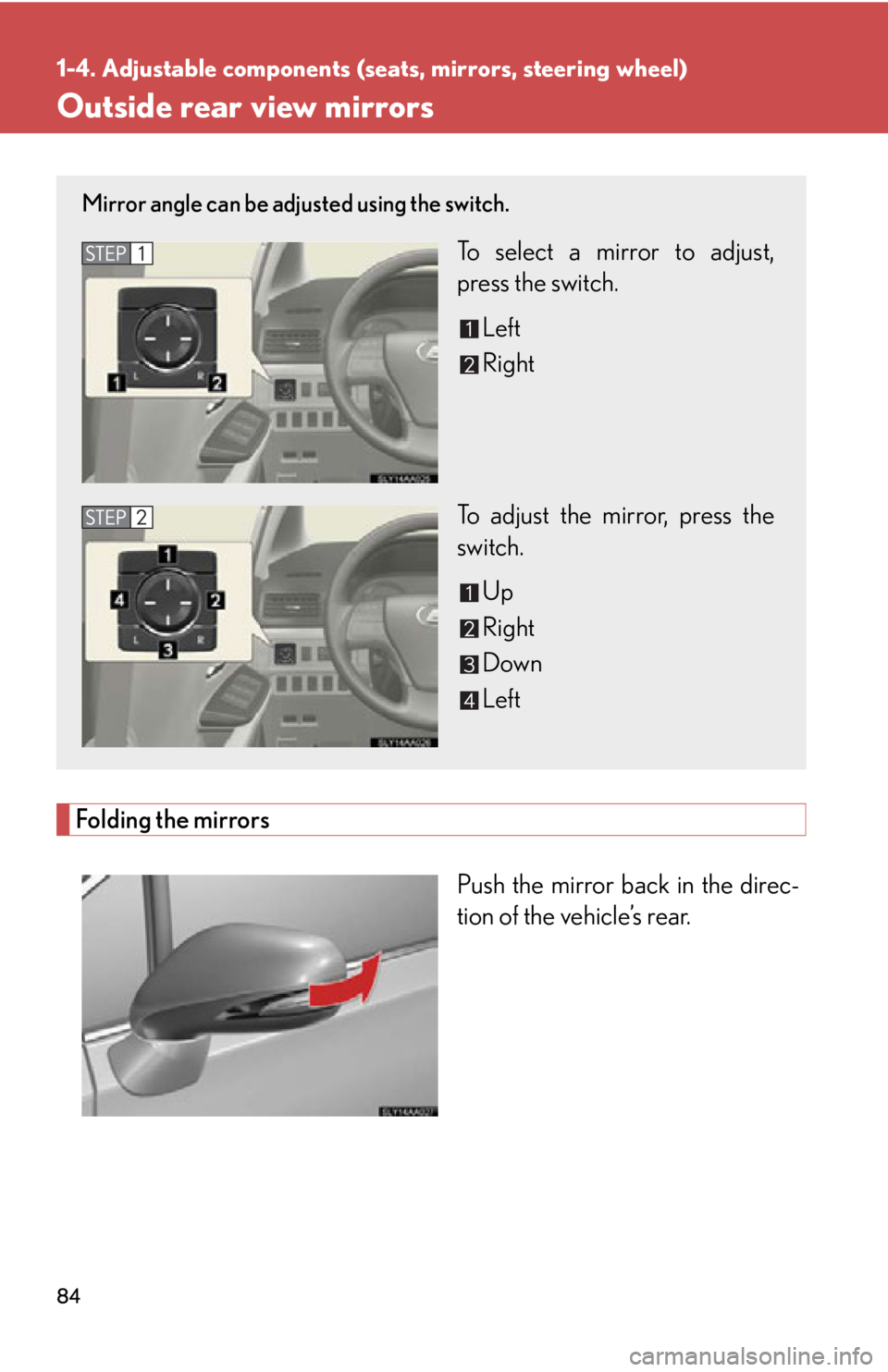

Outside rear view mirrors
Folding the mirrors
Push the mirror back in the direc-
tion of the vehicle’s rear.
Mirror angle can be adjusted using the switch.
To select a mirror to adjust,
press the switch.Left
Right
To adjust the mirror, press the
switch. Up
Right
Down
Left

85
1-4. Adjustable components (seats, mirrors, steering wheel)
1
Before driving
■Mirror angle can be adjusted when
The “POWER” switch is in ACCESSORY or ON mode.
■Linked mirror function when reversing (vehicles with driving position memory)
The outside rear view mirrors will automatically angle downwards when the vehicle
is reversing in order to give a better view of the ground. However, this function will
not operate when the mirror select switch is in the neutral position (between “L” and
“R”).
■Rain clearing mirrors (if equipped)
When water droplets collects on the mirror surface, for example when it rains, the
rain clearing (hydrophilic) effect of the mirrors causes the droplets to be spread out
into a film making the rear view clearer. In the following cases, the rain clearing
effect will be reduced temporarily, but wi ll return after 1 or 2 days’ exposure to
direct sunlight.
●After wiping dirt off the mirrors
●When the mirrors fog up
●After waxing your vehicle in an automatic car wash
●After your vehicle has been parked for a long period in underground parking
lots etc. where there is no direct sunlight
■When the mirrors are fogged up
Turn on the mirror defoggers to defog the mirrors. ( P. 2 6 4 )
■Automatic adjustment of the mirror angl e (vehicles with driving position mem-
ory)
A desired mirror face angle can be entered to memory and recalled automatically
by the driving position memory. ( P. 6 9 )
■Auto anti-glare function (if equipped)
When the anti-glare inside rear view mirr or is set to automatic mode, the outside
rear view mirrors will activate in conjunction with the anti-glare inside rear view mir-
ror to reduce reflected light. ( P. 8 2 )

86
1-4. Adjustable components (seats, mirrors, steering wheel)
CAUTION
■When driving the vehicle
Observe the following precautions while driving.
Failing to do so may result in loss of control of the vehicle and cause an accident,
resulting in death or serious injury.
●Do not adjust the mirrors while driving.
●Do not drive with the mirrors folded.
●Both the driver and passenger side mirrors must be extended and properly
adjusted before driving.
■When a mirror is moving
To avoid personal injury and mirror malfunction, be careful not to get your hand
caught by the moving mirror.
■When the mirror defoggers are operating
Do not touch the rear view mirror surfac es, as they can become very hot and burn
you.
NOTICE
■If the mirrors become iced up (if equipped)
In order to retain the rain-clearing properties of the mirror, do not attempt to scrape
the ice off. Instead, remove it by turnin g on the mirror defoggers or by applying
warm water.

87
1
Before driving
1-5. Opening and closing the windows and moon roof
Power windows
Window lock switchPress the switch down to lock the
passenger window switches.
The indicator will come on.
Use this switch to prevent children
from accidentally opening or clos-
ing a passenger window.
The passenger windows can still be
opened and closed using the
power window switches on the
driver’s side even if the lock switch
is on.
The power windows can be opened and closed using the switches.
Operating the switch moves the windows as follows:
Closing
One-touch closing
*
Opening
One-touch opening
*
*: Pushing the switch in the oppo- site direction will stop window
travel partway.
Indicator

88
1-5. Opening and closing the windows and moon roof
■The power windows can be operated when
The “POWER” switch is in ON mode.
■Operating the power windows after turning the hybrid system off
The power windows can be operated for approximately 43 seconds even after the
“POWER” switch is turned to ACCESSORY mode or turned off. They cannot,
however, be operated once either front door is opened.
■Jam protection function
If an object becomes caught between the window and the window frame, window
travel is stopped and the window is opened slightly.
■When the power window does not close normally
If the jam protection function is oper ating abnormally and a window cannot be
closed, perform the following operations using the power window switch on the rel-
evant door.
●After stopping the vehicle, the window can be closed by holding the power win-
dow switch in the one-touch closing position while the “POWER” switch is
turned to ON mode.
●If the window still cannot be closed even by carrying out the operation
explained above, initialize the function by performing the following procedure.
Hold the power window switch in the one-touch closing position. Con-
tinue holding the switch for a further 6 seconds after the window has
closed.
Hold the power window switch in the one-touch opening position. Con-
tinue holding the switch for a further 2 seconds after the window has
opened completely.
Hold the power window switch in the one-touch closing position once
again. Continue holding the switch for a further 2 seconds after the win-
dow has closed.
If you release the switch while the window is moving, start again from the beginning.
If the window continues to close but then re-open slightly even after performing the
above procedure correctly, have the vehicle inspected by your Lexus dealer.

89
1-5. Opening and closing the windows and moon roof
1
Before driving
■Door lock linked window operation
●The power windows can be opened and closed using the mechanical key. *
( P. 5 4 0 )
●The power windows can be opened using the wireless remote control. *
( P. 5 5 )
*: This setting must be cust omized at your Lexus dealer.
■When the 12-volt battery is disconnected
The window lock switch is disabled. If necessary, press the window lock switch after
reconnecting the battery.
■Customization
Settings (e.g. linked door lock operation) can be changed.
(Customizable features  P. 5 8 0 )
CAUTION
■Closing the windows
Observe the following precautions.
Failing to do so may result in death or serious injury.
●Check to make sure that all passengers do not have any part of their body in a
position where it could be caught when a window is being operated.
●Do not allow children to operate the power windows.
Closing a power window on someone can cause serious injury, and in some
instances, even death.
●To prevent inadvertent power windows operation, never let a small child have and
use the wireless remote control. ( P. 5 5 )
■Jam protection function
●Never use any part of your body to intent ionally activate the jam protection func-
tion.
●The jam protection function may not work if something gets caught just before
the window fully closes.

90
1-5. Opening and closing the windows and moon roof

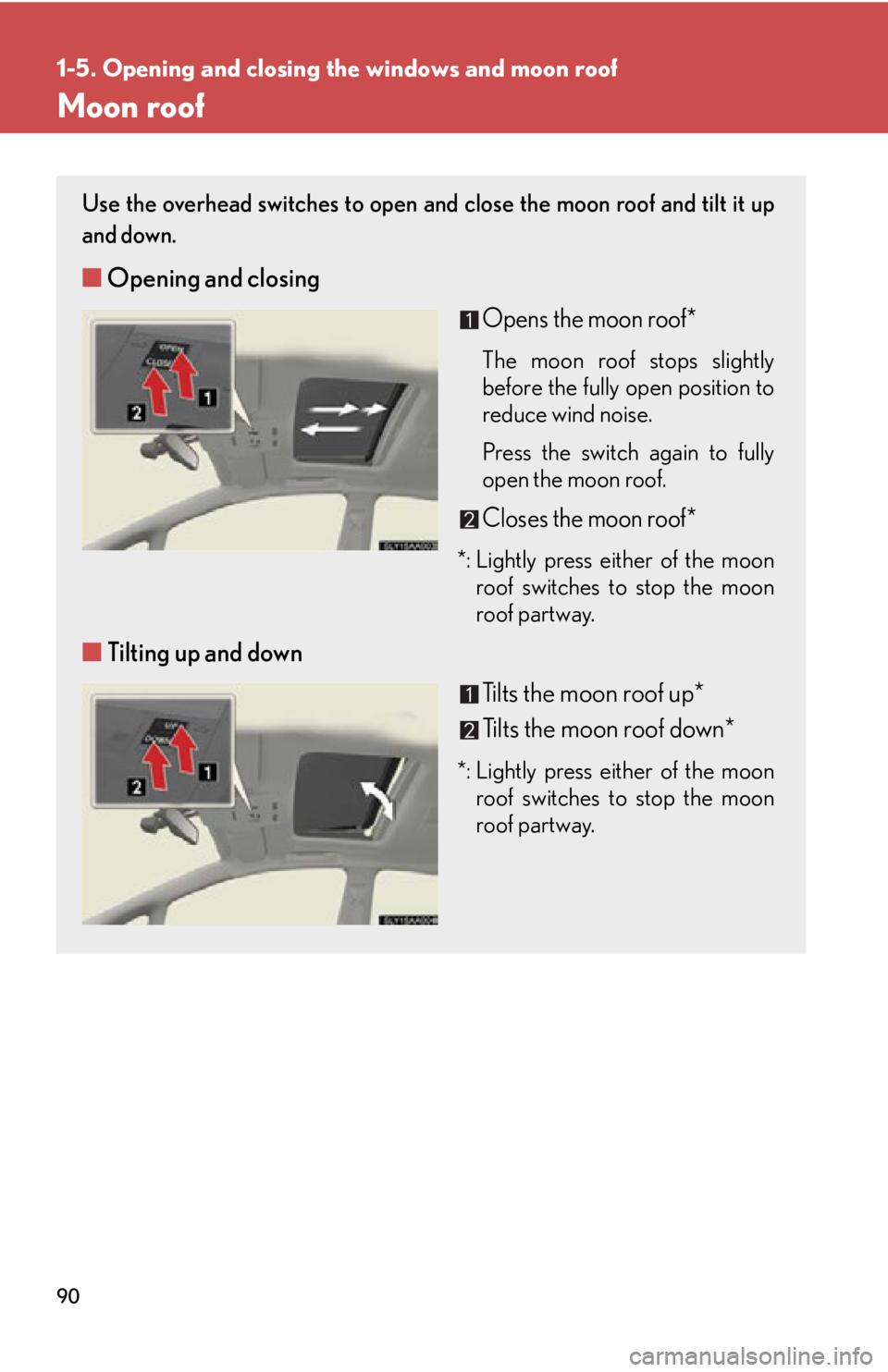

Moon roof
Use the overhead switches to open and close the moon roof and tilt it up
and down.
■ Opening and closing
Opens the moon roof*
The moon roof stops slightly
before the fully open position to
reduce wind noise.
Press the switch again to fully
open the moon roof.
Closes the moon roof*
*: Lightly press either of the moon
roof switches to stop the moon
roof partway.
■ Tilting up and down
Tilts the moon roof up*
Tilts the moon roof down*
*: Lightly press either of the moon
roof switches to stop the moon
roof partway.
