lock Lexus HS250h 2011 Hybrid system /

1
The Quick Guide is not intended as a substitute for your Owner’s
Manual. We strongly encourage you to review the Owner’s
Manual and supplementary manuals so you will have a better
understanding of your vehicle’s capabilities and limitations.
Air Conditioning System (without navigation system)*
Using the automatic mode......................................................................................................... 72
Adjusting the temperature......................................................................................................... 72
Air Conditioning System (with navigation system)
*
Using the automatic mode......................................................................................................... 64
Adjusting the temperature......................................................................................................... 64
Audio System (without navigation system)
*
Basic operation ............................................................................................................................... 69
Radio ................................................................................................................................................... 69
CD player.......................................................................................................................................... 70
Operating an iPod ...........................................................................................................................71
Remote control (steering wheel switches)............................................................................71
Audio System (with navigation system)
*
Audio control screen....................................................................................................................60
Basic operation ...............................................................................................................................60
Radio .....................................................................................................................................................61
DVD player/CD player .................................................................................................................61
Operating an iPod .........................................................................................................................63
Remote control (steering wheel switches)..........................................................................63
Automatic High Beam.......................................................................................................................38
Cruise Control...................................................................................................................................... 26
Door Locks............................................................................................................................................ 85
Dynamic Radar Cruise Control.....................................................................................................28
Eco Driving Indicator Light.............................................................................................................. 25
Energy Monitor / Consumption Screen..................................................................................... 12
Fuel Tank Cap....................................................................................................................................... 88
Garage Door Opener....................................................................................................................... 79
Hands-free System For Cellular Phone (without navigation system)
*
Bluetooth® phone pairing .........................................................................................................65
Calling by number .........................................................................................................................65
Calling by name.............................................................................................................................. 66
Calling by speed dial .................................................................................................................... 66
Phonebook transfer ...................................................................................................................... 67
Changing the registered name ................................................................................................68
Registering a speed dial ..............................................................................................................68
*: This feature may be operated by Voice Command (See P. 73)

3
OverviewInstrument Panel
Headlight switch
Automatic high
beam

Turn signal lever
Fog light switch
*1
P.36
P.38
P.25
Power (ignition) switch P.17
See P.6
See P.7Windshield wiper and
washer switch
P.39
EV drive mode switch
“ECO MODE” switch
Power mode switch P.22
P.21
P.21
Hybrid transmission shift lever P.19
P position switch P.20
Tilt and telescopic steering control switch *1
Pre-collision braking off switch *1
Tilt and telescopic steering control lever *1
Parking brake pedal *1
Hood lock release lever *1 Door lock switches
P.85
Power window switches P.86
Window lock switch
P.86
Inside door lock buttons
P.85
Driving position
memory switches
*1
Multi-information
display
P.23

14
Keys
■Electronic key
Smart access system with push-button start
(P.1 5 , 1 7 )
*: If equipped
■Mechanical key.Carry the mechanical key together with the
electronic key. If the electronic key battery
is depleted or the entry function does not
operate properly, you will need the
mechanical key.
To take out the mechanical key:
Electronic keys: Slide the release lever
and take the key out.
Card key: Press the lock release button
and take the key out.
■Wireless remote control
Locks all the doors
Unlocks all the doors
Pressing the button unlocks the driver’s
door. Pressing the button again within 3
seconds unlocks the other doors.
Opens the windows and moon roof
(press and hold)*
Unlocks the trunk (press and hold)
Sounds the alarm
(press and hold)
*: This setting must be customized at
your Lexus dealer.
Card key*

15
Smart Access System with Push-button Start
■Entering the vehicle
Grip the handle to unlock the doors.
Make sure to touch the sensor on the
back of the handle.
The doors cannot be unlocked for 3 sec-
onds after the doors are locked.
■Exiting the vehicle
Touch the lock sensor (the indentation on
the upper part of the door handle) to lock
the doors.
■Opening the trunk
Press the button to unlock the trunk.
The following operations can be performed simply by carrying the electronic key
(including the card key) on your person, for example in your pocket.
For details on starting the hybrid system, see page 17.
For details on what to do when the electronic key does not operate properly, see page 91.

16
Theft Deterrent System
■Immobilizer system
Without navigation system
The indicator light flashes after the
“POWER” switch has been turned off to
indicate that the system is operating.
The indicator light stops flashing after the
“POWER” switch has been turned to
ACCESSORY or ON mode to indicate
that the system has been canceled.
With navigation system
The indicator light flashes after the
“POWER” switch has been turned off to
indicate that the system is operating.
The indicator light stops flashing after the
“POWER” switch has been turned to
ACCESSORY or ON mode to indicate
that the system has been canceled.
■Alarm
The system sounds the alarm and flashes the lights when forced entry is detected.
To set the alarm: Close the doors, trunk and hood, and lock all the doors using the entry
function or wireless remote control. The system will be set automatically after 30 seconds.
The indicator light changes from being on to flashing when the system is set.
To deactivate or stop the alarm: start the hybrid system (The alarm will be deactivated or
stopped after a few seconds.), or unlock the doors or trunk using the entry function, wireless
remote control or mechanical key.

24
Display order may vary depending on vehicle condition.
Electronic features control contentsSetting electronic feature controls
AFS (if equipped)P. 3 7
Intuitive parking assist (if equipped)Refer to “Navigation System Owner’s
Manual”
Other contentsDetails
CustomizationSettings of functions such as the door lock
and light illumination time can be changed
Dynamic radar cruise control
(if equipped)Automatically displayed when using the
dynamic radar cruise control
LKA (Lane Keeping Assist) (if equipped)Automatically displayed when using the
lane keeping assist
PCS (Pre-Collision System) (if equipped)Automatically displayed if there is a possi-
bility of collision
Wa r n i n g m e s s a g eAutomatically displayed when a malfunc-
tion occurs in any of the vehicle’s systems

79
Garage Door Opener (If Equipped)
The garage door opener (HomeLink® Universal Transceiver) is manufactured under license
from HomeLink®.
■Programming the HomeLink® (for U.S.A. owners)
The HomeLink® compatible transceiver in your vehicle has 3 buttons which can be pro-
grammed to operate 3 different devices. Refer to the programming method below
appropriate for the device.
Overhead console type
Indicator light
Buttons
Inside rear view mirror type
Indicator light
Buttons
The garage door opener can be programmed to operate garage doors, gates, entry
doors, door locks, home lighting systems, security systems, and other devices.

85
Door Locks
■Door lock switches
Locks all the doors
Unlocks all the doors
■Inside lock button
Locks the door
Unlocks the door
The front doors can be opened by
pulling the inside handle even if the
lock buttons are in the lock position.
■Rear door child-protector lock
The door cannot be opened from inside the
vehicle when the lock is set.
These locks can be set to prevent chil-
dren from opening the rear doors. Push
down on each rear door switch to lock
both rear doors.
The vehicle can be locked and unlocked using the entry function, wireless remote control
or door lock switch.
For details the entry function or wireless remote control (P.14, 15)

86
Powe r Wi n d ows
■Po w e r w i n d o w s w i t c h e s
Closing
One-touch closing*
Opening
One-touch opening*
*: Pushing the switch in the opposite direc-
tion will stop window travel partway.
■Window lock switch
Press the switch down to lock the passen-
ger window switches.
The indicator will come on.
Use this switch to prevent children from
accidentally opening or closing a pas-
senger window.
The passenger windows can still be
opened and closed using the power win-
dow switches on the driver’s side even if
the lock switch is on.
Indicator

What to do if...
91

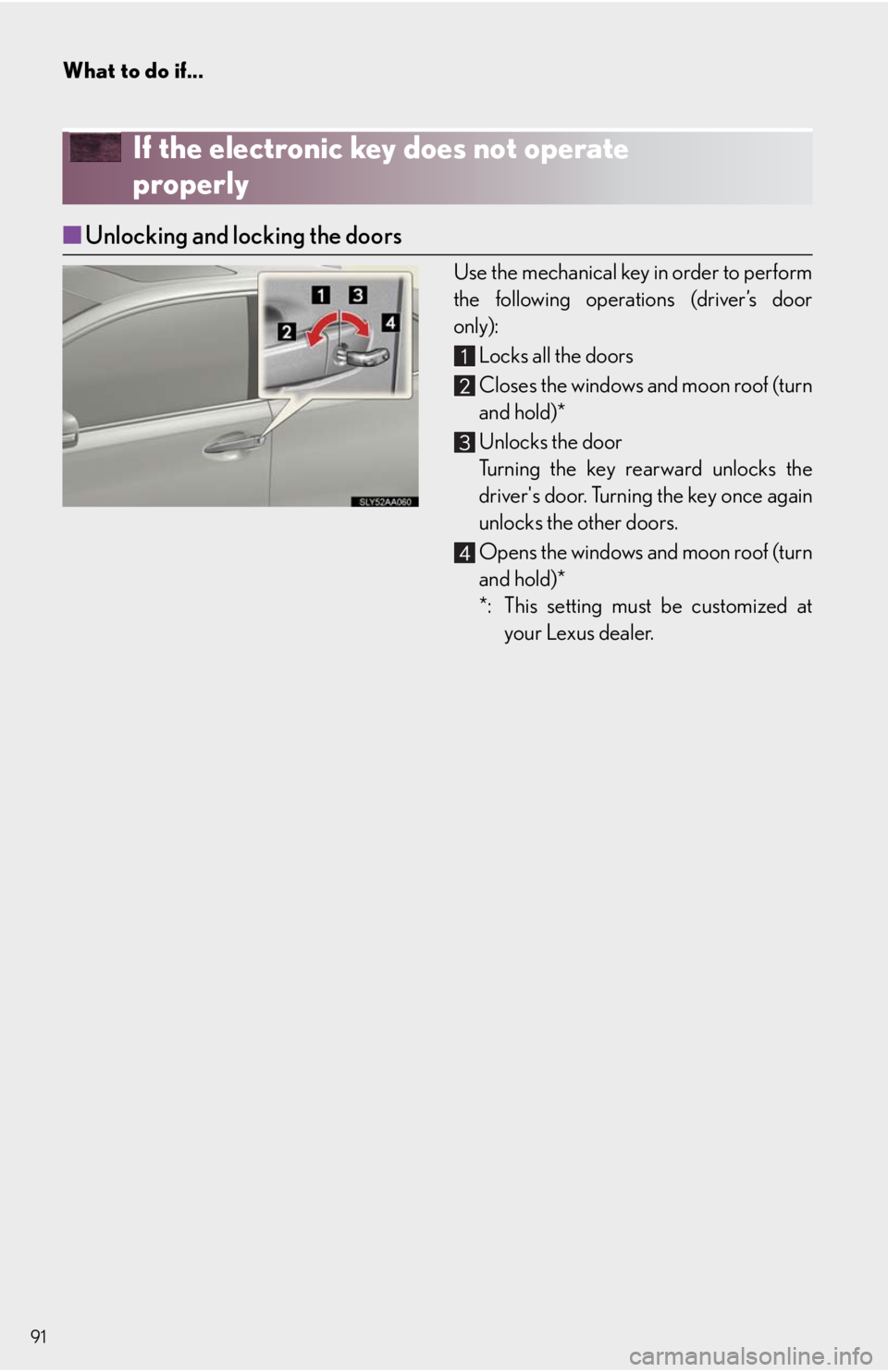

If the electronic key does not operate
properly
■Unlocking and locking the doors
Use the mechanical key in order to perform
the following operations (driver’s door
only):
Locks all the doors
Closes the windows and moon roof (turn
and hold)*
Unlocks the door
Turning the key rearward unlocks the
driver's door. Turning the key once again
unlocks the other doors.
Opens the windows and moon roof (turn
and hold)*
*: This setting must be customized at
your Lexus dealer.
