tire pressure Lexus HS250h 2011 Hybrid system /

4
Trunk opener main switch*1
 : If equipped
*1: Refer to “Owner’s Manual”.
*2: Refer to “Navigation System Owner’s Manual”. Remote Touch
 P.41
OPEN CLOSE switch *2
TILT switch *2
See P. 5Audio system
P.60, 69
Tire pressure warning
reset switch
*1See P.8

23
Multi-information Display
■Multi-information switches
Menu switch
Changes modes to electronic feature
control mode (if equipped), customiza-
tion mode or back to normal display
mode.
“ENTER” switch
Changes trip information items. This
switch is also used to turn on/off elec-
tronic feature controls and to change
customization settings.
■Display contents
The multi-information display presents the driver with a variety of driving-related data
including the current outside air temperature.
Trip information contentsSwitching display items
Energy monitor
Press the “ENTER” switch upward or
downward.
Total distance/Total average fuel con-
sumption
Current fuel consumption/Average
fuel consumption after refueling
Cruising range
Average vehicle speed
Outside temperature
Tire inflation pressure
Blank

What to do if...
89
List of Warning/Indicator Lights
Stop the vehicle immediately. Continuing to drive the vehicle may be dangerous.
(U.S.A.)
Brake system warning light
(Canada)
Stop the vehicle immediately.
Charging system warning light
High engine coolant temperature warning light (flashes or comes on)
Have the vehicle inspected immediately.
Brake system warning light
(Flashes)
“AFS OFF” indicator light
(if equipped)
(U.S.A.)
Malfunction
indicator lamp(comes on)
Slip indicator light
(Canada)
(Flashes)
“LKA” indicator light
(if equipped)
SRS warning light
(Flashes)
Cruise control indicator light
(U.S.A.)
“ABS” warning light(Flashes)
Radar cruise control indica-
tor light (if equipped)
(Canada)
(Flashes)
Automatic High Beam indica-
tor light (if equipped)
Electric power steering
system warning light
(Flashes and
then continu-
ously on)Tire pressure warning light
(Flashes)
“PCS” warning light
(if equipped)
For further information, refer to the Owner’s Manual.

90

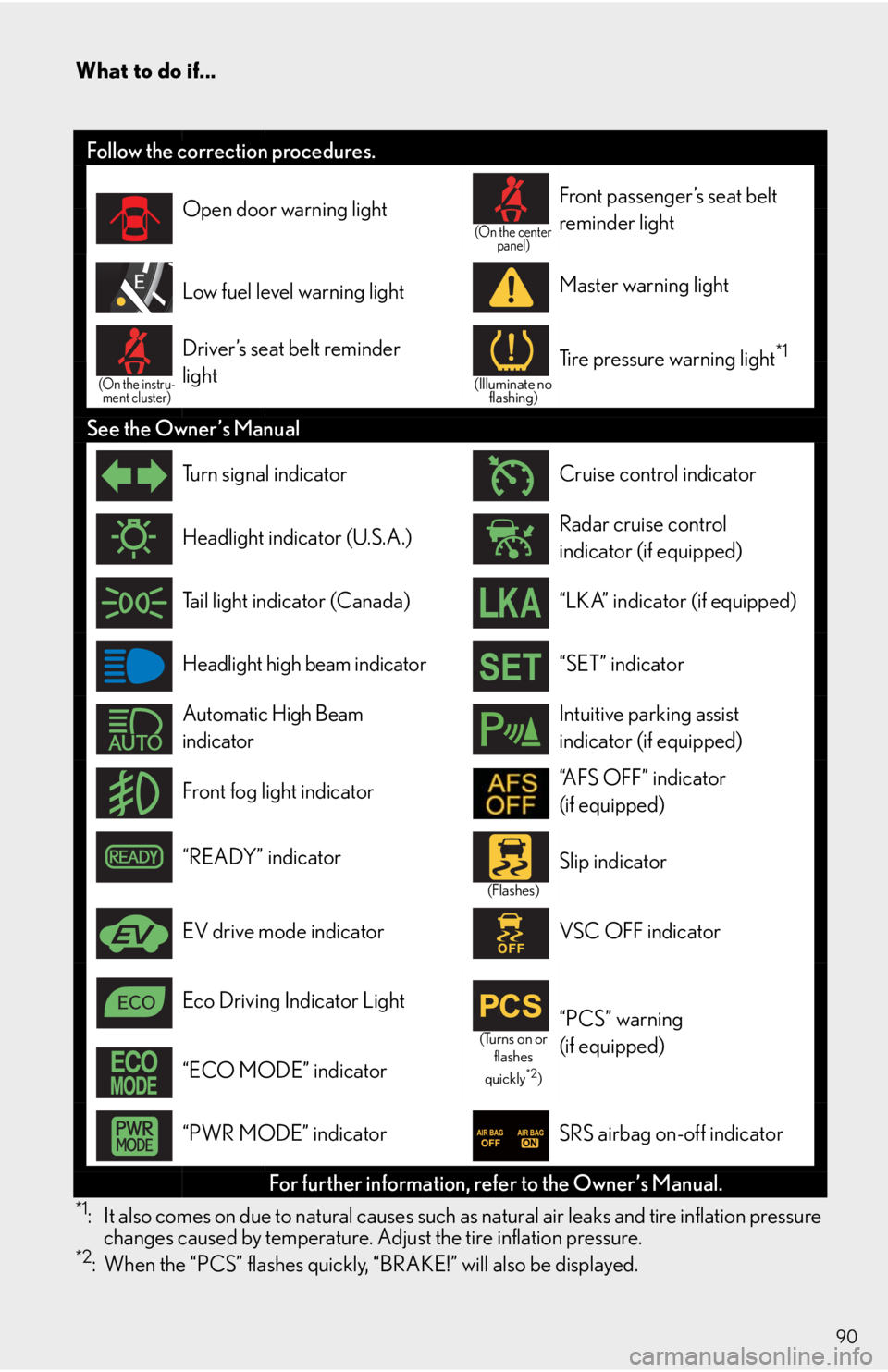

What to do if...
*1: It also comes on due to natural causes such as natural air leaks and tire inflation pressure
changes caused by temperature. Adjust the tire inflation pressure.
*2: When the “PCS” flashes quickly, “BRAKE!” will also be displayed.
Follow the correction procedures.
Open door warning light(On the center
panel)
Front passenger’s seat belt
reminder light
Low fuel level warning lightMaster warning light
(On the instru-
ment cluster)
Driver’s seat belt reminder
light
(Illuminate no
flashing)
Tire pressure warning light*1
See the Owner’s Manual
Tu r n s i g n a l i n d i c a t o rCruise control indicator
Headlight indicator (U.S.A.)Radar cruise control
indicator (if equipped)
Tail light indicator (Canada)“LKA” indicator (if equipped)
Headlight high beam indicator“SET” indicator
Automatic High Beam
indicatorIntuitive parking assist
indicator (if equipped)
Front fog light indicator“AFS OFF” indicator
(if equipped)
“READY” indicator
(Flashes)
Slip indicator
EV drive mode indicatorVSC OFF indicator
Eco Driving Indicator Light
(Turns on or
flashes
quickly
*2)
“PCS” warning
(if equipped)
“ECO MODE” indicator
“PWR MODE” indicatorSRS airbag on-off indicator
For further information, refer to the Owner’s Manual.
