2-2. Instrument cluster
HS250h_U_75050U
Changing the displaySwitches between odometer and
trip meter displays. When the trip
meter is displayed, pressing and
holding the button will reset the
trip meter.
Instrument panel light controlThe brightness of the instrument panel lights can be adjusted. Brighter
Darker
When the brightness is adjusted to
the dimmest level, the instrument
panel light will go off.
Odometer and trip meter display
Odometer: Displays the total distance that the vehicle has beendriven
Trip meter: Displays the distance the vehicle has been driven since the meter was last reset. Trip meters “A” and “B” can be
used to record and display different distances indepen-
dently.
Multi-information display
→ P. 1 7 7

171
2-2. Instrument cluster
2
When driving
HS250h_U_75050U
■Instrument panel brightness adjustment
The instrument panel brightness levels when the tail lights are on and off can be
adjusted. However, when the surroundings are bright (daytime, etc.) turning on the
tail lights will not change the instrument panel brightness.
■Limitations of brightness adjustment
The brightness of the instrument panel lights is automatically adjusted based on the
light sensor detecting how bright the surroundings are. However, if the instrument
panel brightness has been manually set to the brightest setting, the automatic
adjustment will not be performed.
■Hybrid System Indicator
●By keeping the indicator needle within Eco area, Eco-friendly driving can be
achieved.
Hybrid Eco area shows that gasoline engine power is not being used very often.*
1
●Charge area indicates regeneration*2 status. Regenerated energy will be used
to charge the hybrid battery.
*
1: The gasoline engine will automatically stop and restart under various condi- tions.
*
2: When used in this manual, “regeneration” refers to the conversion of energy created by the movement of the vehicle into electrical energy.
■Customization
Settings (e.g. Sensitivity of the ambient light sensor used for dimming the meter
lights) can be changed. (Customizable features →P. 5 8 4 )
Eco area
Eco Driving Indicator Light turns on
Hybrid Eco area
Eco Driving Indicator Light turns on
Charge area
Eco Driving Indicator Light turns on
Powe r a re a
Eco Driving Indicator Light turns off

172
2-2. Instrument cluster
HS250h_U_75050U
NOTICE
■To prevent damage to the hybrid system and its components
A high engine coolant temperature warning light (→P. 502) is installed instead of
an engine coolant temperature gauge. If the high engine coolant temperature
warning light illuminates or flashes, the vehicle may be overheating. Immediately
stop the vehicle in a safe area ( →P. 5 5 2 ) .

173
2-2. Instrument cluster
2
When driving
HS250h_U_75050U
Indicators and warning lights
The indicator and warning lights on the instrument cluster and center
panel inform the driver of the status of the vehicle’s various systems.
Instrument cluster
Center panel (without a navigation system)
Center panel (with a navigation system)

174
2-2. Instrument cluster
HS250h_U_75050U
■Indicators
The indicators inform the driver of the operating state of the vehi-
cle’s various systems.
Turn signal indicator
(→ P. 166)“ECO MODE” indicator
(→ P. 1 6 2 )
(U.S.A.)
Headlight indicator
(→ P. 191)“PWR MODE” indicator
(→ P. 1 6 2 )
(Canada)
Tail light indicator
(→ P. 1 9 1 )Cruise control indicator
(→ P. 212, 216)
Headlight high beam
indicator ( →P. 1 9 3 )
(if equipped)
Radar cruise control
indicator (→ P. 2 1 6 )
(if equipped)
Automatic High Beam
indicator (→P. 1 9 6 )
(if equipped)
“LKA” indicator
(→ P. 2 3 1 )
Front fog light indicator
(→ P. 202)“SET” indicator
(→ P. 212, 216)
“READY” indicator
(→ P. 1 5 2 )
(if equipped)
Intuitive parking assist
indicator (Refer to
“Navigation System
Owner’s Manual”.)
EV drive mode indicator
(→ P. 1 5 7 )
(if equipped)
“AFS OFF” indicator
(→ P. 1 9 3 )
Eco Driving Indicator
Light ( →P. 1 4 4 )Slip indicator
(→ P. 2 3 9 , 2 4 3 )
*1
*1*1, 2

175
2-2. Instrument cluster
2
When driving
HS250h_U_75050U
*1: These lights turn on when the “POWER” switch is turned to the ON modeto indicate that a system check is being performed. They will turn off after
the hybrid system is on, or after a few seconds. There may be a malfunction
in a system if a light does not turn on, or if the lights do not turn off. Have
the vehicle inspected by your Lexus dealer.
*2:The light flashes to indicate that the system is operating.
*3:The light turns on when a part of the system is turned off. The light flashesquickly and “BRAKE!” appear on the multi-information display and head-
up display (if equipped) to indicate that the system is operating.
VSC OFF indicator
( → P. 2 4 0 ) Shift position indicators
(→ P. 1 6 0 )
(if equipped)
“PCS” warning
(→ P. 2 4 6 )SRS airbag on-off
indicator ( →P. 121)
*1
*1, 3*1

176
2-2. Instrument cluster
HS250h_U_75050U
CAUTION
■If a safety system warning light does not come on
Should a safety system light such as the ABS and SRS airbag warning light not
come on when you start the hybrid system, this could mean that these systems are
not available to help protect you in an accident, which could result in death or seri-
ous injury. Have the vehicle inspected by your Lexus dealer immediately if this
occurs.

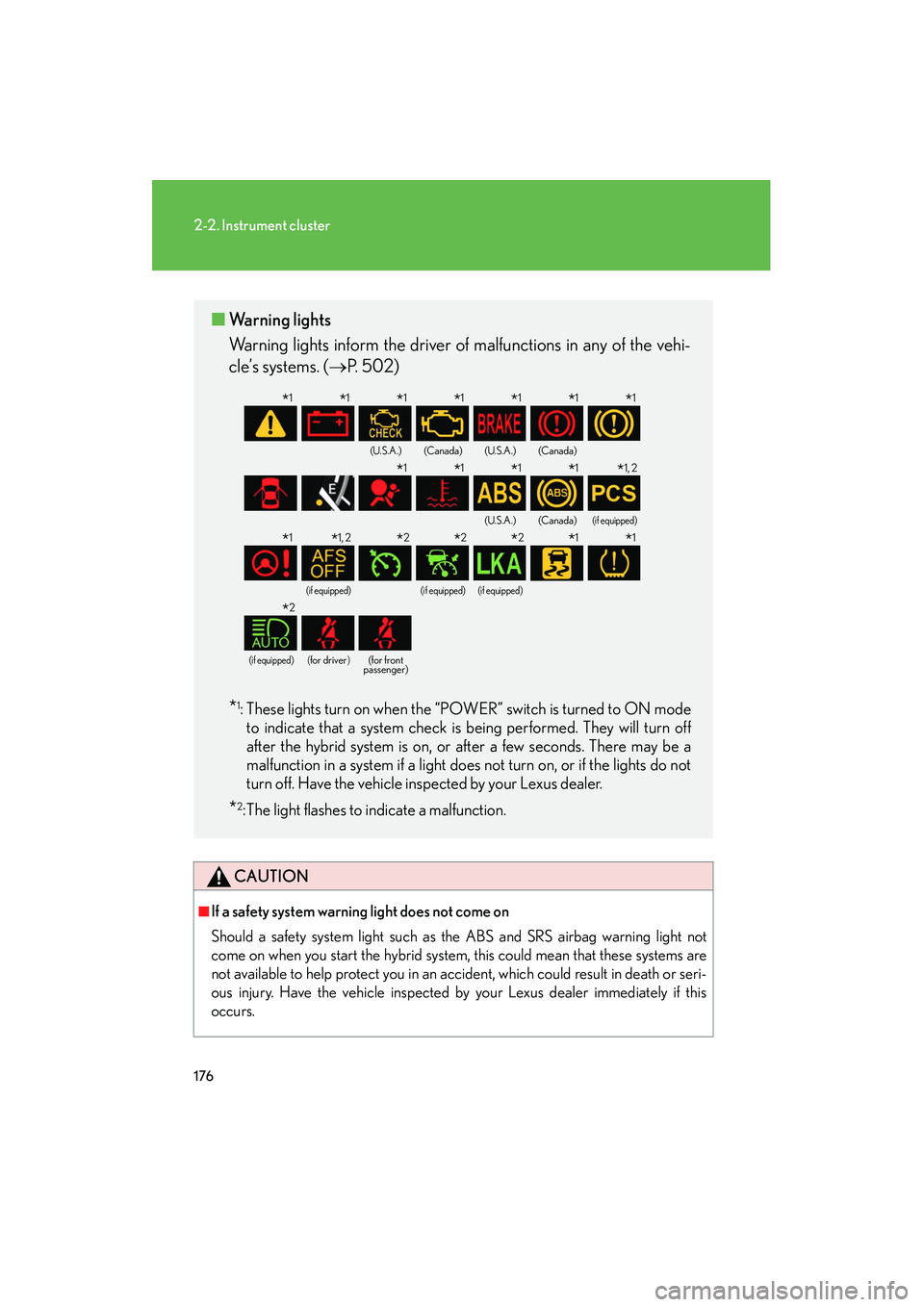

■Warning lights
Warning lights inform the driver of malfunctions in any of the vehi-
cle’s systems. ( →P. 502)
*1: These lights turn on when the “POWER” switch is turned to ON mode
to indicate that a system check is being performed. They will turn off
after the hybrid system is on, or after a few seconds. There may be a
malfunction in a system if a light does not turn on, or if the lights do not
turn off. Have the vehicle inspected by your Lexus dealer.
*2: The light flashes to indicate a malfunction.
(U.S.A.)(Canada)(U.S.A.)(Canada)
(U.S.A.)(Canada)(if equipped)
(if equipped)(if equipped)(if equipped)
(if equipped)(for driver)(for front
passenger)
*1*1*1*1*1*1*1
*1*1*1*1*1, 2
*1*1, 2*2*2*2*1*1
*2

177
2-2. Instrument cluster
2
When driving
HS250h_U_75050U
Multi-information display
The multi-information display presents the driver with a variety of driving-
related data including the current outside air temperature.
■Multi-information switches
Menu switch
Changes modes to electronic
feature control mode (if
equipped), customization mode
or back to normal display mode.
“ENTER” switch
Changes trip information items.
This switch is also used to turn
on/off electronic feature con-
trols and to change customiza-
tion settings.

178
2-2. Instrument cluster
HS250h_U_75050U
■Display contents
Trip information contentsSwitching display items
Energy monitor
Press the “ENTER” switch upward or
downward.
Total distance/Total average fuel
consumption
Current fuel consumption/Aver-
age fuel consumption after refuel-
ing
Cruising range
Average vehicle speed
Outside temperature
Tire inflation pressure
Blank

179
2-2. Instrument cluster
2
When driving
HS250h_U_75050U
Display order may vary depending on vehicle condition.
Electronic feature control contentsSetting electronic feature controls
AFS (if equipped)→P. 1 9 3
Intuitive parking assist
(if equipped)Refer to “Navigation System
Owner’s Manual”.
Other contentsDe ta ils
Customization ( →P. 5 8 4 )
Settings of functions such as the
door lock and light illumination time
can be changed
Dynamic radar cruise control
(if equipped) ( →P. 2 1 6 )Automatically displayed when using
the dynamic radar cruise control
LKA (Lane-Keeping Assist)
(if equipped) ( →P. 2 3 0 )Automatically displayed when using
the lane keeping assist
PCS (Pre-Collision System)
(if equipped) ( →P. 2 4 5 , 5 1 3 , 5 1 6 )Automatically displayed if there is a
possibility of collision.
