5
When trouble arises
553
5-2. Steps to take in an emergency
HS250h_U_75050UAfter the hybrid system has cooled
down sufficiently, check the engine
coolant level and inspect the cool-
ing system for leaks.
If the engine compartment cover
needs to be removed. (
→P. 4 3 8 )
Add engine coolant if necessary.
Water can be used in an emer-
gency if engine coolant is unavail-
able. ( →P. 5 6 4 )
Have the vehicle inspected at the nearest Lexus dealer as soon as possi-
ble.
■If “HYBRID SYSTEM OVERHEAT” is shown on the multi-informa-
tion display
Stop the vehicle in a safe place.
Stop the hybrid system (press the “POWER” switch once), and
then carefully lift the hood.
Wait until the hybrid system has
fully cooled down. When the sys-
tem has fully cooled down, check if
coolant has leaked from the radia-
tor core.
If a large amount of coolant leak-
age is found, contact your Lexus
dealer immediately.

554
5-2. Steps to take in an emergency
HS250h_U_75050UCheck that the coolant level of the
power control unit is between the
“FULL” and “LOW” lines of the
reservoir tank.
“FULL” line
“LOW” line
If the coolant level of the power
control unit is insufficient, add
more coolant.
If power control unit coolant is
unavailable, water can be used as
an emergency substitute.
Restart the hybrid system (depress and hold the brake pedal, and
press the “POWER” switch once). Check that the “HYBRID
SYSTEM OVERHEAT” message has gone off.
If the warning message remains on, stop the hybrid system and
contact your Lexus dealer.
Have the vehicle inspected at the nearest Lexus dealer as soon as possi-
ble.
■Overheating
The following symptoms may occur when your vehicle is overheating:
●The high engine coolant temperature warning light comes on or flashes, or the
hybrid system output decreases.
●Steam comes out from the engine area.
●“HYBRID SYSTEM OVERHEAT” is displayed on the multi-information display.

5
When trouble arises

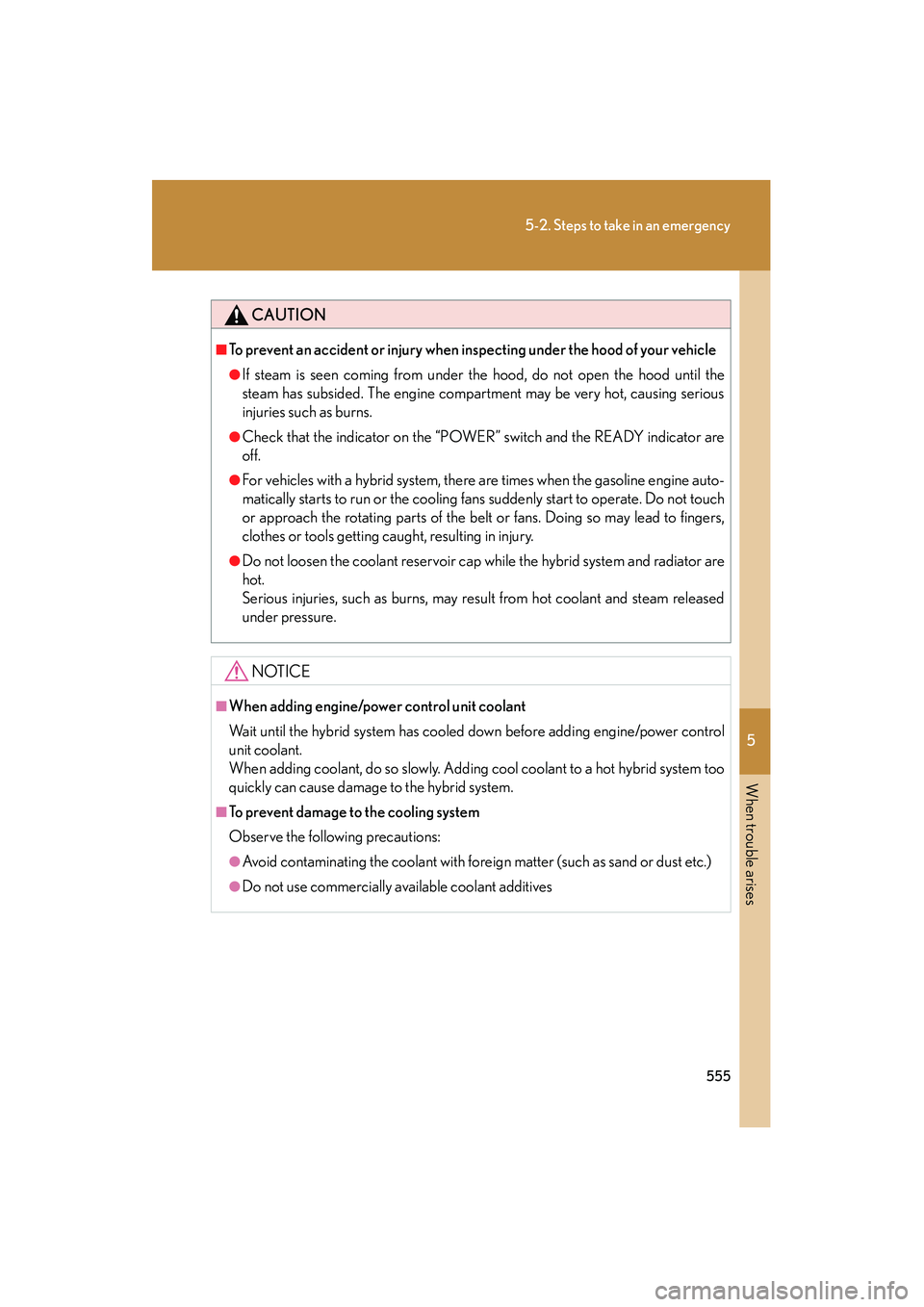

555
5-2. Steps to take in an emergency
HS250h_U_75050U
CAUTION
■To prevent an accident or injury when inspecting under the hood of your vehicle
●If steam is seen coming from under the hood, do not open the hood until the
steam has subsided. The engine compartment may be very hot, causing serious
injuries such as burns.
●Check that the indicator on the “POWER” switch and the READY indicator are
off.
●For vehicles with a hybrid system, there are times when the gasoline engine auto-
matically starts to run or the cooling fans suddenly start to operate. Do not touch
or approach the rotating parts of the belt or fans. Doing so may lead to fingers,
clothes or tools getting caught, resulting in injury.
●Do not loosen the coolant reservoir cap while the hybrid system and radiator are
hot.
Serious injuries, such as burns, may result from hot coolant and steam released
under pressure.
NOTICE
■When adding engine/power control unit coolant
Wait until the hybrid system has cooled down before adding engine/power control
unit coolant.
When adding coolant, do so slowly. Adding cool coolant to a hot hybrid system too
quickly can cause damage to the hybrid system.
■To prevent damage to the cooling system
Observe the following precautions:
●Avoid contaminating the coolant with foreign matter (such as sand or dust etc.)
●Do not use commercially available coolant additives

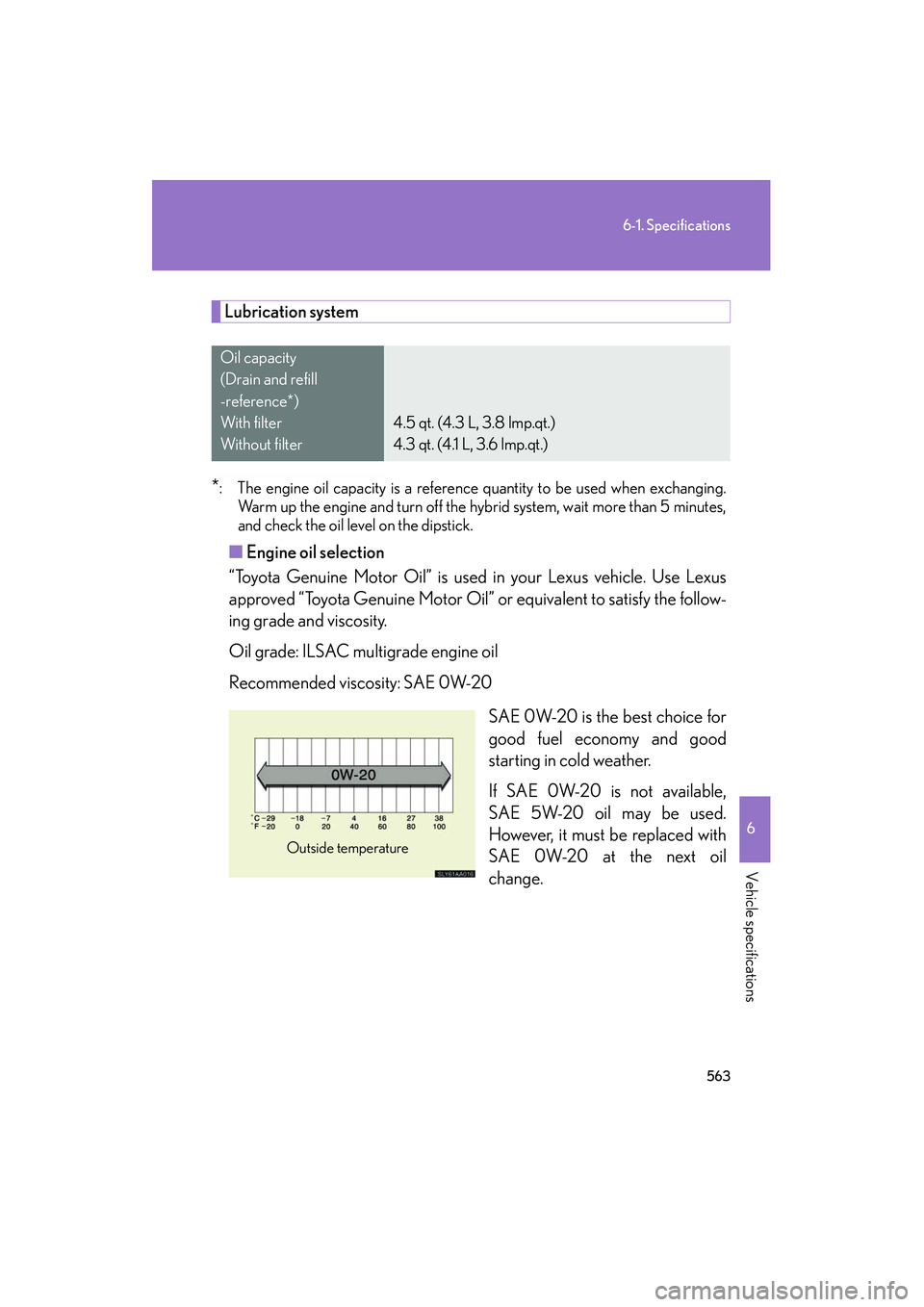

563
6-1. Specifications
6
Vehicle specifications
HS250h_U_75050U
Lubrication system
*: The engine oil capacity is a reference quantity to be used when exchanging.Warm up the engine and turn off the hybrid system, wait more than 5 minutes,
and check the oil level on the dipstick.
■Engine oil selection
“Toyota Genuine Motor Oil” is used in your Lexus vehicle. Use Lexus
approved “Toyota Genuine Motor Oil” or equivalent to satisfy the follow-
ing grade and viscosity.
Oil grade: ILSAC multigrade engine oil
Recommended viscosity: SAE 0W-20
SAE 0W-20 is the best choice for
good fuel economy and good
starting in cold weather.
If SAE 0W-20 is not available,
SAE 5W-20 oil may be used.
However, it must be replaced with
SAE 0W-20 at the next oil
change.
Oil capacity
(Drain and refill
-reference*)
With filter
Without filter
4.5 qt. (4.3 L, 3.8 lmp.qt.)
4.3 qt. (4.1 L, 3.6 lmp.qt.)
Outside temperature

617
Alphabetical index
HS250h_U_75050U
Compartment ......................................437
Engine switch ........................................ 152
Hood ....................................................... 434
How to start the engine.................... 152
How to start the hybrid system.................................................... 152
Identification number.......................560
If the engine will not start ................. 541
If the hybrid system will not start.......................................................... 541
Ignition switch........................................ 152
Overheating......................................... 552
Power switch ......................................... 152
Engine compartment cover............. 438
Engine coolant Capacity................................................. 564
Checking ................................................442
Preparing and checking
before winter.................................... 258
Engine/power control unit coolant
Capacity................................................. 564
Checking ................................................442
Preparing and checking before winter.................................... 258
Engine immobilizer system ................. 101
Engine oil Capacity................................................. 563
Checking ............................................... 439
Preparing and checking before winter.................................... 258
Engine switch ........................................... 152
Enhanced VSC ..................................... 238
EPS............................................................. 238
EV drive mode switch .......................... 157
Event data recorder ............................... 20 Floor mat .................................................. 394
Fluid
Brake ....................................................... 566
Washer ...................................................446
Fog lights Replacing light bulbs ......................... 481
Switch.......................................................202
Wattage................................................. 568
Foot light................................................... 374
Foot well lighting ................................... 374
Front fog lights Replacing light bulbs ......................... 481
Switch.......................................................202
Wattage................................................. 568
Front passenger occupant classification system ............................ 121
Front passenger's seat belt reminder light..................................... 505
Front seats Adjustment ...............................................68
Driver’s seat position memory ....... 72
Front side marker light
Replacing light bulbs ......................... 481
Wattage................................................. 568
Front turn signal lights Replacing light bulbs ......................... 481
Switch........................................................ 166
Wattage................................................. 568
Fuel Capacity .................................................562
Fuel gauge.............................................. 169
Gas station information ................. 628
Information ........................................... 569
Refueling.................................................... 97
Type ......................................................... 569
*: For vehicles with a navigation system, refer to “Navigation System Owner’s Manual”.
F

623
Alphabetical index
HS250h_U_75050U
Warning buzzersBrake system ....................................... 502
Open door ..........................................505
Seat belt reminder ............................505
Warning lights AFS OFF ...............................................503
Anti-lock brake system ..................503
Brake assist system ..........................503
Brake system ....................................... 502
Charging system ............................... 502
Cruise control .....................................503
Electric power steering
warning light .....................................503
Electronic engine control
system..................................................503
High coolant temperature ............ 502
LKA ..........................................................503
Low fuel level.......................................505
Low tire pressure ..............................505
Malfunction indicator lamp ..........503
Master warning light ........................505
Open door ...........................................505
Pre-collision system .........................503
Pretensioner.........................................503
Radar cruise co ntrol ........................503
Seat belt reminder light ..................505
Slip indicator ........................................503
SRS airbags ..........................................503
Tire pressure warning light...........505 Warning messages
Cruise control....................................... 513
Dynamic radar cruise control .........................................513, 516
Electric power steering system ................................................... 513
Engine oil maintenance ................... 516
Engine oil pressure ............................ 512
EV drive mode..................................... 516
Headlight................................................. 513
Hood ......................................................... 516
Hybrid system....................................... 512
Intuitive parking assist .............513, 516
Key.............................................................524
Lane-Keeping Assist ......................... 516
Moon roof .............................................. 516
Open door ............................................. 516
Parking brake ....................................... 516
Pre-collision system.................513, 516
Smart access system with push start ............................................524
Tire pressure warning
system ................................................... 516
Trunk ......................................................... 516
Washer fluid .......................................... 516
Washer
Checking ...............................................446
Preparing and checking before winter ................................... 258
Switch.......................................................204
Washing and waxing ............................ 416
Weight Cargo capacity ................................... 257
Load limits ............................................. 257
Weight.................................................... 560
*: For vehicles with a navigation system, refer to “Navigation System Owner’s Manual”.
W
