39
1-1. Hybrid system
1
Before driving
HS250h_U_75050U
Past record (vehicles with a navigation system)Press the “MENU” button on the Remote Touch and select .
Select and press the “ENTER” button on the Remote
To u c h .
If the screen does not appear, select and
press the “ENTER” button on the Remote Touch.
Best past fuel consumption
Average fuel consumption
Displays the average fuel con-
sumption between each reset of
the total average fuel consumption
on the multi-information display.
When resetting, if the total average
fuel consumption is better than the
best past fuel consumption, the
best past fuel consumption will be
updated.
These images are examples only, and may vary slightly from actual conditions.
■Resetting the consumption data
Selecting on the screen will reset the average fuel consump-
tion. Selecting on the screen will reset the past records.
Selecting will confirm resetting of all the data (except cruising range).
■Cruising range
Displays the estimated maximum distance that can be driven with the quantity of
fuel remaining.
This distance is computed based on your average fuel consumption.
As a result, the actual distance that can be driven may differ from that displayed.

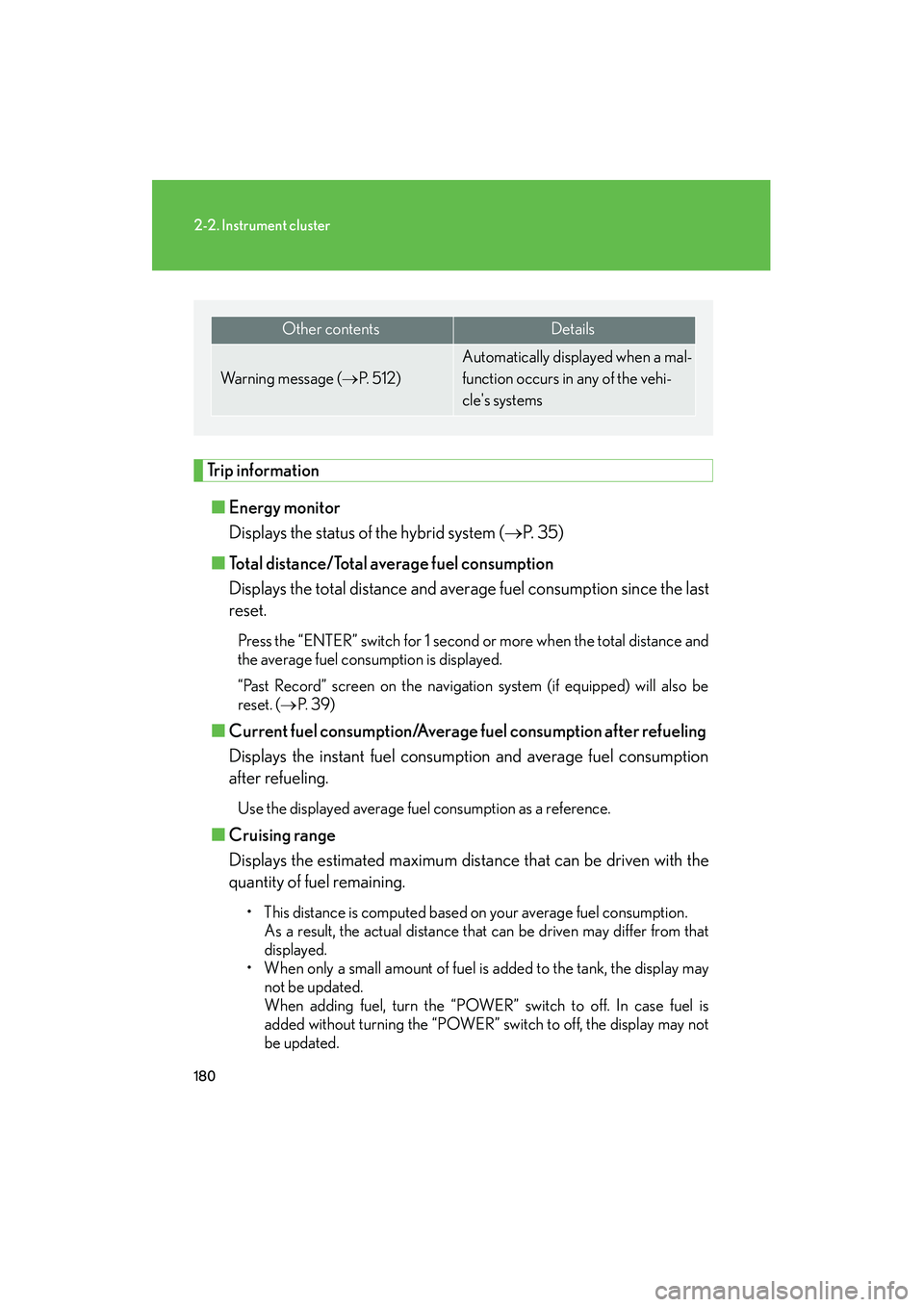

180
2-2. Instrument cluster
HS250h_U_75050U
Trip information■ Energy monitor
Displays the status of the hybrid system ( →P. 3 5 )
■ Total distance/Total average fuel consumption
Displays the total distance and average fuel consumption since the last
reset.
Press the “ENTER” switch for 1 second or more when the total distance and
the average fuel consumption is displayed.
“Past Record” screen on the navigation system (if equipped) will also be
reset. ( →P. 3 9 )
■Current fuel consumption/Average fuel consumption after refueling
Displays the instant fuel consumption and average fuel consumption
after refueling.
Use the displayed average fuel consumption as a reference.
■ Cruising range
Displays the estimated maximum distan ce that can be driven with the
quantity of fuel remaining.
• This distance is computed based on your average fuel consumption. As a result, the actual distance that can be driven may differ from that
displayed.
• When only a small amount of fuel is added to the tank, the display may not be updated.
When adding fuel, turn the “POWER” switch to off. In case fuel is
added without turning the “POWER” switch to off, the display may not
be updated.
Other contentsDe ta ils
Wa r n i n g m e s s a g e ( →P. 5 1 2 )
Automatically displayed when a mal-
function occurs in any of the vehi-
cle's systems
